Anyone know how to wire an Orange PPC412

  • Thread starter Thread starter savant421
  • Start date Start date
savant421

savant421

Well-known member
Just replaced all 4 speakers and need to know how to get it back to 16 ohms with 4 16 ohm speakers. Orange has the 2 jacks with 4 sets of leads coming off the right jack and 2 leads going from the right jack to the left jack. Looked online but didn't see anything. TYIA

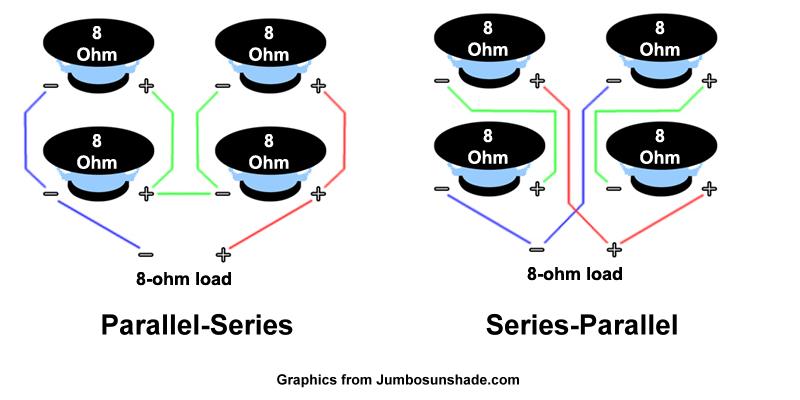

Yeah. I would wire them in parallel series or series parallel; but change it to mono.


Attachments

  • both.jpg
    32.9 KB · Views: 517
  • both.jpg
    32.9 KB · Views: 193

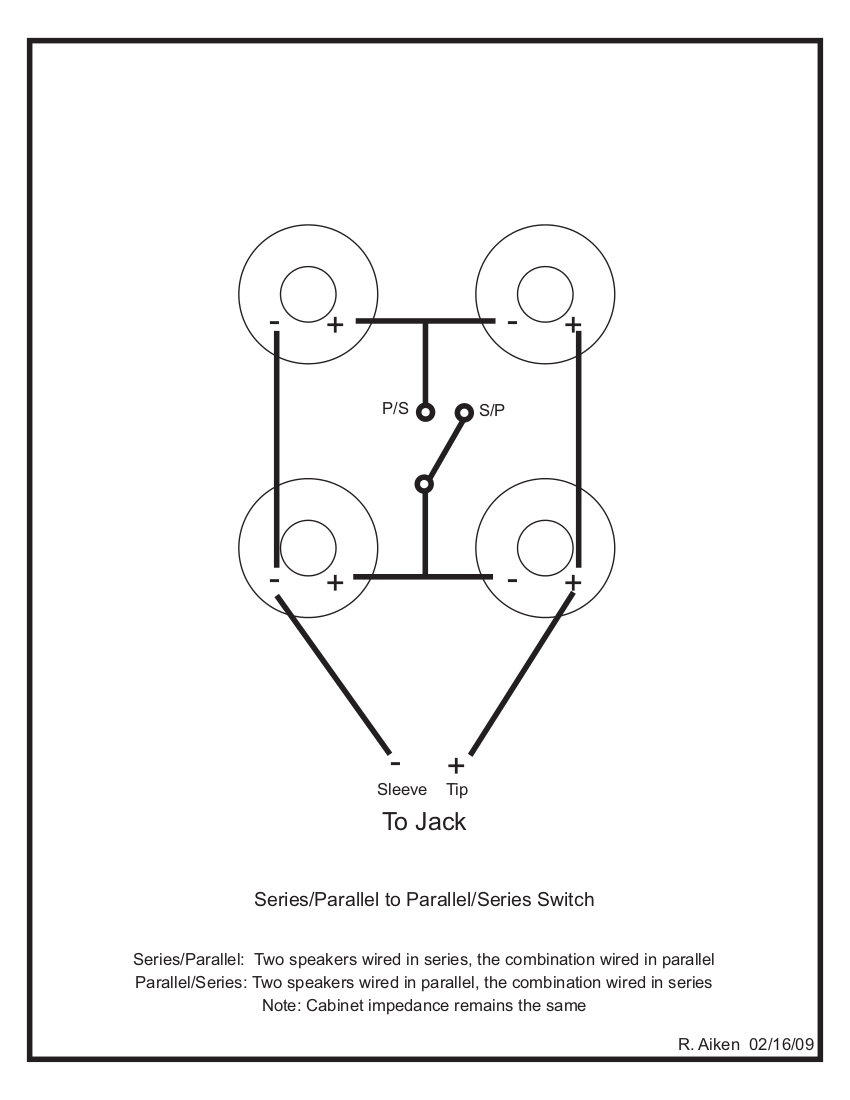

Always a good mod. Rewired three Marshal cabs to series/parallel and one switchcraft jack to the delight of their owners. Adding a switch Aiken style is great to go back and forth from s/p-p/s. It’s cheap, easy, and fills the empty hole!
