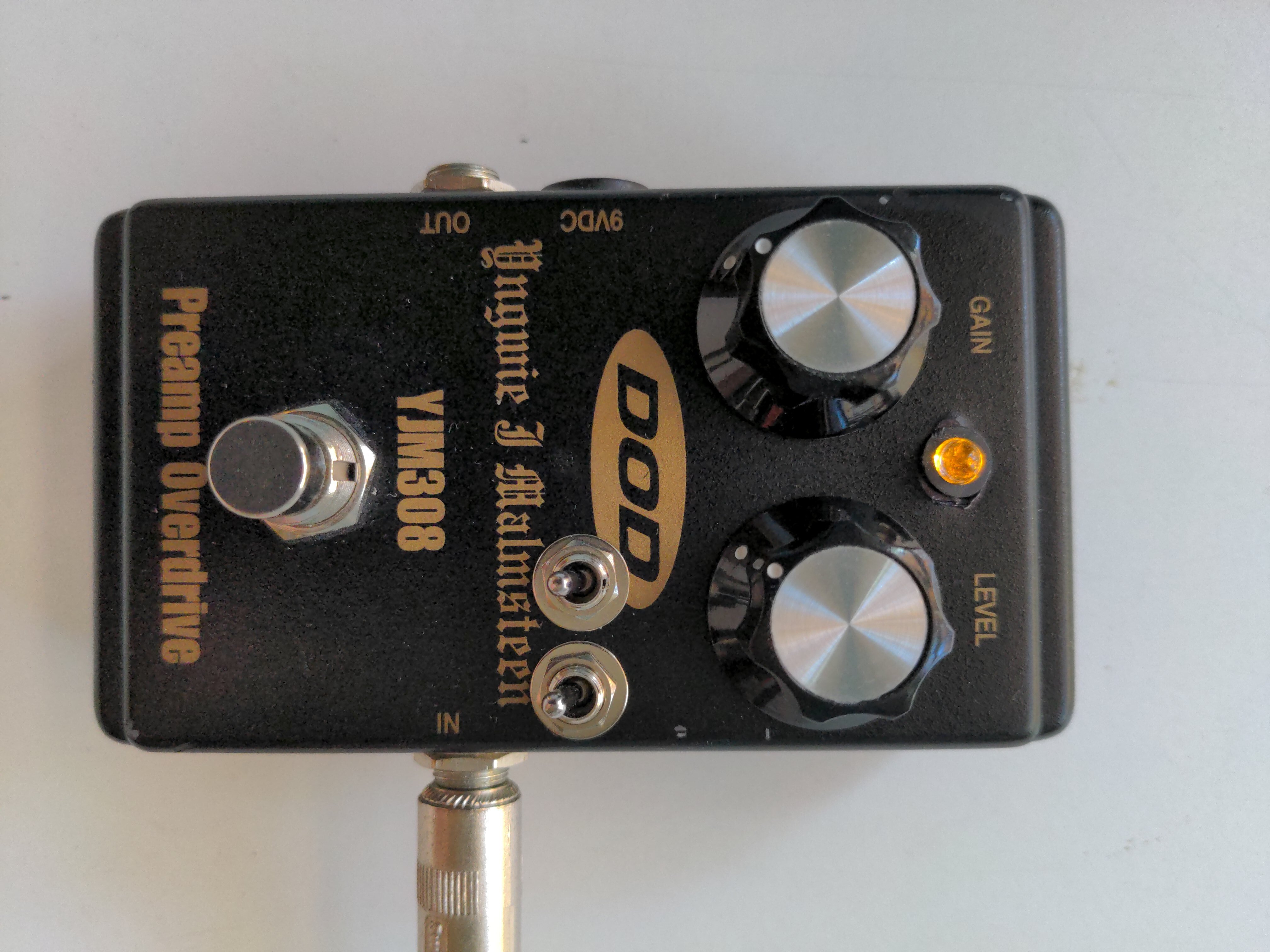

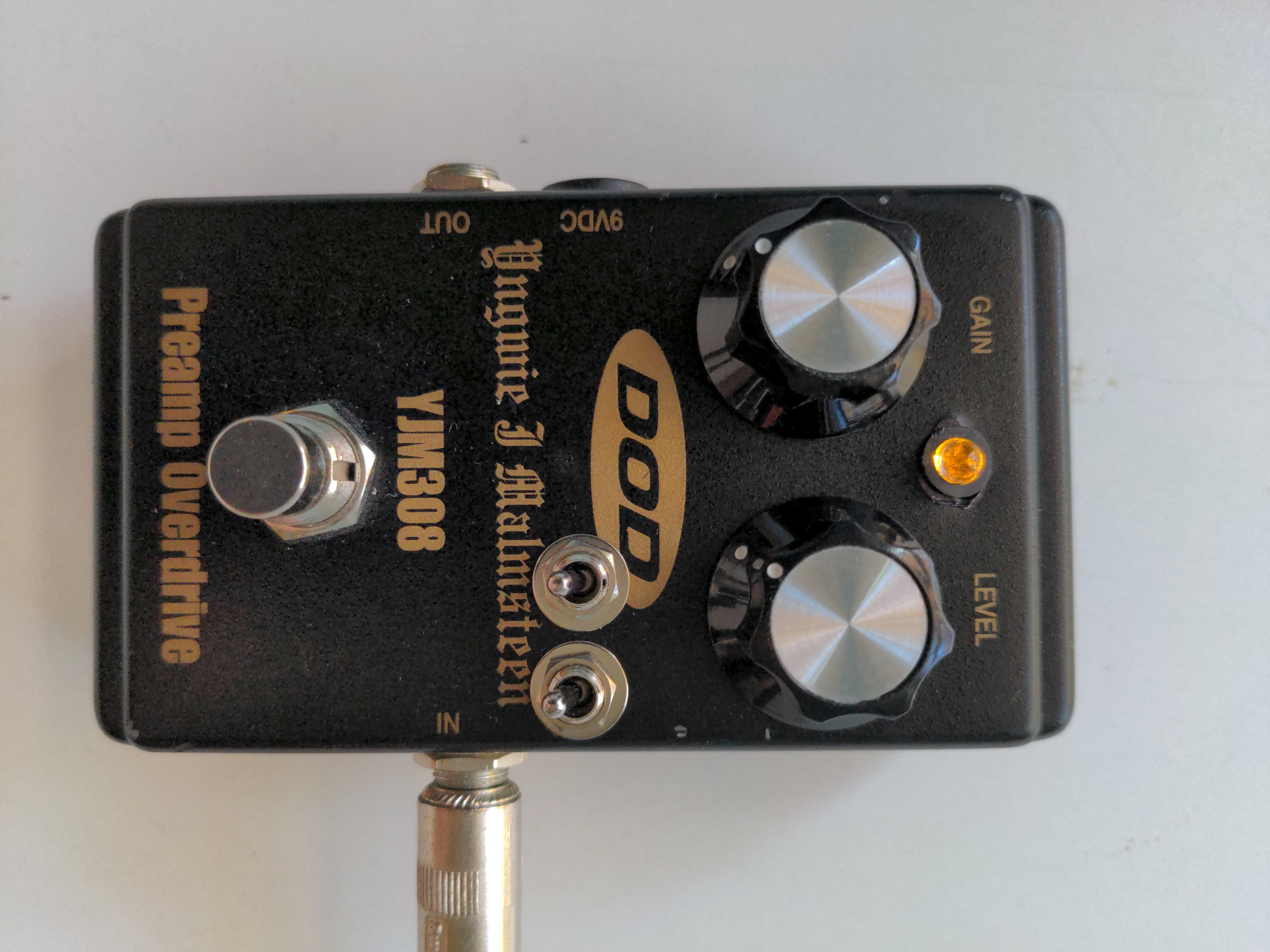

DOD YJM 308 Yngwie overdrive pedal from the 1990s/2000s, with lots of mods.

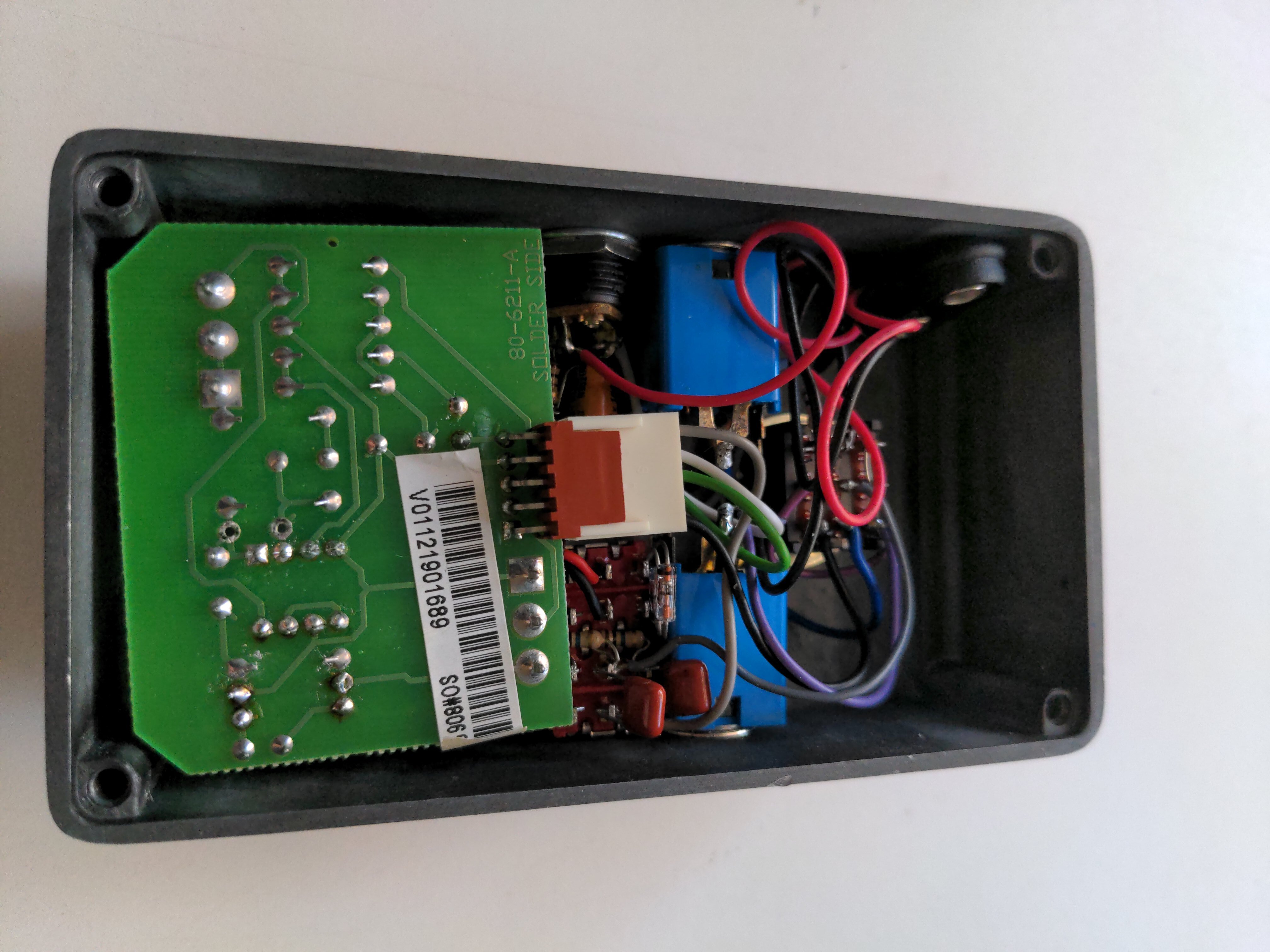

This circuit is almost identical to the DOD 250 overdrive. (These YJM pedals used the same circuit board as the 90s/00s DOD 250 reissue.)
This one has modern updates and mods to make it even closer to the vintage DOD 250:

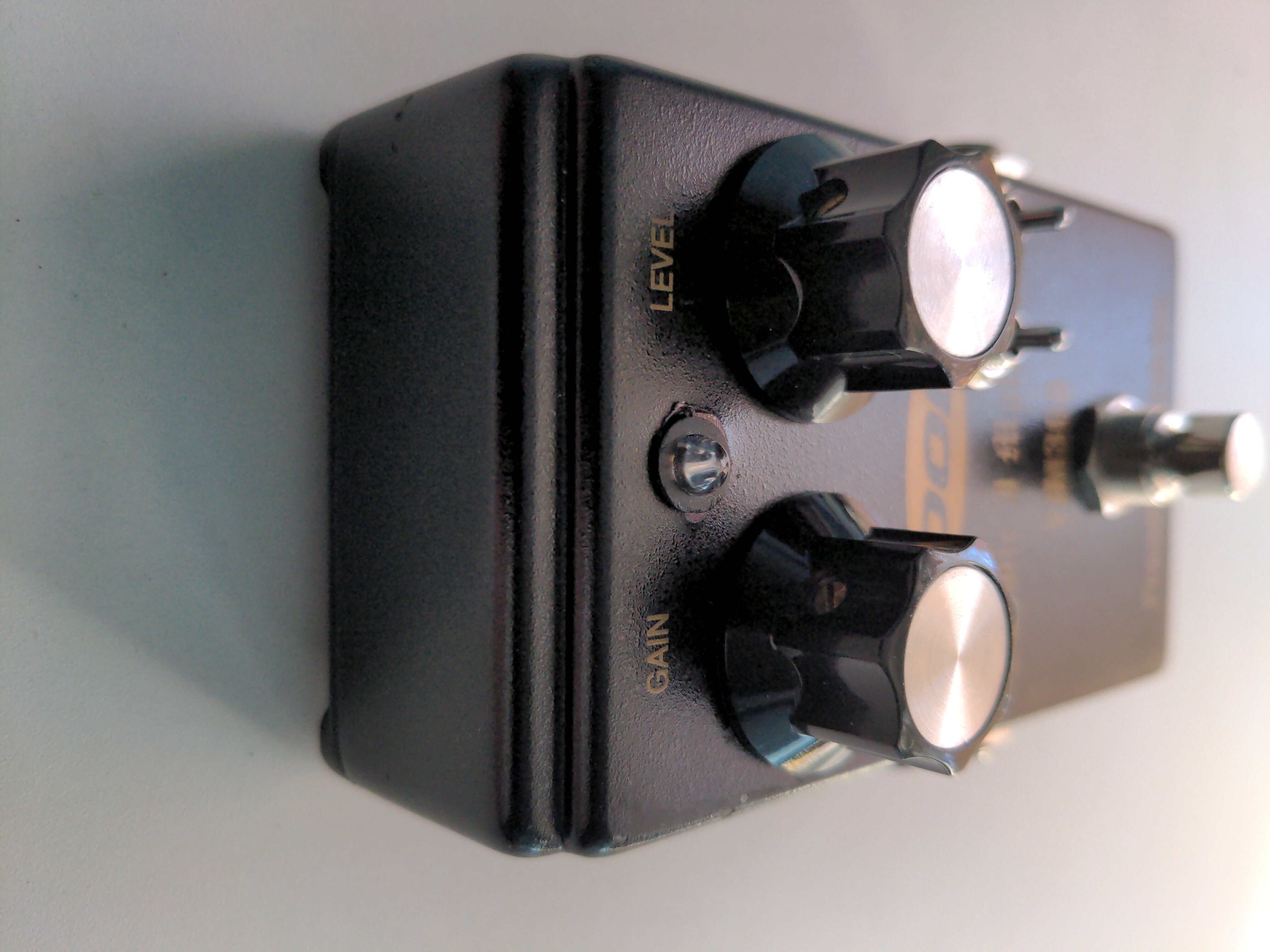

-on/off LED added (yellow)
-footswitch replaced with a true bypass switch

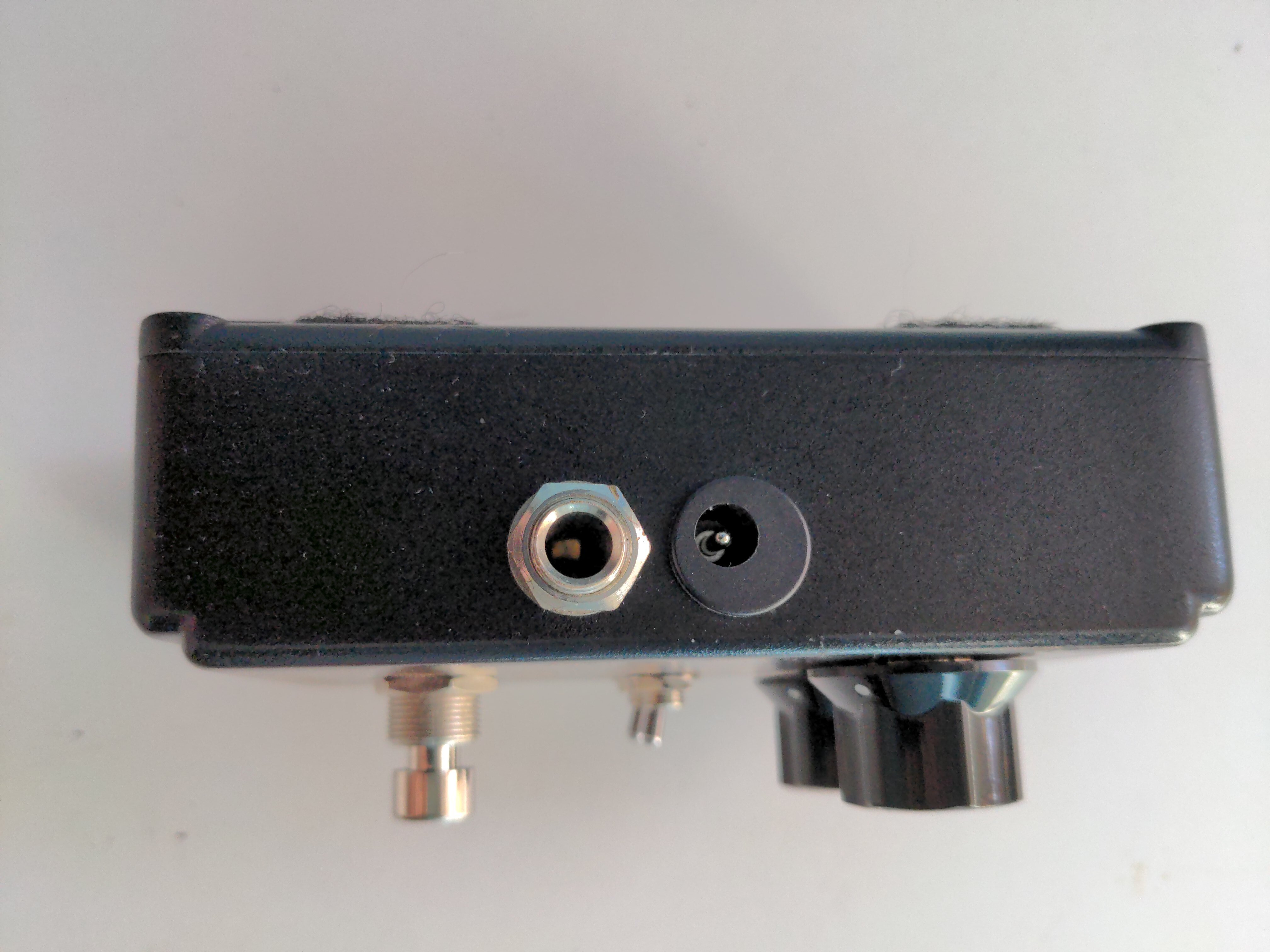

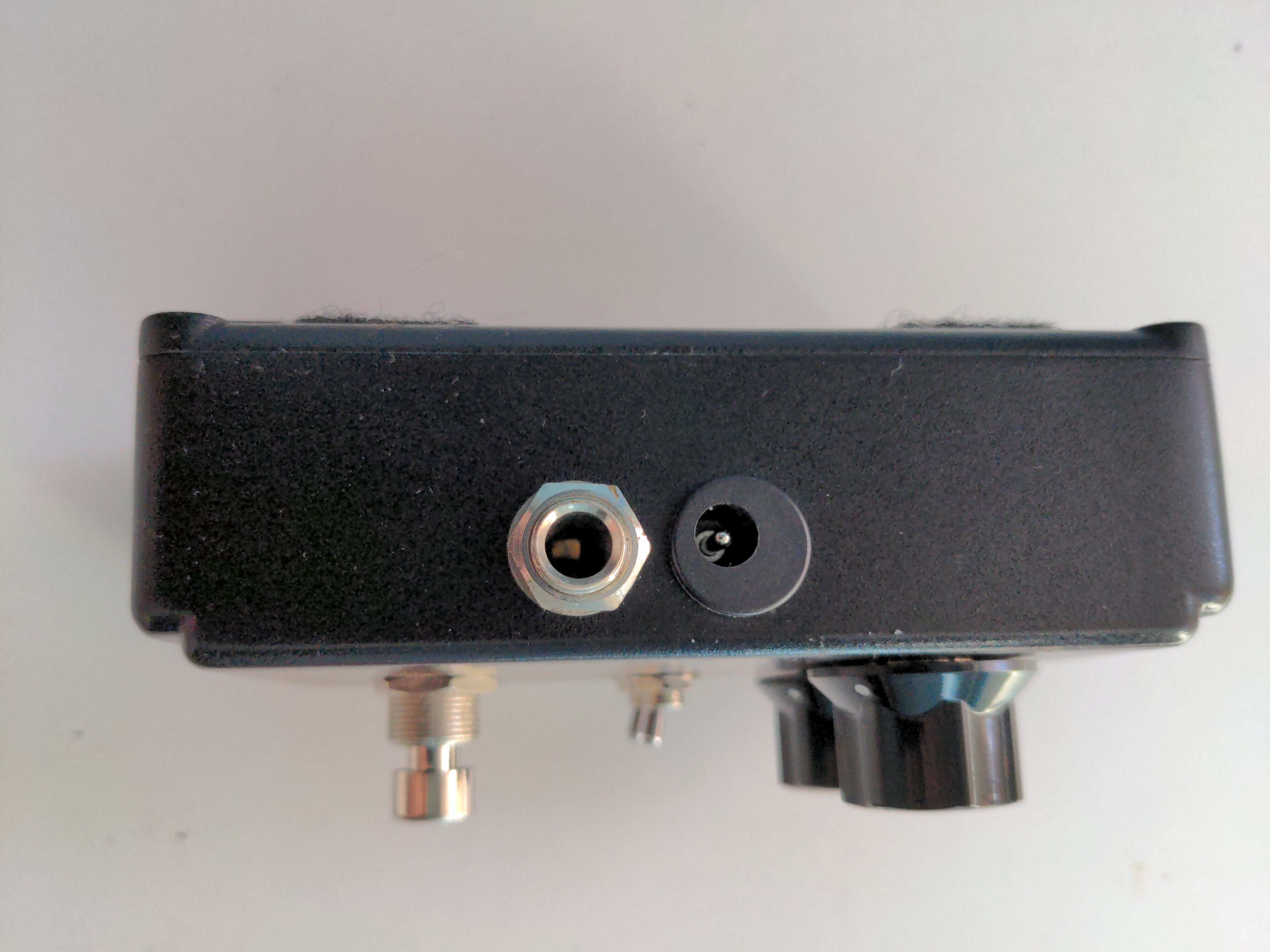

-power jack replaced with a Boss-style barrel jack, with filtering circuitry for lower noise

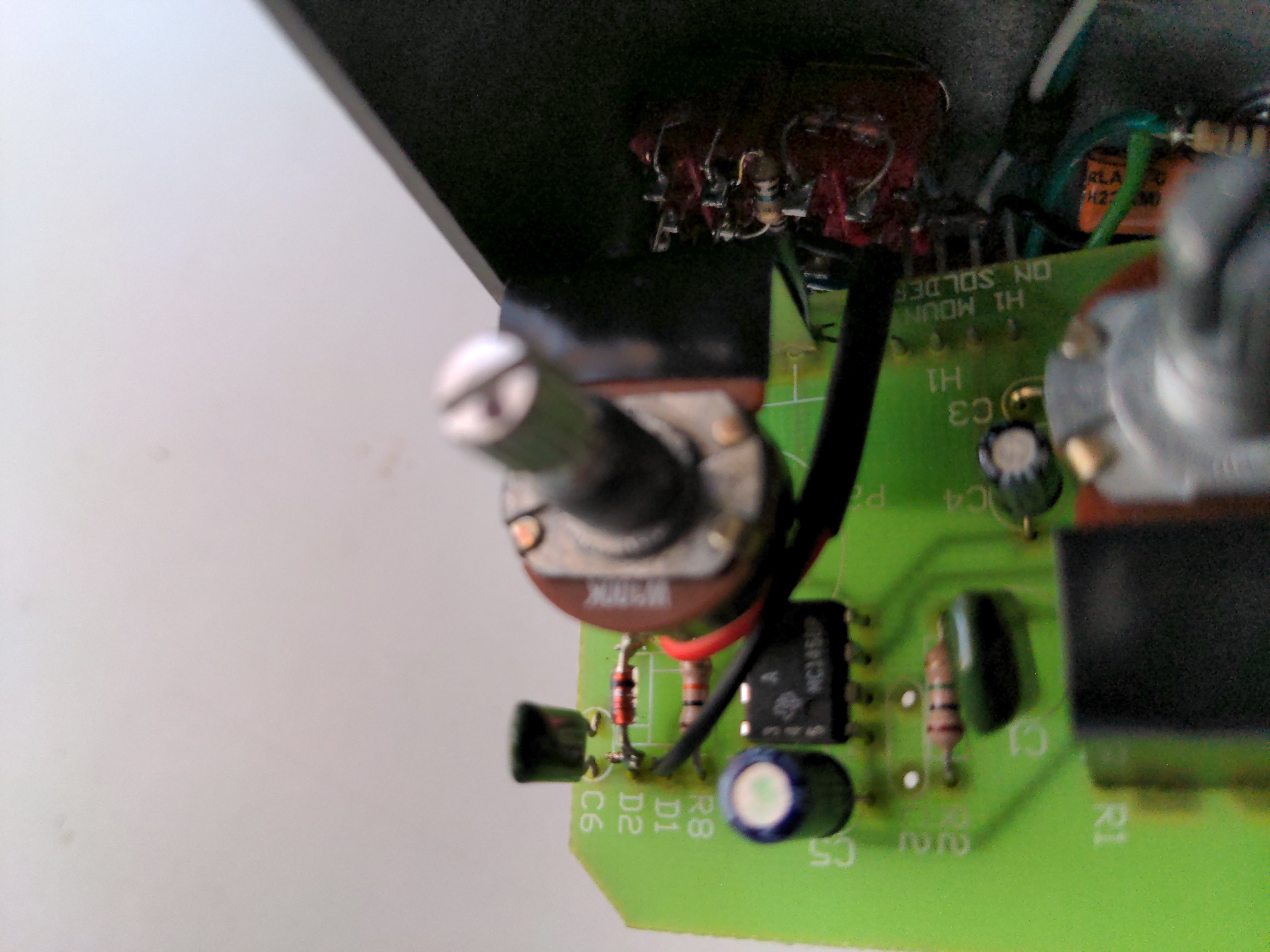

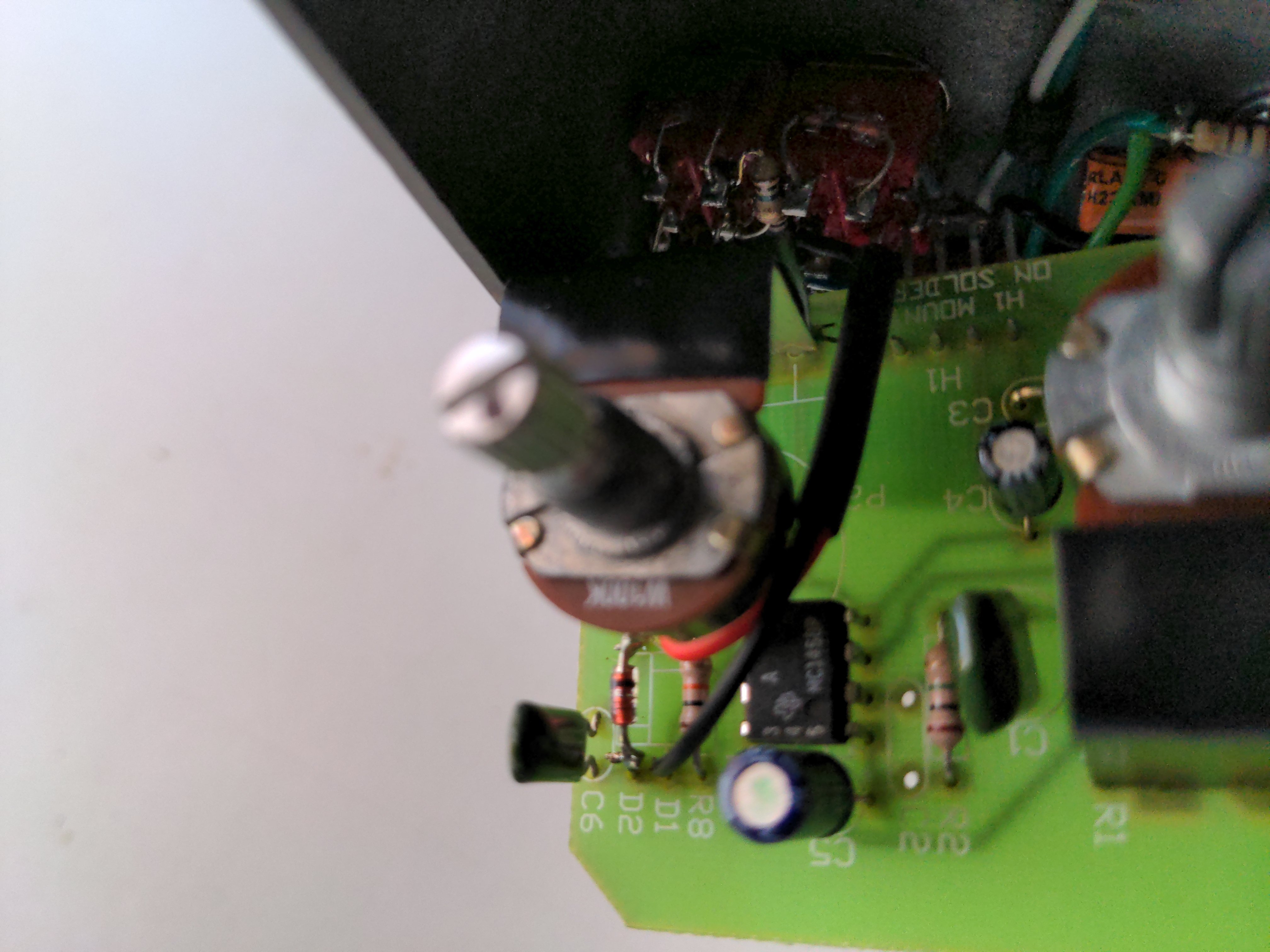

-op-amp replaced with a NOS MC1458 (dual version of the LM741 in 70s/80s gray DOD 250)
-low-end switch added, with the stock YJM value input cap (tighter/less low end) plus a slightly different value (a bit more lows) and the value from the 70s/80s gray DOD 250 (lots more lows)
-clipping diodes switch added, with the stock Si diodes, a pair of NOS Germanium diodes (like in the MXR Distortion +), and a single NOS Germanium diode (like in the Kowloon Walled Bunny overdrive).

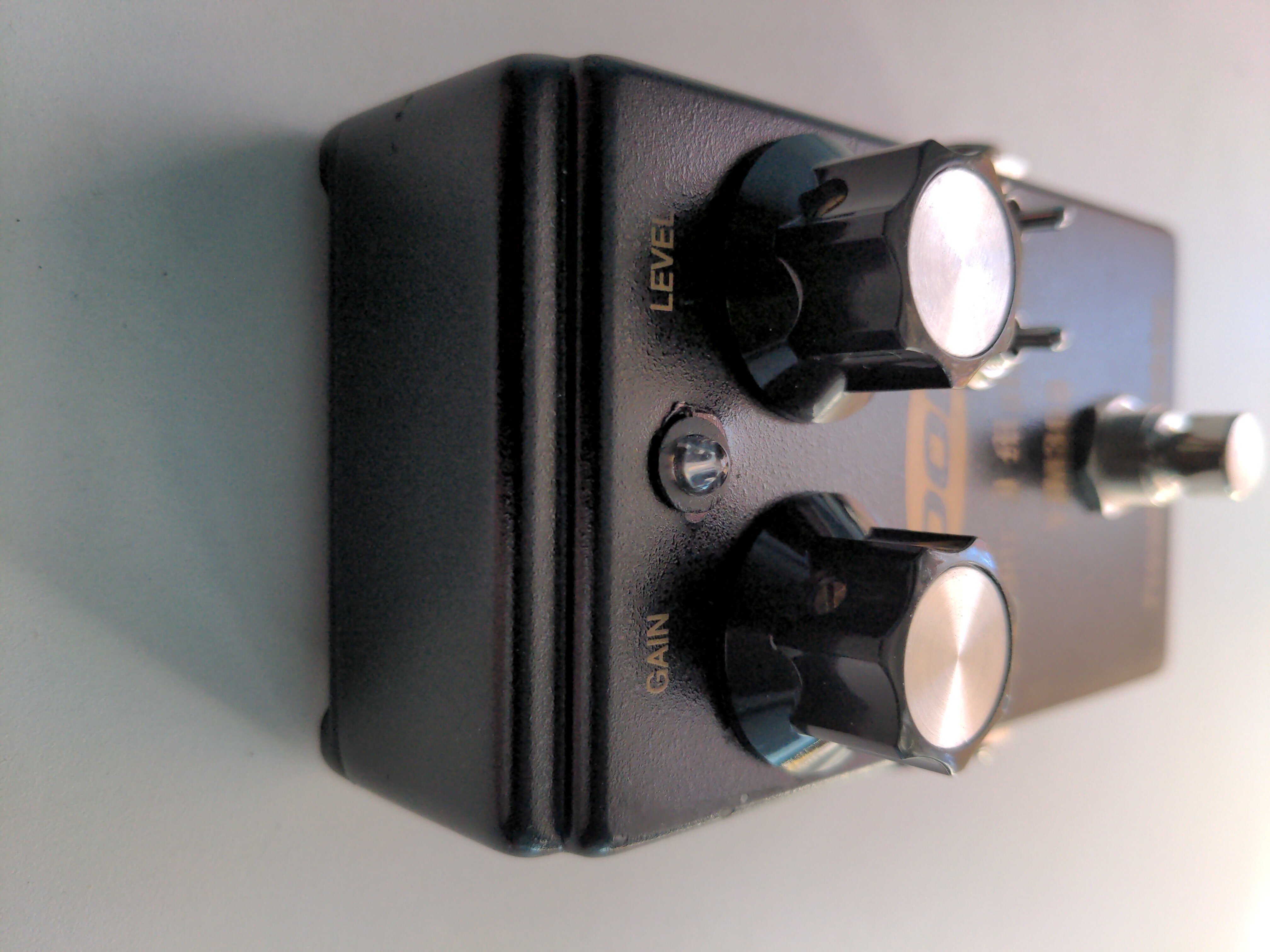

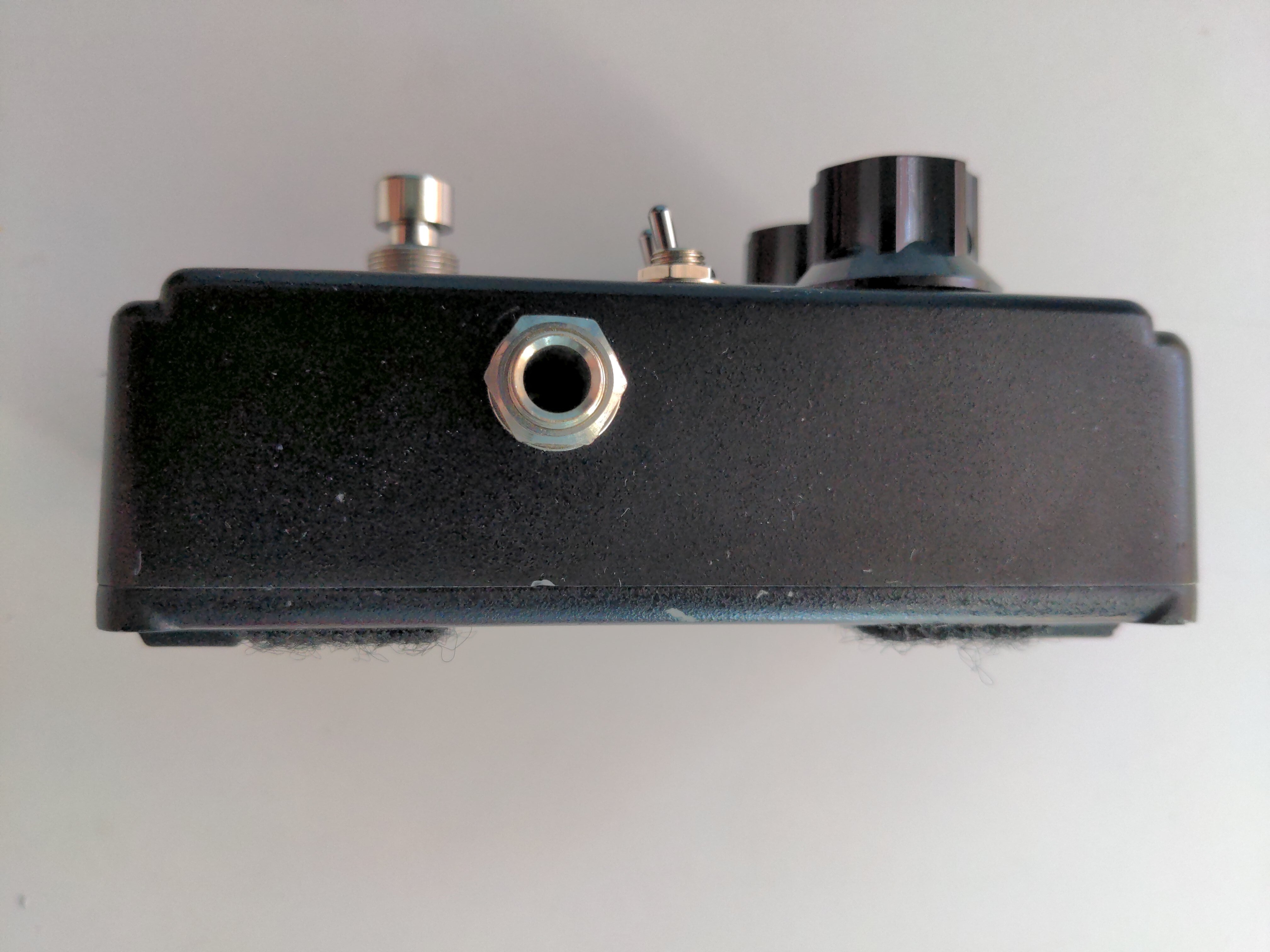

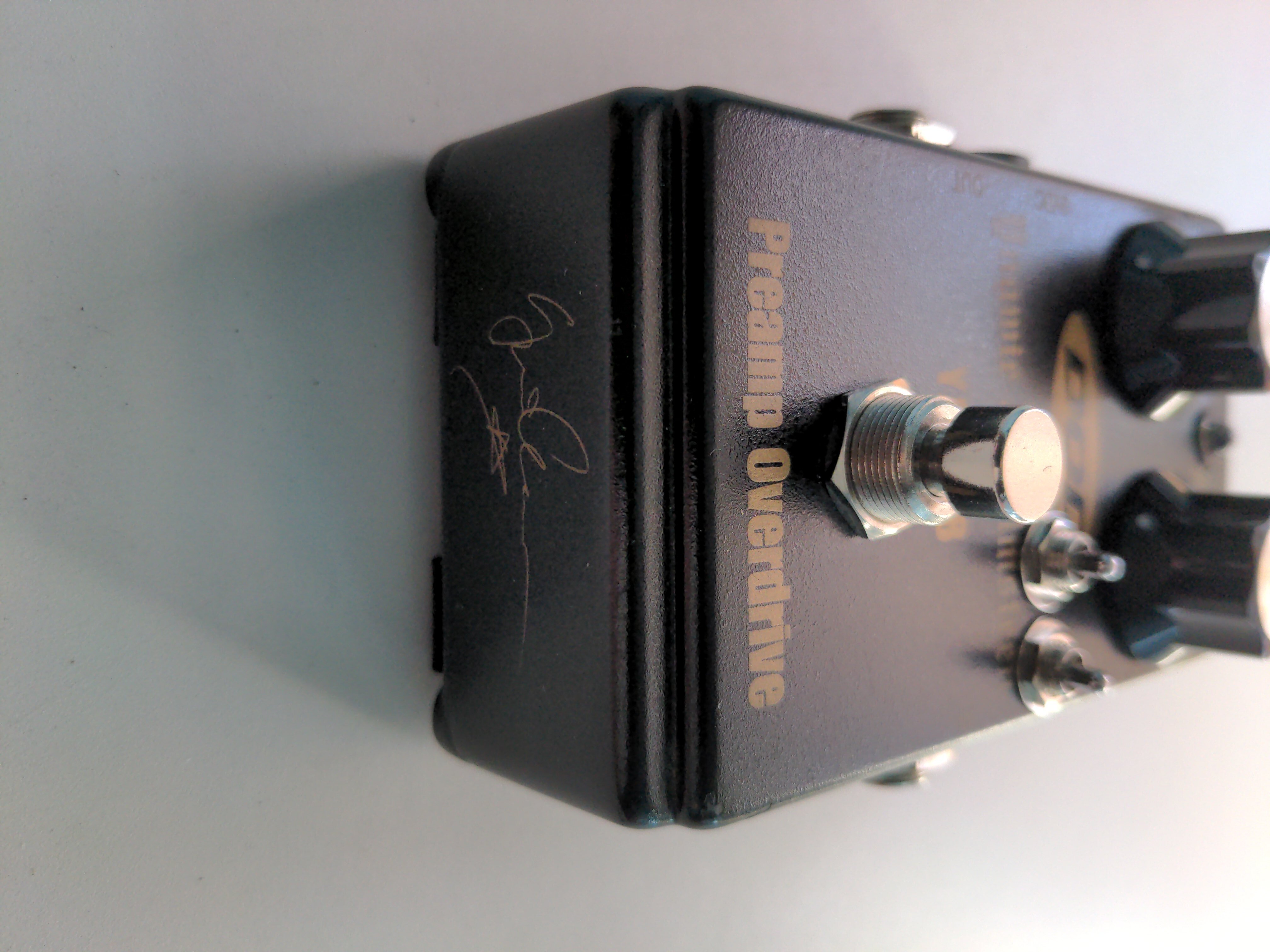

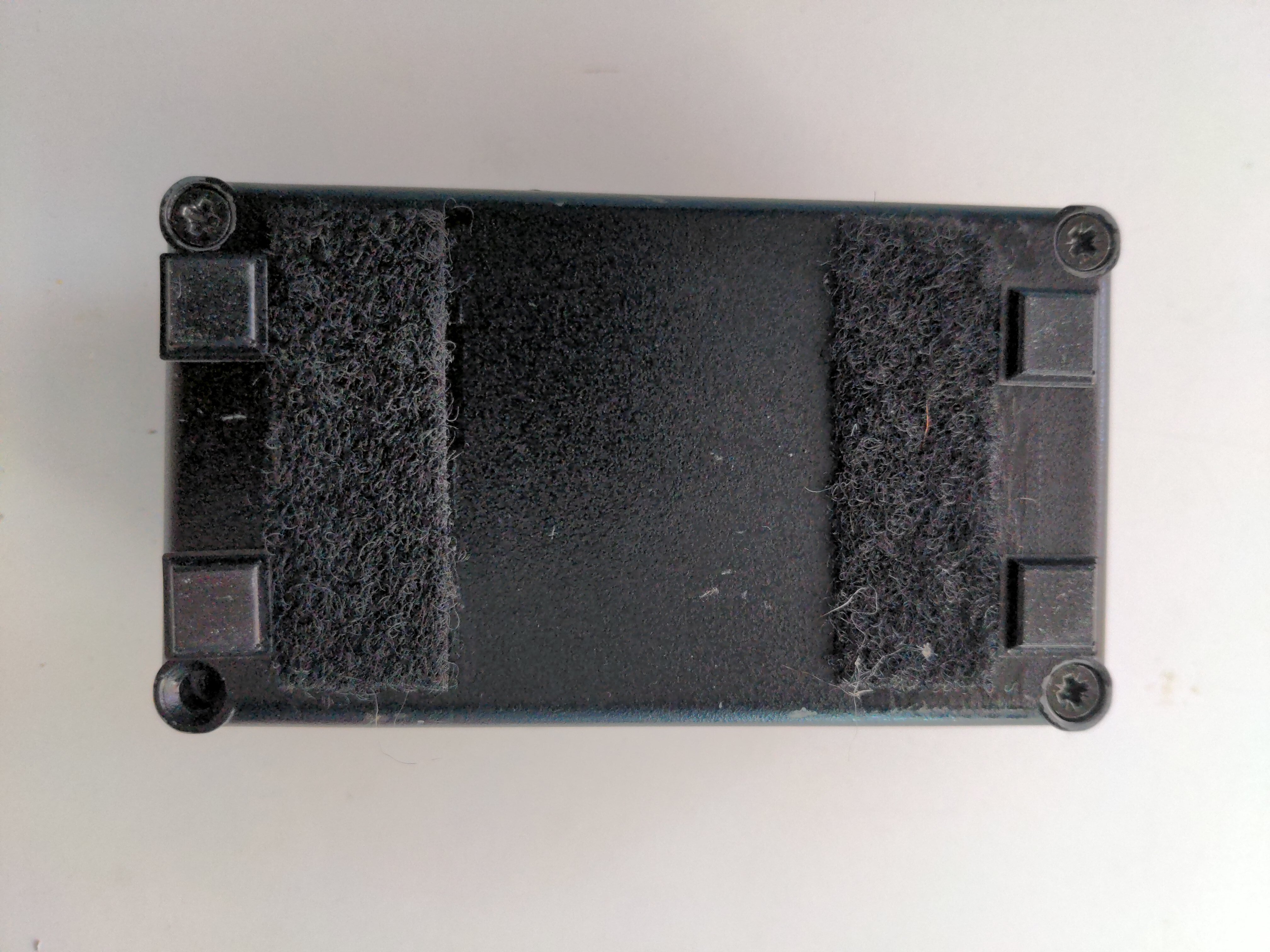

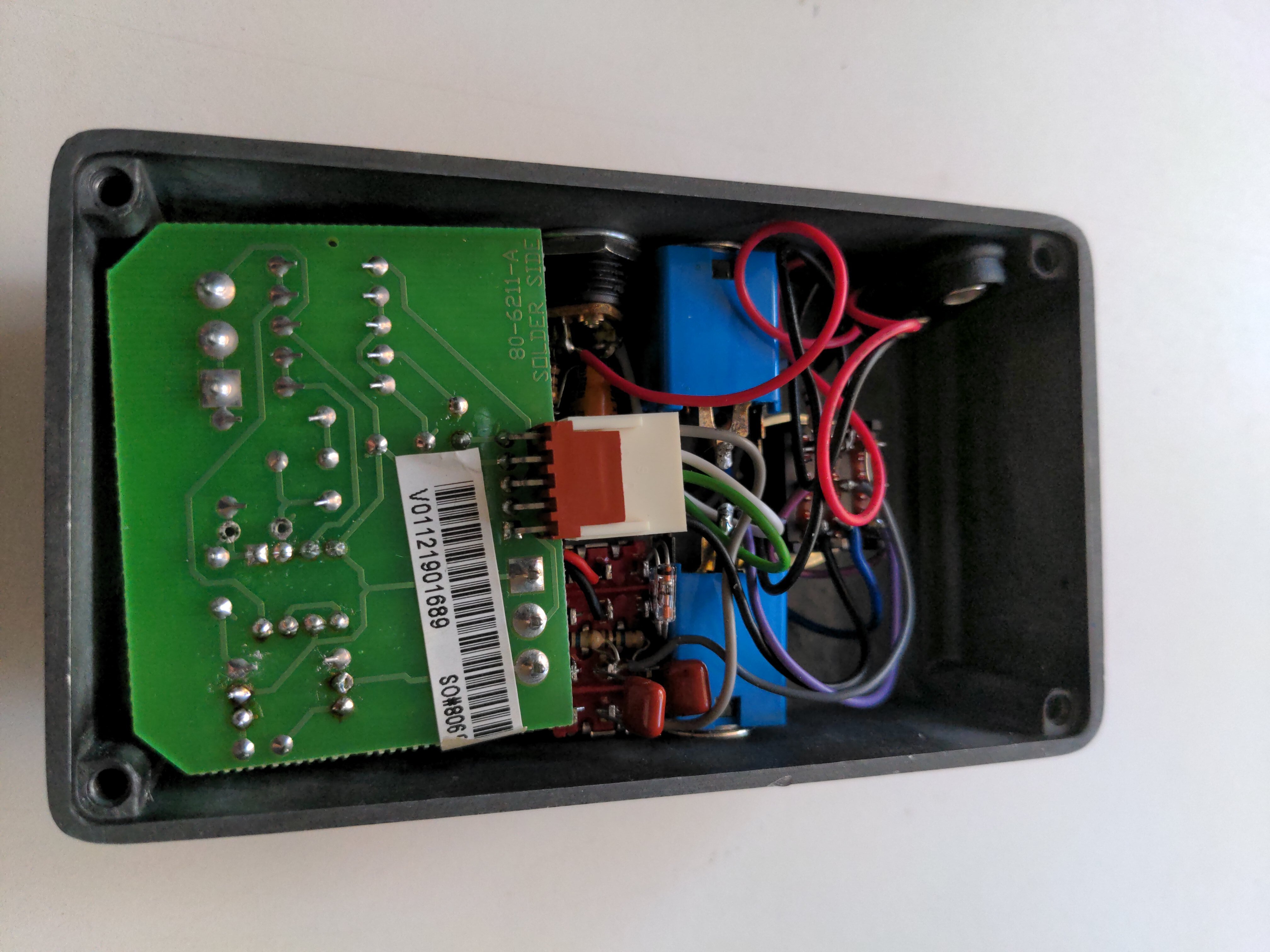

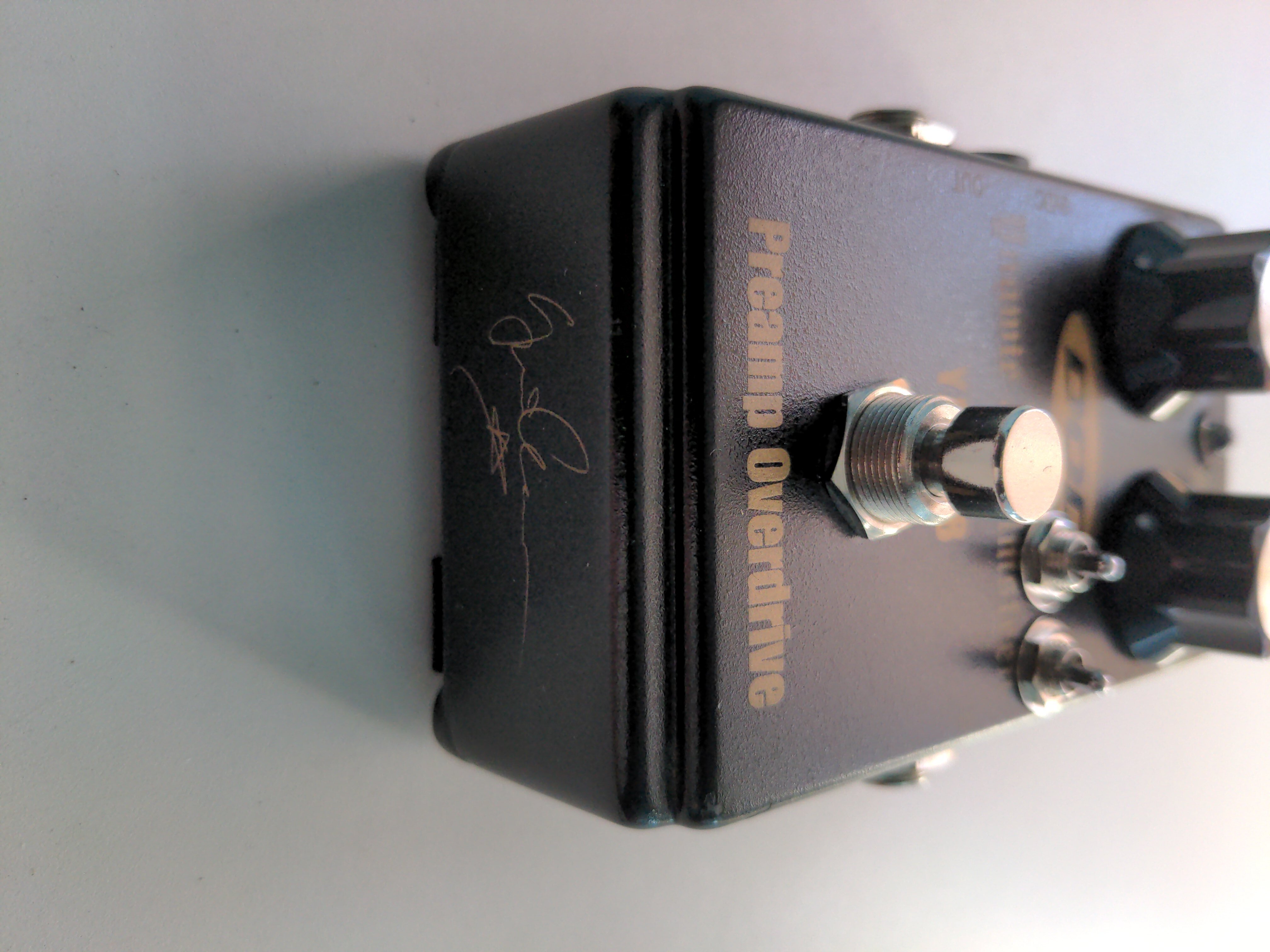

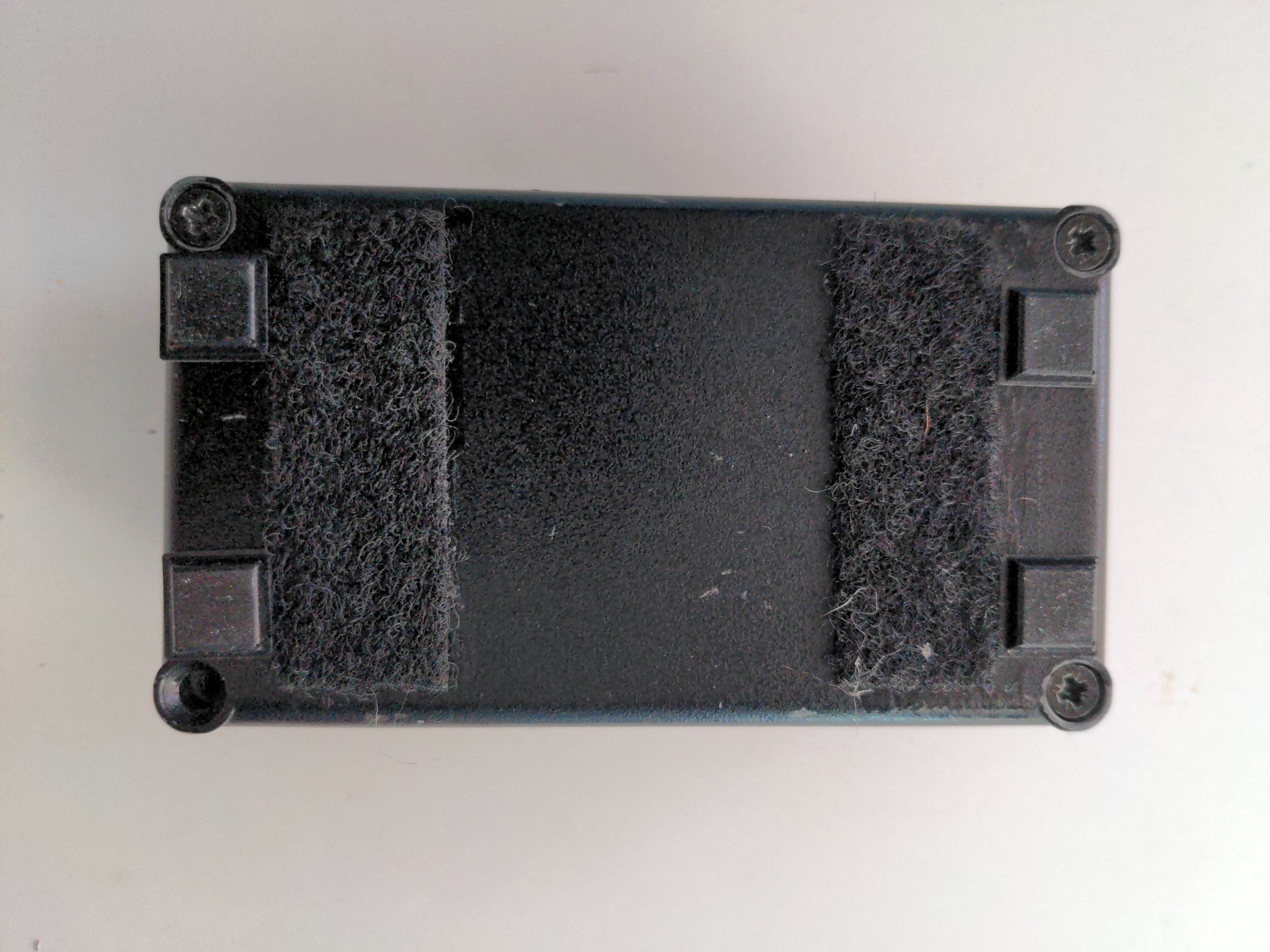

In good cosmetic condition--see pics. Some scuffs and chips in the paint; a slight bulge in the casing around the LED. Velcro and rubber feet on the bottom; only three screws on the bottom plate. In great working condition--works great.
$125 shipped by Paypal gift/F&F.
