Help me wire up this Fuzz circuit

  • Thread starter Thread starter psychodave
  • Start date Start date
P

psychodave

Well-known member

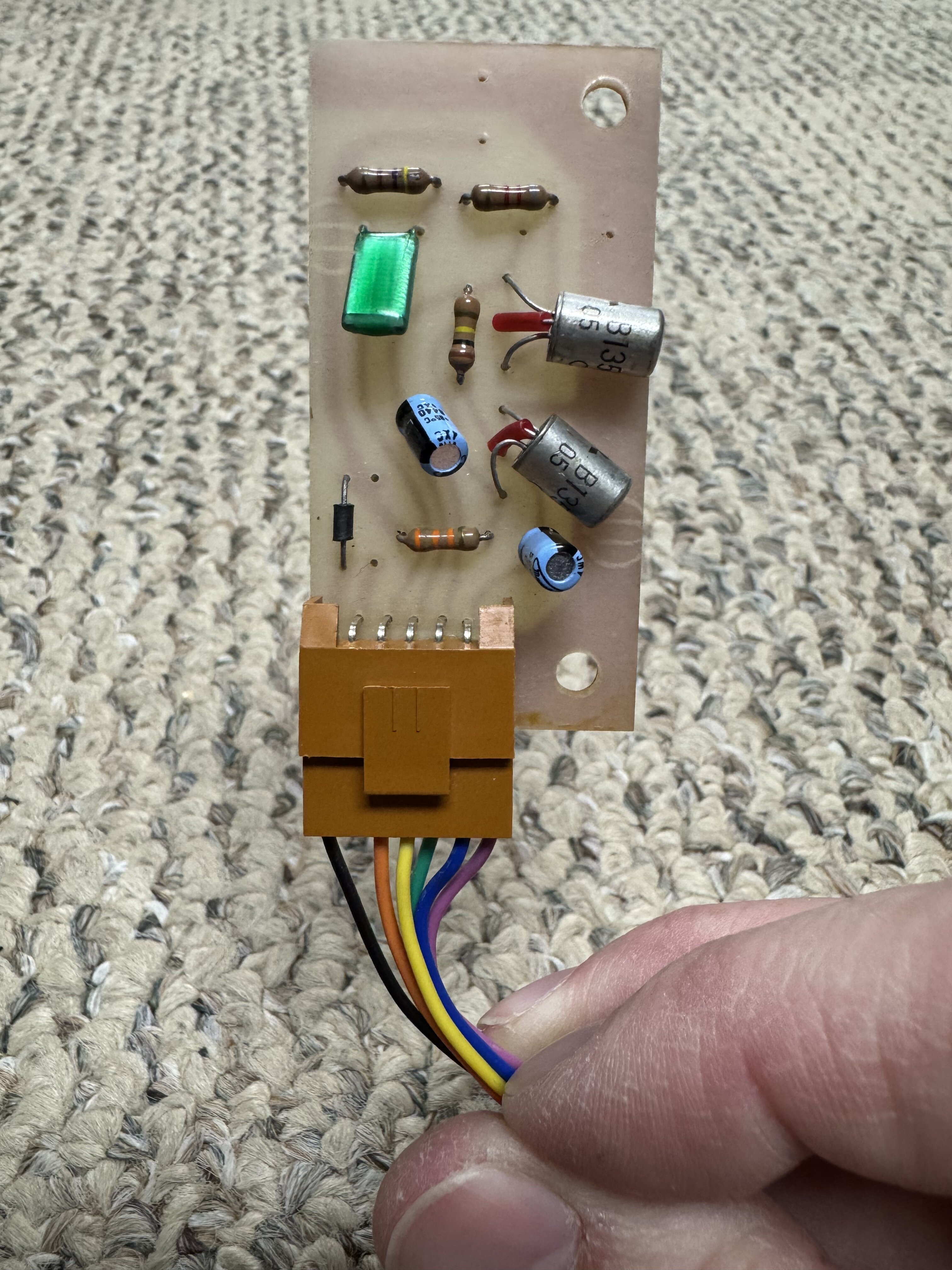

I was looking through some parts I had and found this Fuzz circuit. A friend gave it to me 35 years ago. I was trying to decipher it and figured I would ask here. How would I connect it up to pots and jacks?

Upper left blue cap is 22uf. Lower right is 2.2uf. Green cap is 103k. Transistors are both B135D with a Mitsubishi symbol.

If it is a shit circuit and not worth the time feel free to say it. 🤣

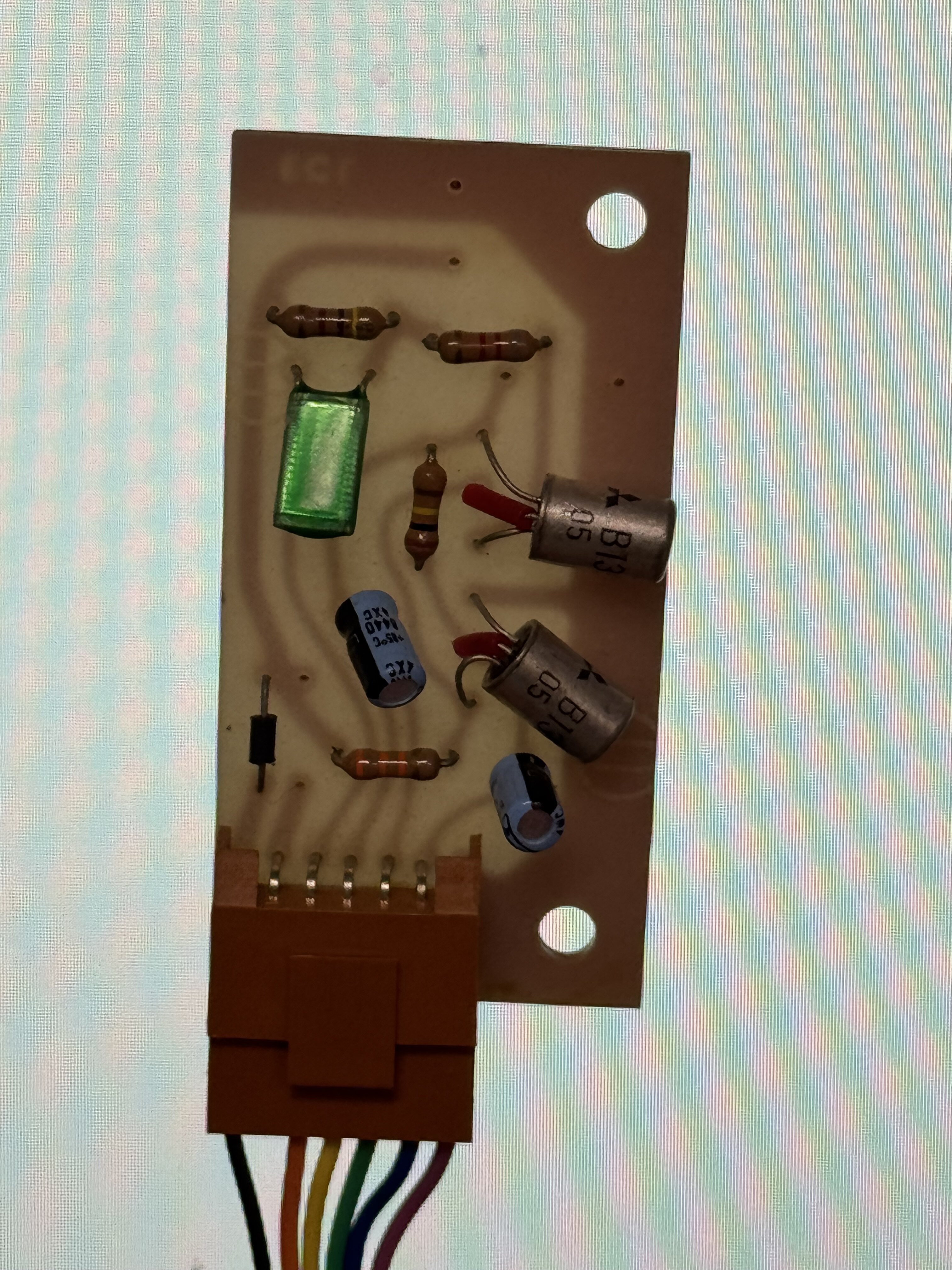

Here is a back lit pic to show the traces better.

35 years ago??
VINTAGE!

Welp, 6 leads.. power and ground, and input and output jacks..
I'd set to continuity and find the 3 wires that are negative/ground
Then the other 3 are +, input and output.

Maybe you got a good one..

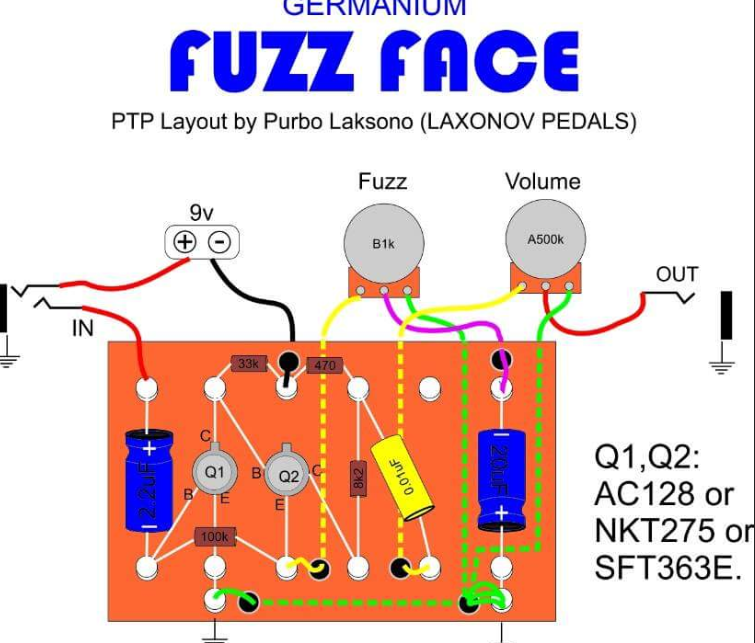

Eric Johnson apparently went thru a pile of Fuzz Faces to get the one..
