Latest PedalBoard Pics.......

[singlecutkiller]

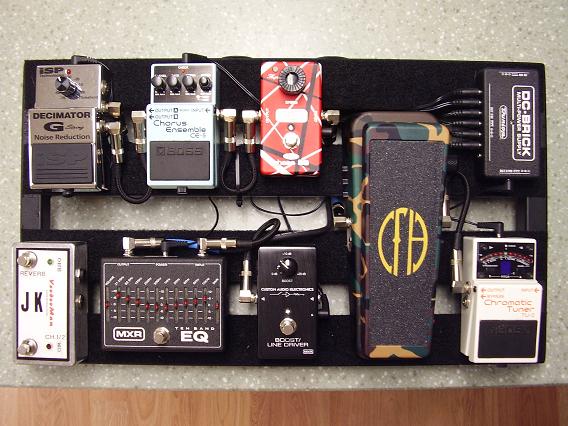

Front of Amp loop goes:
Line 6 XDS Plus Wireless into Boss TUner into Dunlop Crybaby From Hell into 1st in and out of ISP Decimator to front of Carvin Legacy Head...

Amp effects loop path goes:
Legacy Effects Send to MXE/CAE Boost into MXR 10 Band Graphic Eq into MXR EVH Phase into Boss Chorus Ensemble into 2nd in and out of ISP Decimator back to Legacy Effects return..

Woot Woot........



[Code001]

Looks great. No noise from the brick?



[singlecutkiller]

Nope, its pretty dang quiet Code......... I run my Legacy pretty hot gain wise so the Decimator got rid of all my noise..... Where in south florida you at man???? I'm near Sebring.....



[Code001]

Martin County. About 2 hours away from ya.



[The Hoff]

Very nice sir!



[Erock]

very nice man, wish I could get mine as neat looking.

How did you secure that wah btw? I have the same one, with the same type of board, and when I take the rubber feet off, the screws are too long.



[singlecutkiller]

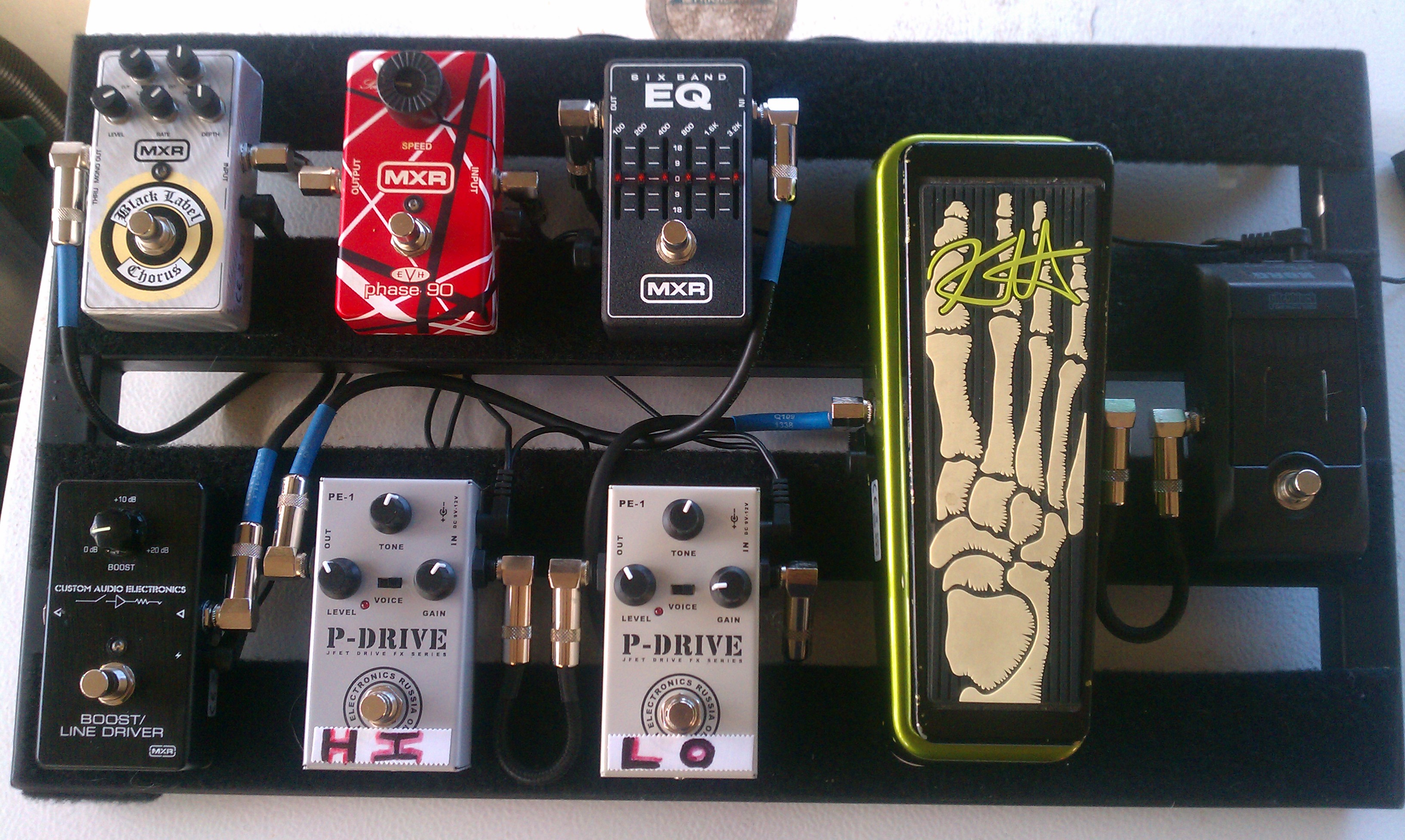

Changed AMps and PEdal set up....

Much less complex..... Peavey Classic 50 Head (in Black Tweed) pushing EVH 5150 III 4X12 Cabinet and EVH 5150 III 2X12 cabinet.

Guitar to pedal board to front of amp..... AMp set Loud and CLean...



[jlbaxe]

Nice



[xXDaveyJonesXx]

Very inspiring set ups, guys. I need to get something together and I could rock something like these.



[RG955TT]

Congrats, looks good. New set up too, works great. Still dealing with a little a/c noise but coming together nicely..got a Lava Cable pedalboard snake coming too. Should be cool. Custom Bogner XTC controller.



[NaturalBornBoy]

Nice boards up in here!



[Gutmann]

Didn't change too much lately. I got the dr scientist frazz dazzler and the Visual sound buffer..
The top mounted Jackson are for the amp loop.

Absolutely no need for further changes..



[Metalplums]

Awesome setups guys, makes my board look like it was ran over by a truck!



[Reiep]

I love the symmetry



[blackba]

Changed AMps and PEdal set up....

Much less complex..... Peavey Classic 50 Head (in Black Tweed) pushing EVH 5150 III 4X12 Cabinet and EVH 5150 III 2X12 cabinet.

Guitar to pedal board to front of amp..... AMp set Loud and CLean...

What is the story on those P-drive pedals? How are you liking them?

Are you using the gain channel on the peavey at all?



[base341]

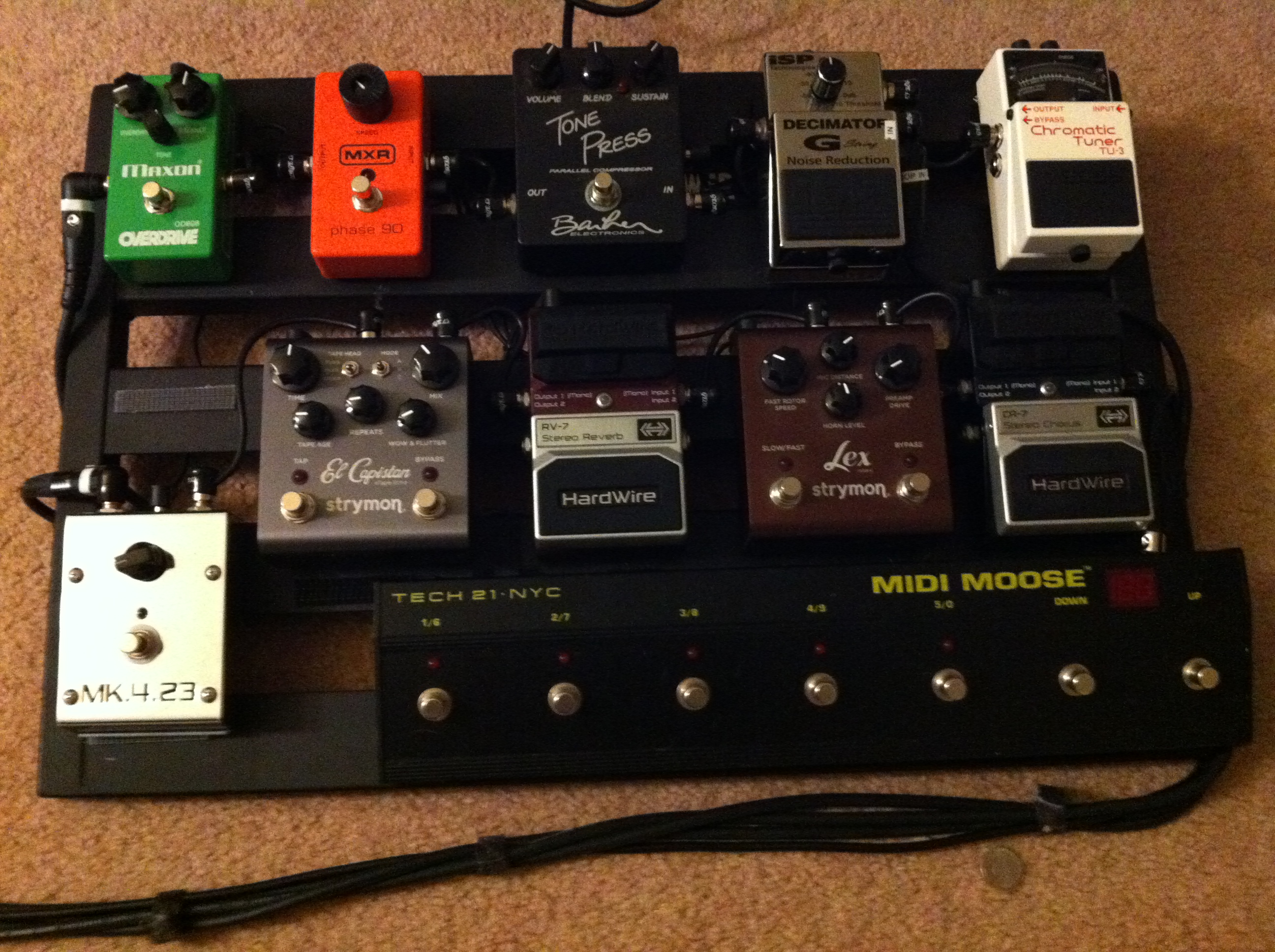

Here's my latest..
I'm pretty happy with this combo for now..
I'm thinking to get rid of the compressor and get another MK4.23 for in front.
I'm using the one I have now in the loop for solo boost.



[singlecutkiller]

blackba,
no amp gain at all. CLean channel set very clean and LOUD..lol

Those things are the real deal, HUGH range of gain. I love them. Check out the videos on youtube........
they are even better in person.
Joey



[Chadk808]

Daaaaamn!! Legit setups guys!! Gonna start working on a pedalboard for myself here in Maui. Any recommendations for boards, power supplies, etc.?? I'm a noob, so any advice is appreciated..



[jcm800x4]

Didn't change too much lately. I got the dr scientist frazz dazzler and the Visual sound buffer..
The top mounted Jackson are for the amp loop.

Absolutely no need for further changes..

Sweet! What cables are you using?



[Gutmann]

Thank you.
All wired up with lava cables.
