New Amp Build

[guitarxtc]

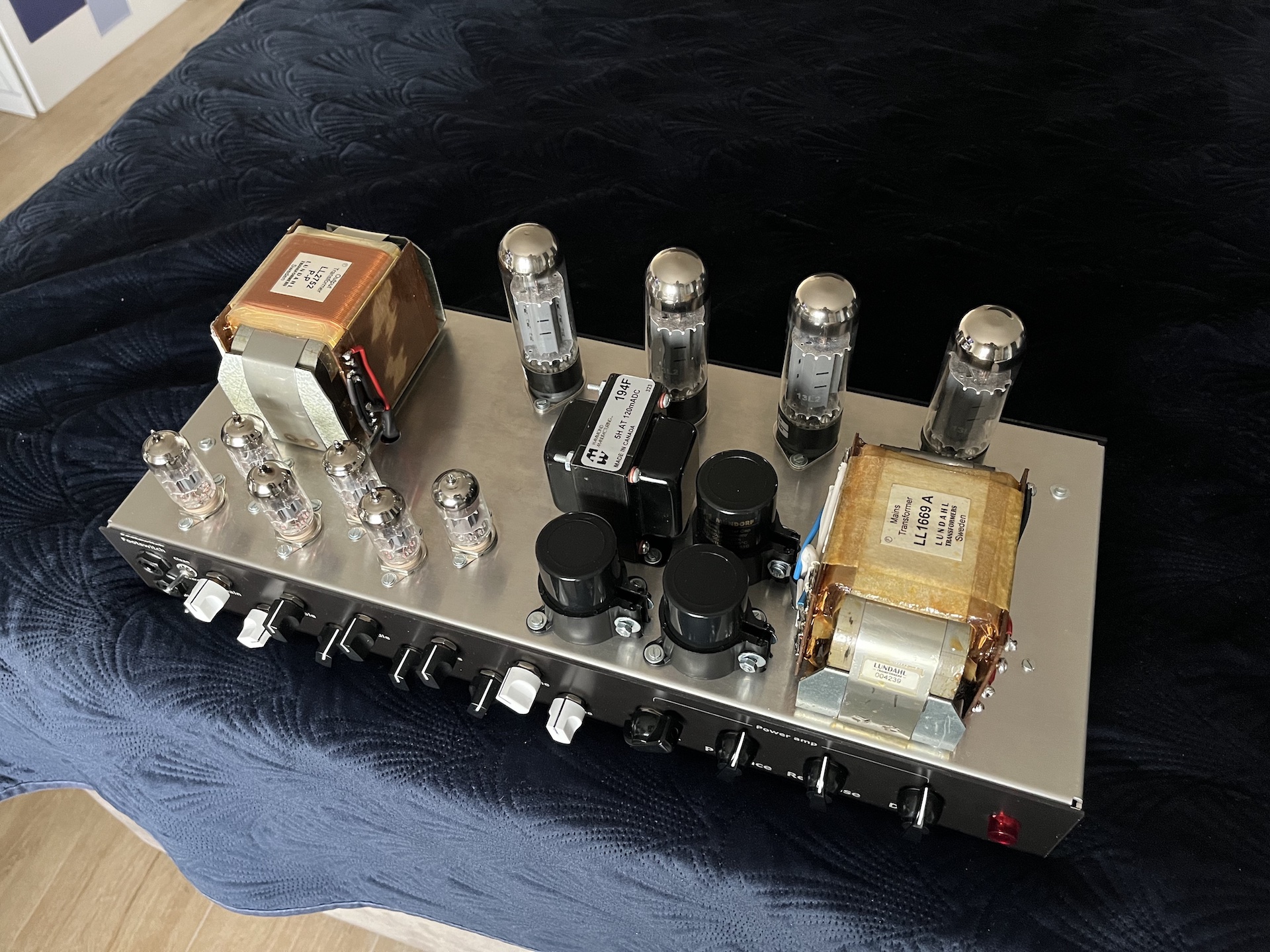

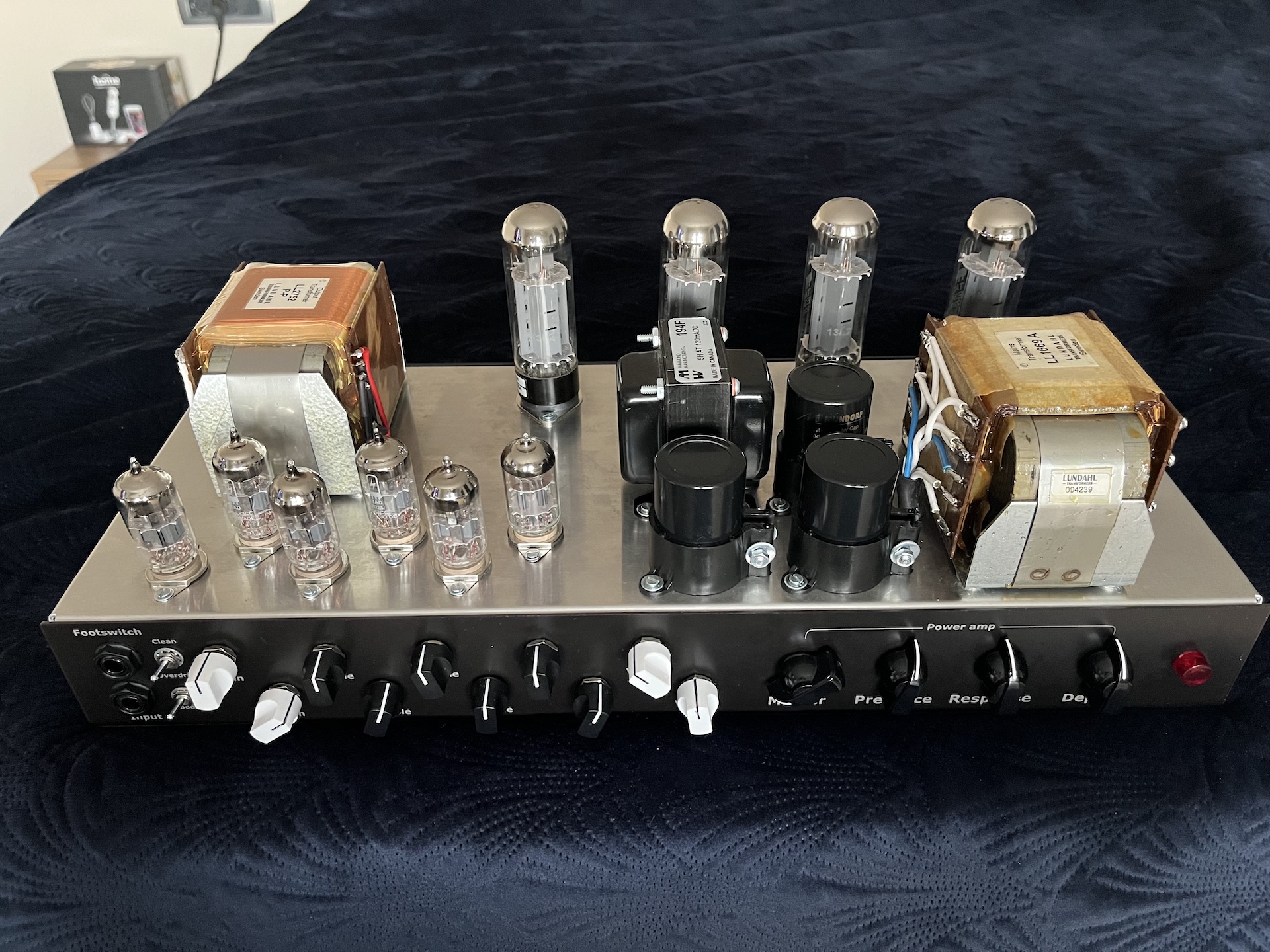

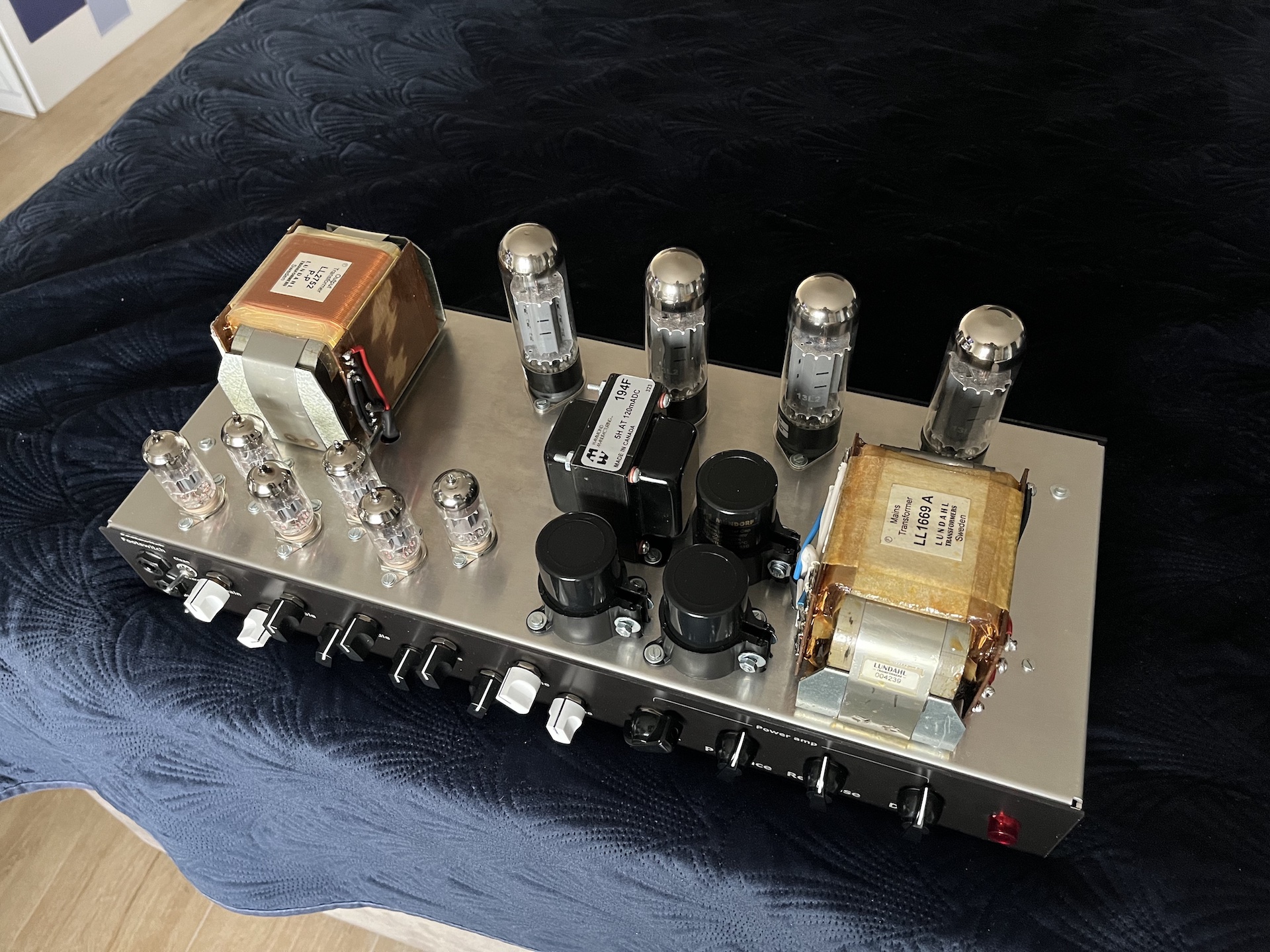

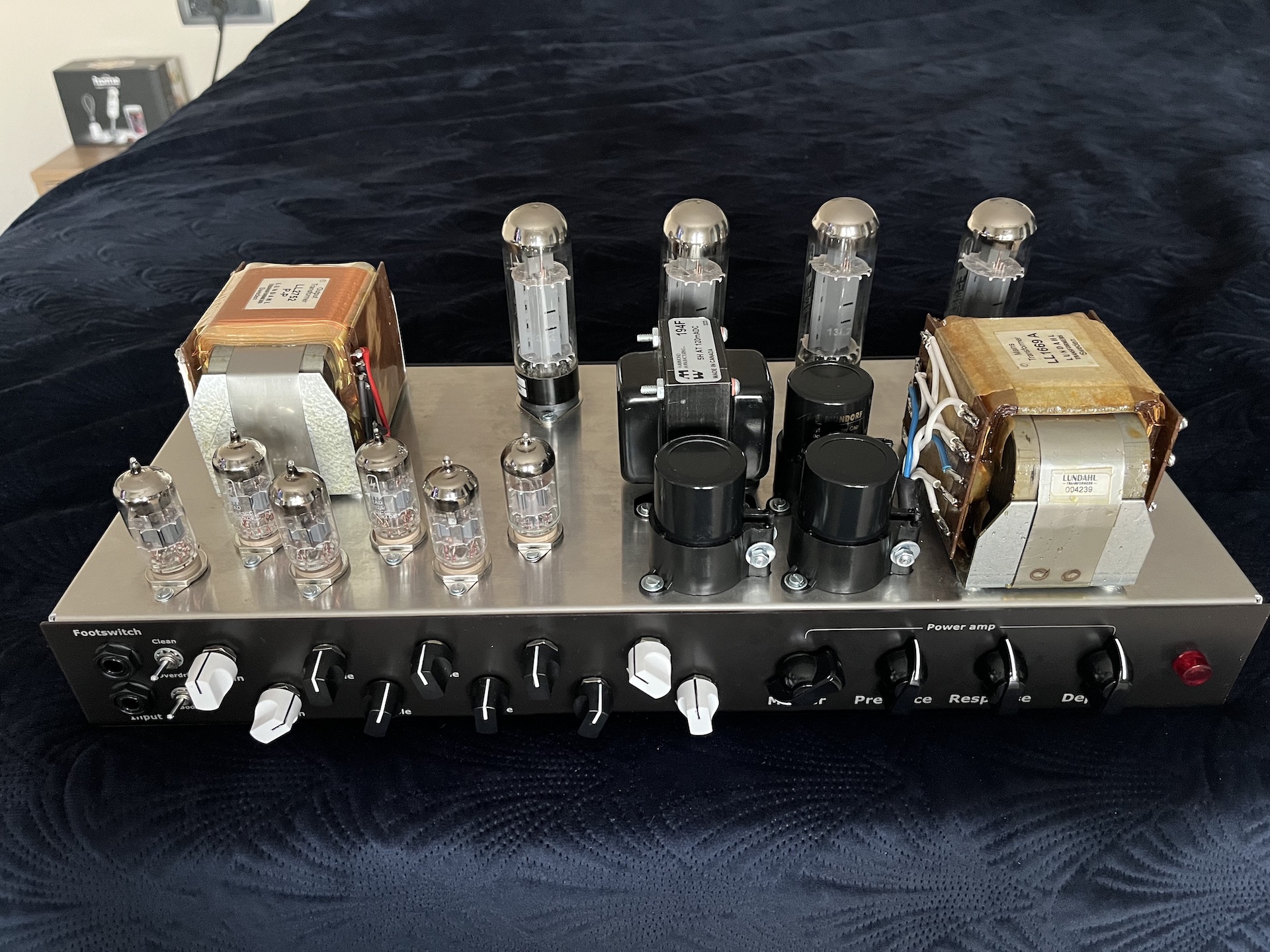

Here is my new amp build : 100w 4xel34,6x12ax7, 3 channel, high end caps,C-core transformers and point to point wiring.

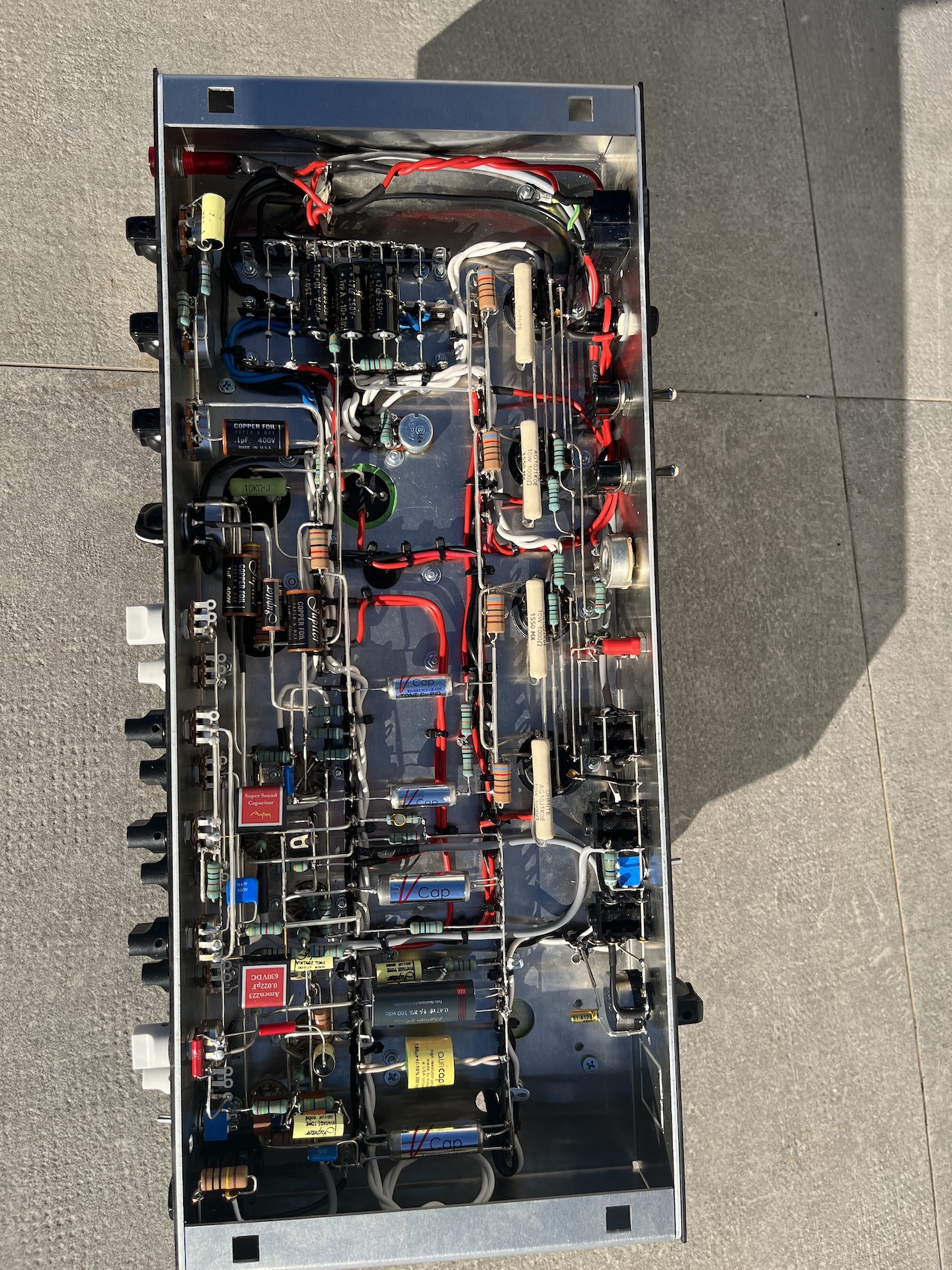

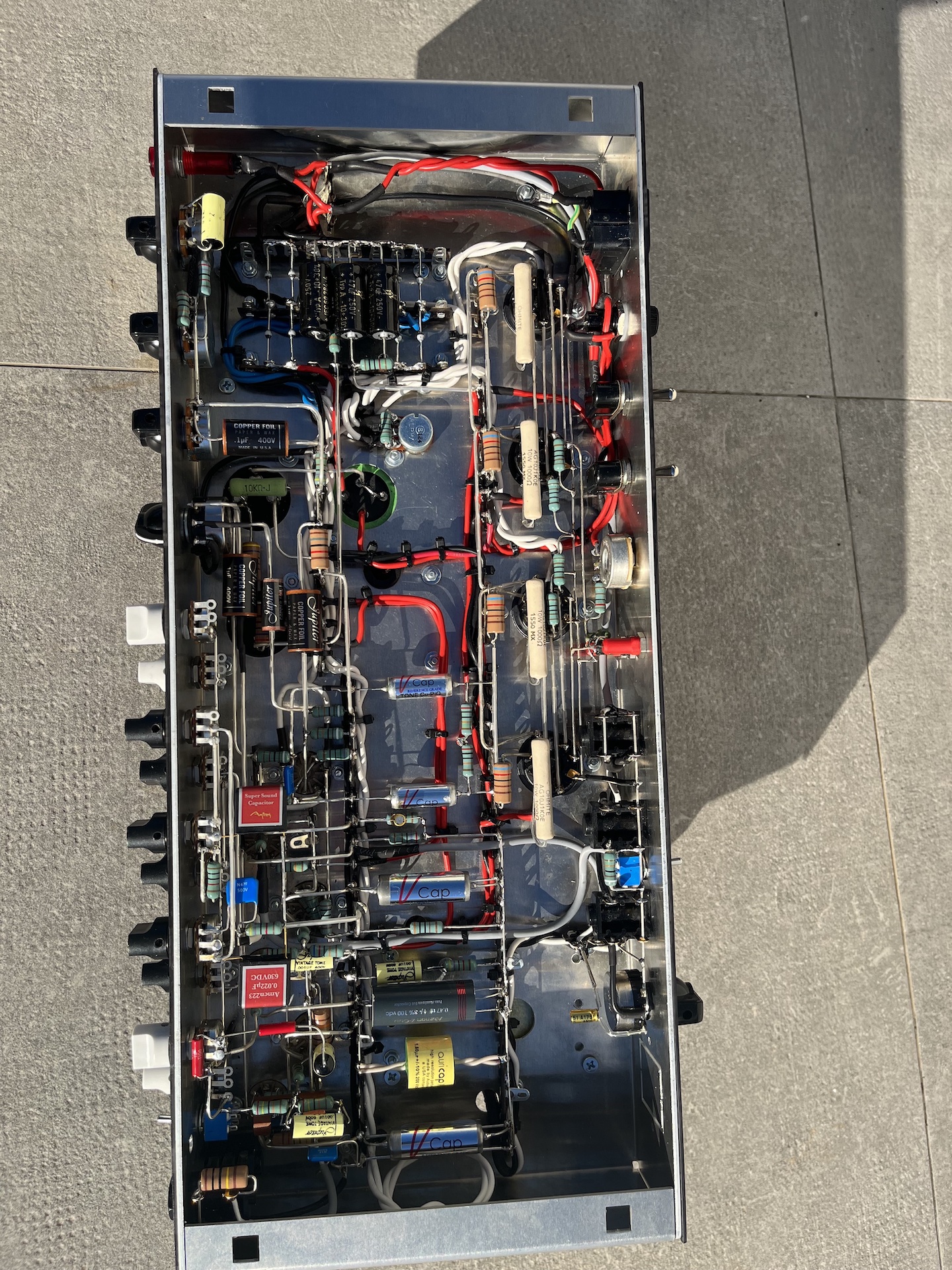

Biggest challenge was this time to make PTP wiring in small chassis(470x195x60mm).
I am still working on switching, but end result will be with headshell (Italian poplar) only 11.5 kg for full 100w head



[thegame]

I love clean looking PTP circuits like that. Congrats!



[glpg80]

Noise and stability is a real challenge with high gain and PTP. It’s hard to not only make it look good, but to arrange things accordingly so that you don’t accidentally induce positive feedback.

Looks super clean!



[311splawndude]

Looks like really good work to me.

Congrats and enjoy
