I give you the " Japetus "

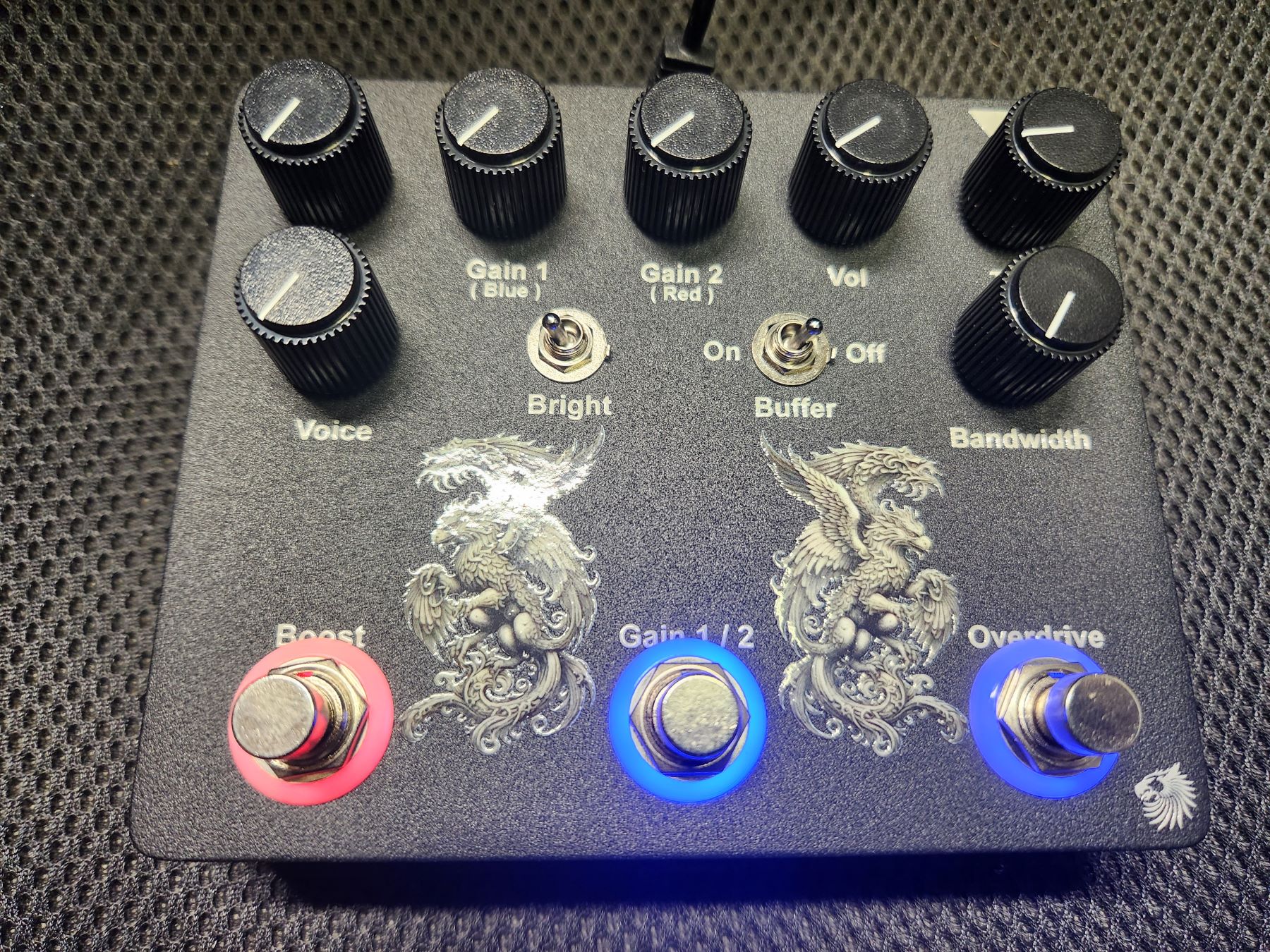

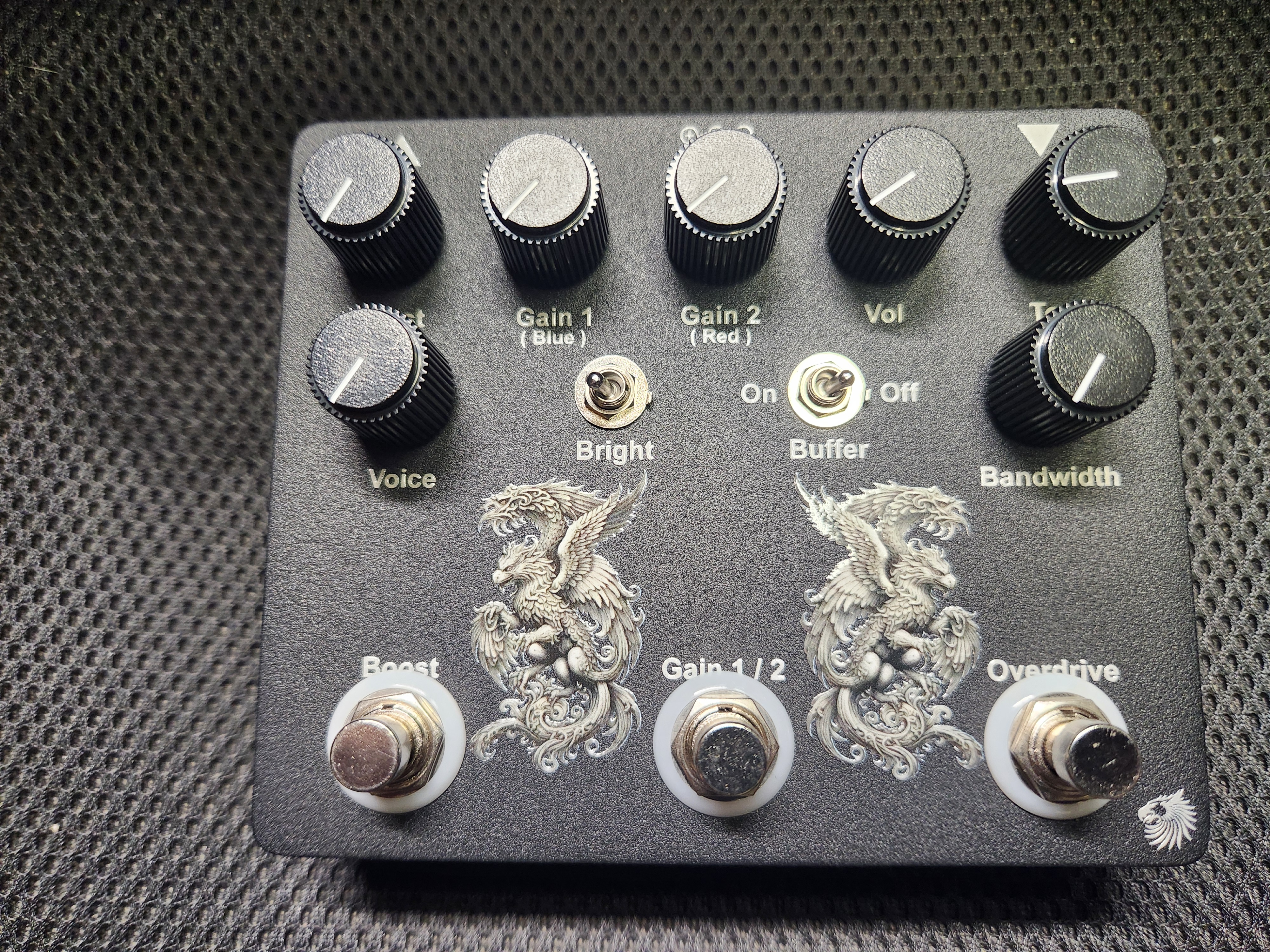

= Graphics shown are of my personal copy ( Double Griffins ) I already boxed @japetus 's up .... forgot to take pics ... sorry man ! =
traditional Overdrive circuit with a ton of cool features ....

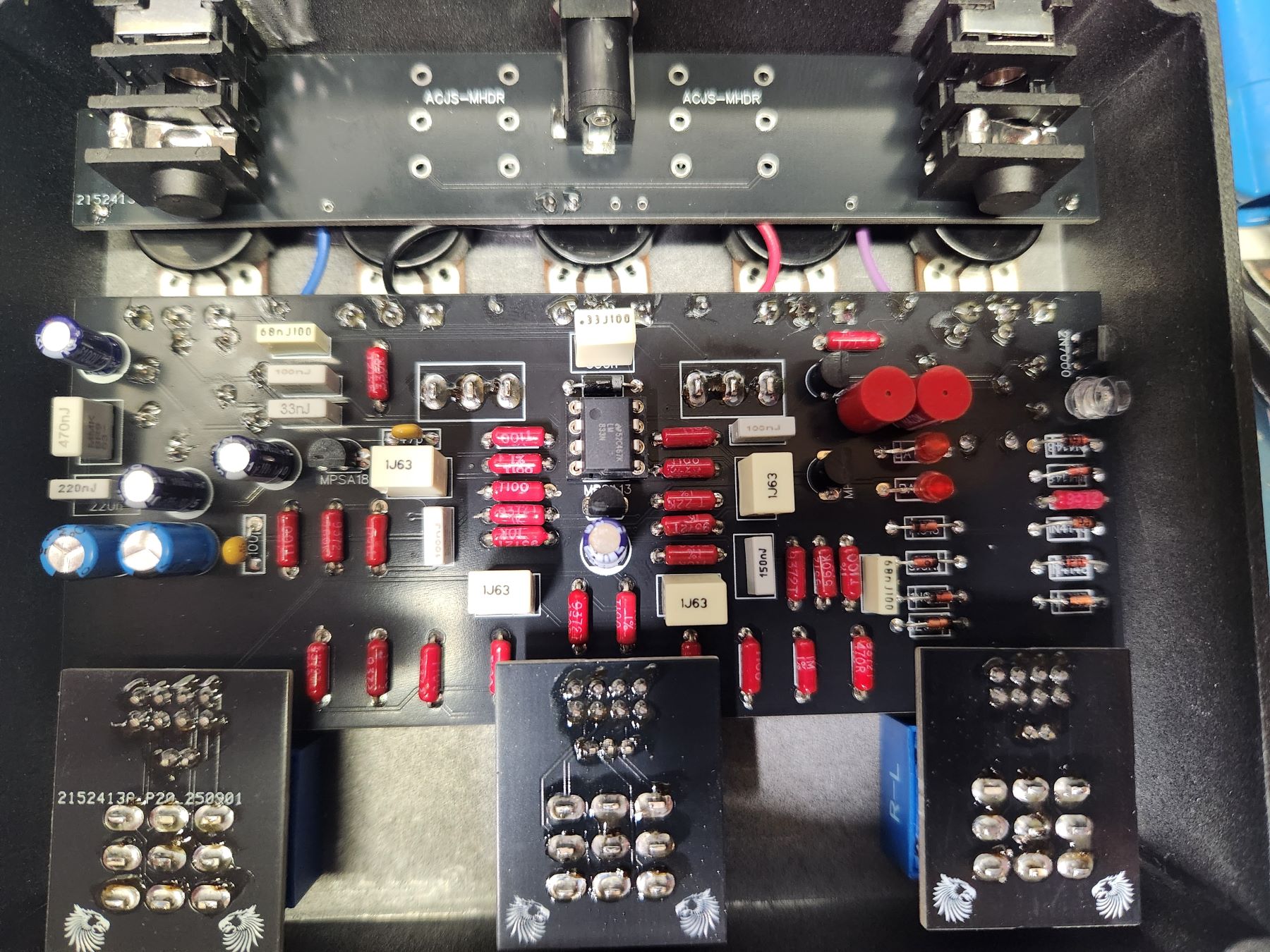

plus another step up in quality parts .... I decided to use PRP 1/4 watt resistors in the build ...... all I can say is these things are incredible ... and I plan to use them in some classic builds like my Superdrive in the near future .
Pedal has a buffer that you can turn on and off .... a bright switch .....
Voicing - 8 position rotary pot with eight different clipping diode configurations and types
Bandwidth - 8 position rotary pot with eight different clipping bandwidth options

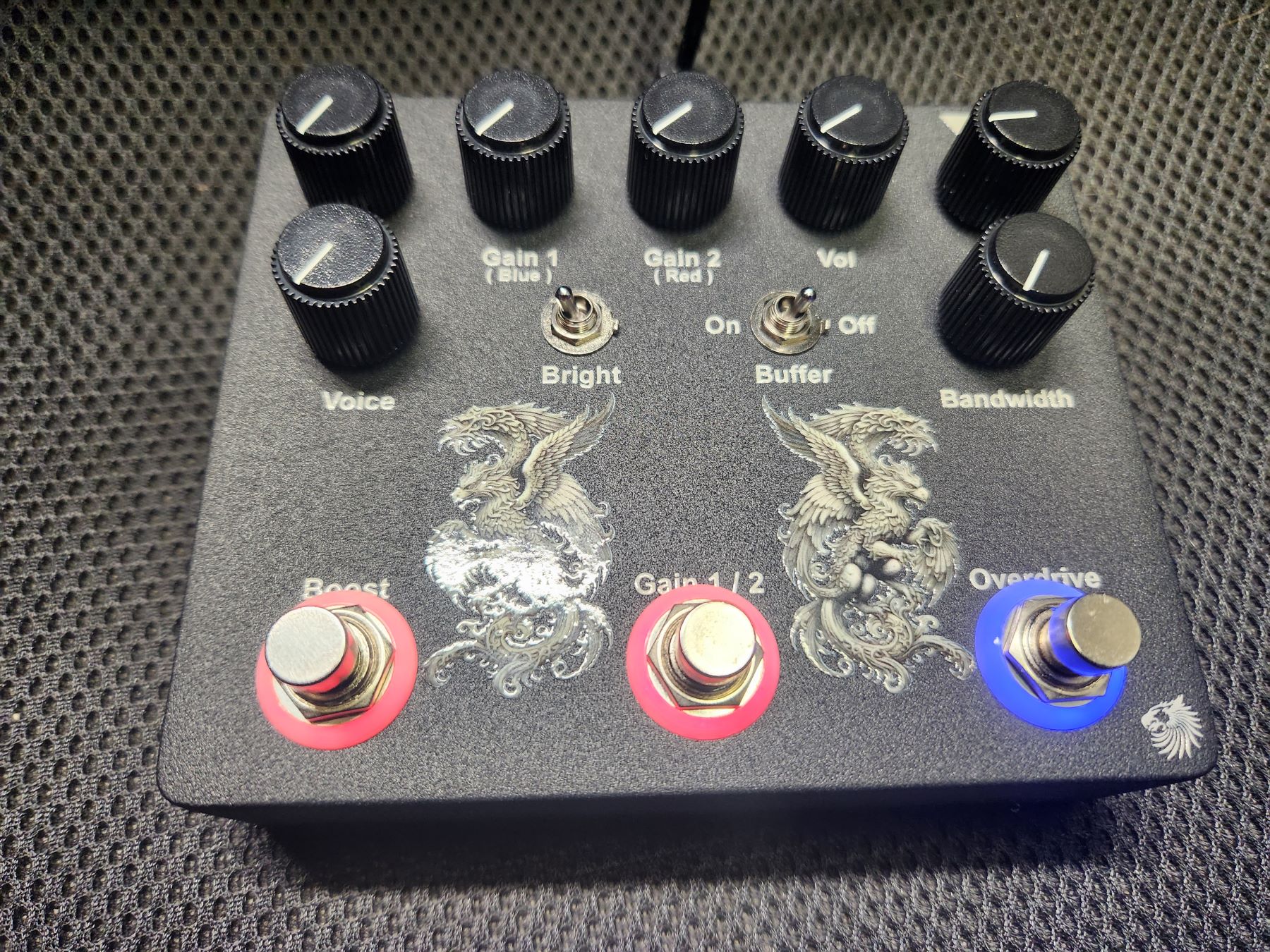

Gain footswitch that controls two different gain structures with the red being the higher gain option .... the footswitch will change from red to blue accordingly
Boost Footswitch that controls a separate boost circuit that will stack with the OD .... or if the OD is off the Boost will run by itself if it's on
This Overdrive covers a shit ton of flexibility as far as using it with just about any amp out there .... High Gain or not
All hail the Japetus !!!!!
