Power Amp Emulator (PAE-1)

[Casey_Butt]

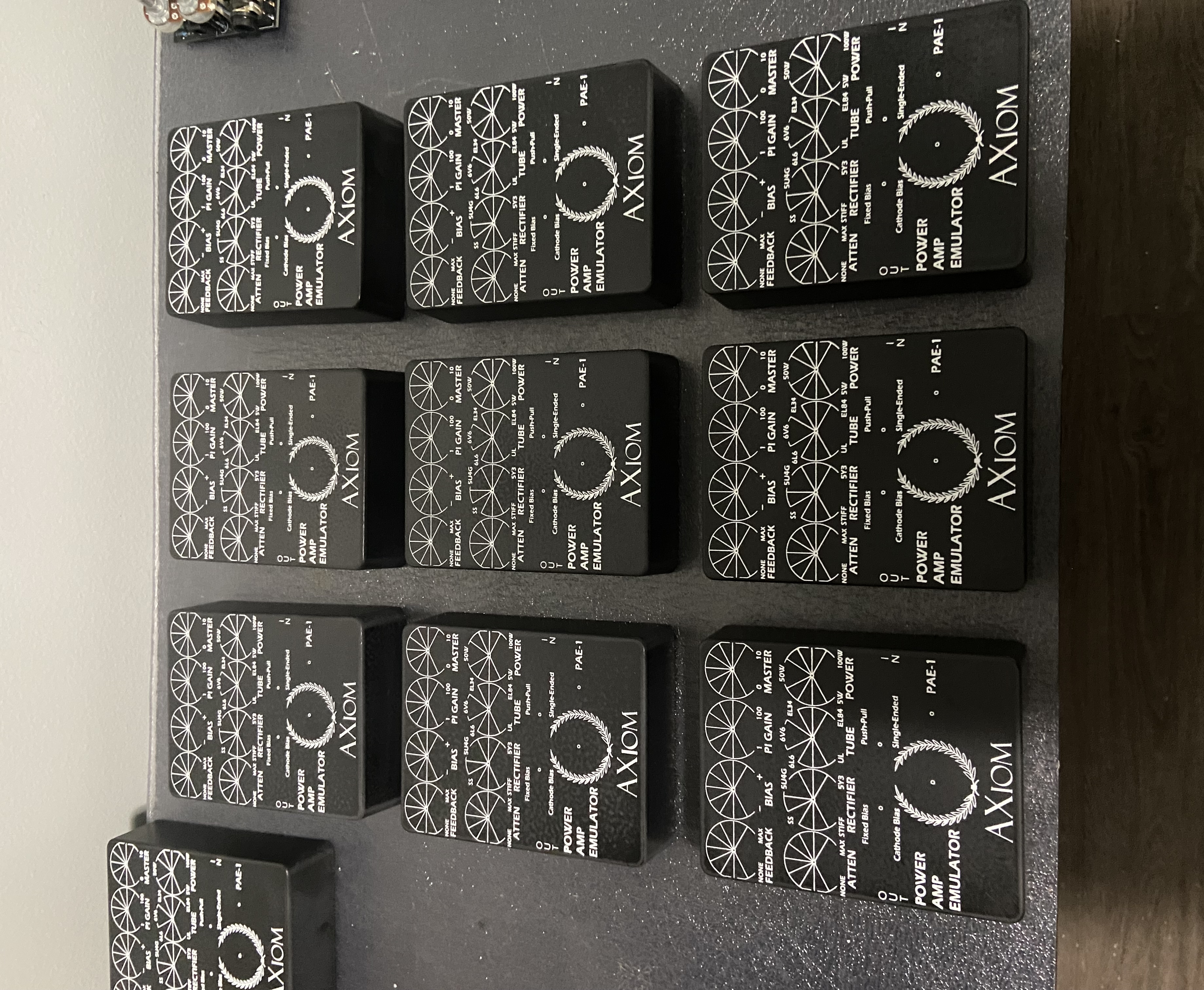

Finally got to the Power Amp Emulator. The enclosures printed well, so next comes the clear coat. The boards should be done and stuffed in a week or so...



[Casey_Butt]

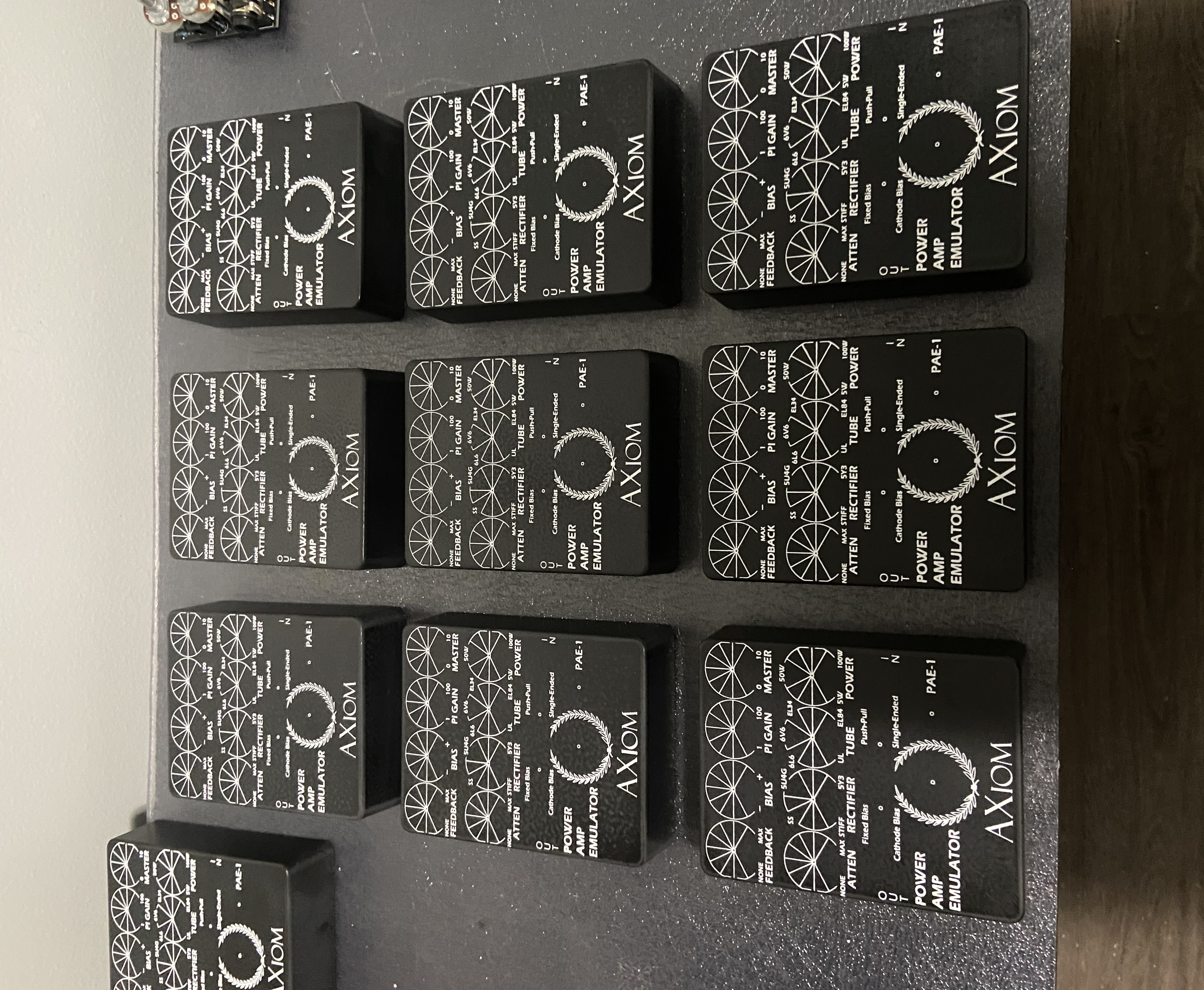

Finished batch. Test unit and stuffed enclosures...



[Casey_Butt]

Short Power Amp Emulator demo.

Signal chain was: Guitar -> AXiom Overdrive Preamp OP-1 (set for moderate gain like a Tube Screamer) -> AXiom Power Amp Emulator PAE-1 -> AXiom SCE-1 prototype (cab emulator) -> AXiom SCV-1 prototype (for stereo spread) -> interface -> DAW (reverb added)
