Pv Windsor’s are fixed bias?

  • Thread starter Thread starter JackBootedThug
  • Start date Start date
JackBootedThug

JackBootedThug

MURDERATOR

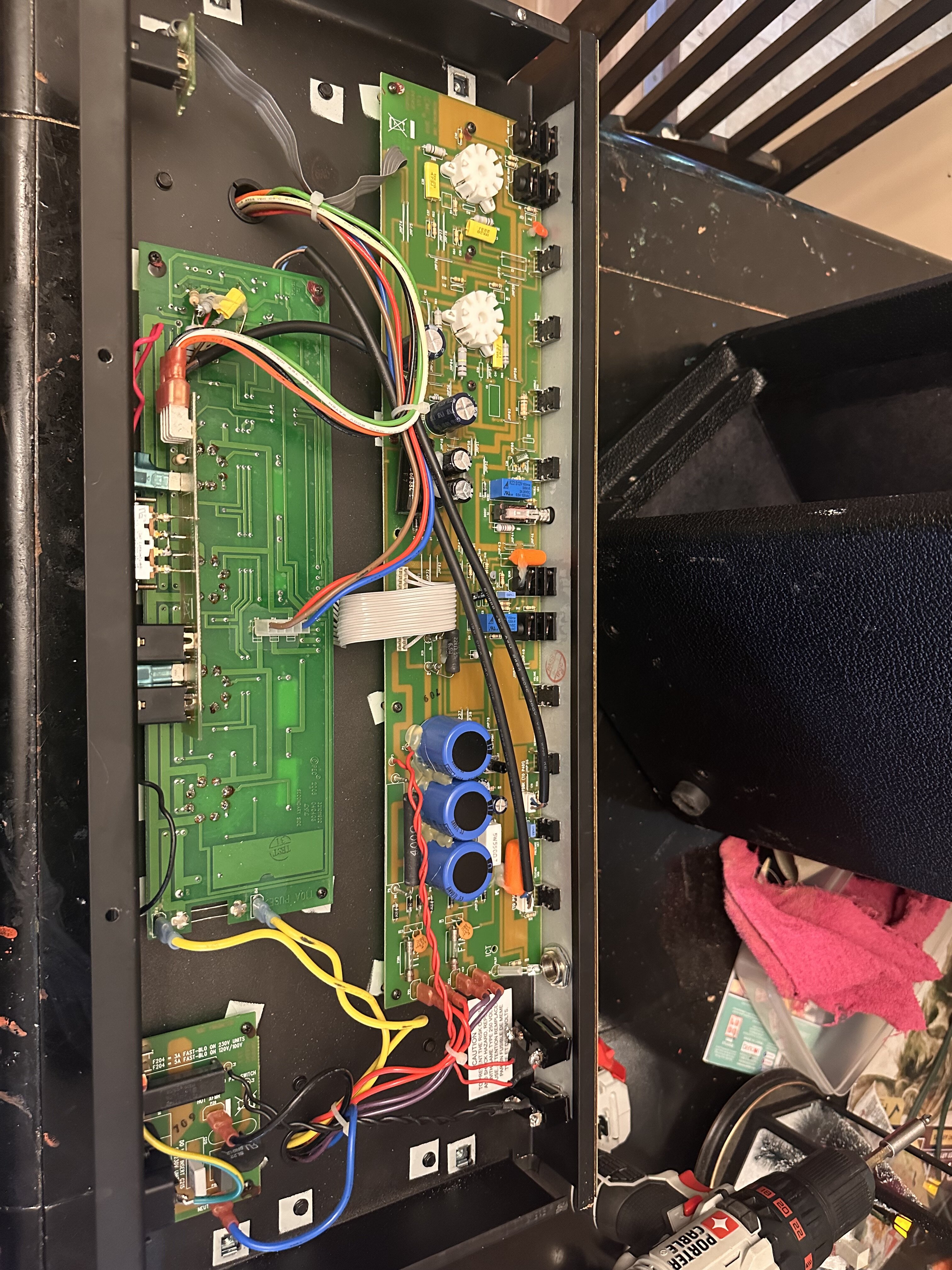

I don’t see an adjustment or a point to check it either. Of course I’m a noob so….

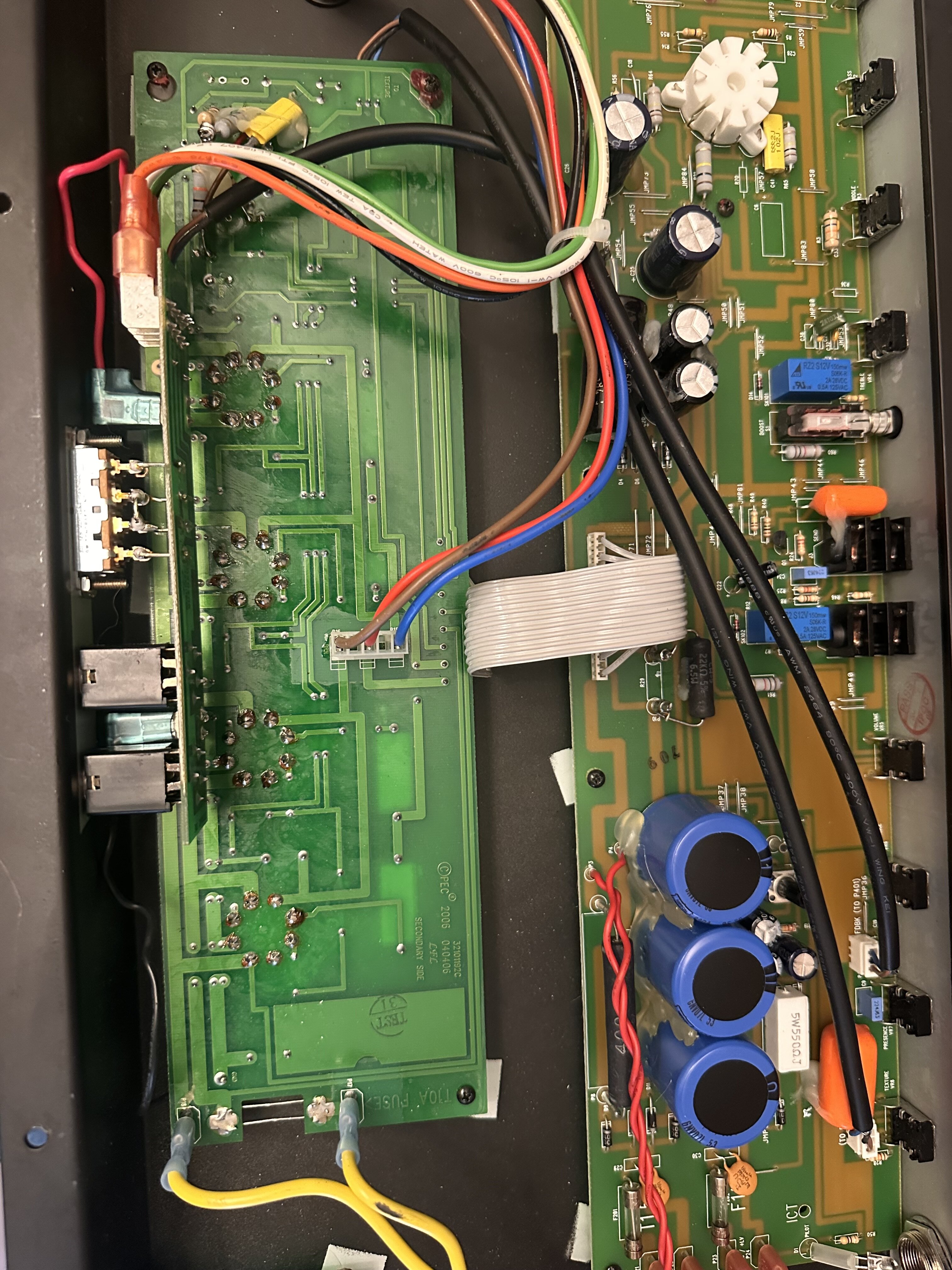

Schematic calls for a 1 meg something at r13 but I don’t have anything there except two pieces of wire…🤔🤪

One piece of wire at r36…calls for a 1/4w 5% cf axle…. Wtf is that?

No wonder it sounds like shit. I have only used it as a power amp until recently but damn…I guess I know why it sounds like shit. Da fuq?

Well seeing how this thing is ratchet as fuck let’s talk mods…. Any suggestions for a noob?

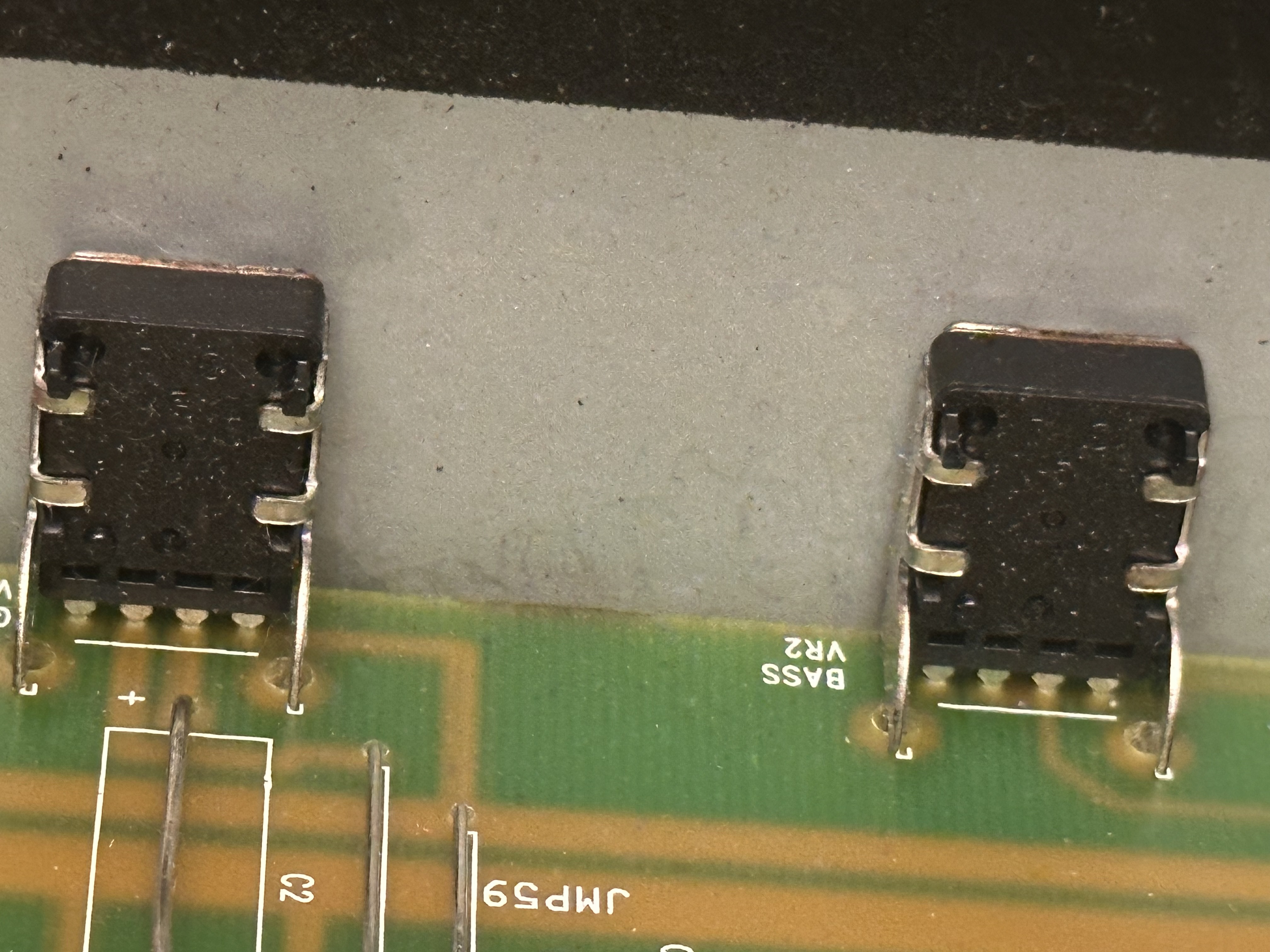

Well I’m closing it up for now. That’s all I noticed. How do you clean the pots on the knobs? It’s these things….

Got this on a trade from a fellow member who is a good dude. I know he didn’t mess with it.

JackBootedThug said:
Got this on a trade from a fellow member who is a good dude. I know he didn’t mess with it.
Click to expand...
it looks pretty clean inside actually .... not a lot going on in there .... but there isn't a lot going on in stock JCM800 either ......

Waiting on redplated to chime in. This will be my ratchet mod platform….

I will show you all… you will be begging me to mod your Windsors when I’m done….first I need to source parts….
