my man @japetus has waited a long time for his signature Griffin Analog Pedal ....
the day has finally come ..... I've been working on this on and off for a quite awhile ... finally finished up the PCB layout and got them ordered

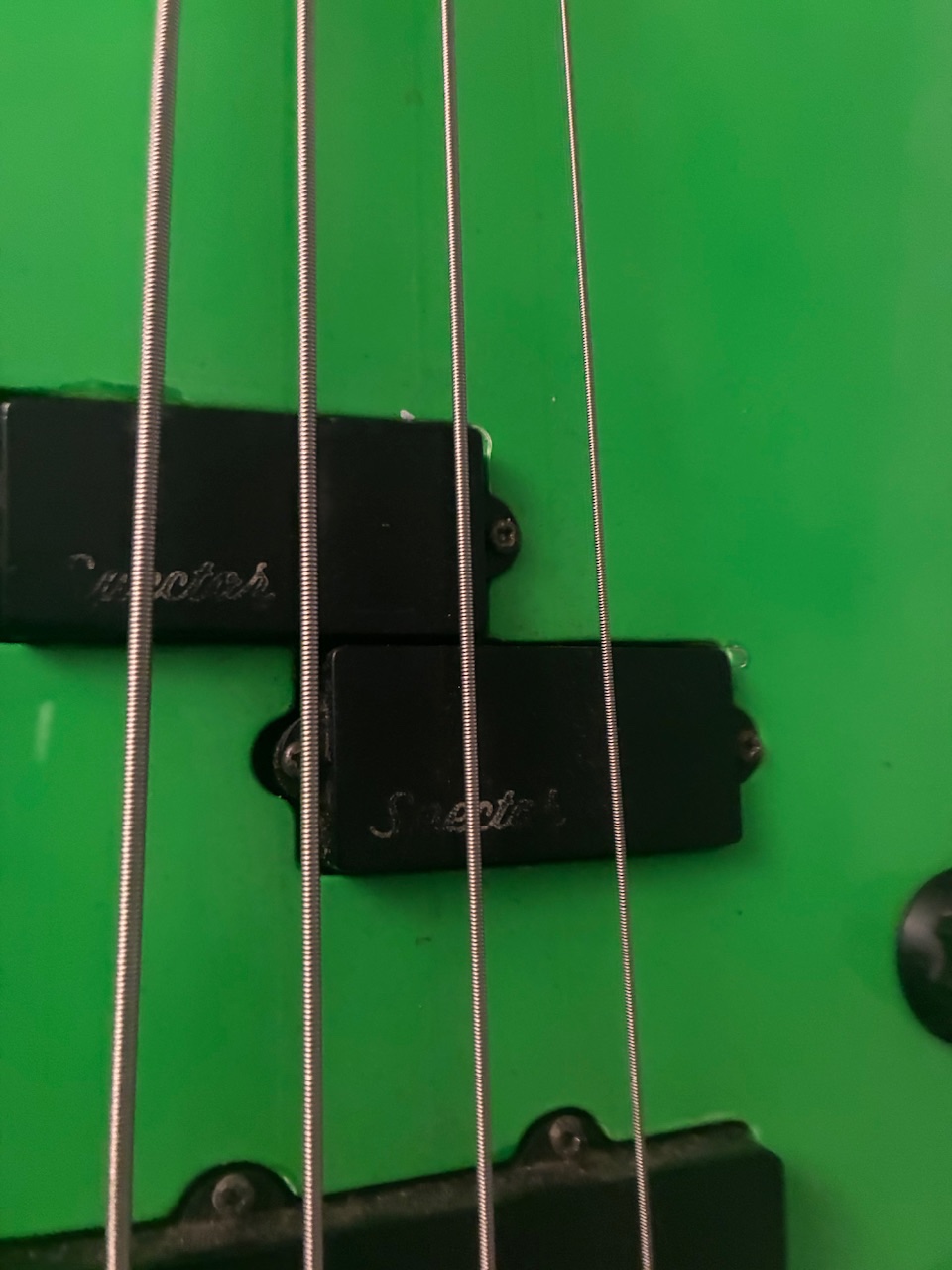

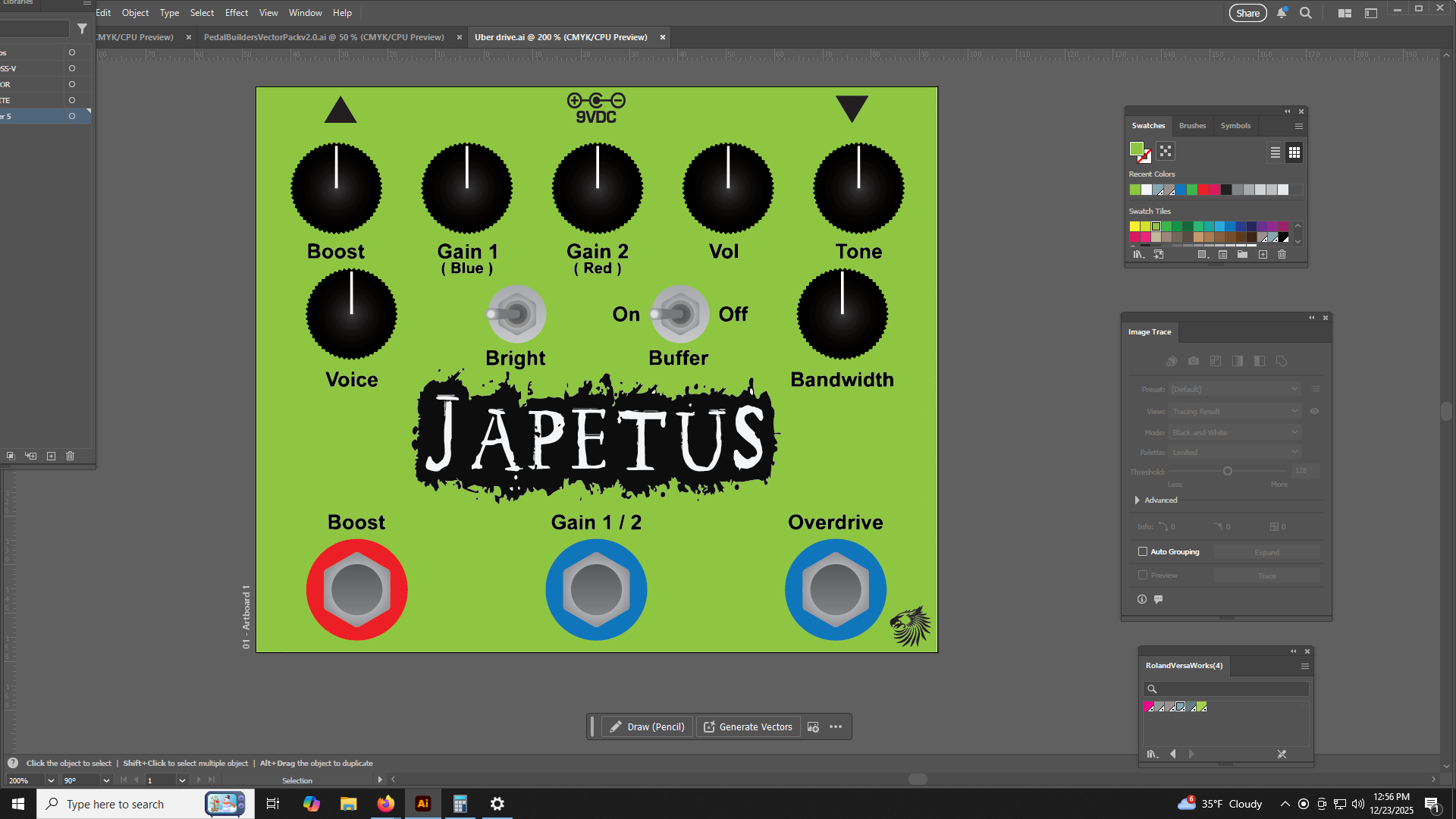

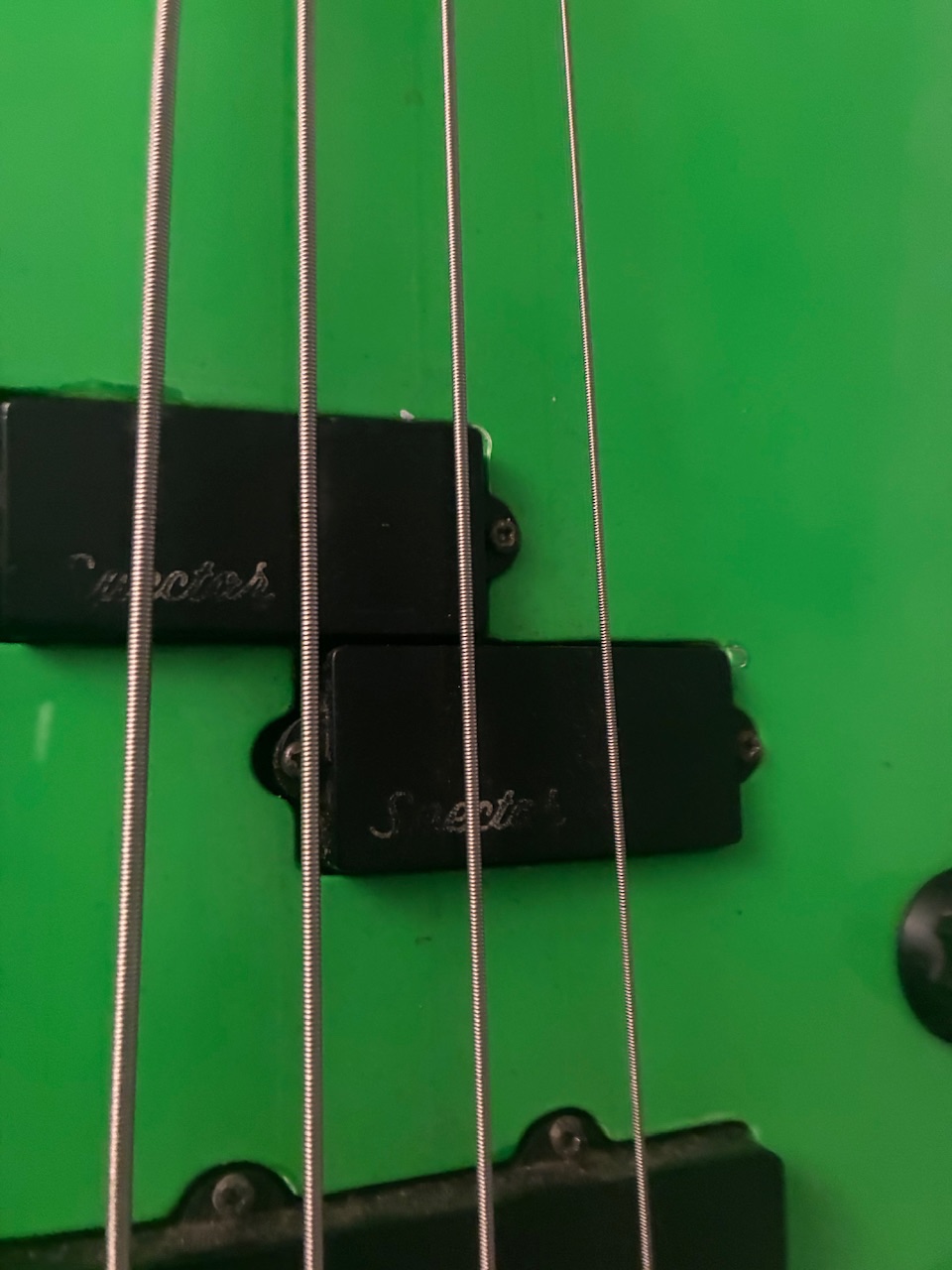

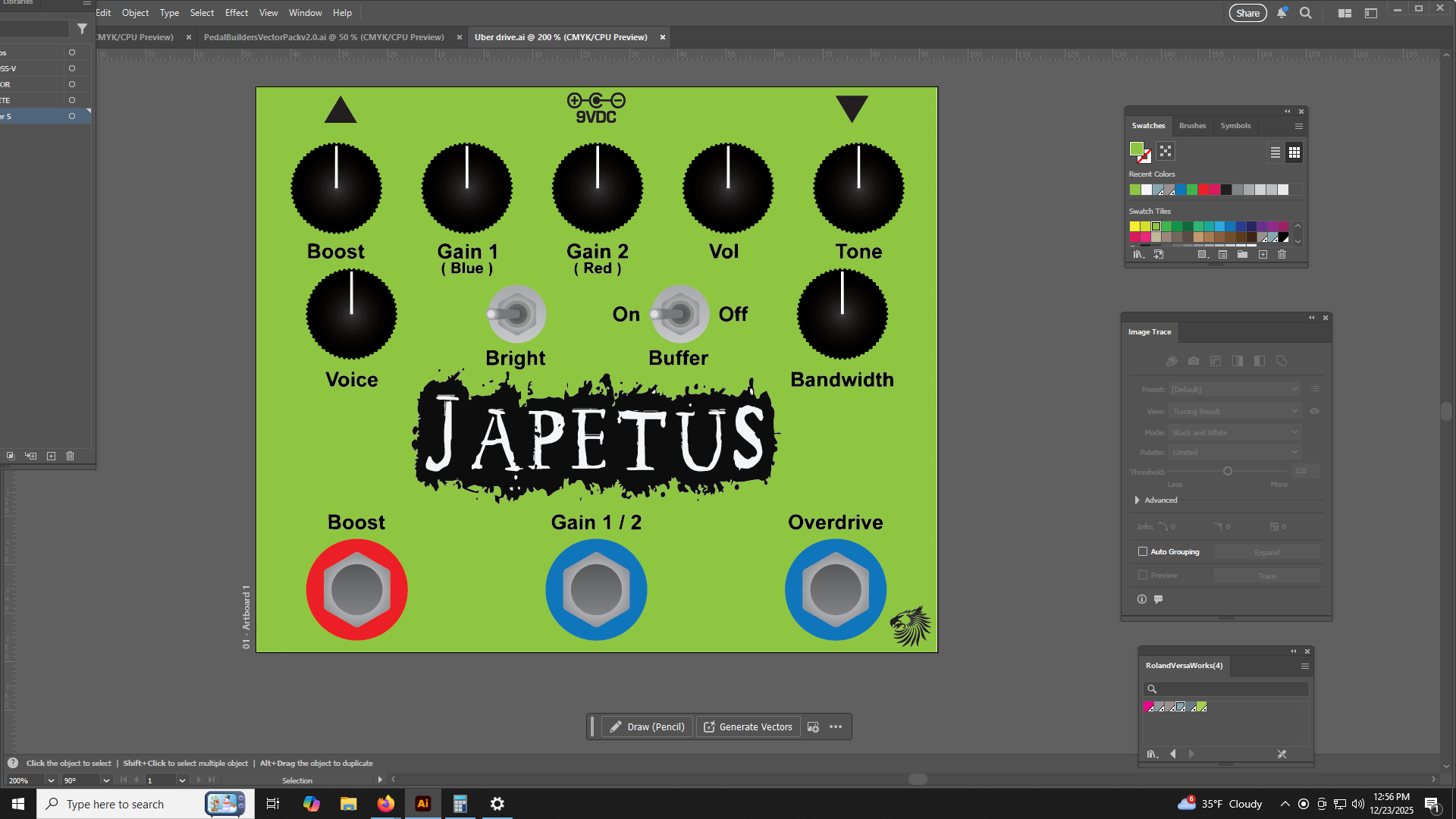

just finished up the graphic ........ I decided to go with this Lime green sand texture powdercoat ... reminds me of a Bass he has / had ...

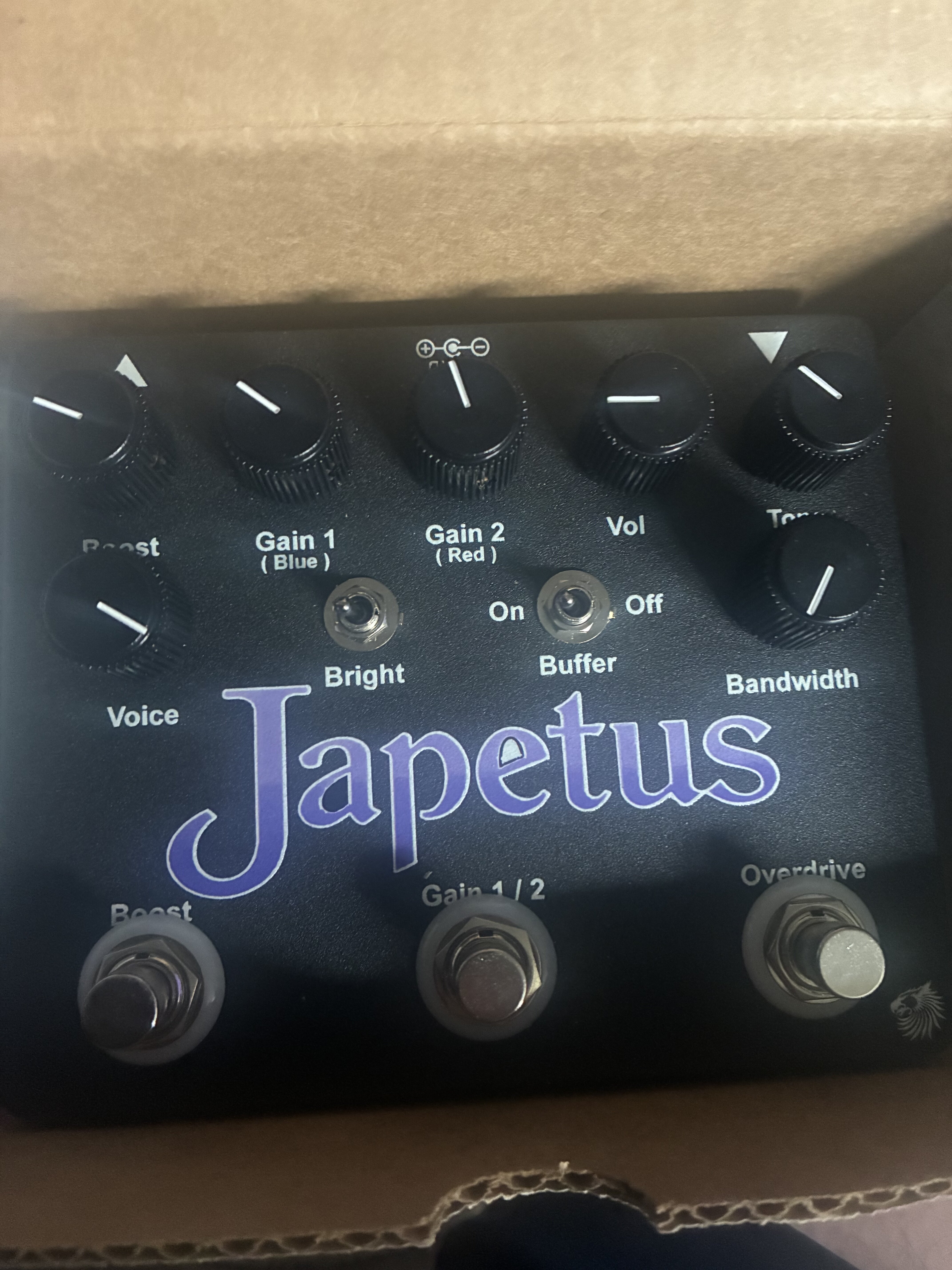

The circuit is basically a traditional Overdrive ..... but it has some features that let you really tailor this thing to what ever situation you got going on ..
it's got a Buffer that you can turn on and off ...
Bright switch
two separate foot switchable Gain structures ...red being the higher gain option ... the LED footswitch will change color from blue to red to designate
voice control - rotary pot with 8 different choices of diode clipping option combos .... silicon , LED , transistor ... symmetrical / asymmetrical
bandwidth control - rotary pot with 8 different clipping bandwidth options ( think fattening up ... or thinning out )
a separate boost circuit that you can run by itself if you choose .... automatically stacks with the OD if the OD is on ...
