Finished my BE100 based clone

[Mattmcmetal]

Through valvestorm. He designed the chassis, so he has the dimensions. They case predrilled

Thank you.



[311boogieman]

Bad ass. Great job



[DIYyou1994]

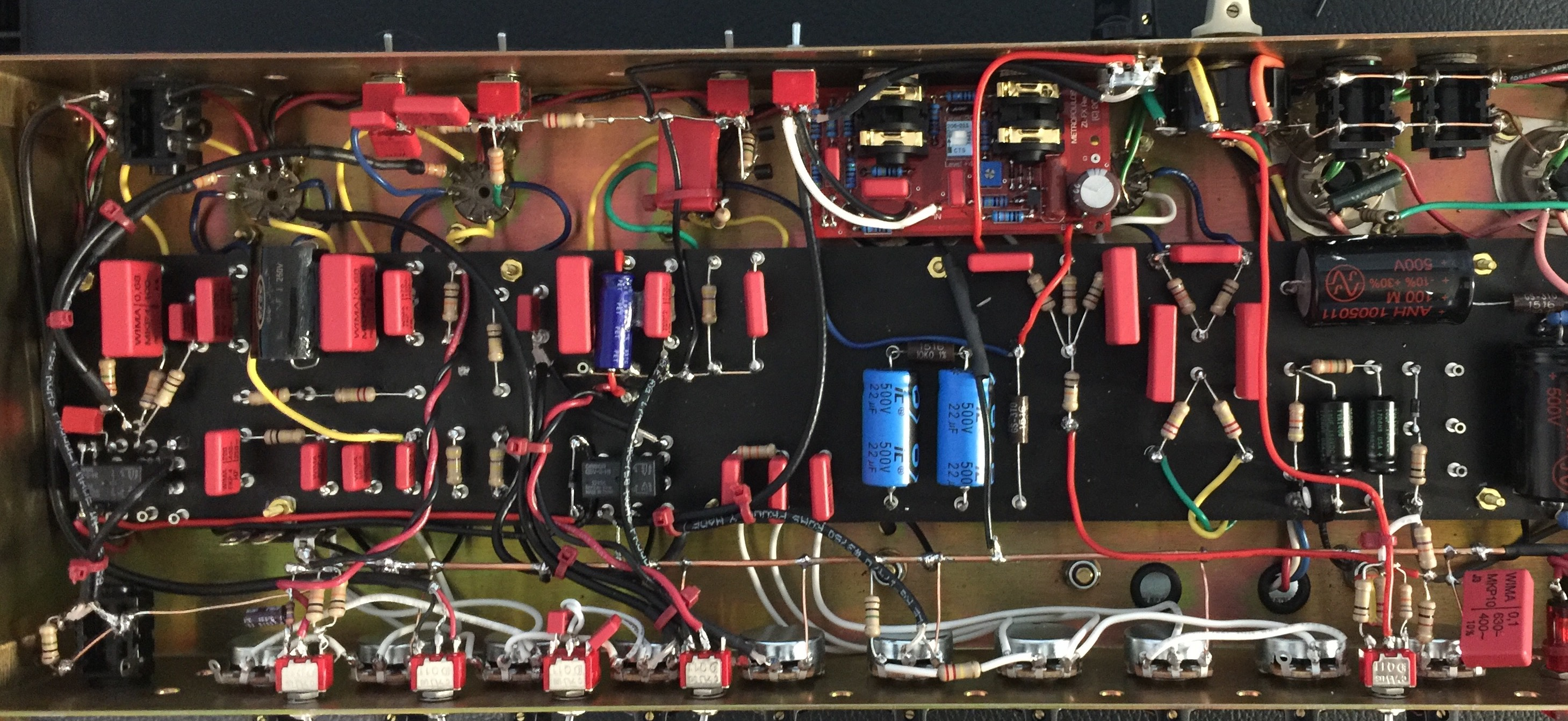

This thing took entirely to long to build. And while it's not nearly as tidy as FourT6and2's works of art, I put alot of effort into this thing and making sure I understand everthing I was doing. Just waiting on some panels to make it look proper

Classic Tone 100W Project Transformer
Classic Tone 100W Plexi OT
Classic Tone 3H Choke
12v regulated heaters and switching
WIMA Caps
Carbon Film resistors JJ anad IC filter caps
Valvestorm project chassis and offset headshell
Added Mid control for clean channel as well as used .047uf's in the tone stack
Changed switching to have LED lit for dirty and off for clean (Blue LED's sound better)
3 way excursion (M-L-T)

I tried to record it but the combination of my hack playing and crappy cell phone can't capture it proper

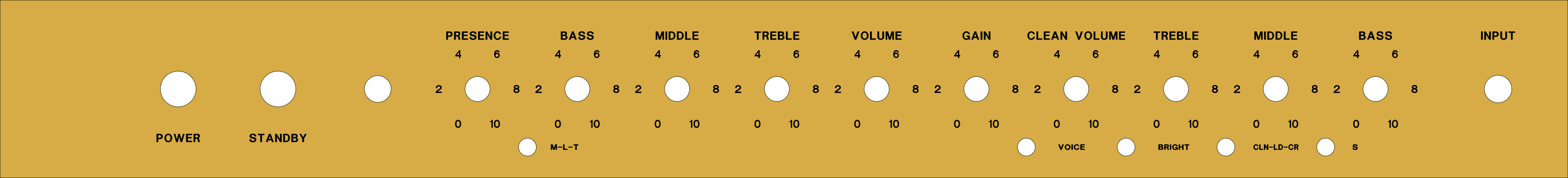

Hello friend, I have also installed one of these machines, but currently there are no front and rear panels, which looks very ugly. You can send me the drawings and files of the front and rear panels of BE-100 to my QQ email 2767667075@qq.com Is that okay?



[Techdeth]

Great build man



[Maarcn3]

That’s dedication right there, tons of effort went into this.
