stock SD-1 circuit with buffer removed / true bypass and the following mods
Freq rotary pot = 5 different selections that broaden or narrow the clipping bandwidth frequency essentially thickening or thinning the tone
Clip rotary pot = 5 different diode types and configurations including :
stock silicon asymmetrical
LED's symmetrical
1N4742A Zeners symmetrical
BAT46's asymmetrical ( these are used a lot in silicon Klon circuits )
MPSA06's and LED combo asymmetrical ( two transistors and a orange LED )
.... few more colors coming soon 150.00 shipped to the Cont US

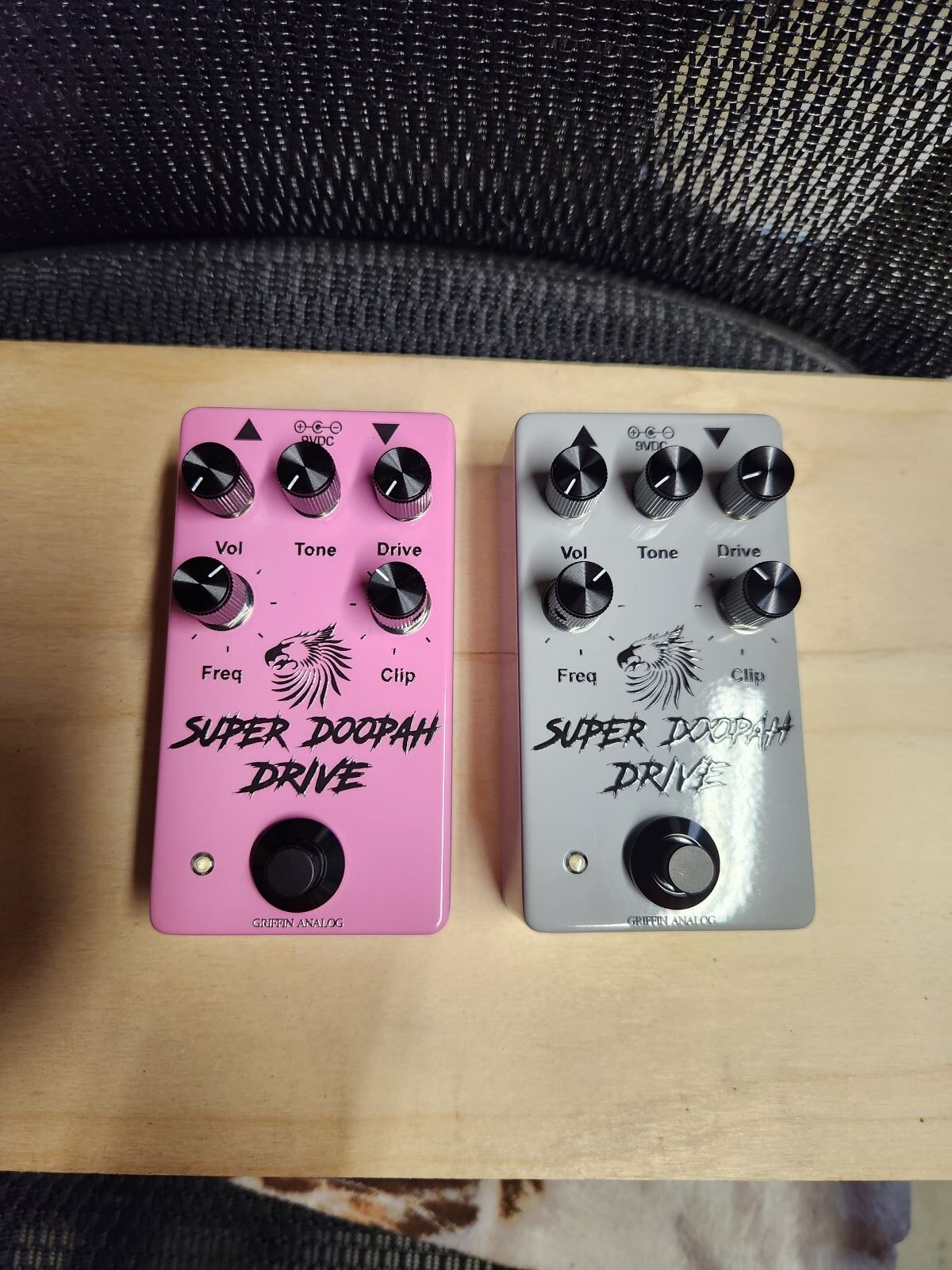

colors shown are

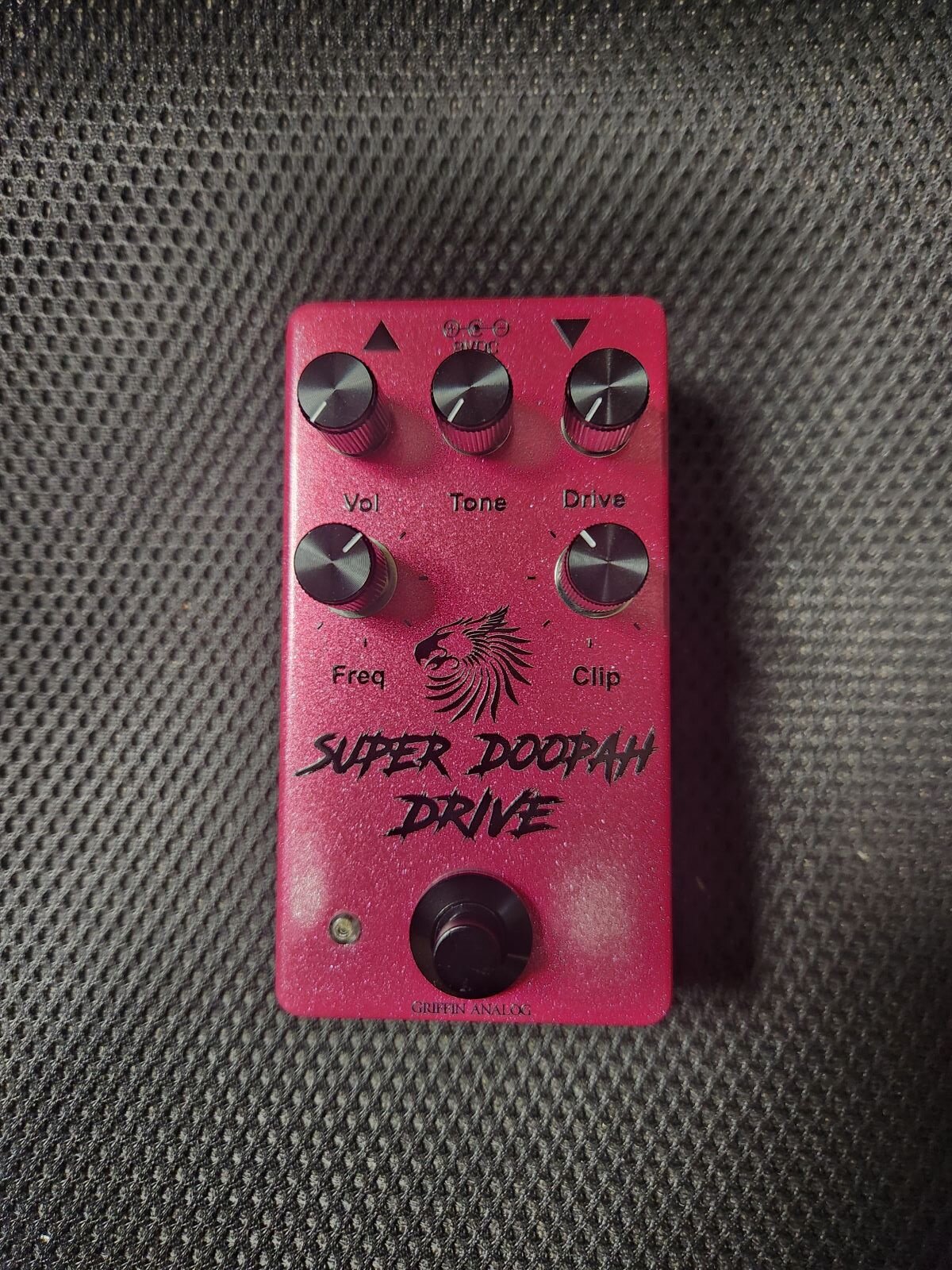

Metallic Candy Pink

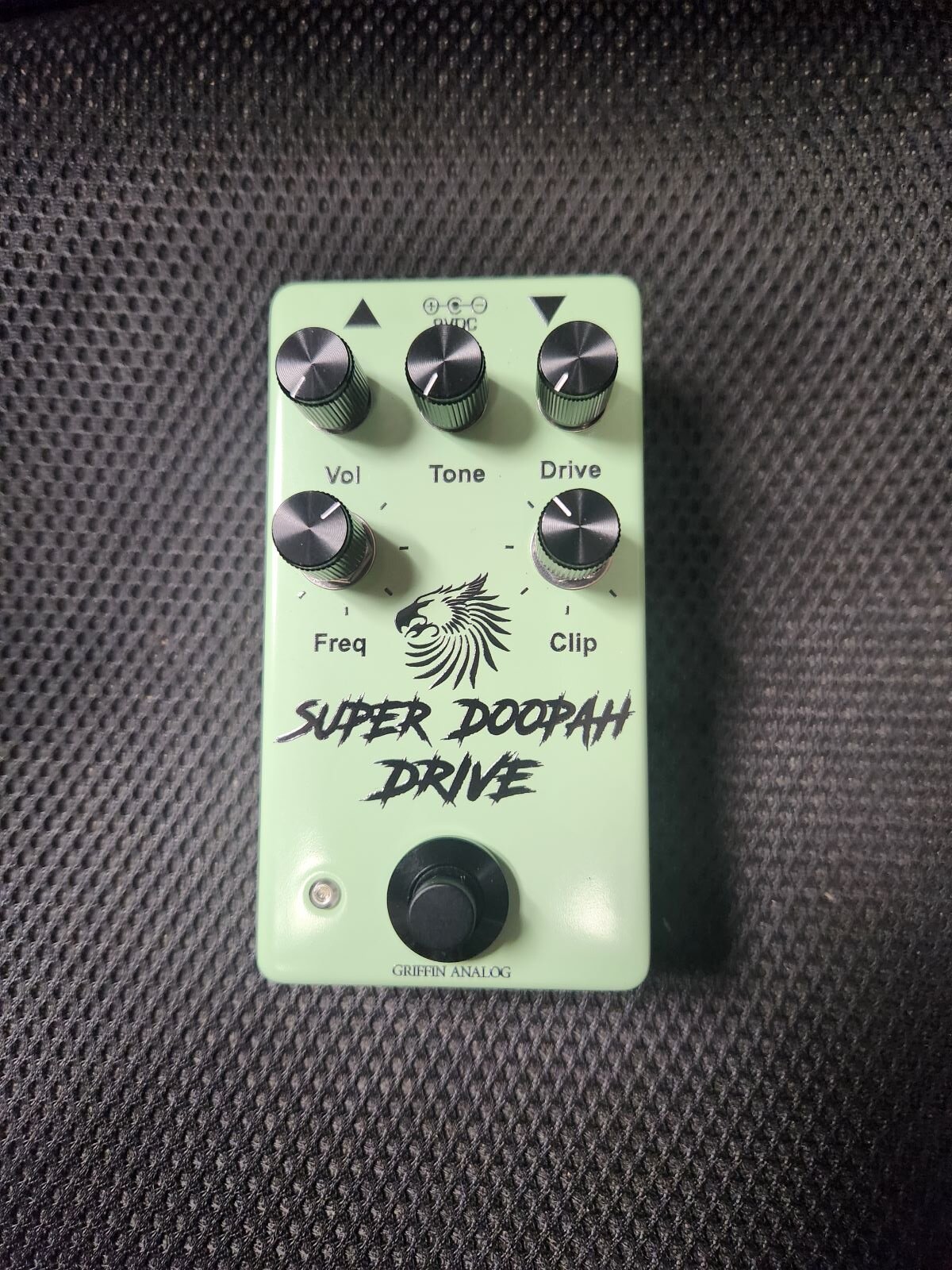

Pastel Light Green

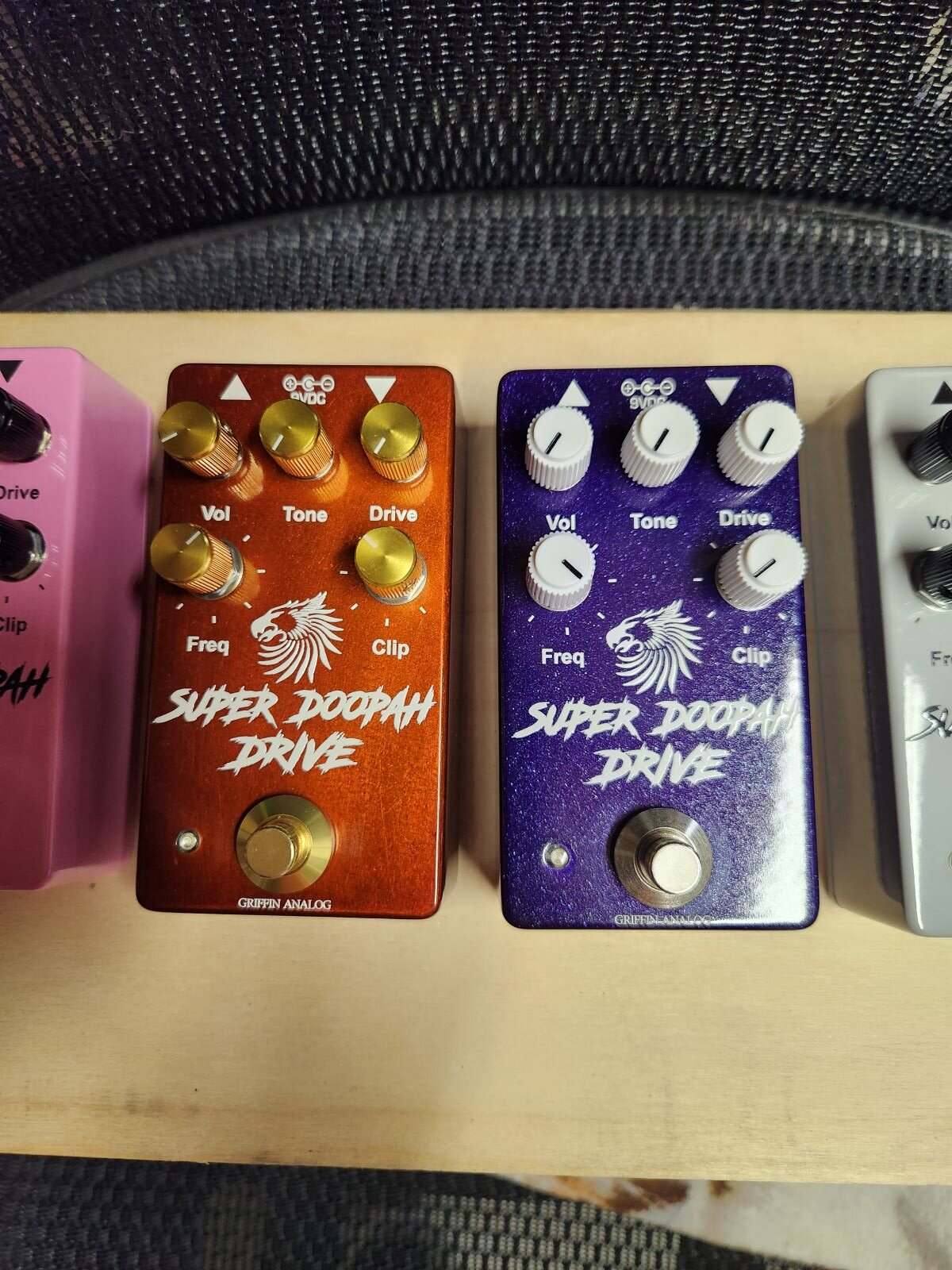

Candy Copper ( Sold )
Metallic Candy Purple
Fuchsia
Grey
Freq rotary pot = 5 different selections that broaden or narrow the clipping bandwidth frequency essentially thickening or thinning the tone
Clip rotary pot = 5 different diode types and configurations including :
stock silicon asymmetrical
LED's symmetrical
1N4742A Zeners symmetrical
BAT46's asymmetrical ( these are used a lot in silicon Klon circuits )
MPSA06's and LED combo asymmetrical ( two transistors and a orange LED )
.... few more colors coming soon 150.00 shipped to the Cont US
colors shown are
Metallic Candy Pink
Pastel Light Green
Candy Copper ( Sold )
Metallic Candy Purple
Fuchsia
Grey
