Hairy

[duesentrieb]

oh - and btw . . . its almost 100% equipped since yesterday - I'm really curious



[CaseyCor]

There it is! Awesome Olaf! Can't wait to see/hear the finished product.

BTW, check your PM's. Got a question for you.



[duesentrieb]

here's the equipped board . . .



[Code001]

That circuit board is really slick.



[duesentrieb]

Merci

almost . .



[duesentrieb]

a last set of pic, the PTP on top, PCB bottom



[duesentrieb]



[FortinAmps]

Awesome work Olaf

How many times did you curse while using the pcb CAD ?

Cheers,
Mike



[Digital Jams]

You designed the PCB???


Wow!



[MrDan666]

Fantastic work Olaf! Bet you had fun designing that PCB



[duesentrieb]

Merci mes amis.

Peter designed this LJ board for me - I'm currently learning it with Peter's help, creating a PCB for a Preamp with midi, and some other "goodies" as well.
It is a PITA, but once its done, it is pretty cool - building an amp in 10% of the time compared to PTP with all its eyelett drilling, dirt and stuff . . . .



[duesentrieb]

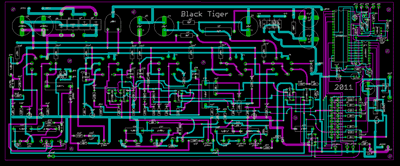

Here's the new Midi Black Tiger PCB . . . just before the final layout. Will be ready this weekend . . .



[FortinAmps]

Merci mes amis.

Peter designed this LJ board for me - I'm currently learning it with Peter's help, creating a PCB for a Preamp with midi, and some other "goodies" as well.
It is a PITA, but once its done, it is pretty cool - building an amp in 10% of the time compared to PTP with all its eyelett drilling, dirt and stuff . . . .

Very cool that Peter is willing to spend time with you on the PCB layouts
It's a great skill to have under your belt that can apply to anything electronics.
Cheers,
Mike



[duesentrieb]

Absolutely, Mike.
I cannot thank Peter enough . . .
