Once Upon a Time... Larry Q&A

novosibir

Active member
... meanwhile 23 years ago, at the time, as the introduction of my very first Dino just has been 3 years ago...
... I still didn't build too much of my own amps. At that time I've merely built 3 or 4 DINO's every year, but...
... I've built, or better rebuilt lots of Marshall amps.

It's always been the same way, that first I've ripped out all & everything, what's been inside the chassis.
The entire circuit, pots, jacks, aso. and I've left over just the transformers, the electrolytics & the output tube sockets on the chassis.
Ok, for measuring and drilling holes, punching holes for additional preamp tube sockets, aso. temporarily I've also removed the trannies.

Then - until 2005 - I've used solder strips for creating a completely new circuit.
I've drilled additional holes into the fron & back of the chassis for additional pots & jacks...
... and sometimes I've made even a new front panel for my Marshall rebuilds.

Usually I've built 3 channel amps w/ Clean, Crunch & Lead with additional tube based effects loop.

Just a week ago, one of my rebuilds came back to its 'father', asking for retubing plus update.

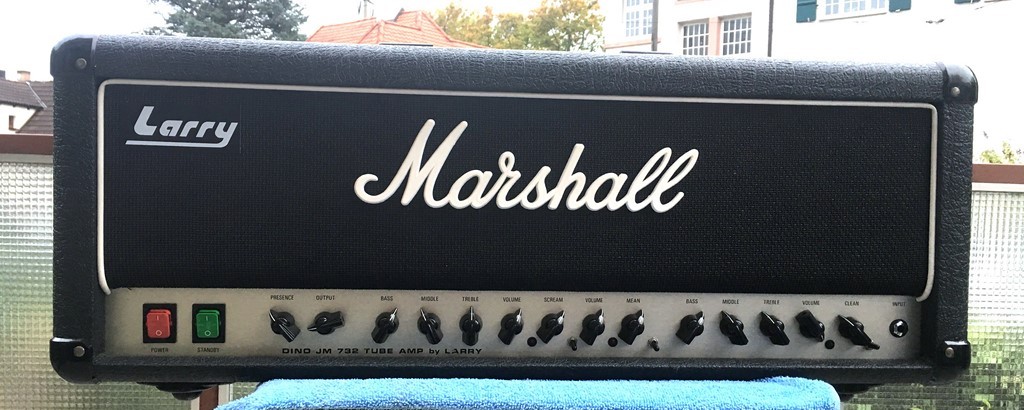

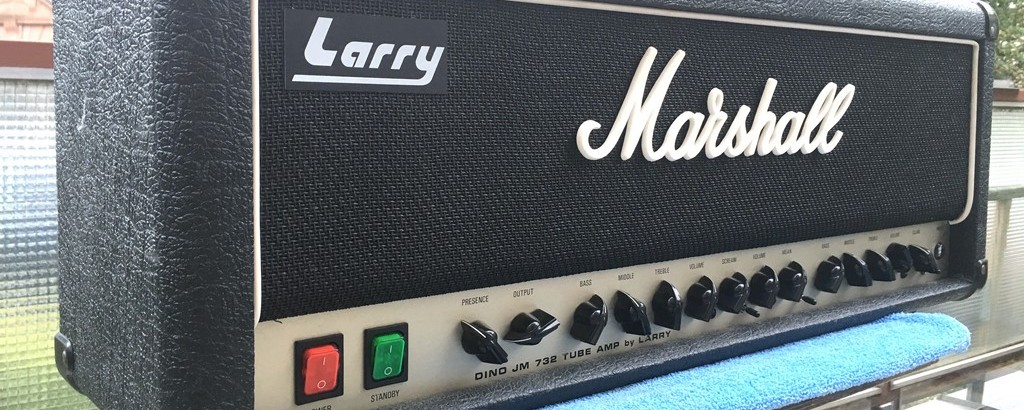

Here it is, the nice baby - named DINO JM 732

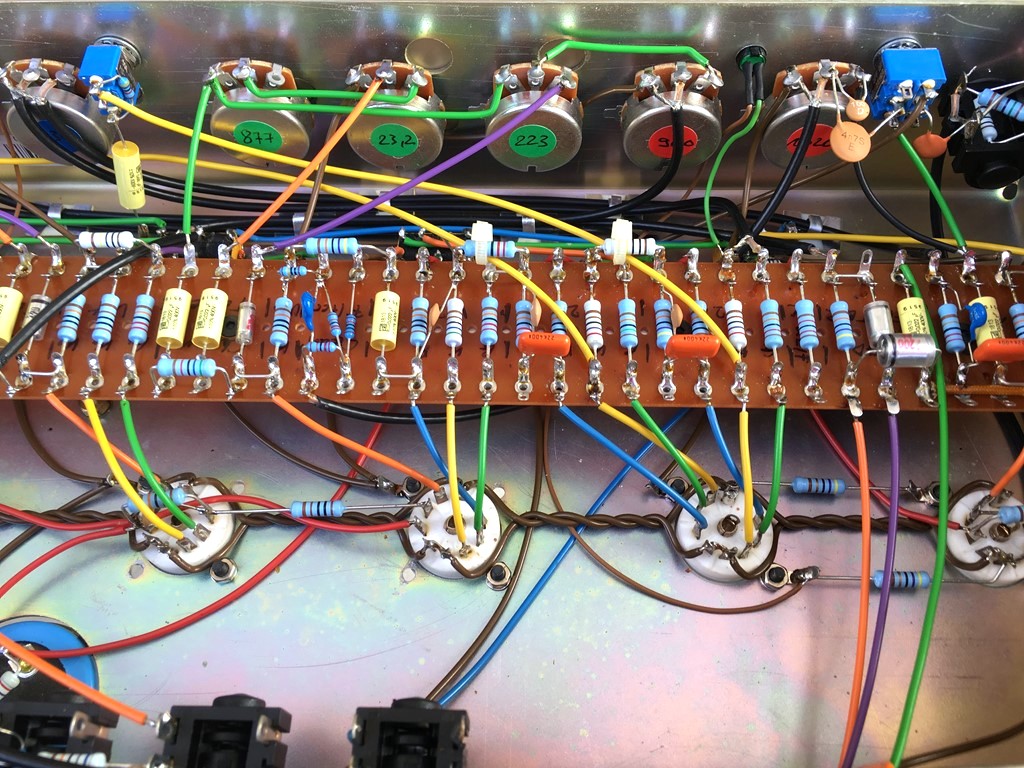

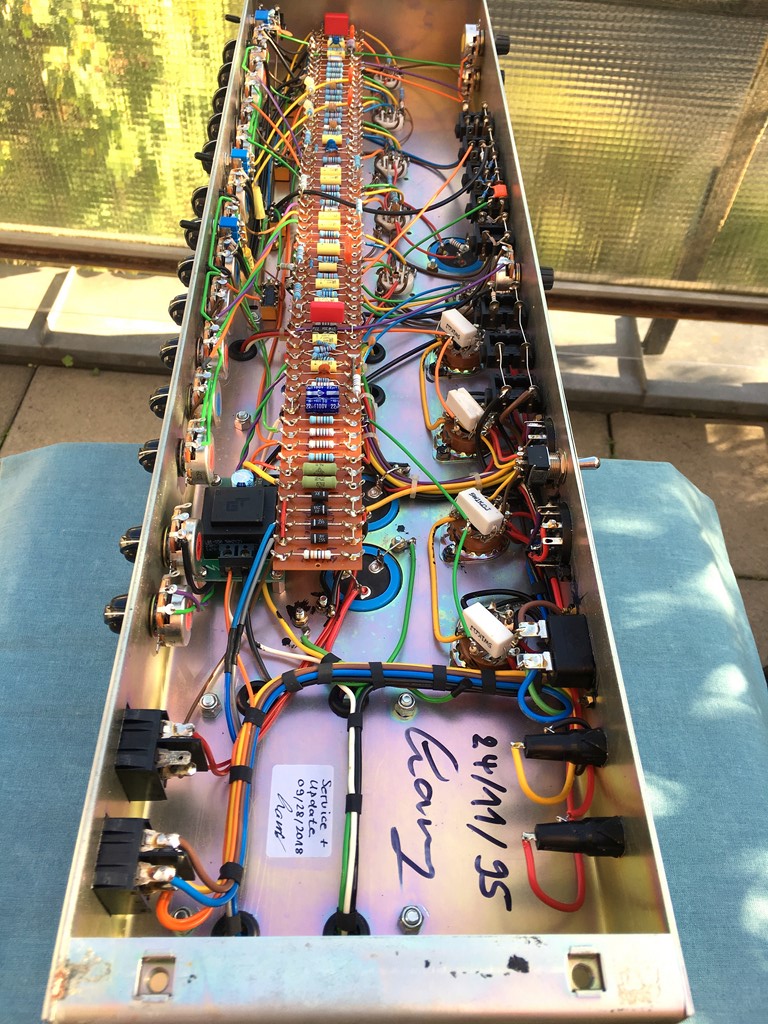

And as you can see on the following photos, there's not much left over of the original Marshall:

Oh yes, there's some sentimentality creaping up inside me, when a 23 y.o. baby of me is coming back...
... and after circuit update and retubing then is simply sounding so overwhelming, that my eyes became slightly wet :thumbsup:


Attachments

  • IMG_00813.JPG
    138.4 KB · Views: 1,226
  • IMG_00814.JPG
    177.6 KB · Views: 1,223
  • IMG_00815.JPG
    137.9 KB · Views: 1,227
  • IMG_00802.JPG
    301.2 KB · Views: 1,226
  • IMG_00803.JPG
    279.6 KB · Views: 1,227
  • IMG_00804.JPG
    297.2 KB · Views: 1,225
  • IMG_00812.JPG
    289.5 KB · Views: 1,227
  • IMG_00806.JPG
    156.7 KB · Views: 1,224
  • IMG_00807.JPG
    147.7 KB · Views: 1,220
  • IMG_00810.JPG
    154.6 KB · Views: 1,217
  • IMG_00811.JPG
    132.3 KB · Views: 1,220
Last edited:

SBlue

Well-known member
Thanks for sharing Larry.
It's always great to see amps like this. Knowing the story behind it just makes it even more interesting.
By the way, that looks beyond impressive!


Mailman1971

Moderator
Larry....
Thanks for this.
:thumbsup:
I’m not going to pretend what the heck all those circuits/ wires mean or lead to.
But totally love what I’ve heard from you thru the years. :rock:
And yeah.... I get little misty eyed myself these days. ;)
Awesome. Man. It’s only Rock n roll.....
But we like it. :D


Monkey Man

Super Moderator
Until Larry says he's not happy about this, I'm going to make this thread a sticky and append "Larry Q&A" to its title.

Controlled_voltage suggested that a Q&A thread with Larry could be something members would appreciate, and I agree. After all, Larry seems happy to share his thoughts about all things amp-building, so why not let's turn this nostalgic reflection from the man himself into an opportunity for peeps to ask whatever they like of him?

Let's leave the design-rip-off stuff out of it please. We all know Larry's not the one doing this and copying of his circuit designs has been covered ad-nauseum in the general RT sub-forum.

Have fun. :thumbsup:


Smashedguitarist

Well-known member
... meanwhile 23 years ago, at the time, as the introduction of my very first Dino just has been 3 years ago...
... I still didn't build too much of my own amps. At that time I've merely built 3 or 4 DINO's every year, but...
... I've built, or better rebuilt lots of Marshall amps.

It's always been the same way, that first I've ripped out all & everything, what's been inside the chassis.
The entire circuit, pots, jacks, aso. and I've left over just the transformers, the electrolytics & the output tube sockets on the chassis.
Ok, for measuring and drilling holes, punching holes for additional preamp tube sockets, aso. temporarily I've also removed the trannies.

Then - until 2005 - I've used solder strips for creating a completely new circuit.
I've drilled additional holes into the fron & back of the chassis for additional pots & jacks...
... and sometimes I've made even a new front panel for my Marshall rebuilds.

Usually I've built 3 channel amps w/ Clean, Crunch & Lead with additional tube based effects loop.

Just a week ago, one of my rebuilds came back to its 'father', asking for retubing plus update.
Here it is, the nice baby - named DINO JM 732







And as you can see on the following photos, there's not much left over of the original Marshall:

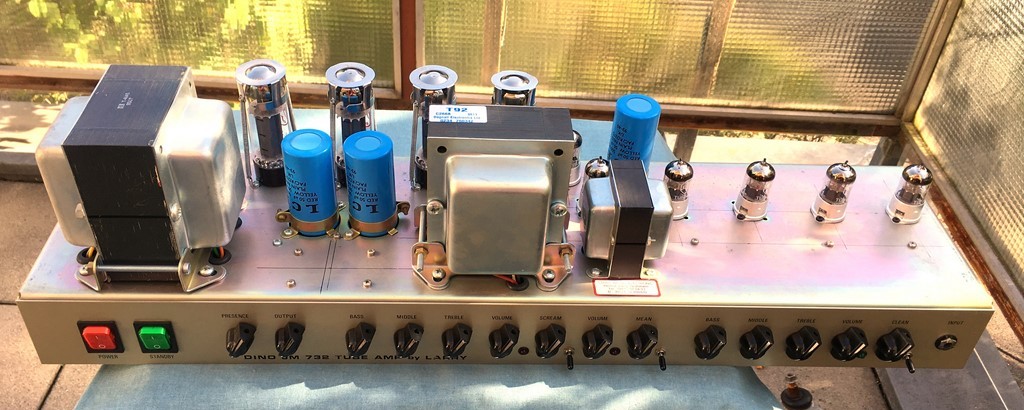

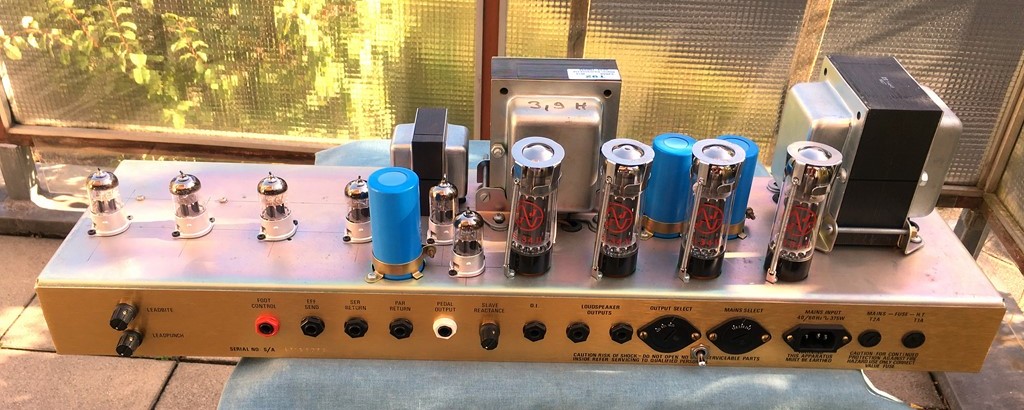

And finally some photos of the amp chassis out of its head shell:









Oh yes, there's some sentimentality creaping up inside me, when a 23 y.o. baby of me is coming back...
... and after circuit update and retubing then is simply sounding so overwhelming, that my eyes became slightly wet :thumbsup:
Gorgeous


DanTravis62

Well-known member

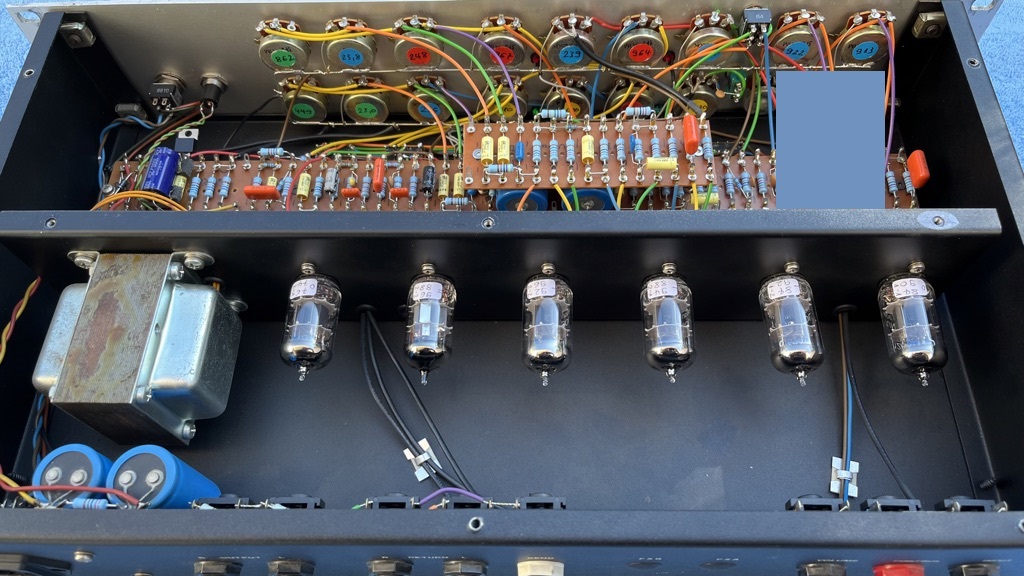

There's nothing that triggers my gear acquisition syndrome like gutshots of Larry's work.

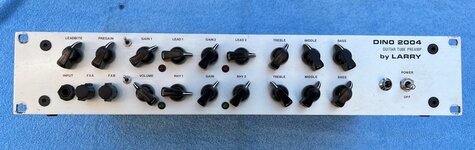

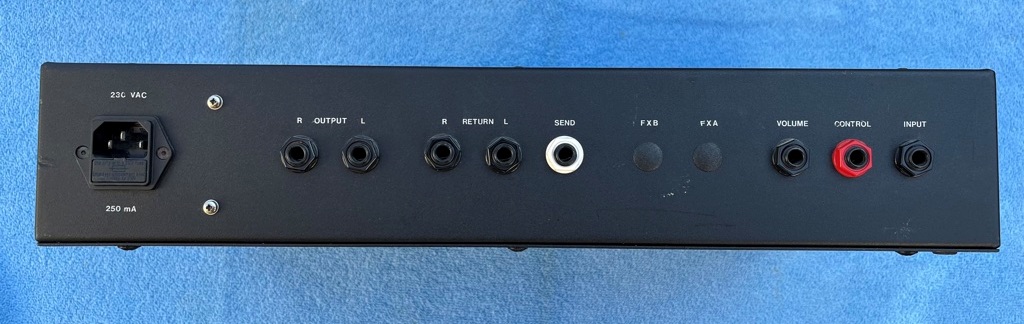

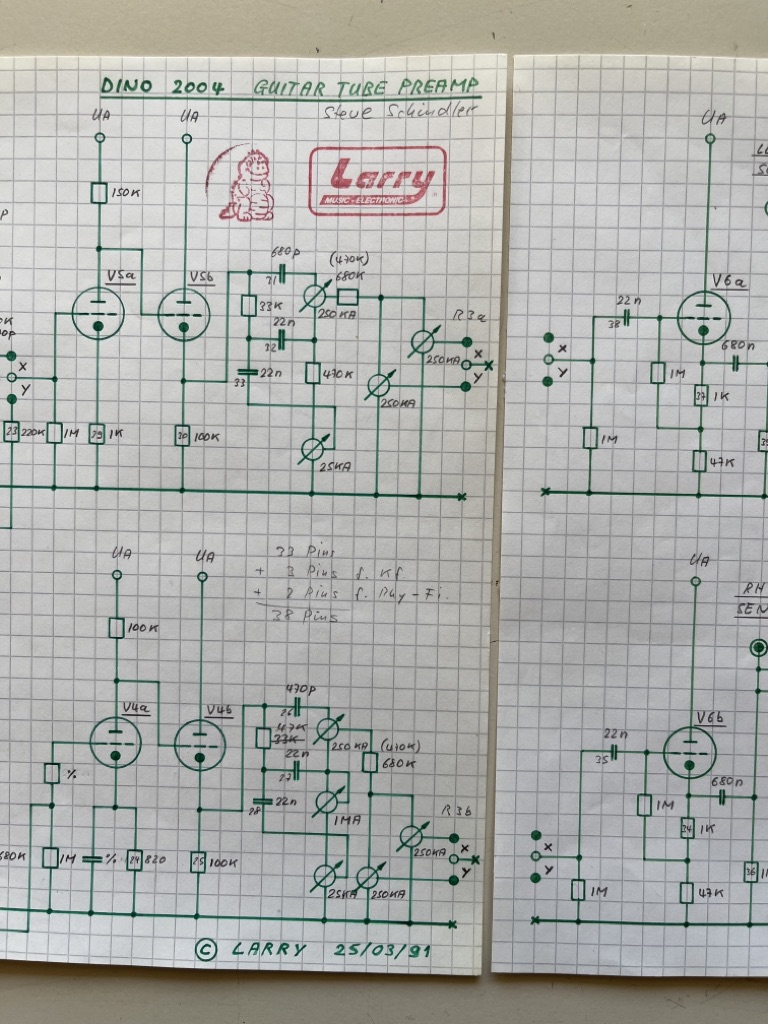

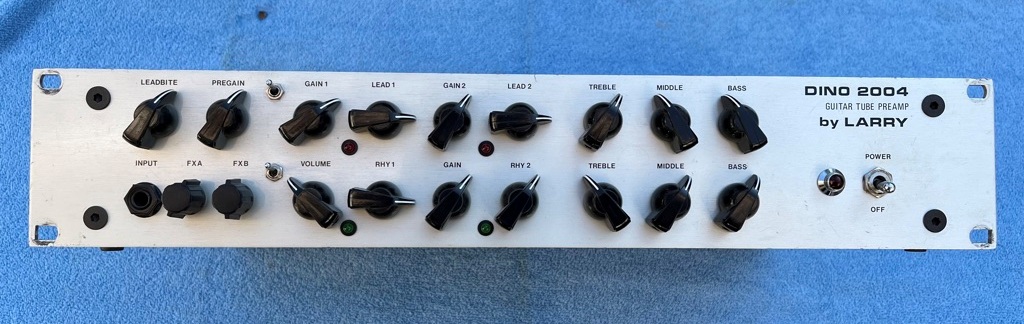

That Dino 2004 preamp especially :love::love::love:

Now that @SBlue and @EddyLenz have shared their older Dinos as well, R/T has the most Dinosaur pornography this side of DeviantArt.

All hail Larry!
