Friedman BE mod questions

[lespaul6]

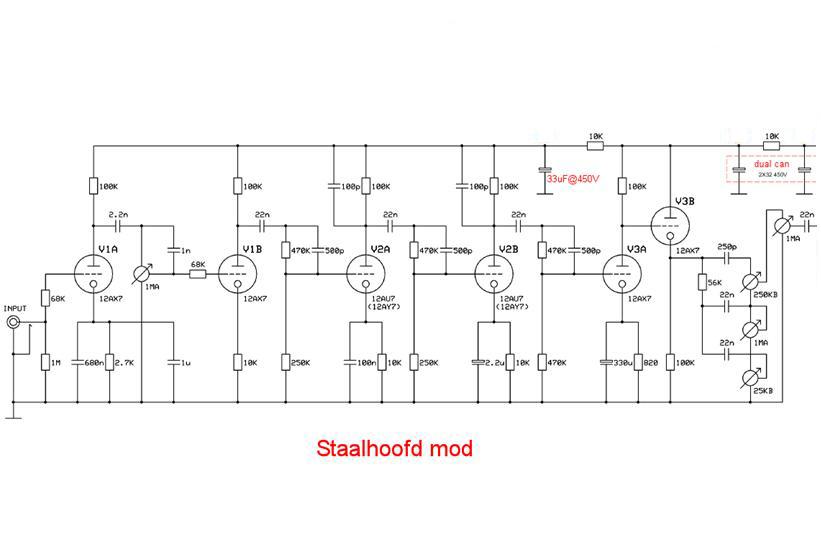

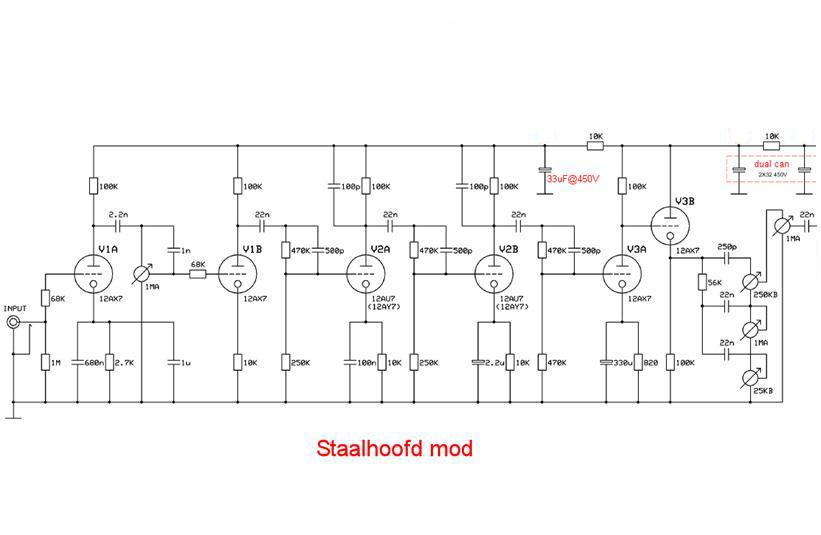

Is this the right schem for the BE mod?



[sahlomonic]

That's just a different flavor 2204/2203 high gain mod. Friedman moves the gain pot to the next gain stage, and slope resistor would be 33k. Do a Google search for the BE100 schematic - that's one of the schems I used when I did the BE/Jose mod to my 2204
