Ground Zero modded Marshall SC20H iPhone clip

  • Thread starter Thread starter RedPlated
  • Start date Start date
RedPlated

RedPlated

Well-known member
So I finally dug into a studio series. Came out great. I did a pretty much complete MOAB+ mod on it. Coverted to pre tone stack master. Switchable between 3 and 4 stages. Gain cut switch, 3 way bright switch and compressed/ raw control. NFB and depth on back. Depth is push pull. Pulled adds a lot of thump.

Here’s an iPhone clip at pretty reasonable volume. The amp is on 4 stages here and is surprisingly quiet. Very little noise at all.


That sounds killer. Would love to see a sniper mod done to one of those!

Trevor said:
DUDE…that’s awesome, is this gonna be a regular thing? Inquiring minds etc etc 😅
Click to expand...
Junk Yard Dog said:
Can we send these to you or is this a one off?
Click to expand...

I may start doing them. It came out great. But the loop is horrible. I need to find a solution to that issue first.
PiggySmallz said:
That sounds killer. Would love to see a sniper mod done to one of those!
Click to expand...
I actually have two of these amps. This one and a SV20 in white. My plan was to MOAB the SC20 and then do a Sniper on the SV20. I won’t start on the SV until I can solve the loop issue on the SC20

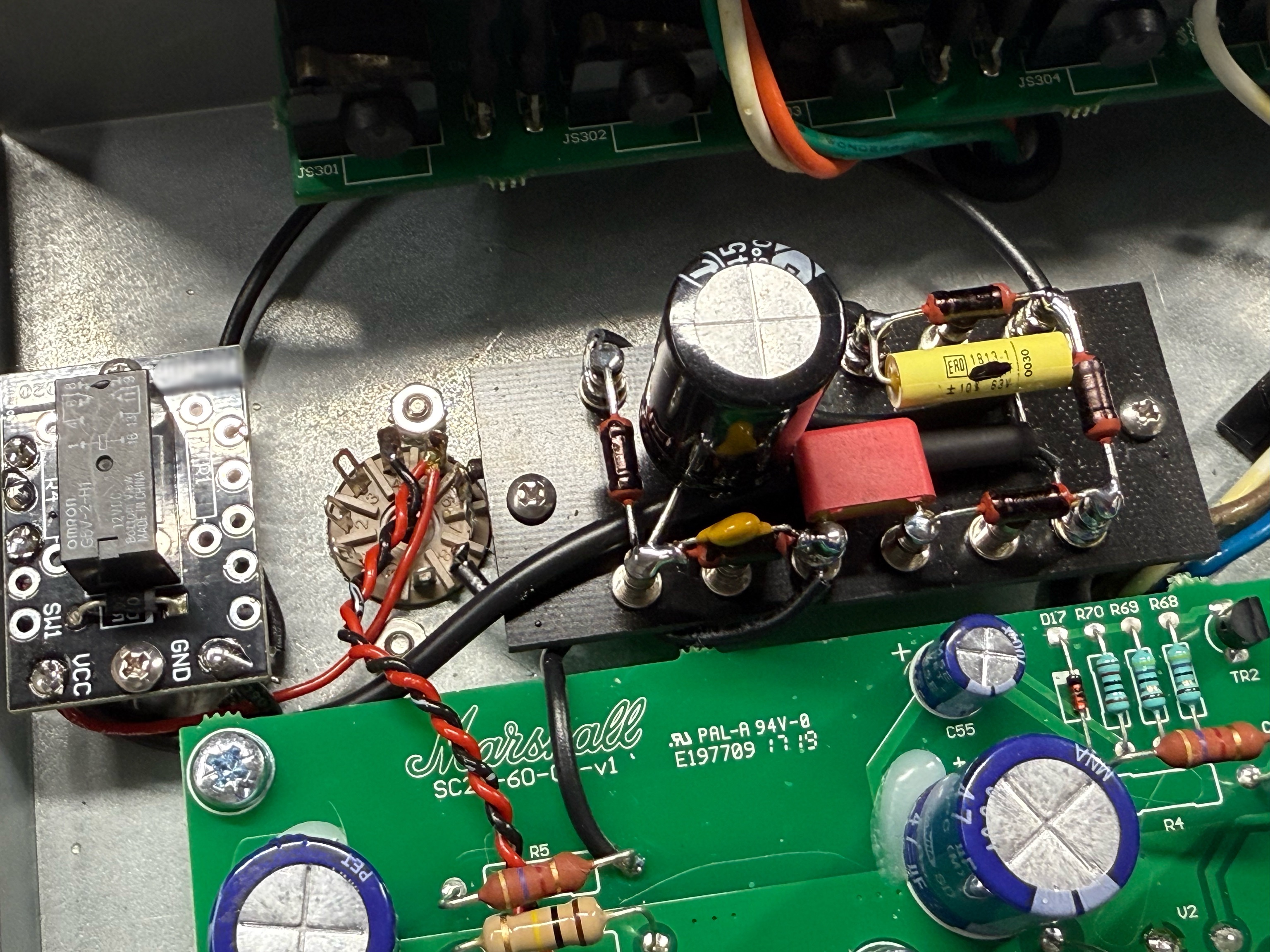

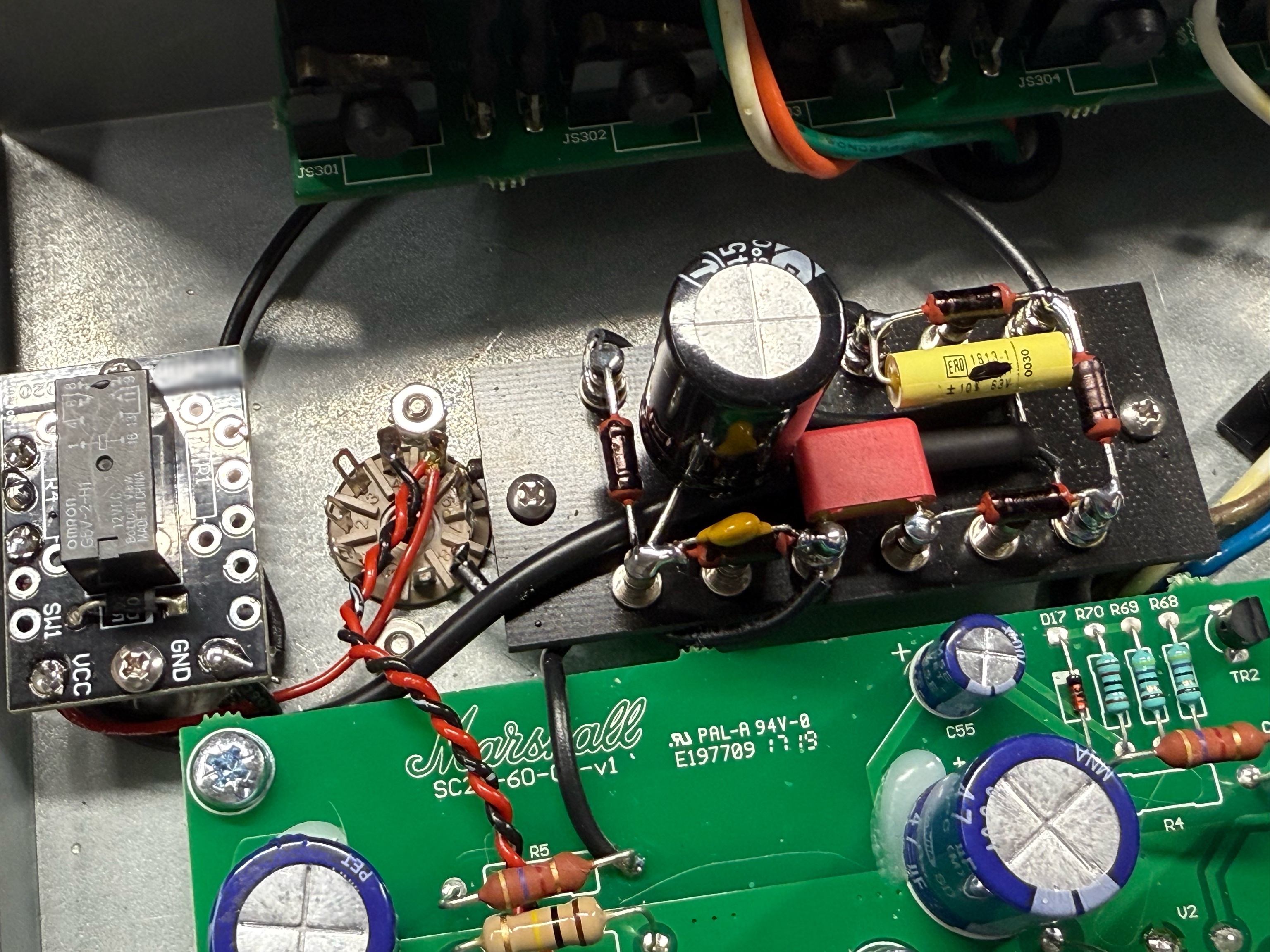

Here’s a pic of the added 4th stage inside. With switching relay to change from 3 to 4 stages by pulling gain knob


Attachments

  • You_Doodle_2025-05-15T04_08_49Z.jpeg
    1.8 MB · Views: 41
I love how Jeremy mods so many platforms - Rectos, Soldanos, Mezzabarbas and more than just a couple of Marshalls. Just nice to see someone willing to take chances and have success.

i have a Class 5 head, is that something you can turn into a low wattage beast??
