Is a 'Humbuster' cable just a TS to TRS cable?

[cragginshred77]

I am using a real amp that needs a TS cable and the processor i'm using to change channels needs a TRS. Tried my humbuster cable and it did not work, however a TRS on both end but partially pulled out of one jack to create a TS end did work.

Just curious about the Humbuster cable design and if it is different from a TRS to TS cable you might make or buy



[Purpleibby]

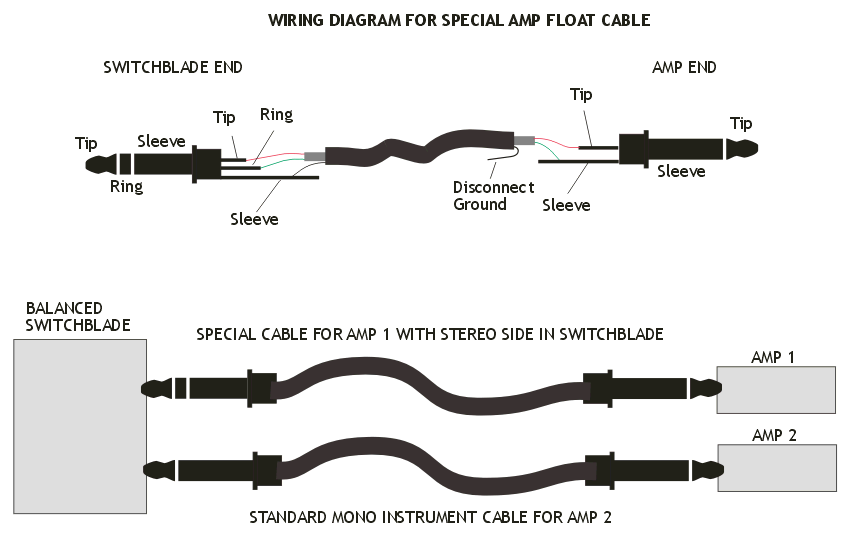

https://uploads-ssl.webflow.com/55e688d4aeeb20146f5e7347/56f2f74ad9cb98a86e4ed930_amp-float.gif



[Beandust]

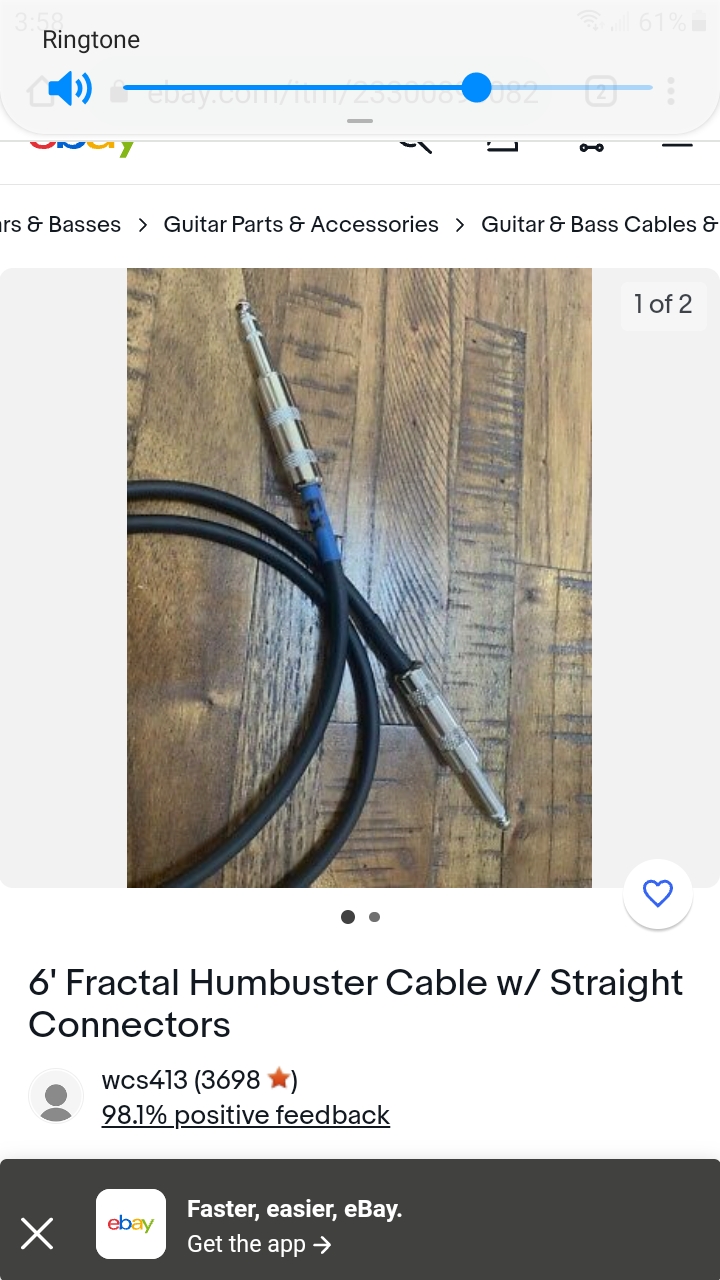

This image of a fractal humbuster seems like your question may be a reality, maybe some specific shielding added to make it a humbuster? Interesting



[LP Freak]



[Shask]

^

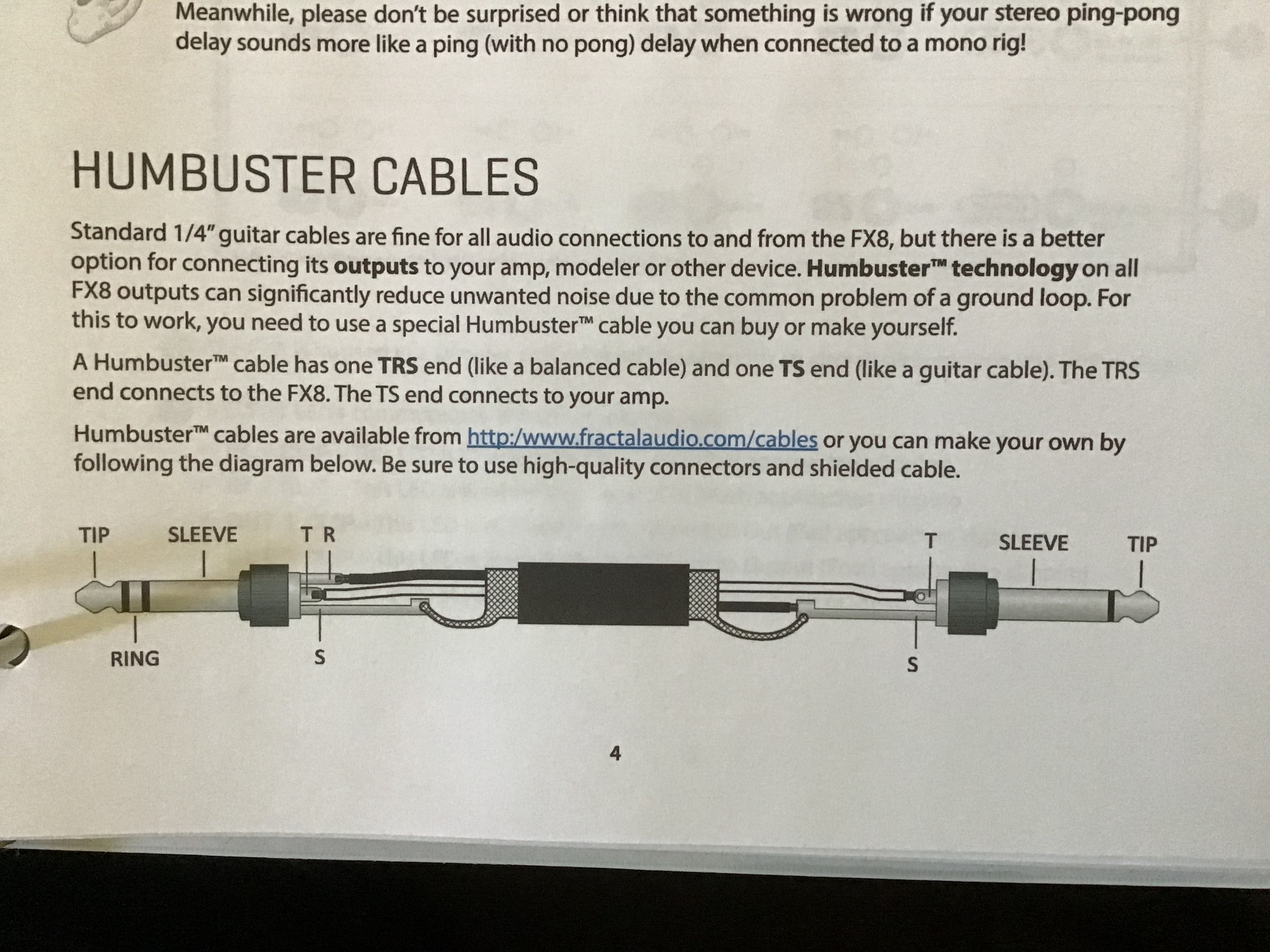

Yep, that is the diagram. I made a few awhile back.
