Preamptube locations on Uber Ultra.

[John4021]

.....anyone?
Cant find shit on line



[OldGtrGuy]

They're in the front of the amp



[griff10672]

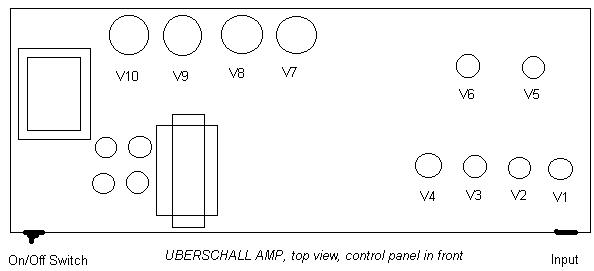

these are the diagrams for the Twin Jet and the reg Uberschall ...... chances are they are probably the same ....



[John4021]

Ultra Uber has the pre tube in a straight line.
I need to know what effects what...V1 V2 etc



[John4021]

Wheres Unkle Mo. I bet that Curl rider knows



[PurityS.L.G]

Looking at the back of the amp, left to right is V1-V6



[Bxlxaxkxe]

Just for you John



[John4021]

Your a sweetheart

I wont even ask where you found that.
Black market no doubt



[PaintChipsAreVegan]

Your a sweetheart

I wont even ask where you found that.
Black market no doubt

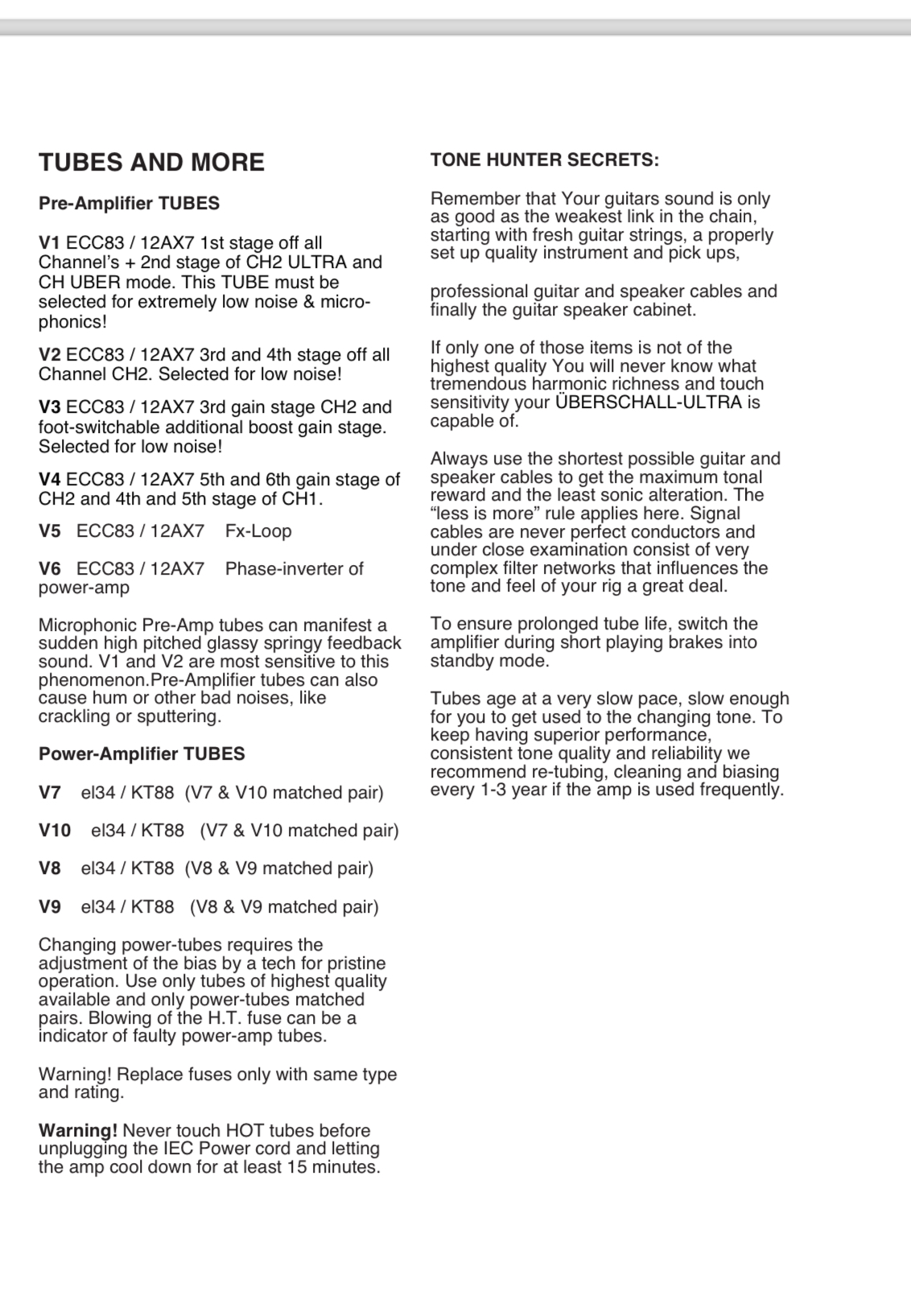

its the uber ultra manual. its somewhere online. bogner also emails it when requested



[S̷͖͑m̵͎͂á̵̺s̸͚̈́h̴̬̑]

When i first opened up a bogner, i learned he used the same preamp tubes as me. And even then he put tube dampers on them. That is pretty cool. Did he finally put a serial loop in so you could properly gate also?



[John4021]

its the uber ultra manual. its somewhere online. bogner also emails it when requested

Bogner HQ sent him a manual. Why you cant readly find one online is beyond me.

BUT,I gots mine so all is good



[Chronic Narnia]

Can someone post the manual here?



[rottingcorpse]

This is EXACLY why I love this forum.



[Chronic Narnia]

Manual anyone? How do you save settings so the effects loop and boost are defaulted to on by channel?

I can’t find their contact info anywhere so if someone here has the manual, can you please send it to me or post it?



[Chronic Narnia]

Just for you John
View attachment 302625

Do you have the full manual?



[Chronic Narnia]

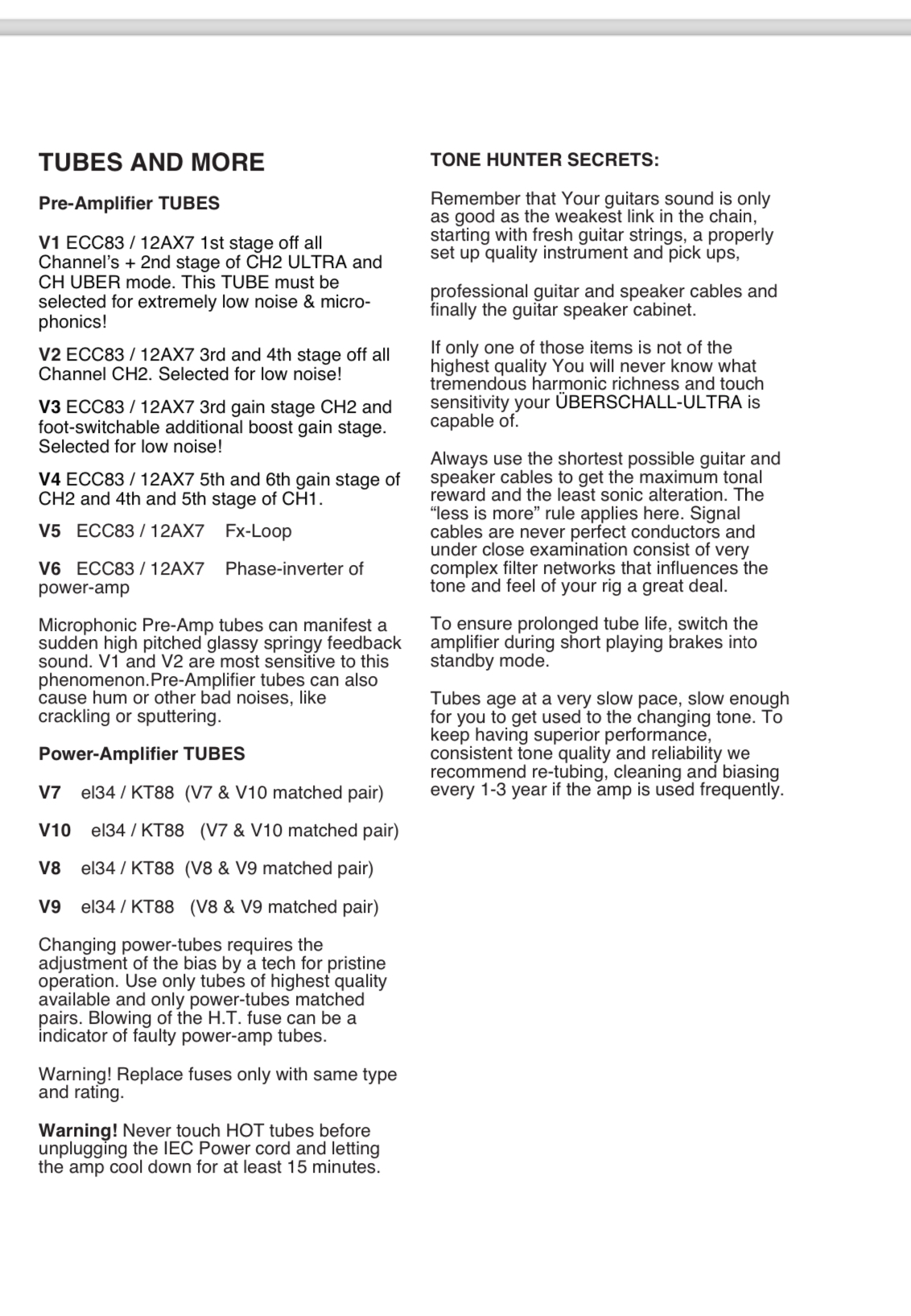

Here's the owner's manual...
