Some new .... Some old ......... all fresh off the bench

  • Thread starter Thread starter griff10672
  • Start date Start date
griff10672

griff10672

Well-known member
finishing up quite a few builds this morning ....... ready to be thrown on my board for a weekend of testing before shipping out .

we got :

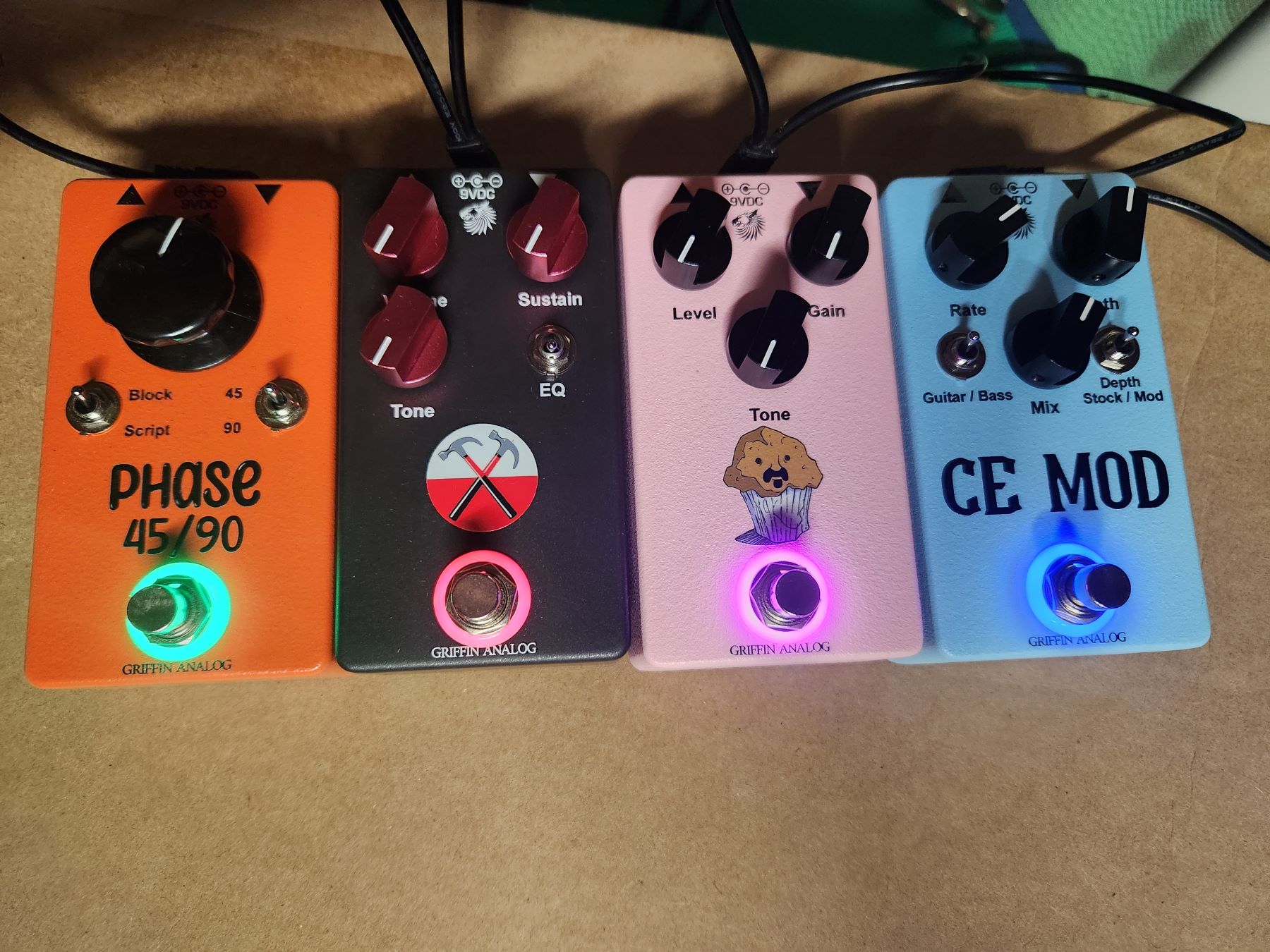

Phase 45 / 90 ......

Pink Floyd / Gilmour inspired modded Muff ( Skreddy P-19 )

Zappa inspired Fuzz ( Stomp Under Foot Utility Muffin )

my modded Boss CE-2

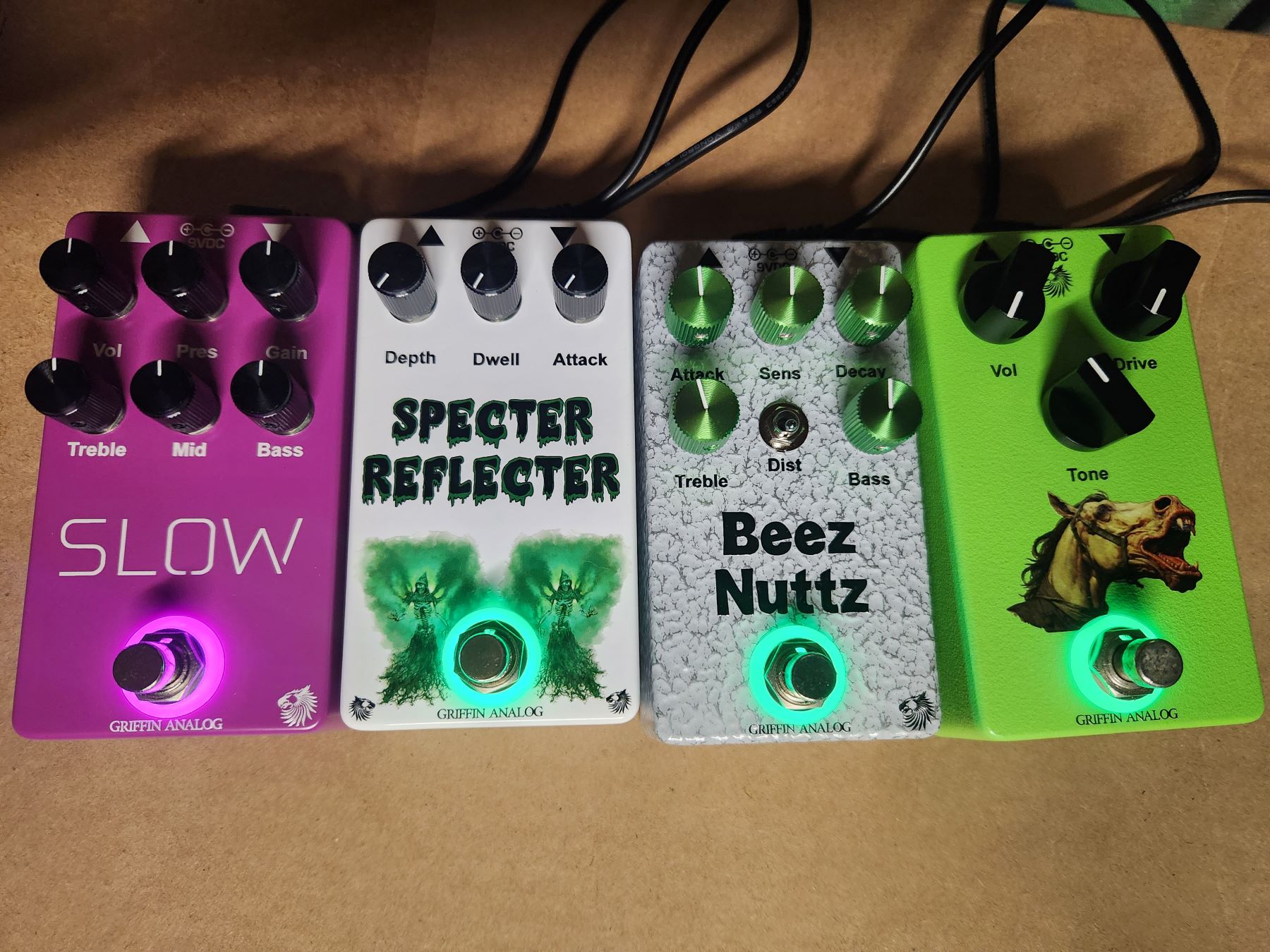

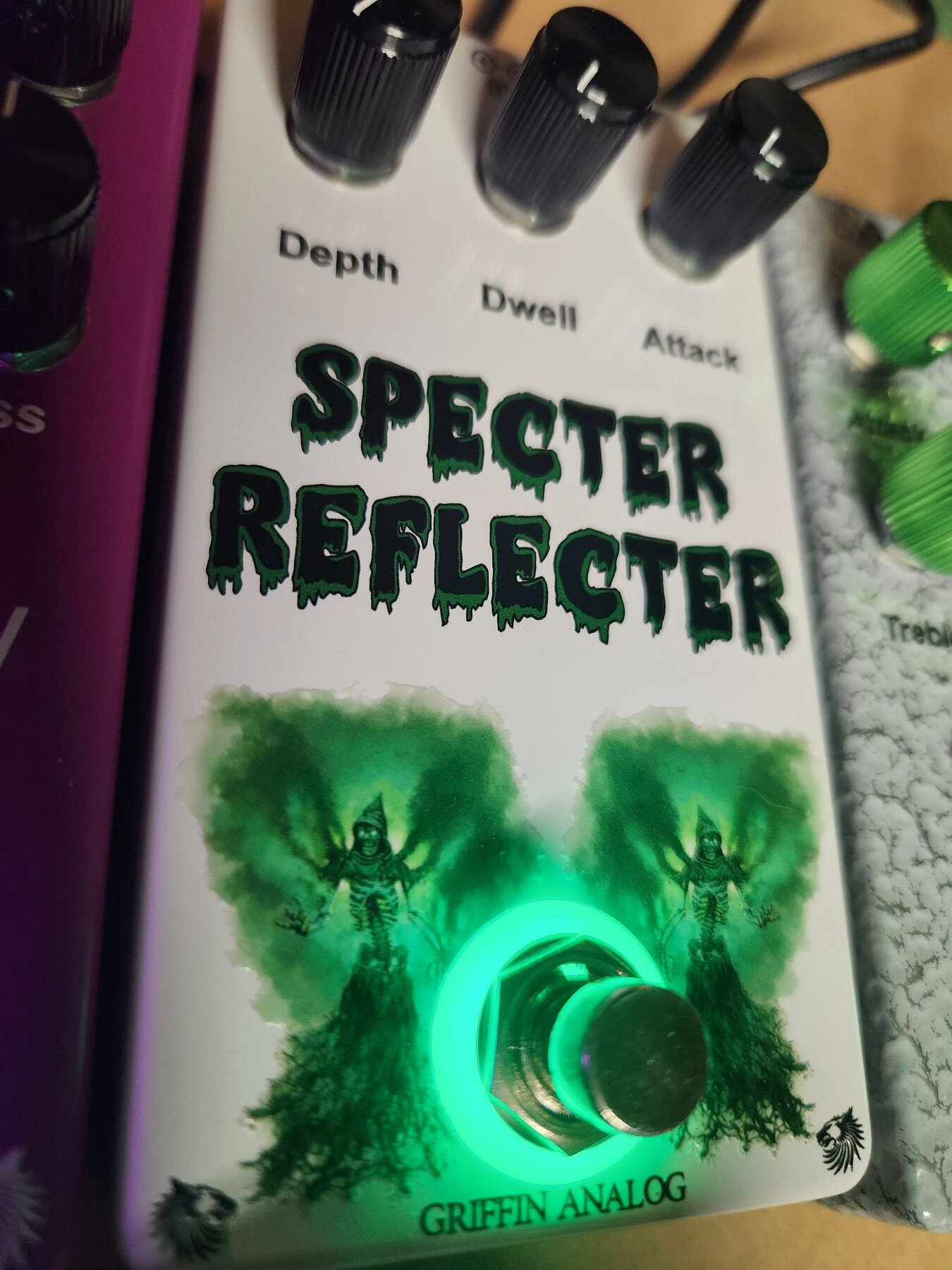

Specter Reflecter ( EQD Ghost Echo )

The SLOW ( SLO Pedal )

yet another Beez Nuttz ( heavily modded Bass Balls circuit )

HORSE ( Pro Tone Deadhorse )

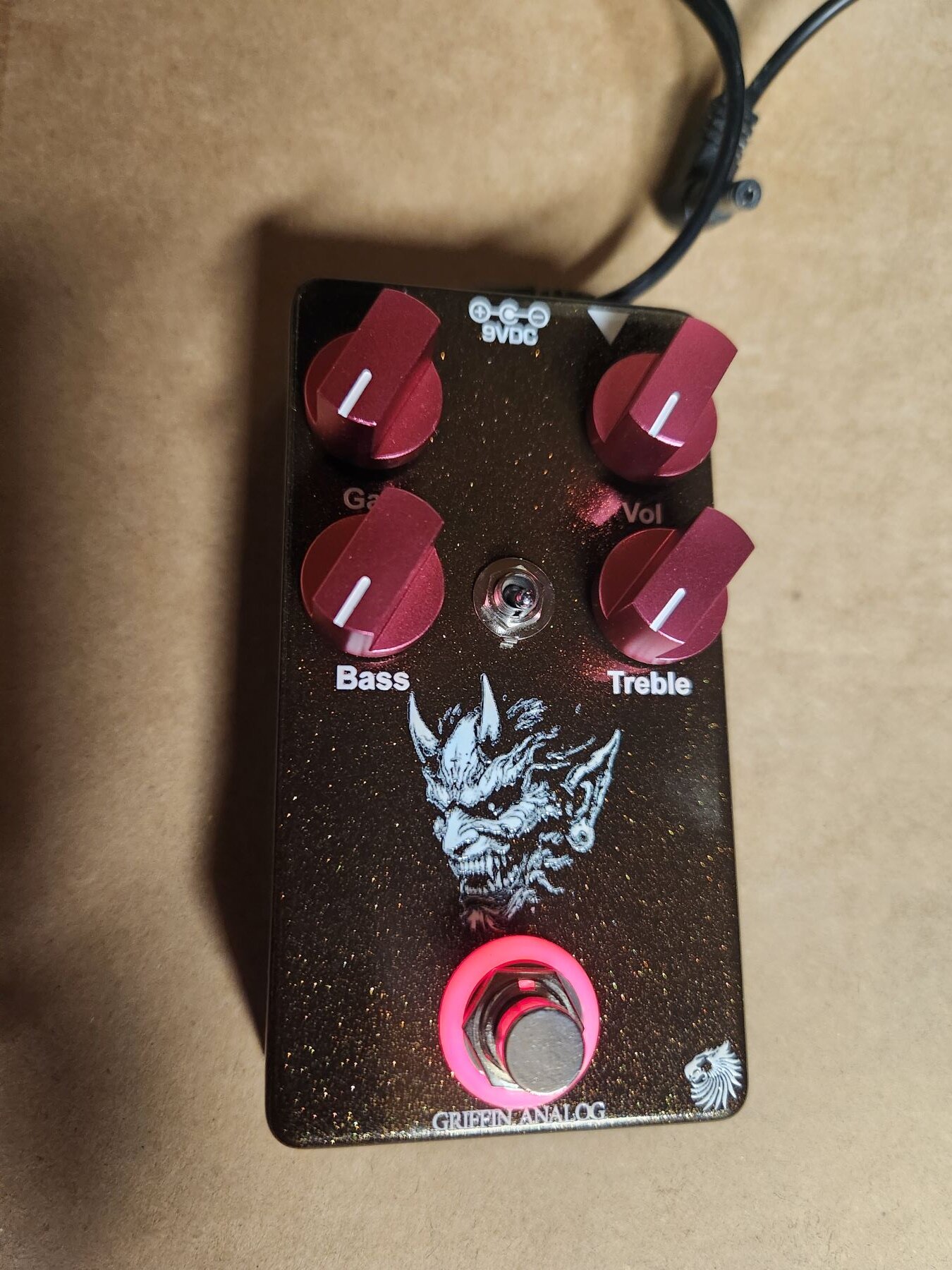

Melter ( Pussymelter circuit )

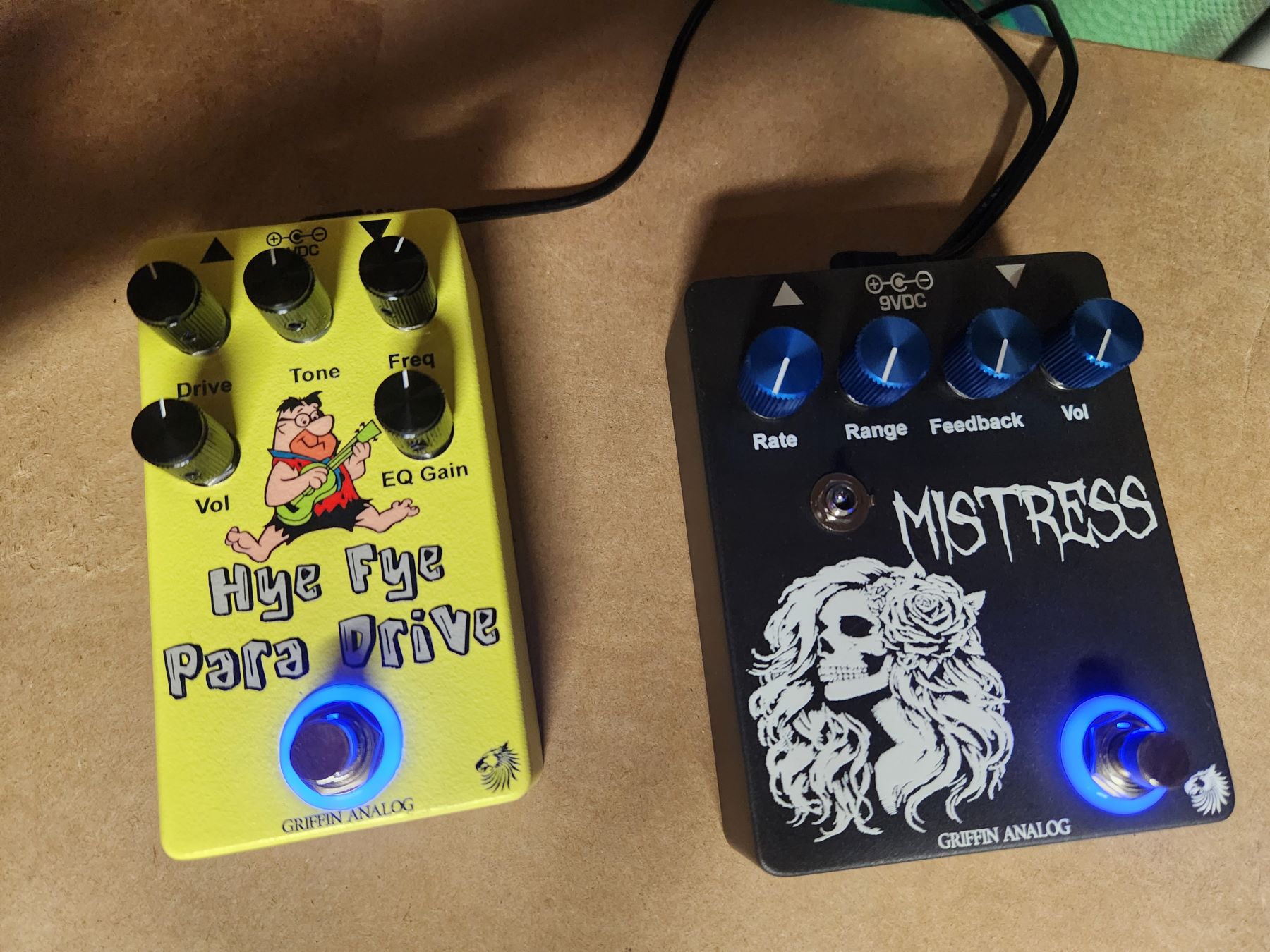

Hye Fye Para Drive ( a old Pearl parametric EQ/Overdrive circuit )

Mistress ( Electric Mistress )


as with anything I post up ...... all available to order ....... just hit me up if you have questions


Attachments

  • 1000005705.jpg
    377.4 KB · Views: 53
  • 1000005711.jpg
    353.7 KB · Views: 50
  • 1000005709.jpg
    362.3 KB · Views: 35
  • 1000005706.jpg
    282.5 KB · Views: 34
  • 1000005708.jpg
    364.1 KB · Views: 47
How much is that purple beauty going to be selling for anyways?

Maybe I can afford it after a couple gigs next month....

VonBonfire said:
How much is that purple beauty going to be selling for anyways?

Maybe I can afford it after a couple gigs next month....
Click to expand...
The SLOW is going for 150.00 shipped .... if you order one though ..... I want to make it white .... with the purple Fez on it ...

VonBonfire said:
That purple is fire though.... :yes: :love::cheers::love::yes:
Click to expand...
yeah .... I think it came out good ....... it's a really great sounding Overdrive/Distortion ...... it does the wall of sound SLO/Recto thing quite well ...

I built it without the depth switch ( I built the PCB to reflect the switch being on ) but I can implement the switch if I want to .... it will just be coming off the side of the pedal like the original ( not so pedal board friendly if your tight on room )

I had it going into my Mark V's clean channel ...... and I tried it straight into my Peavey 50/50 Power Amp ...... both with great results

griff10672 said:
yeah .... I think it came out good ....... it's a really great sounding Overdrive/Distortion ...... it does the wall of sound SLO/Recto thing quite well ...

I built it without the depth switch ( I built the PCB to reflect the switch being on ) but I can implement the switch if I want to .... it will just be coming off the side of the pedal like the original ( not so pedal board friendly if your tight on room )

I had it going into my Mark V's clean channel ...... and I tried it straight into my Peavey 50/50 Power Amp ...... both with great results
Click to expand...
I'm interested I just have to wait a bit. I dropped my Edwards off for fretwork yesterday so I've started eliminating those maintenance items....

Purple and white have been my colors for the past year or so.....

Wonder how that thing would sound through the Twin. It'd be nice to have a full EQ on a single OD I can take to Chicago in September. I know it has more gain on tap than the Gladio which might be critical depending on what kind of soundman I'm stuck with.

VonBonfire said:
I'm interested I just have to wait a bit. I dropped my Edwards off for fretwork yesterday so I've started eliminating those maintenance items....

Purple and white have been my colors for the past year or so.....

Wonder how that thing would sound through the Twin. It'd be nice to have a full EQ on a single OD I can take to Chicago in September. I know it has more gain on tap than the Gladio which might be critical depending on what kind of soundman I'm stuck with.
Click to expand...
you can dial the gain back with some really good results ......

it'll turn that twin into a fire breather .... my first tube amp back in the late 80's was a 70's Twin ..... that thing ate up every distortion pedal I put in front of it .

Does the slow have any major differences to the original pedal ?
Also is there a sound demo somewhere ?

psychic_driver said:
Does the slow have any major differences to the original pedal ?
Click to expand...
He stated this earlier in the thread (quote below)

griff10672 said:
I built it without the depth switch ( I built the PCB to reflect the switch being on ) but I can implement the switch if I want to .... it will just be coming off the side of the pedal like the original ( not so pedal board friendly if your tight on room )
Click to expand...

psychic_driver said:
Does the slow have any major differences to the original pedal ?
Also is there a sound demo somewhere ?
Click to expand...
psychic_driver said:
Yes I saw that it lacks the depth switch. I am asking if anything else in the guts has been tweaked or changed from the original
Click to expand...
I used a schematic from a very reliable source so I assume it's a spot on clone .... I use top quality components and in doing so most of the time improve on the original just doing that ...

I designed the PCB to reflect the depth switch being on .... but left myself the ability to add the switch if I want to

no sound demos ..... close as you will get is checking out a vid of the original SLO pedal
