Speaker cable popping out of 4x12 cab...

[steve_k]

Just bend the pole piece on the jack in a bit to tighten up the connection. If it's a Cliff's jack, you can pull the clip out, bend it to tighten and stick it back in. Never had that problem though....Good Job!



[jlbaxe]

https://www.amazon.com/Neutrik-Panel-Mou ... UTF8&psc=1



[FondledDuck]

Thanks for the advice, but already done...

I always add another screw to the center of the post brace,cuts the vibration way down and speaker cables stay in.Be sure to pre-drill and find center of brace first. This works on 3 Bogner's,1 Diezel and a Cameron . Wizard cabs come standard like this.Good Luck



[FondledDuck]

I agree...my question was how do the screws secure the Neutri locking jacks to the mounting plate designed to take the Neutriks? Check the link for reference of mounting plate.

https://www.amazon.com/Penn-Elcom-D0604K ... B0006MZMRS

The mounting plate does not have threads. Regular jacks are held in by the nut, the locking Neutrik ones are held in with two screws.



[ConcreteVampire]

This is a marketplace ready for a...

"All PURE silver, 12 gauge plate, Neutrik licensed, Heavy duty, military spec, old, Russian, NOS, possibly "Touched, spit on, jerked off on, and or blessed by, Cameron, EVH, George Harrison's ghost, or Elvis', JACK PLATE>"


Who's in!!






(All respect to a real problem, and the Neutrik Germans cornering the Market!)



[BeZo]

Jeez, I'm gonna tripple post here...

The Cliff jacks are near impossible to adjust, but if you install Scwitchcraft jacks you can tighten up how hard they grip the plug just by bending the tip conductor with your fingers. Not as good as locking, but usually good enough.

This guy beat me to it. Just bend the post up. Get it tight!



[BC Audio]

I agree...my question was how do the screws secure the Neutri locking jacks to the mounting plate designed to take the Neutriks? Check the link for reference of mounting plate.

https://www.amazon.com/Penn-Elcom-D0604K ... B0006MZMRS

The mounting plate does not have threads. Regular jacks are held in by the nut, the locking Neutrik ones are held in with two screws.

I don't get your question. You're asking how this

is secured to this

using these?

No disrespect, really, but if you can't figure that out, you should not be working on your own gear. Either that or I'm so dumb I don't understand your Q.



[D-Rock]

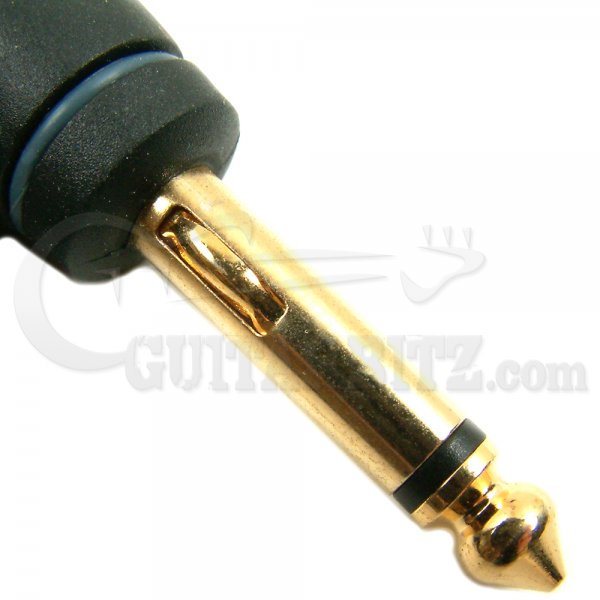

I use a Planetwaves cable that has retaining springs on the side of the insert.
