Building a rehearsal space

[njshred]

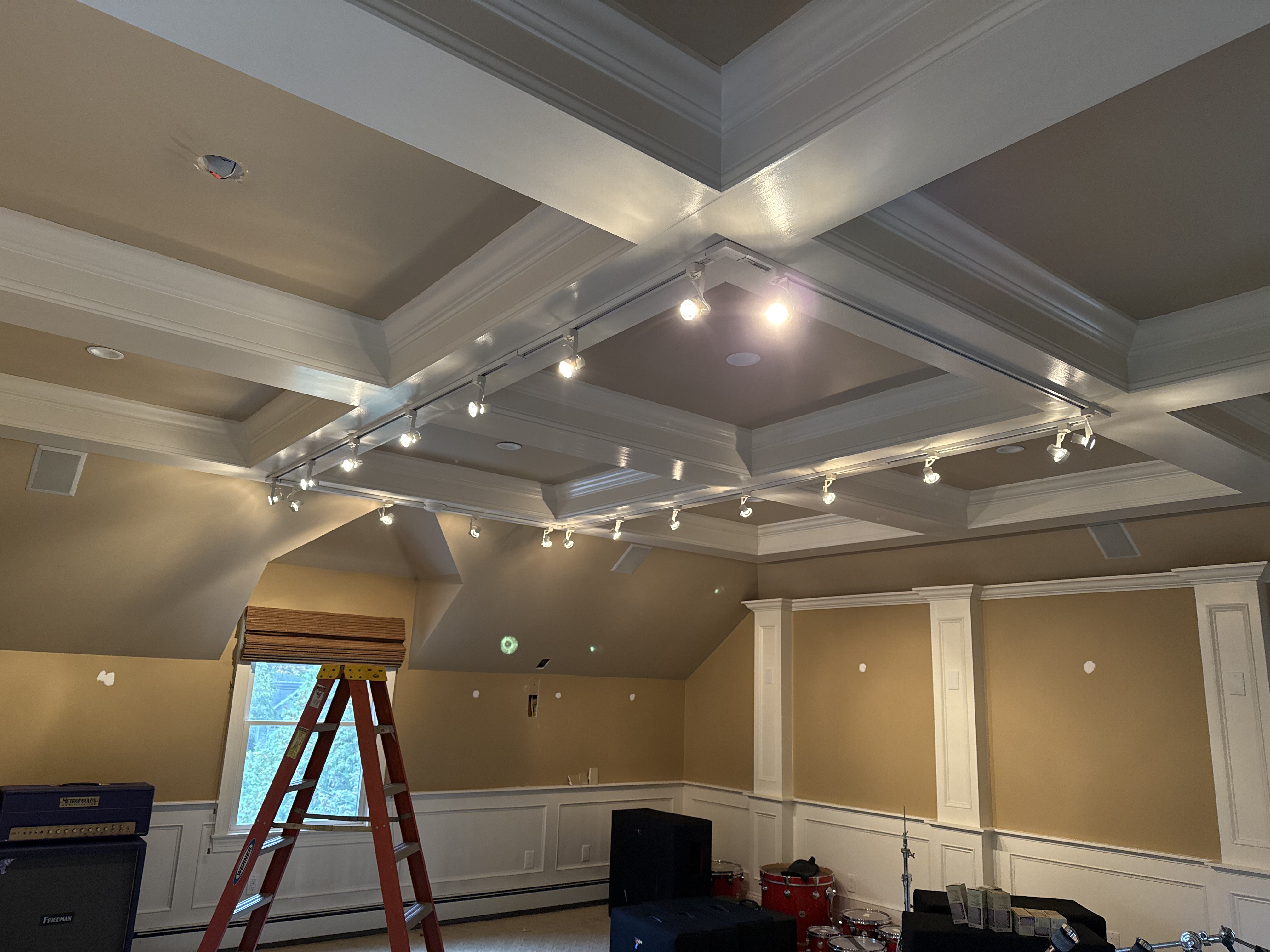

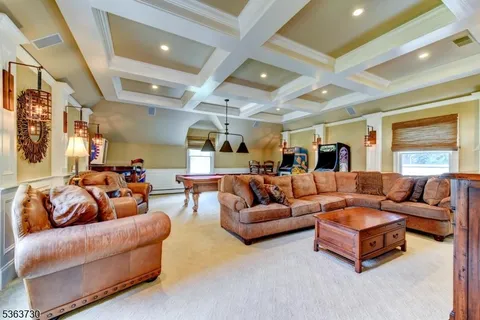

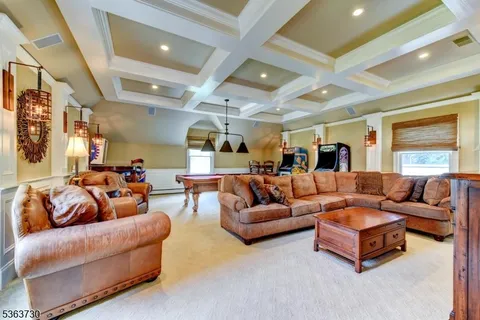

Start with a decent size room.

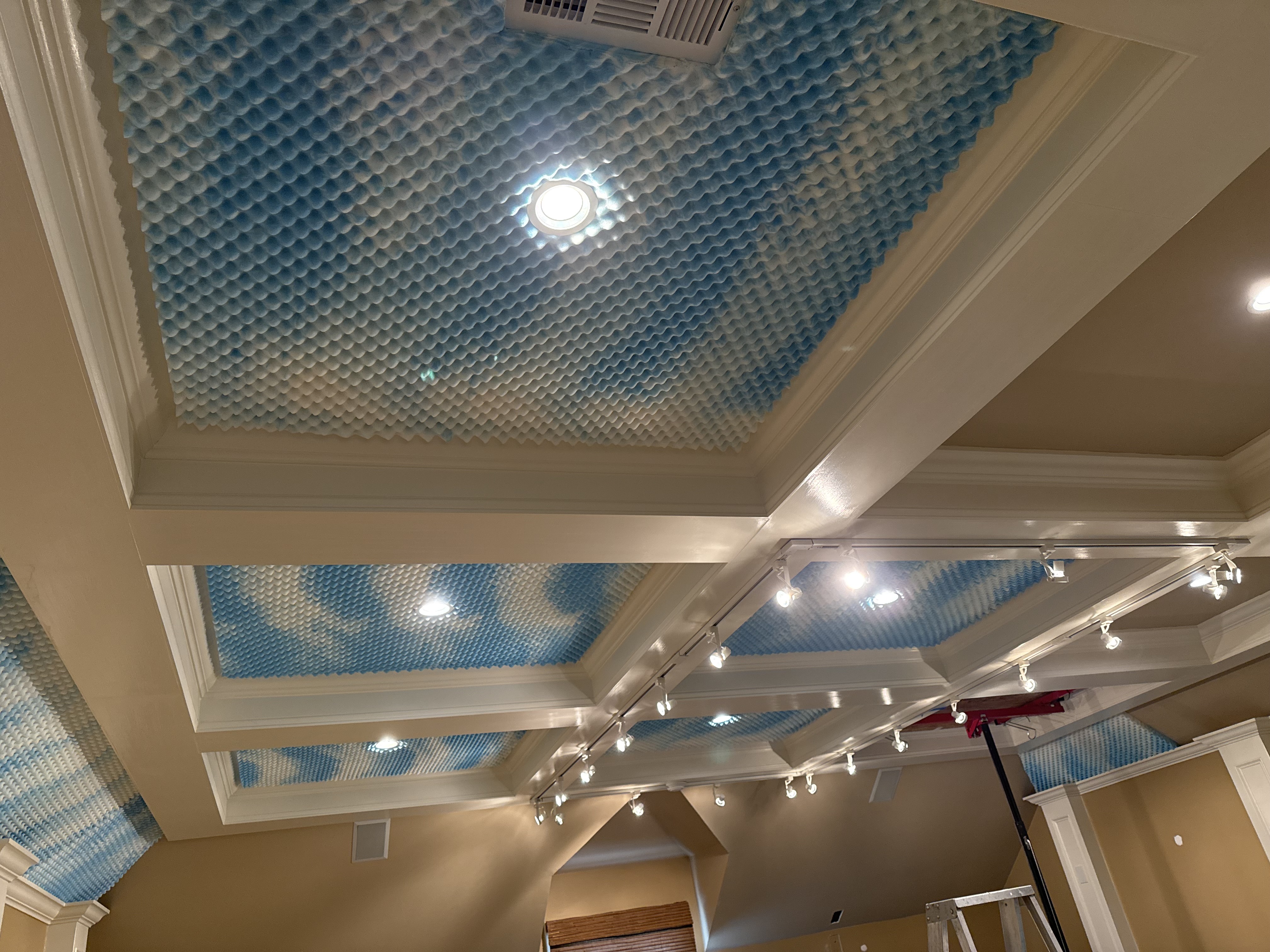

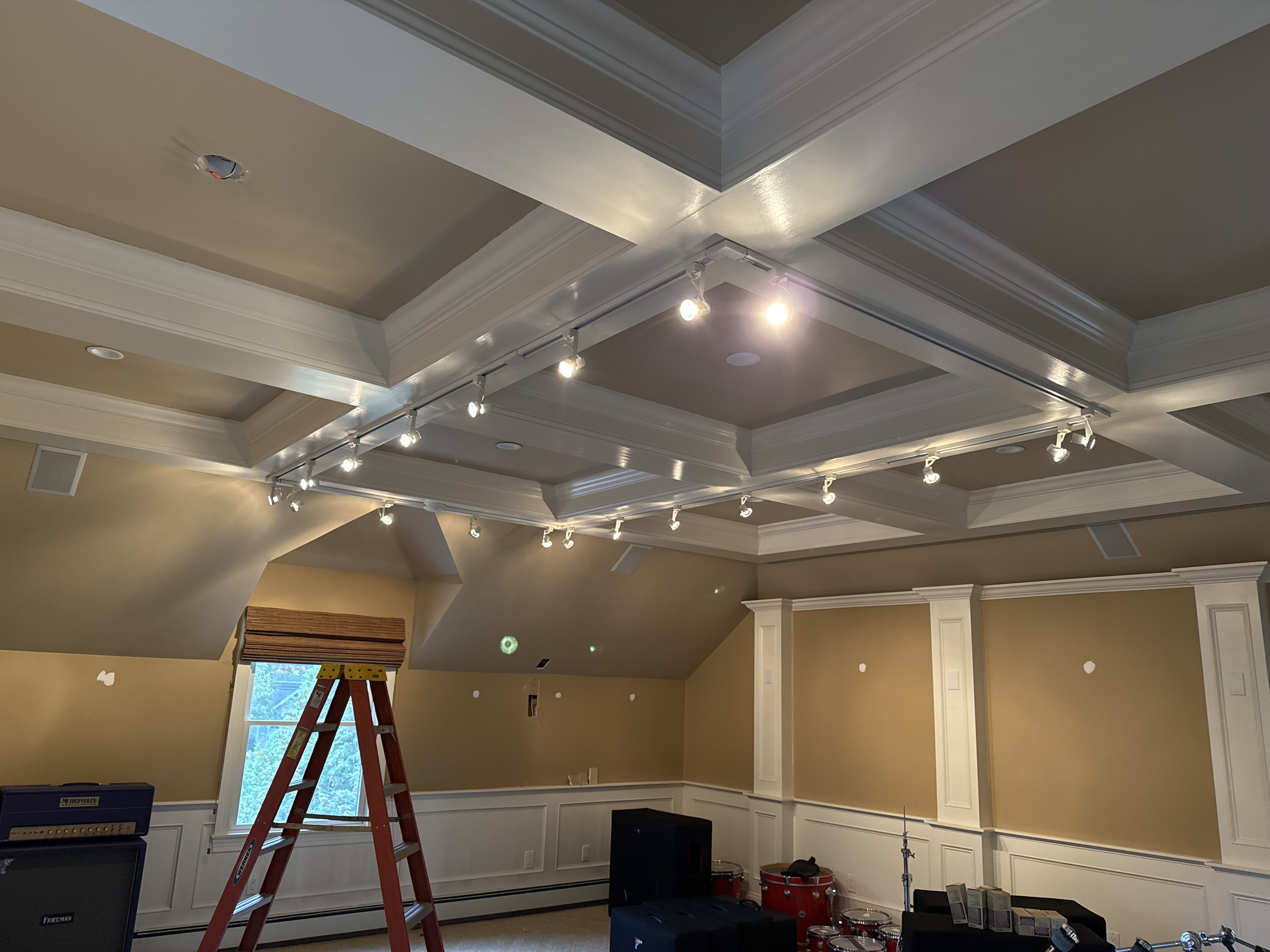

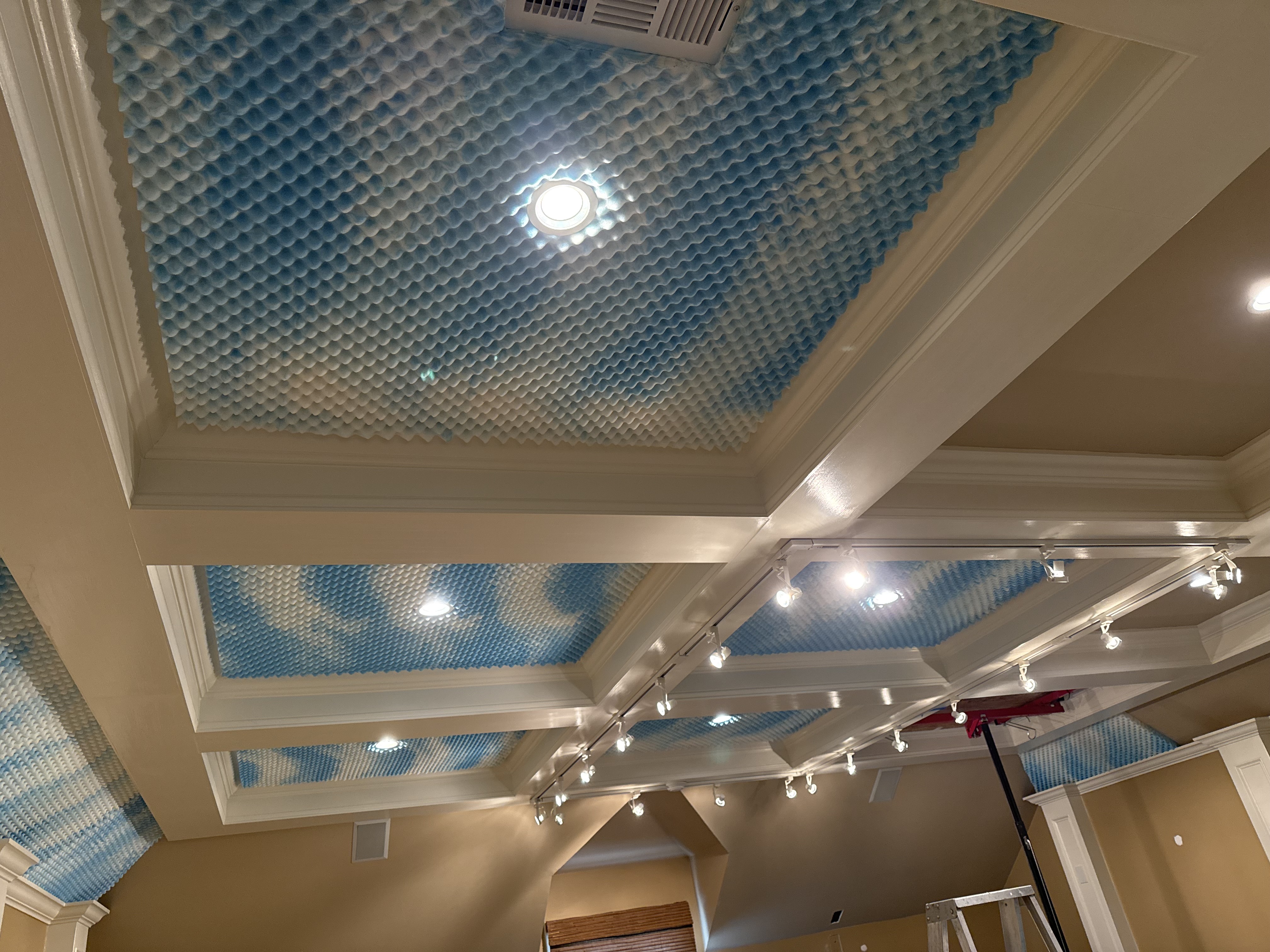

Then work on the ceiling:



[njshred]

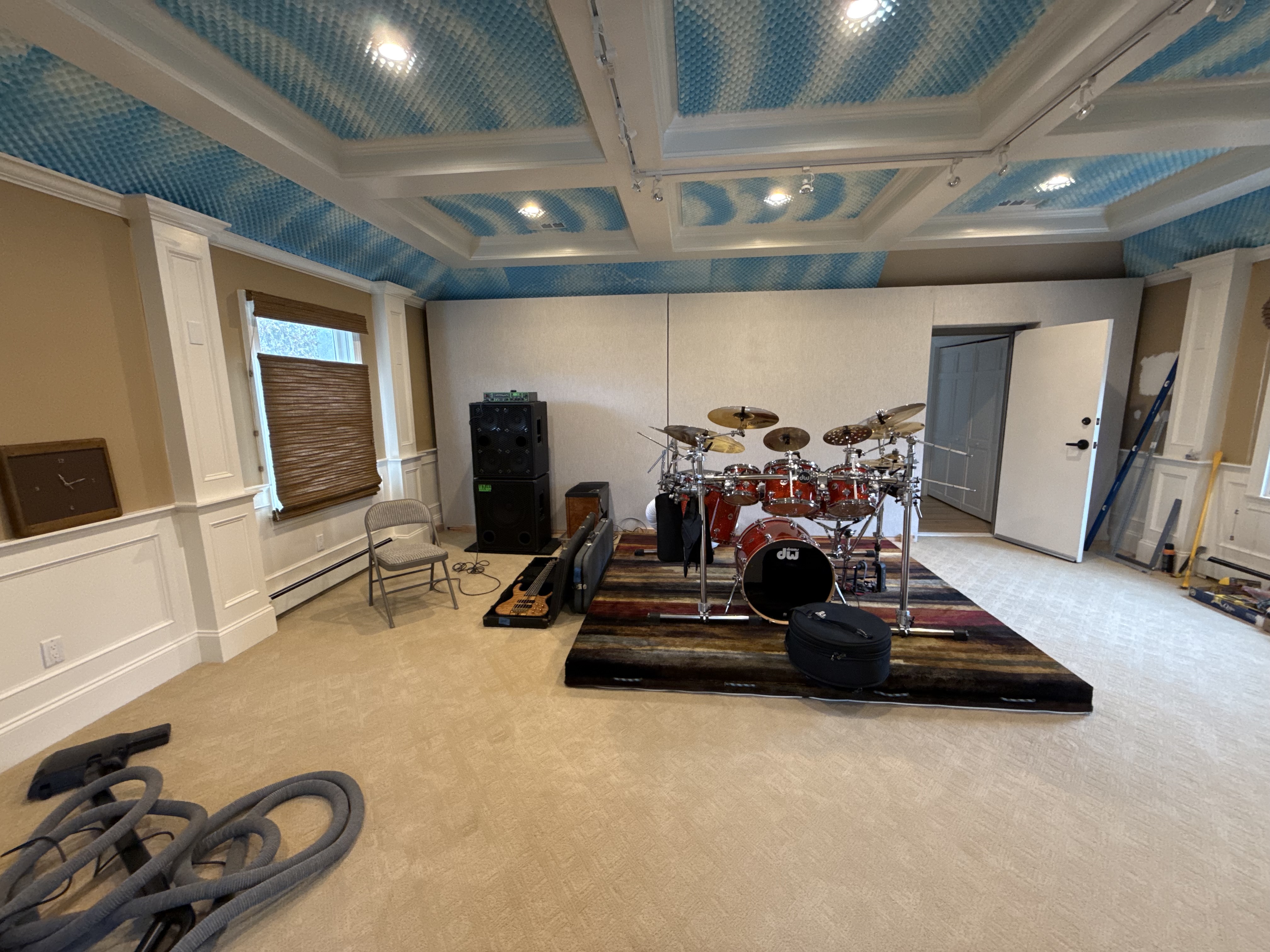

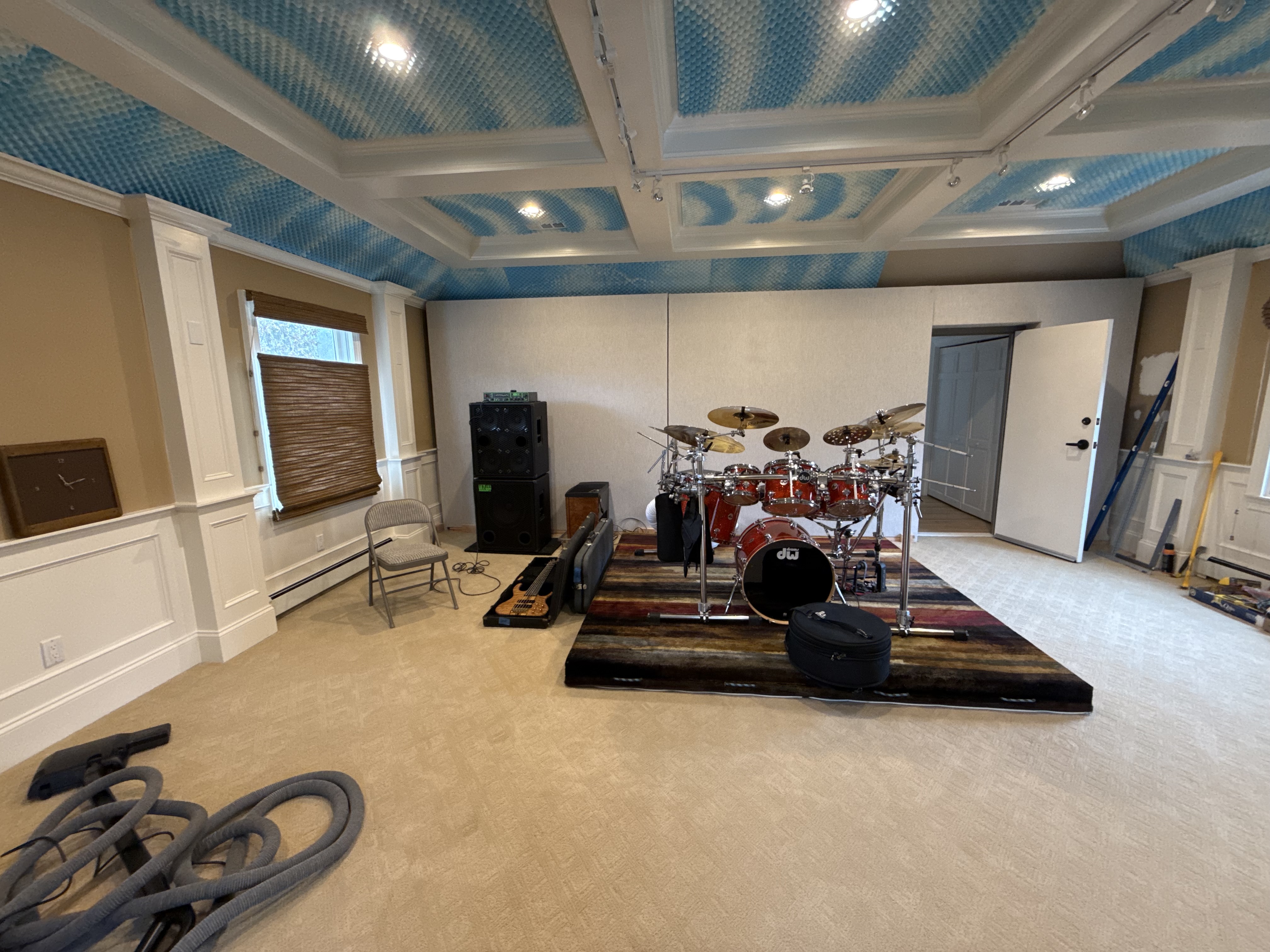

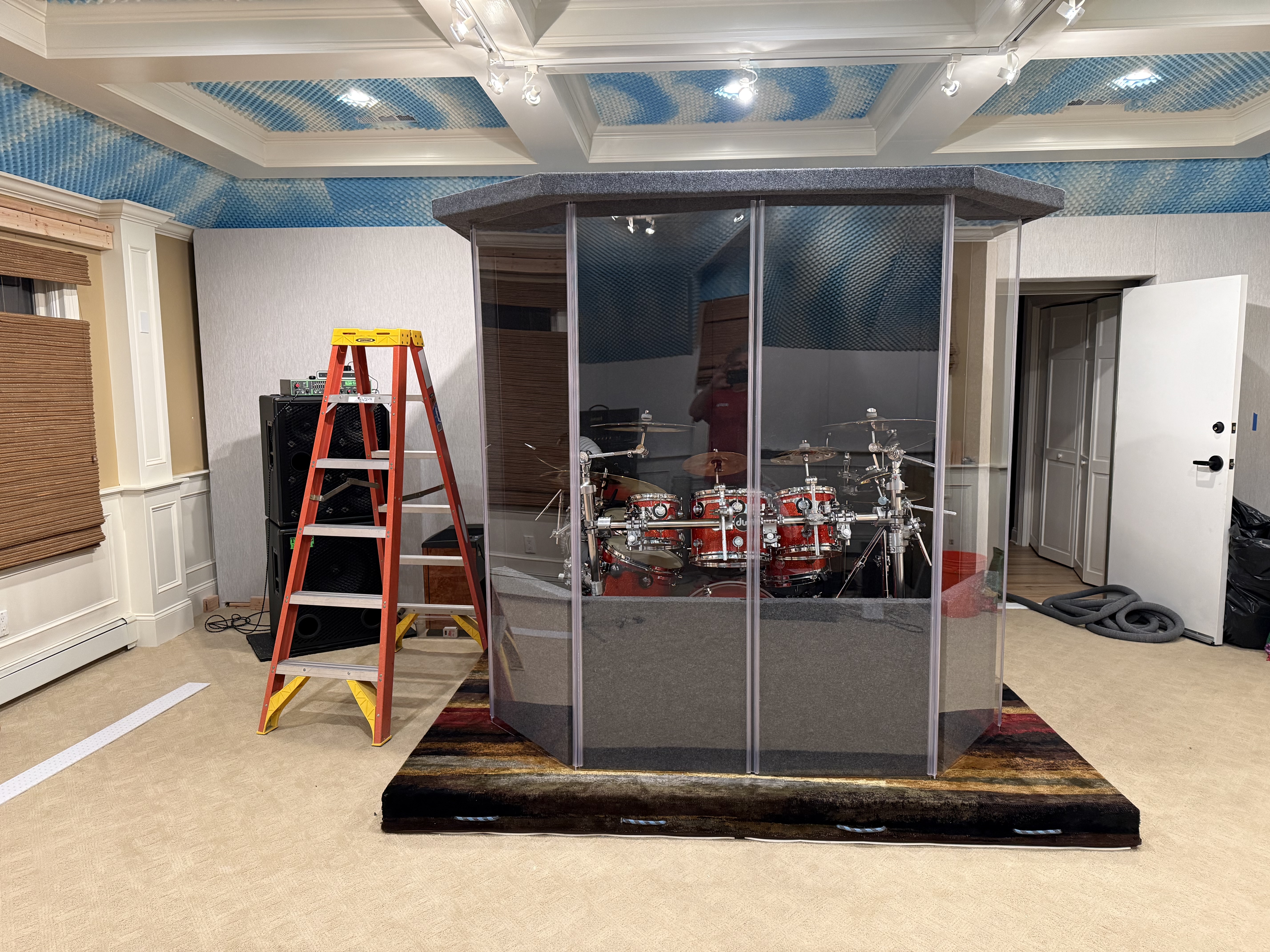

Then build a drum riser:



[njshred]

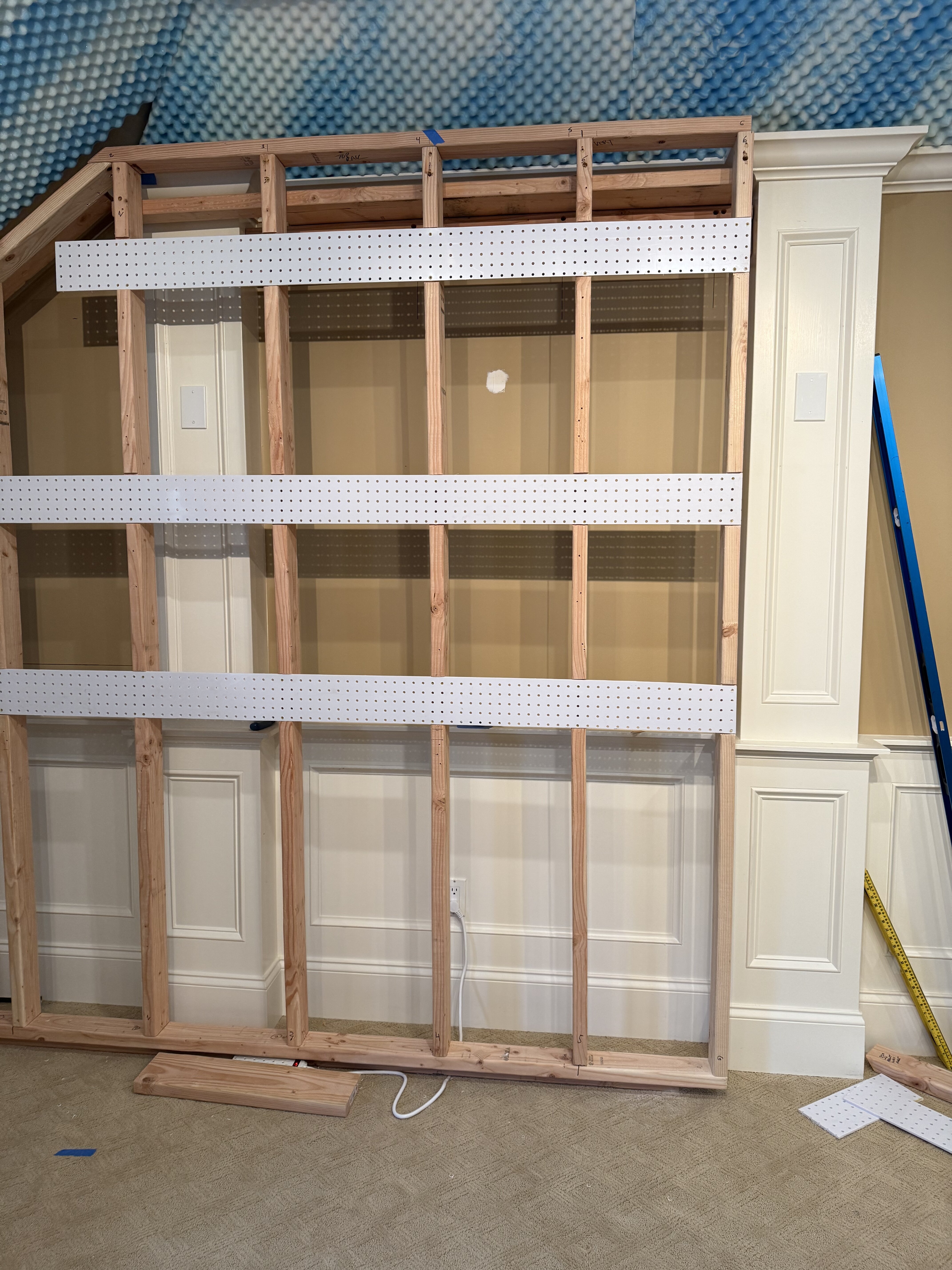

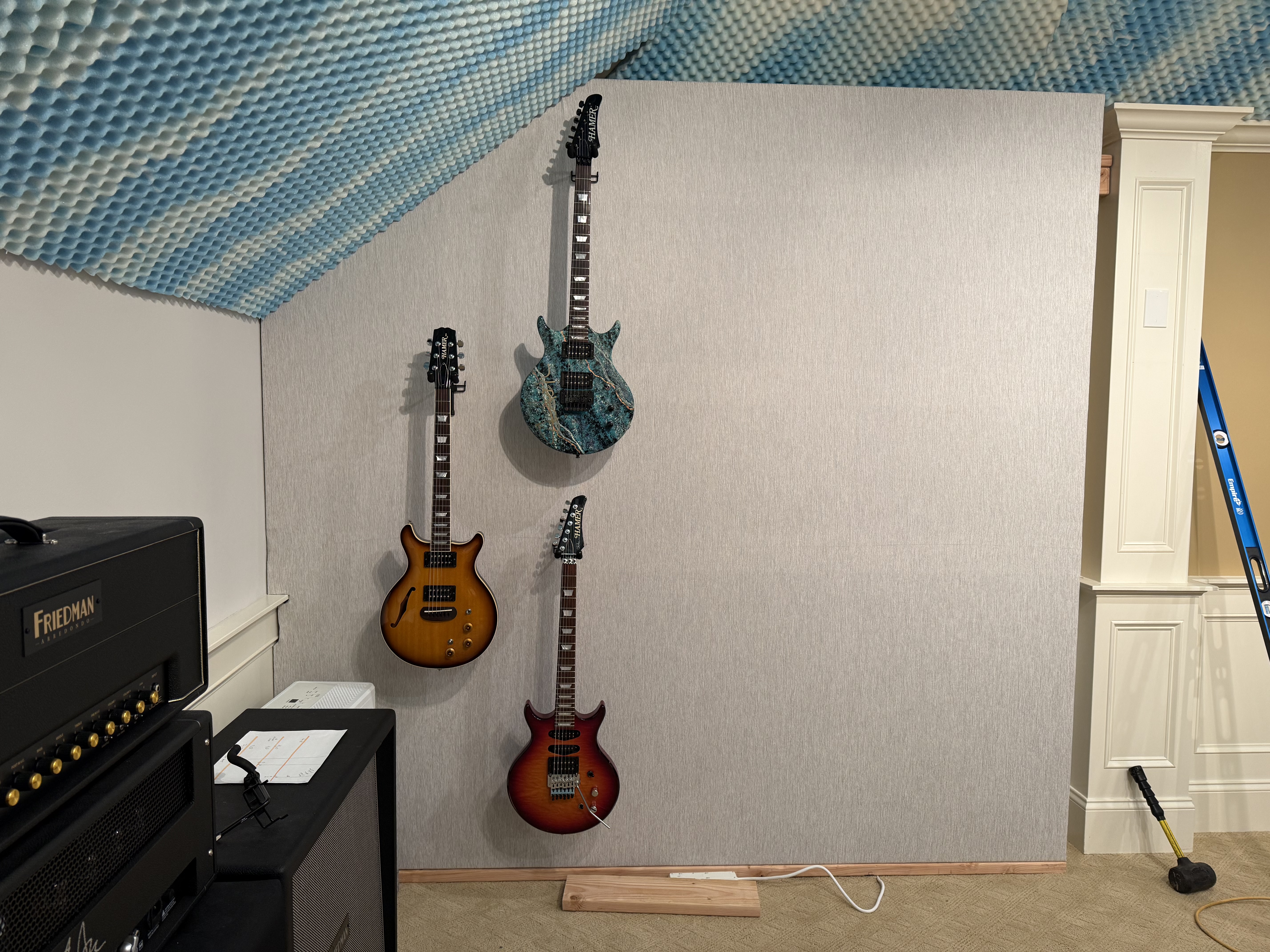

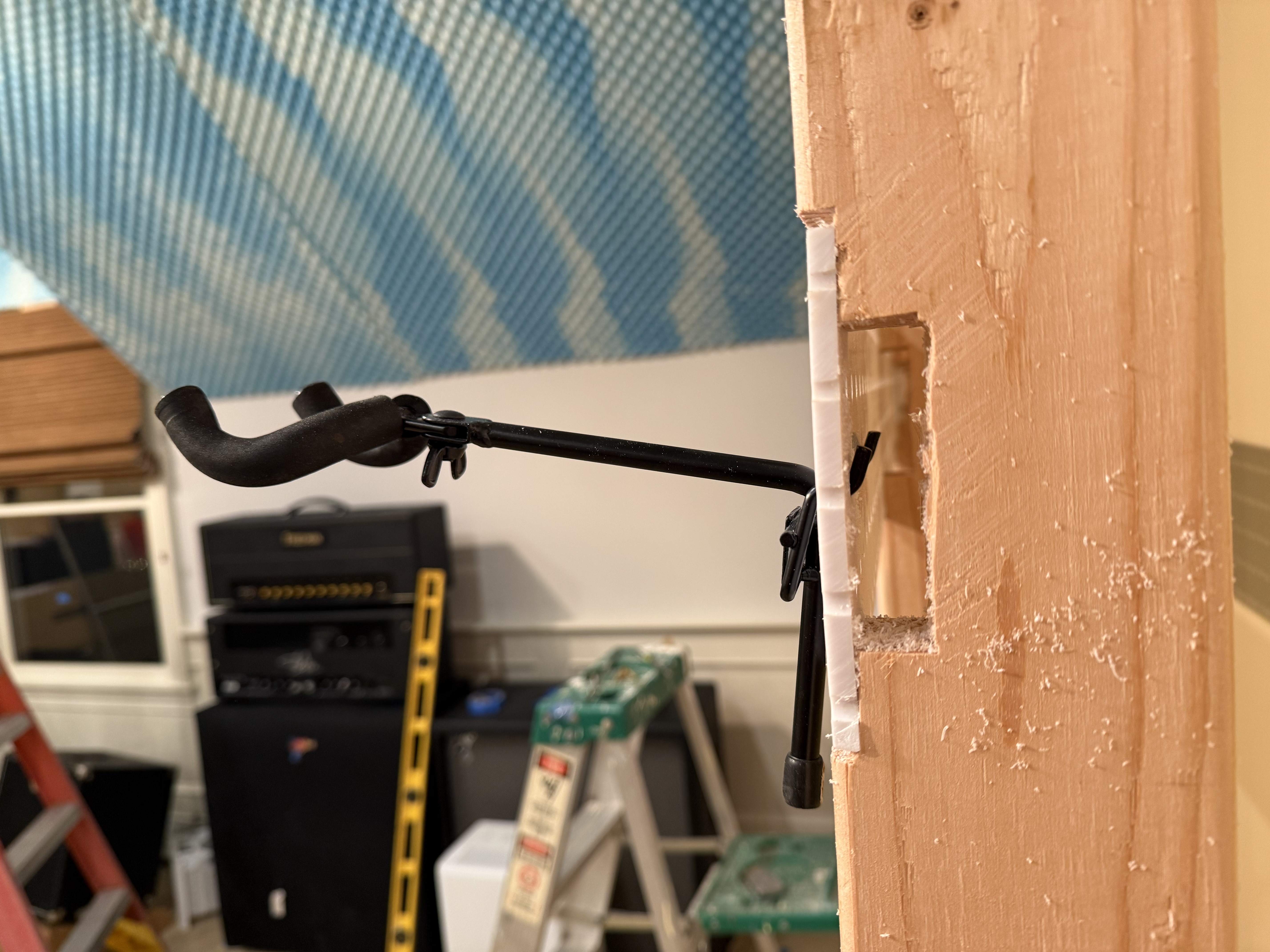

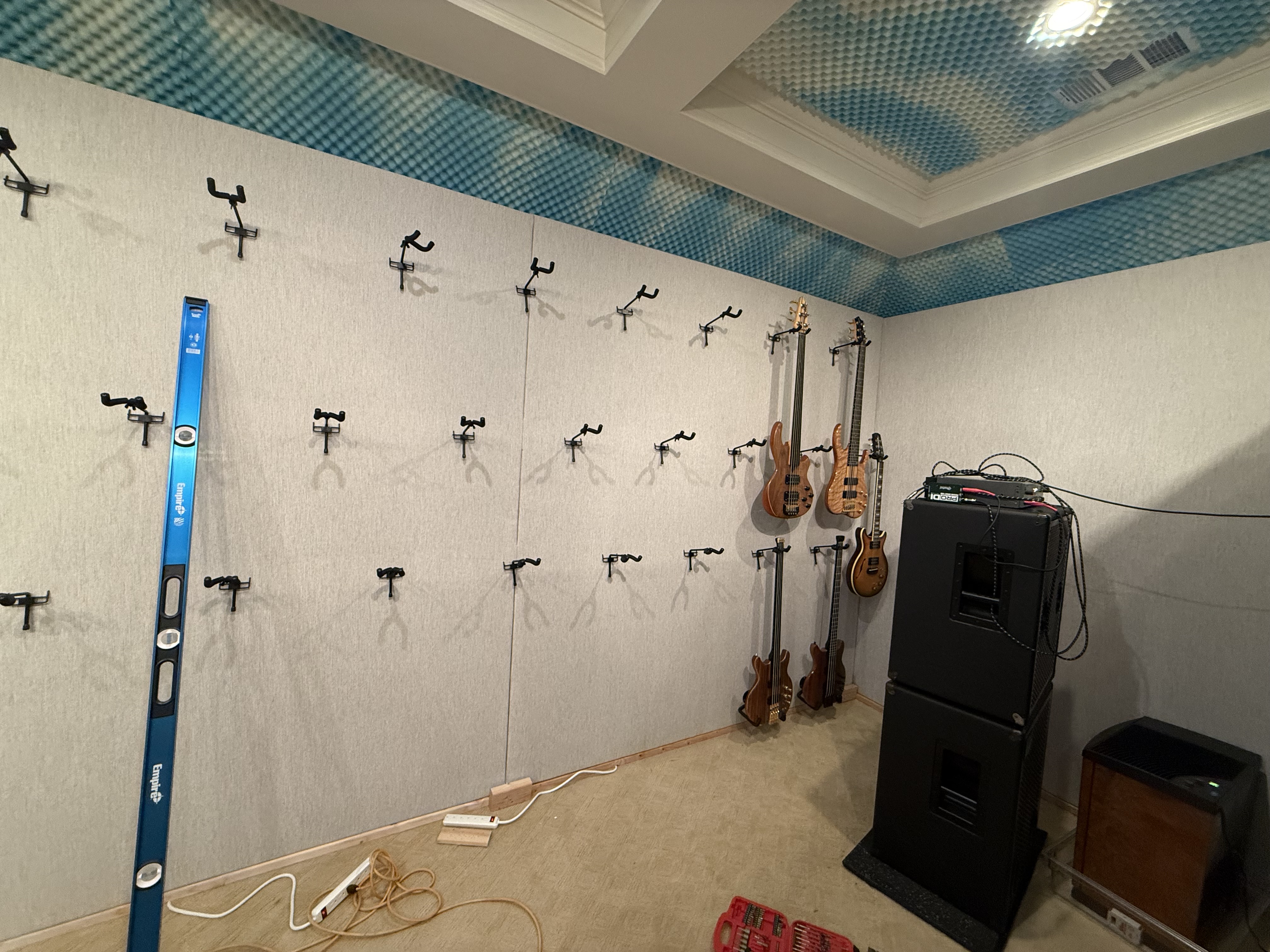

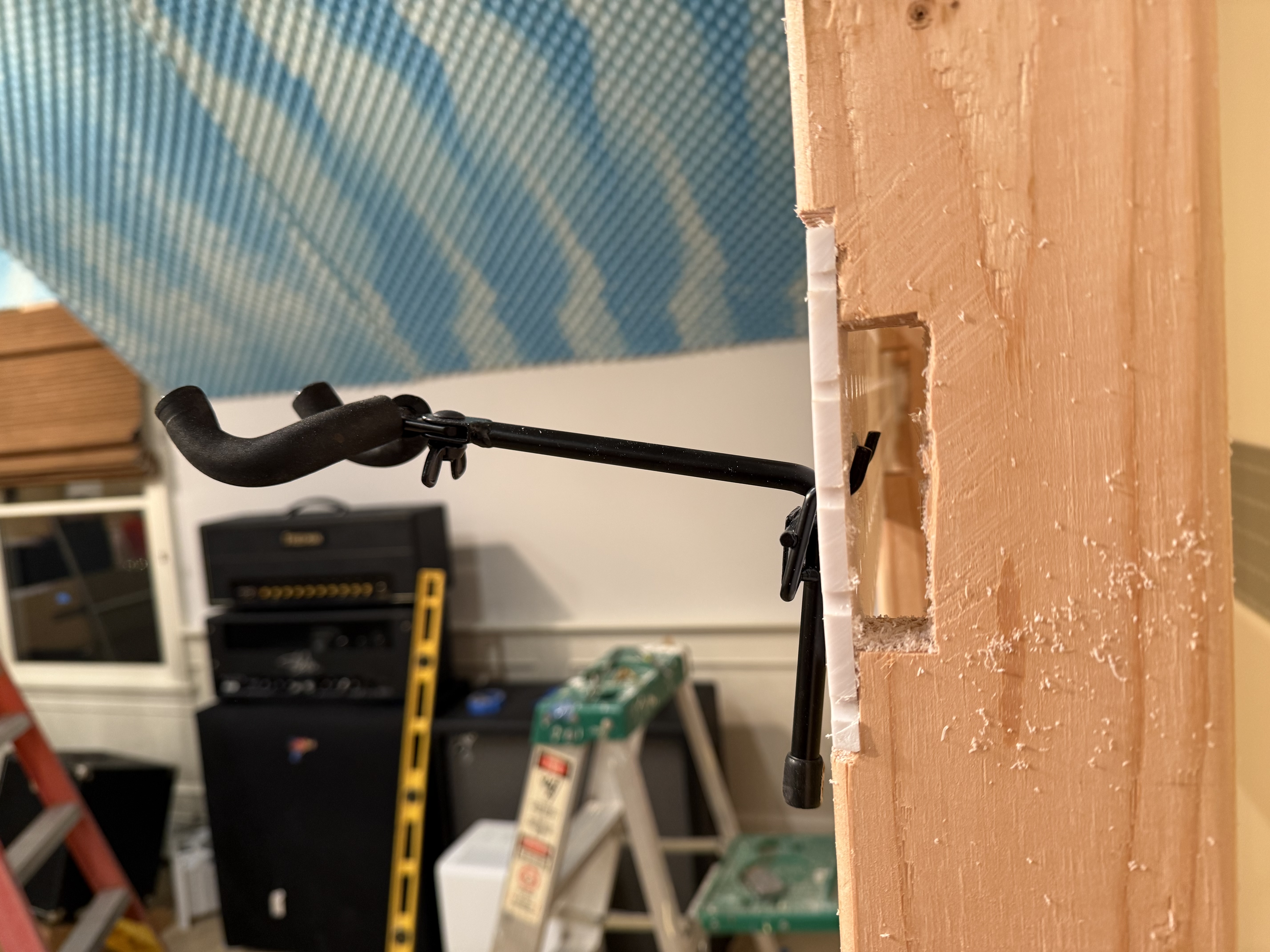

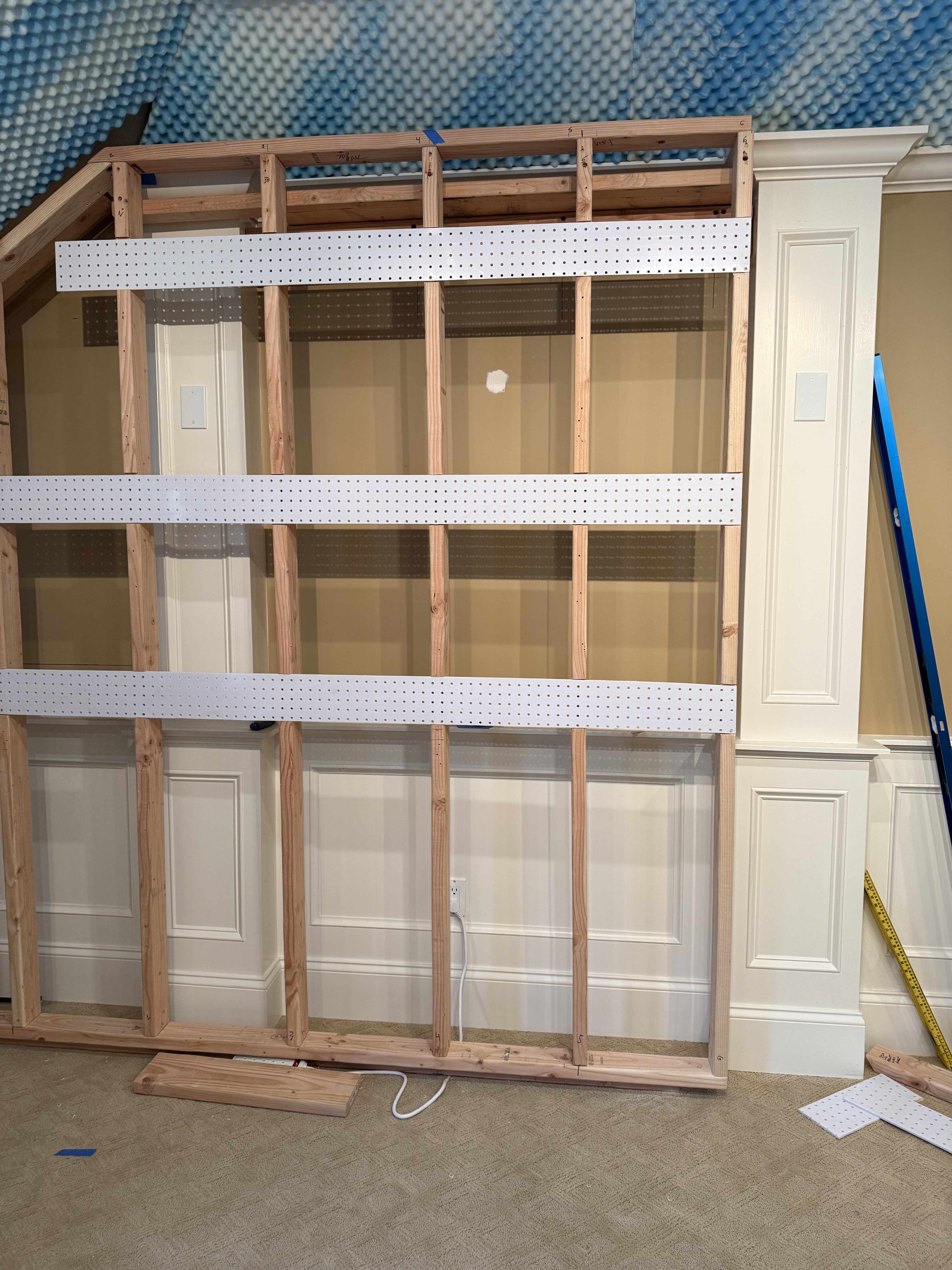

Now we gotta hang the guitars:

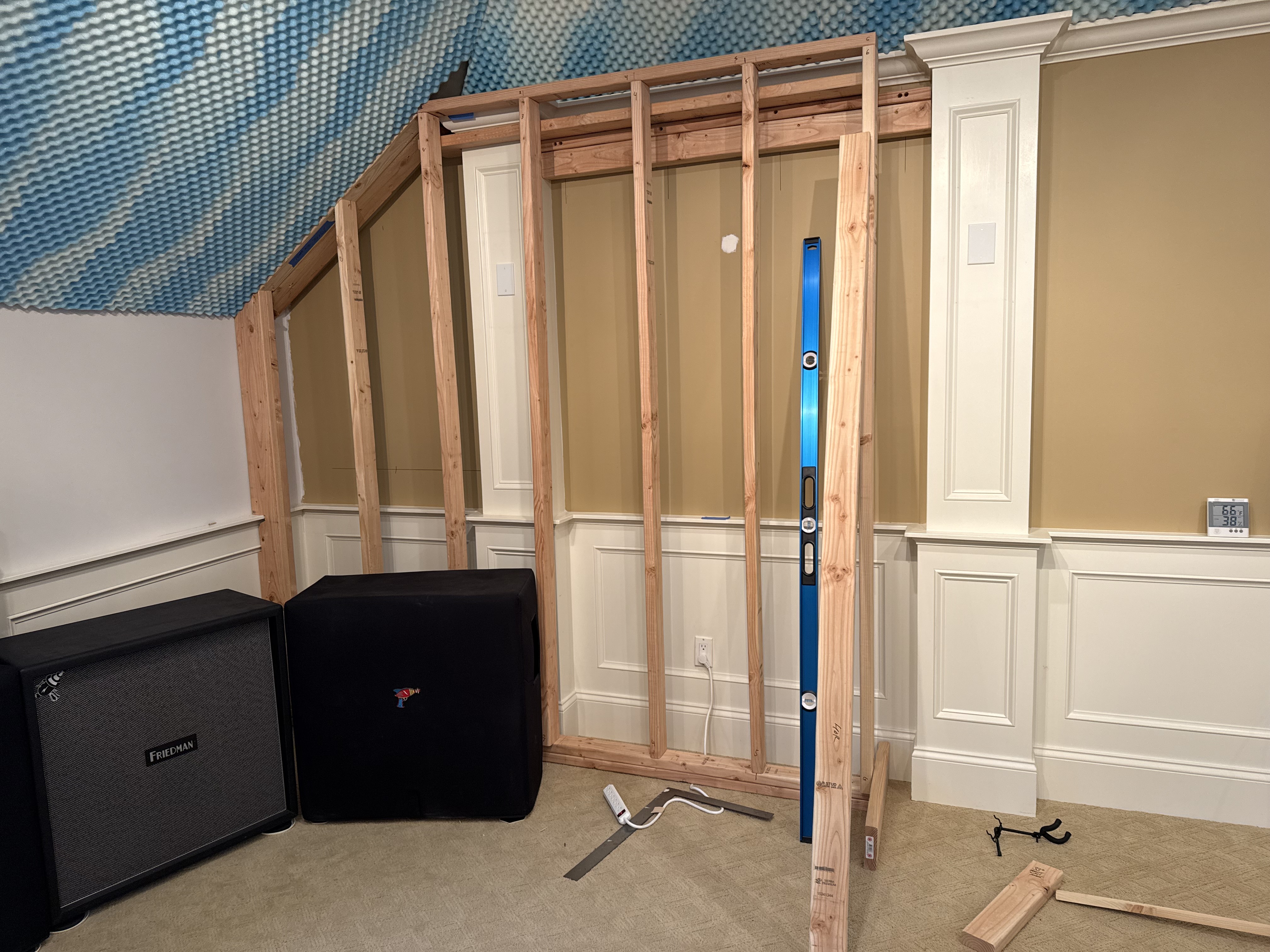

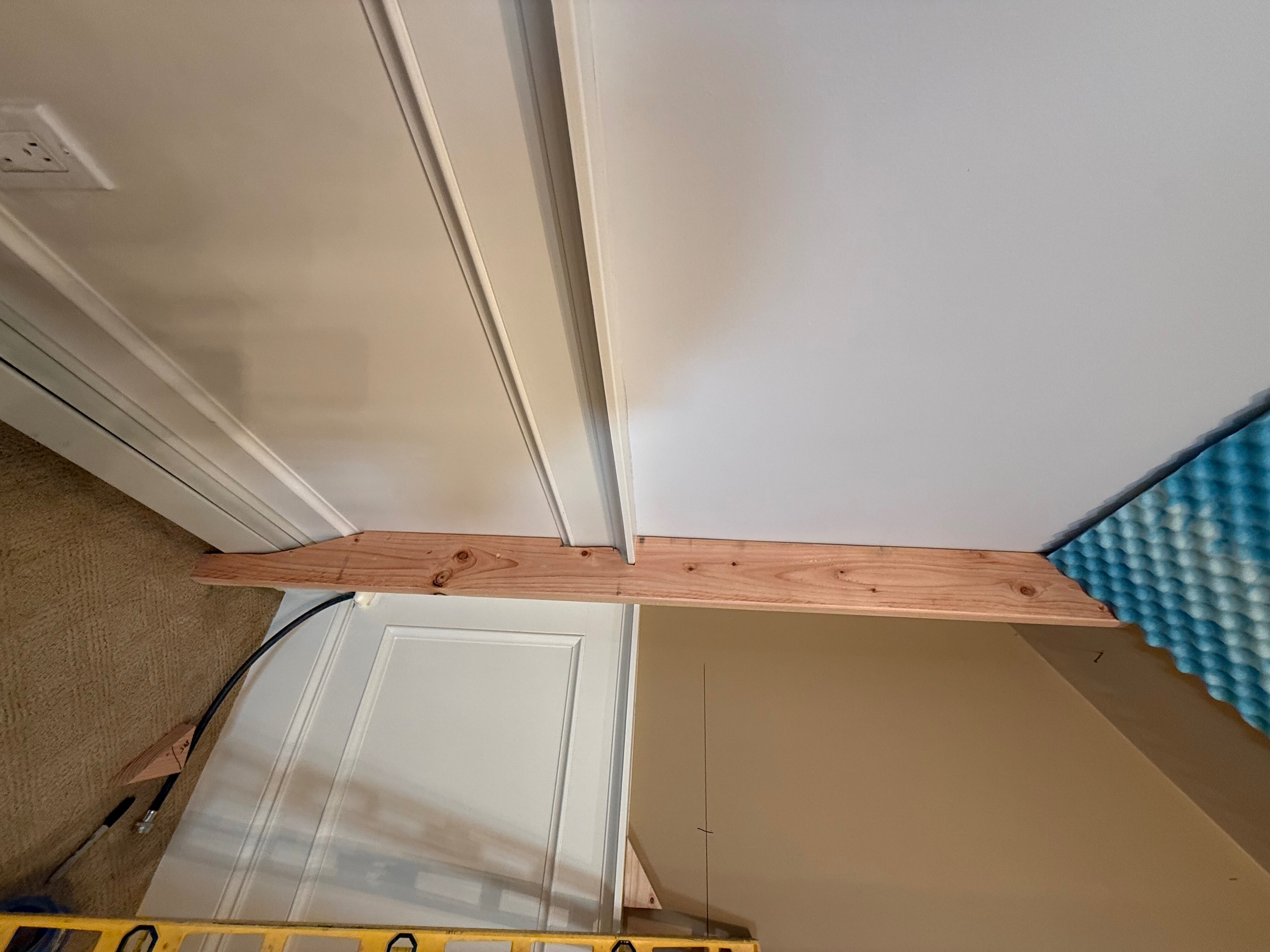

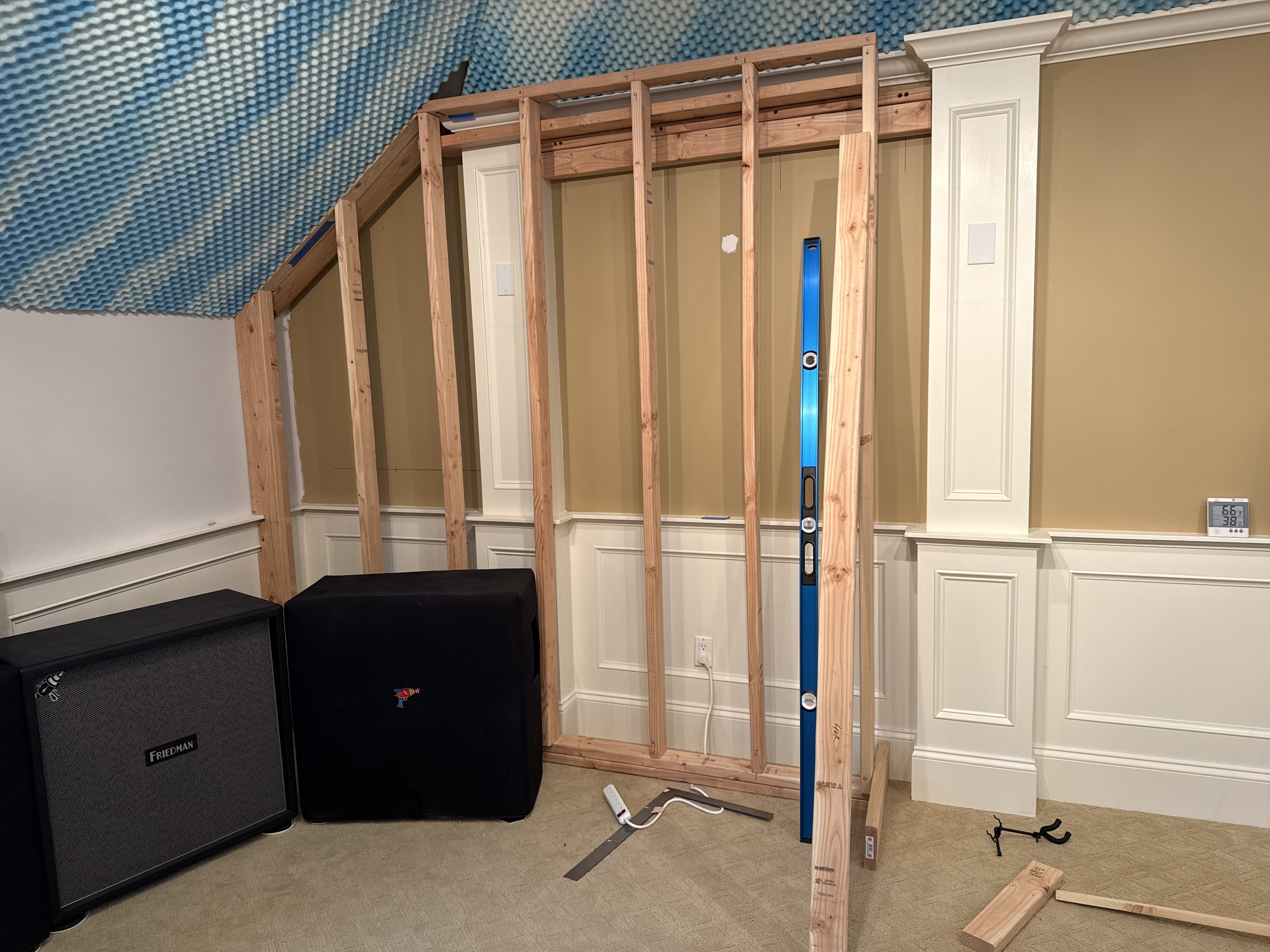

Edit to add: space between 2x4s are all filled with Rockwool to sound deaden. A layer of landscape fabric holds insulation in place, then layer of decorative fabric goes over top.



[RaceU4her]

awesome, hope to be able to do this myself one day



[itsme]

Start with a decent size room.

Then work on the ceiling:

Looks like the new ballroom at the White House



[BeZo]

I can't wait to see the bass wing.



[Chase42147]

Looks awesome



[Wayniac3]

Looks great
Love those hamers!



[Exo-metal]

Looks like you don't live in Ca.



[Robostyle]

That's awesome, good for you!



[311boogieman]

Drum riser needs more riser

j/k - looks great man. Love the ceiling.



[njshred]

Drum riser needs more riser

j/k - looks great man. Love the ceiling.

It’s to absorb the vibration mainly.

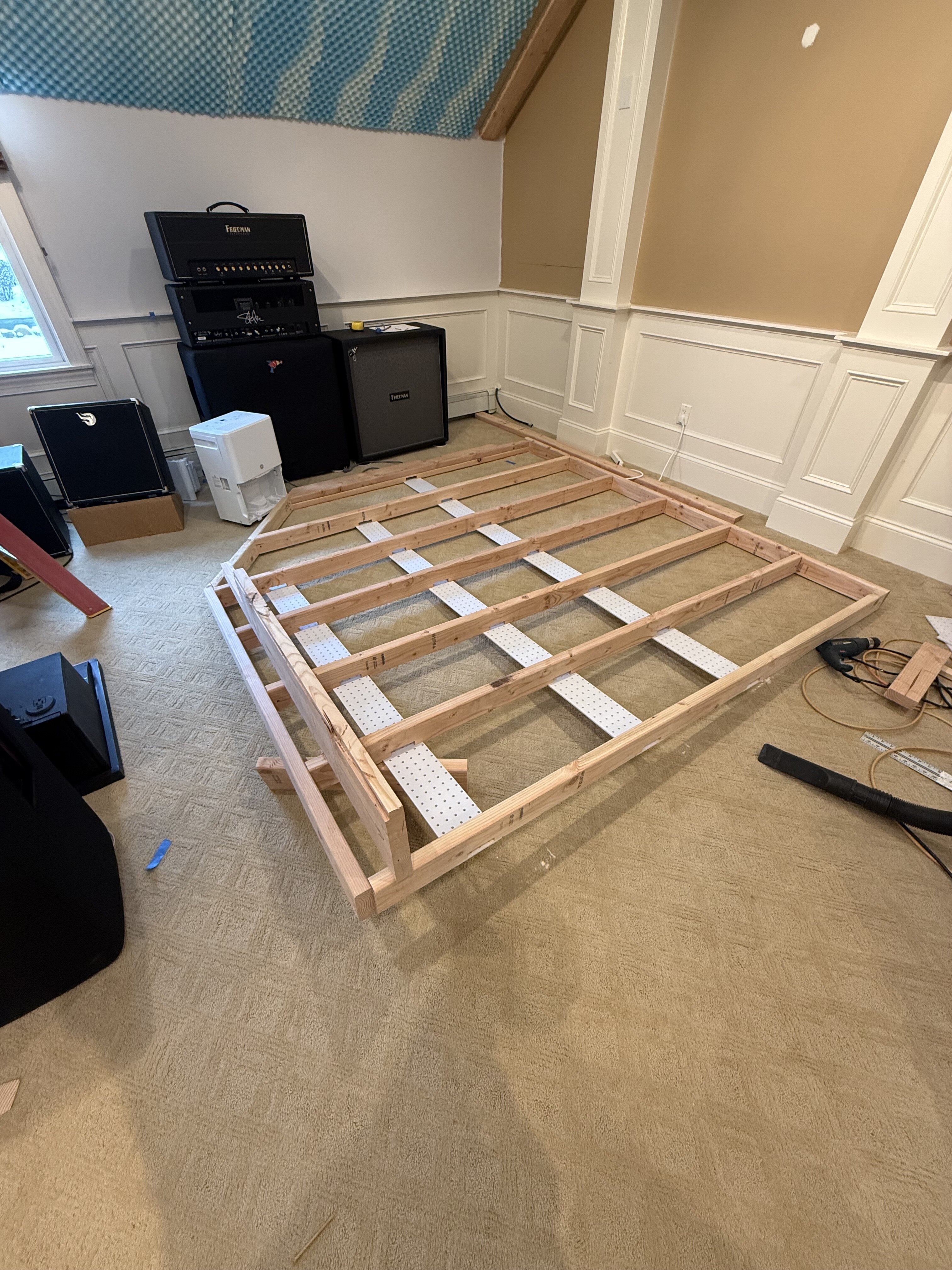

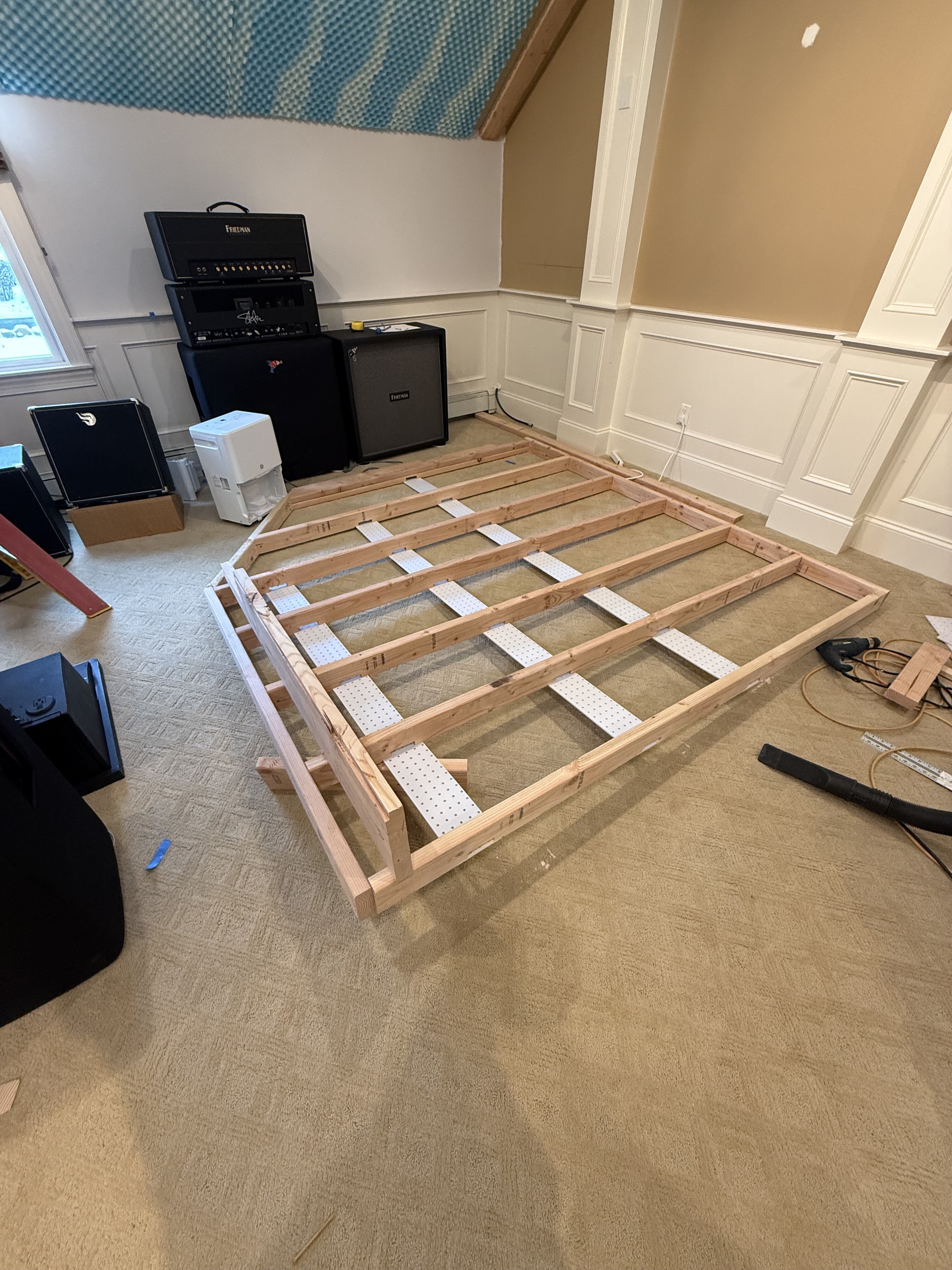

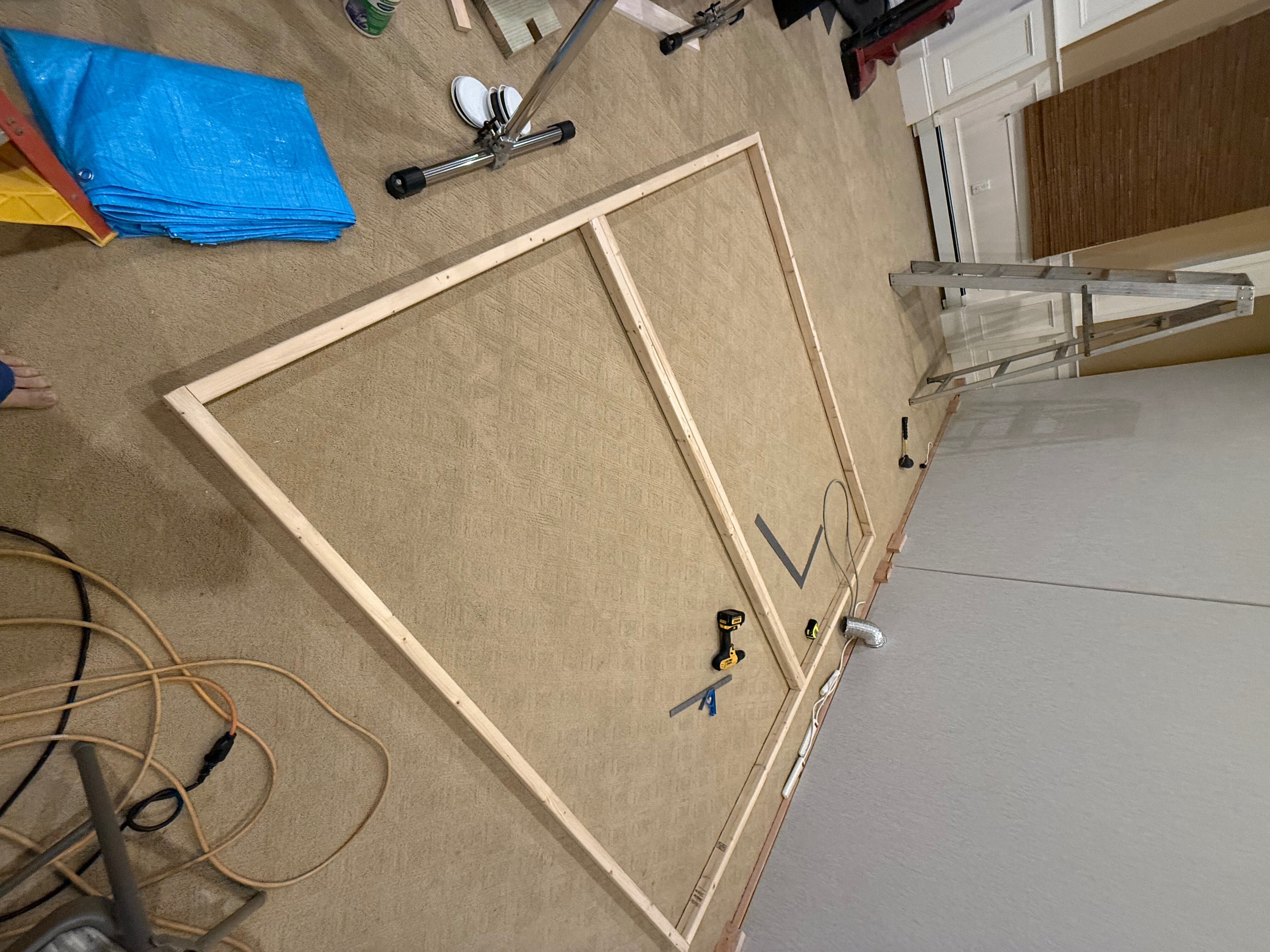

Started with 2x3 frame.

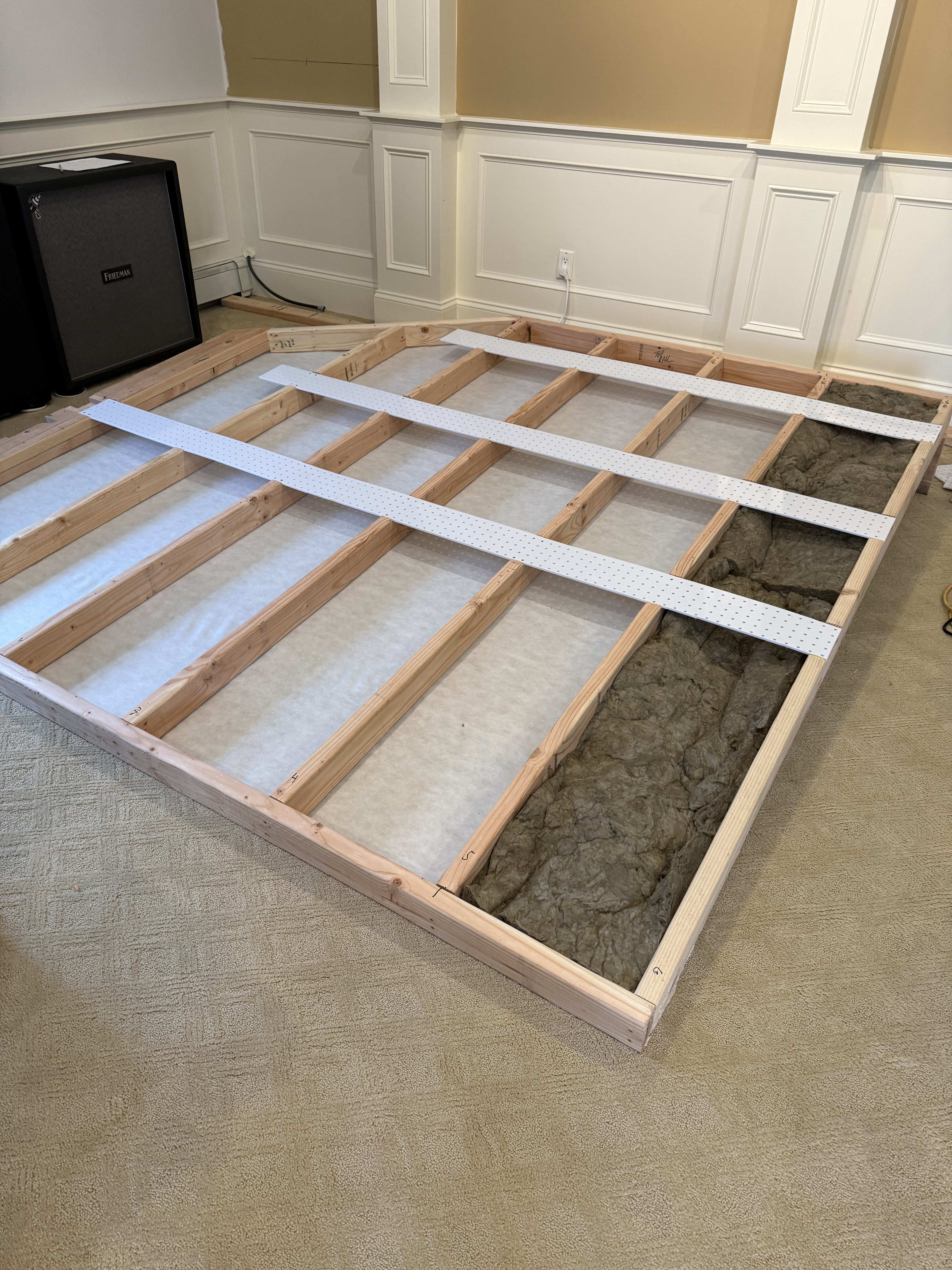

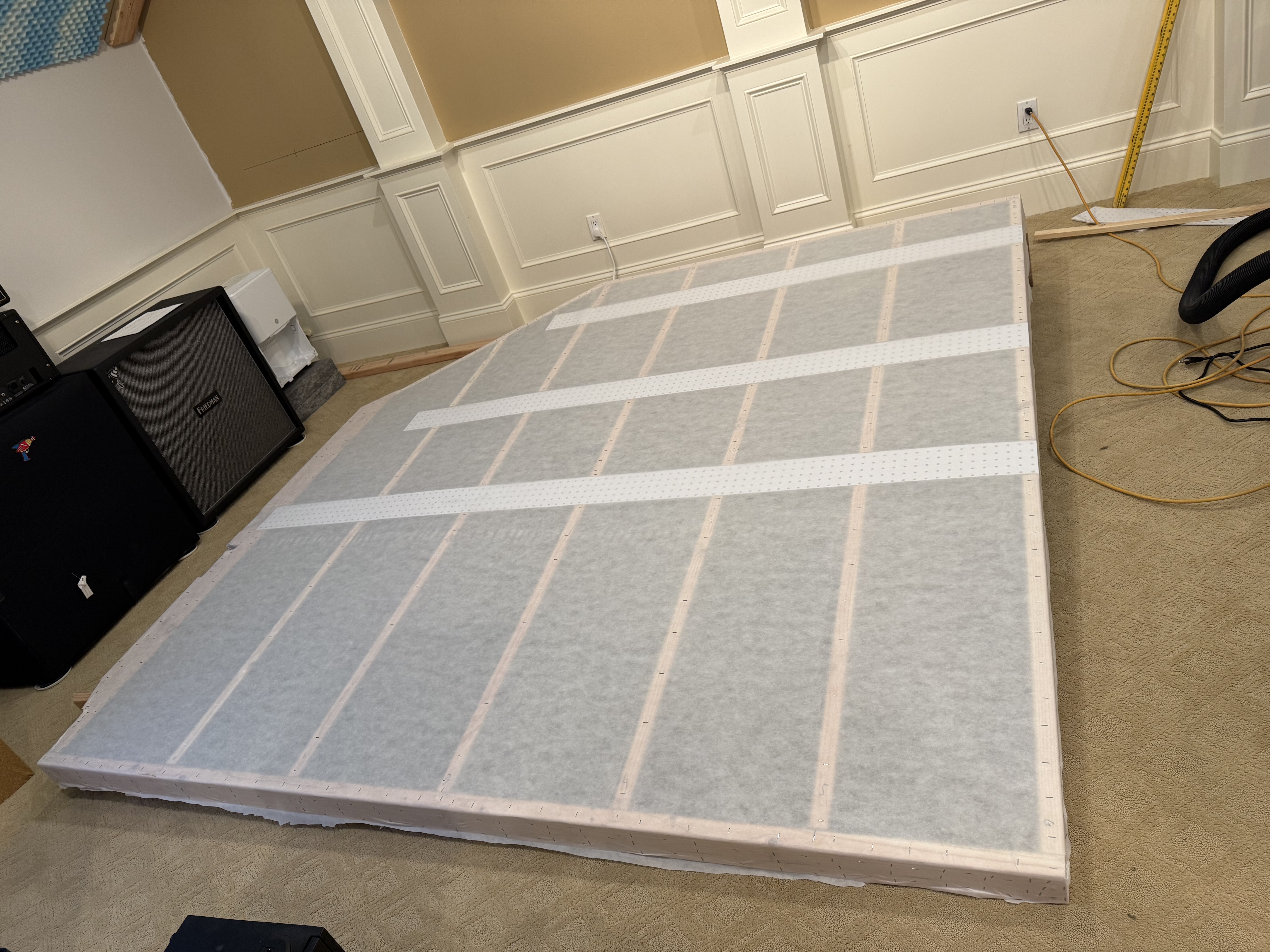

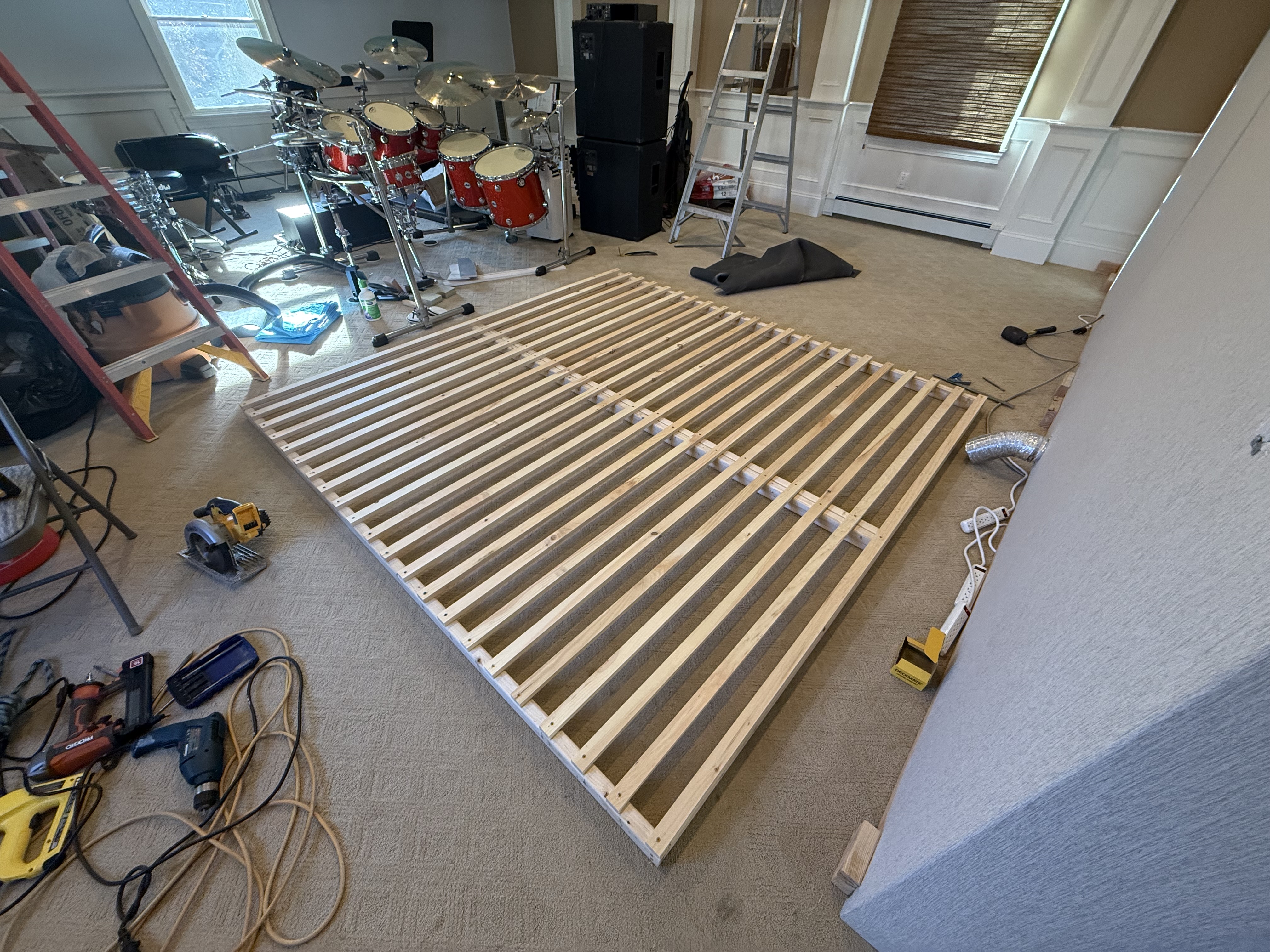

The top half side:

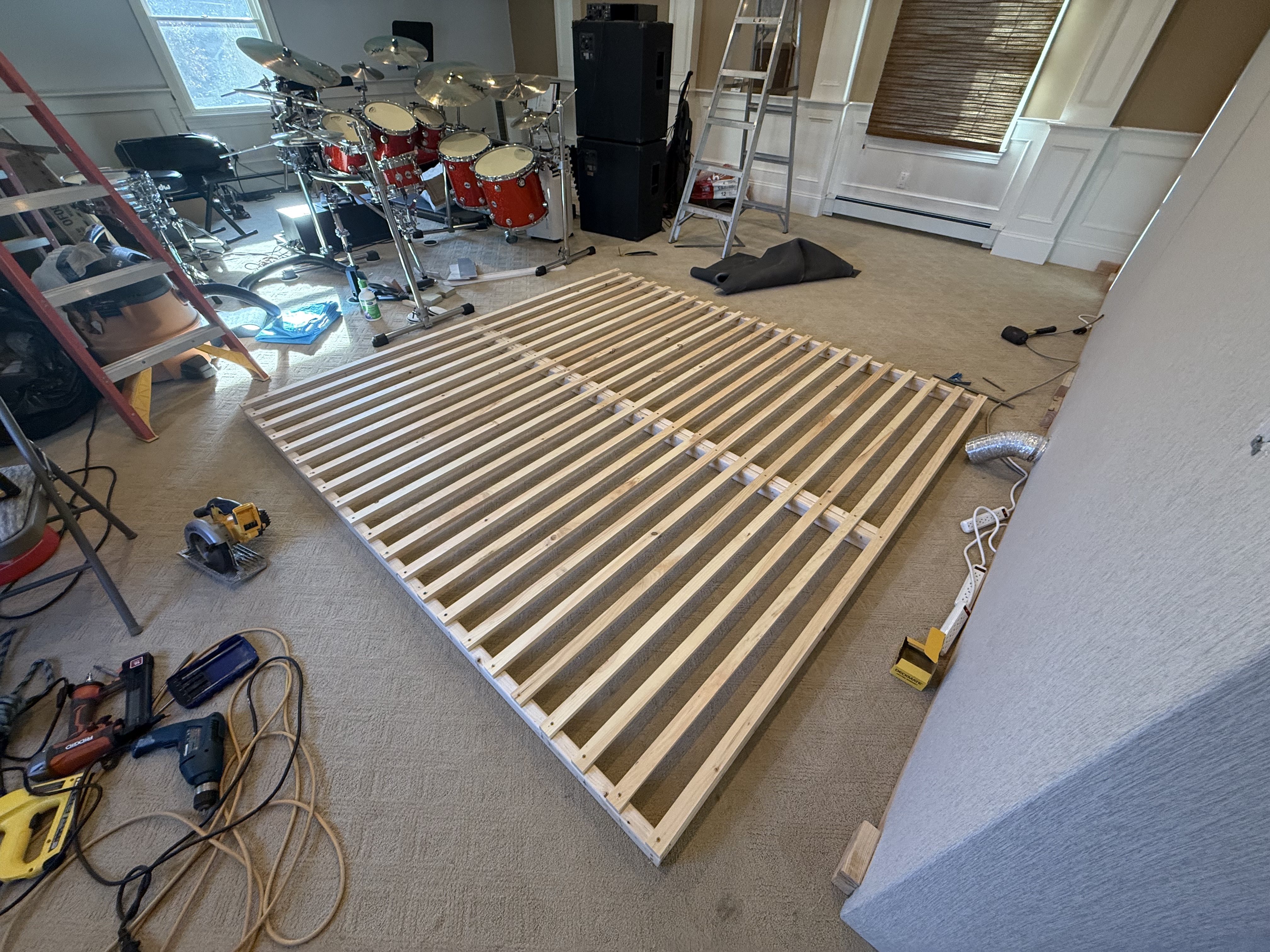

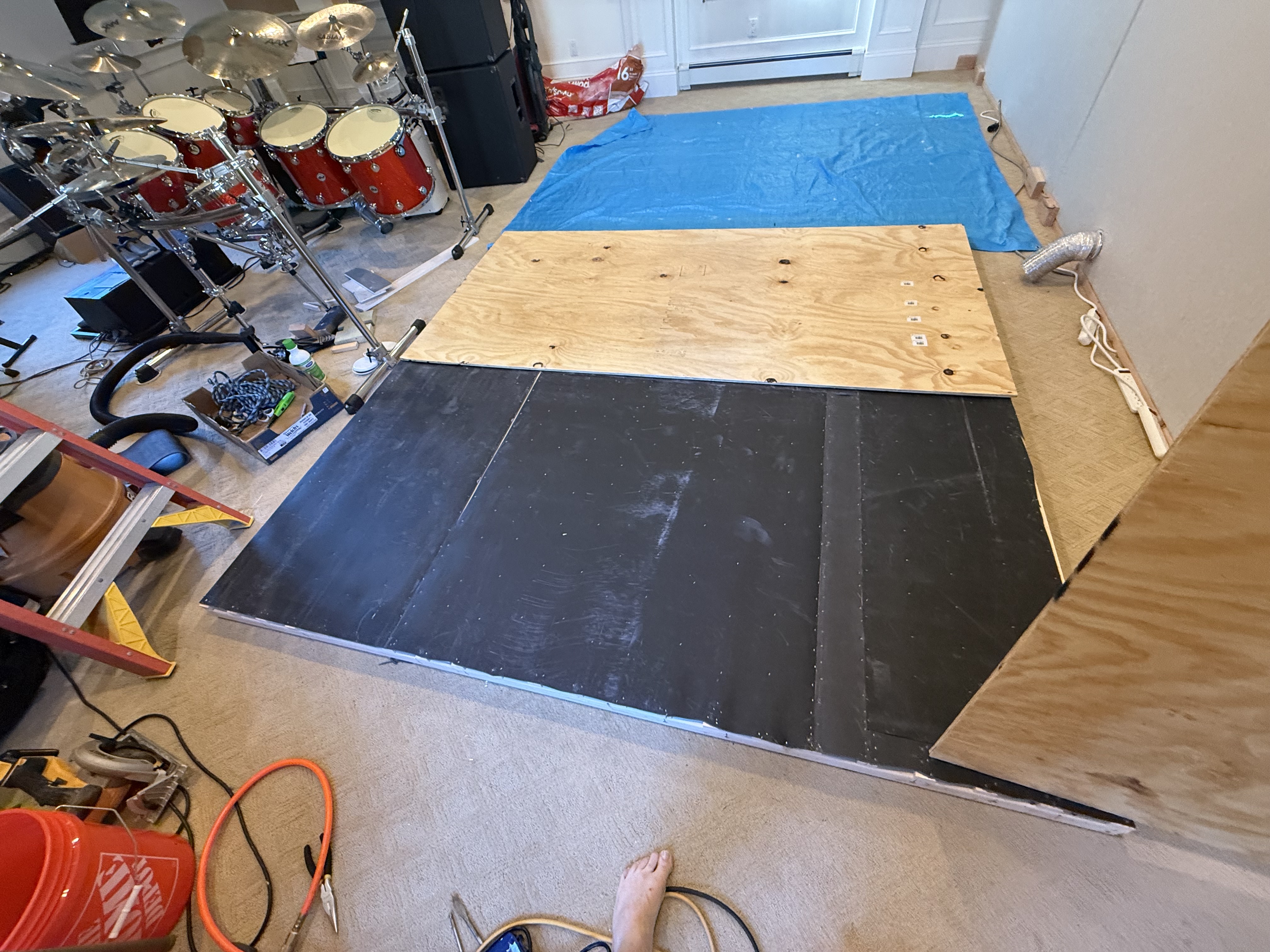

The pallet looking boards are 1x2s, to allow flex. They are covered by 2lbs per square inch mass loaded vinyl, for cushioning and noise control. That’s covered in 11/33” plywood, again to allow flexibility. Finally carpeted over.

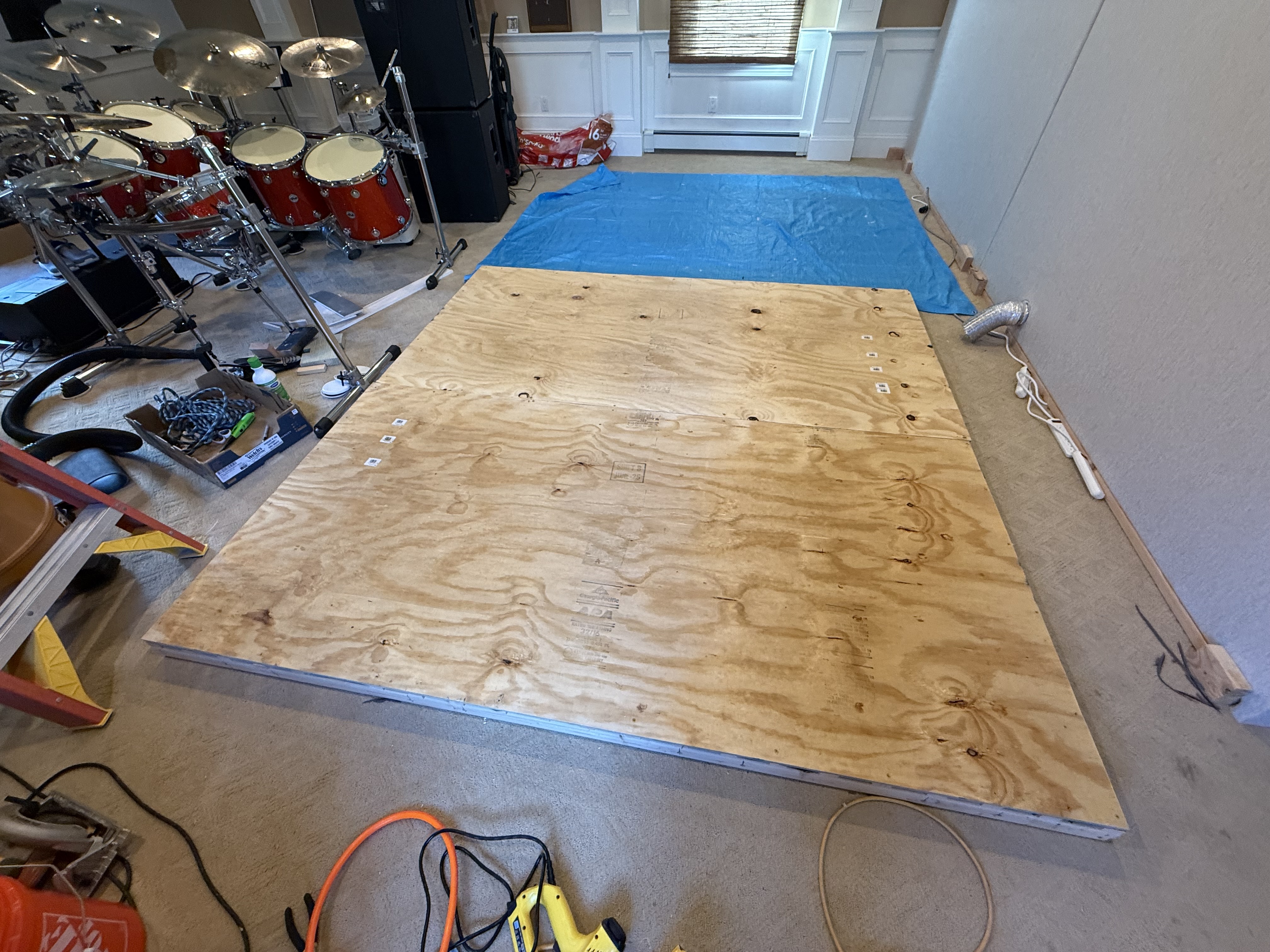

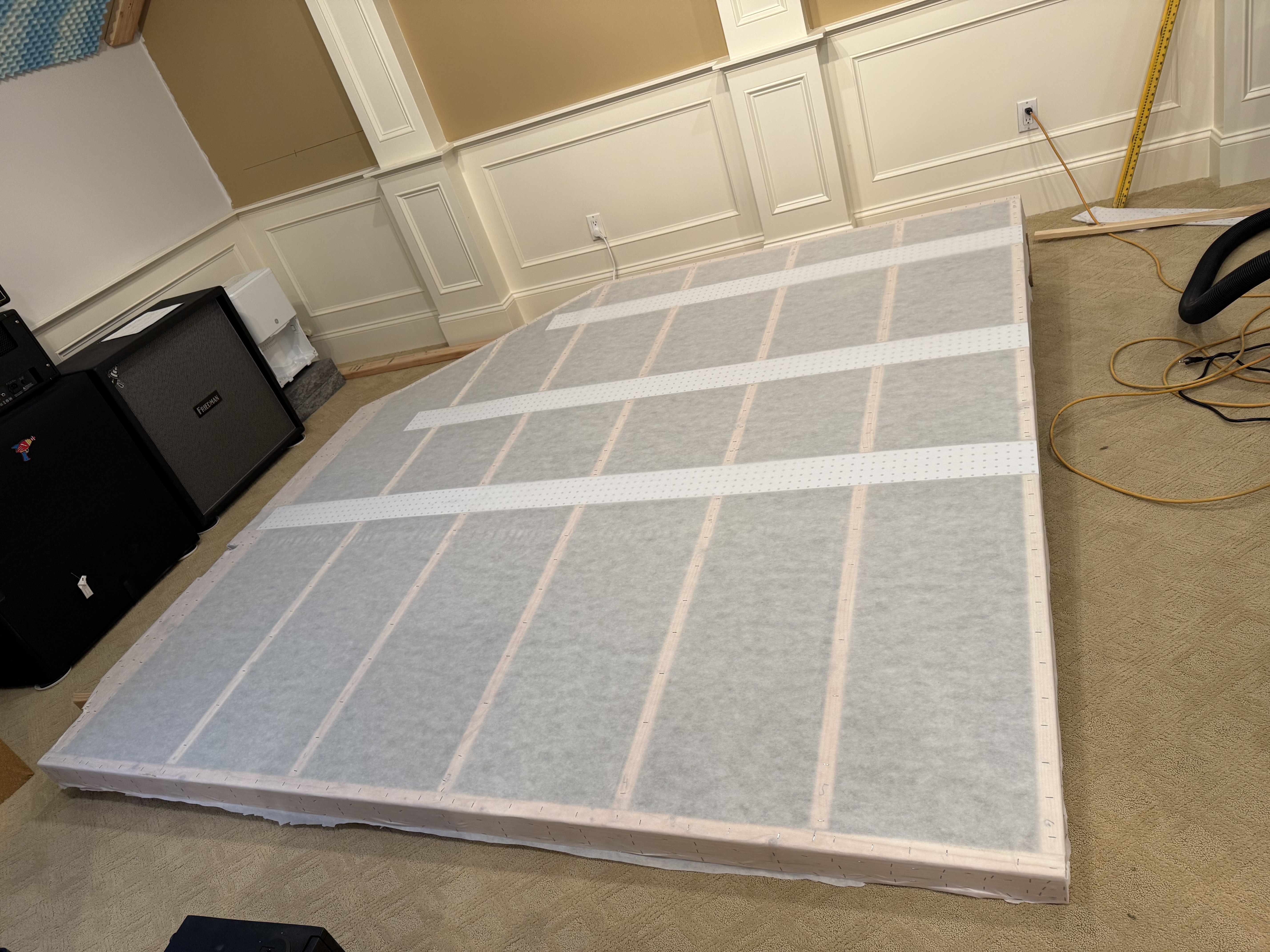

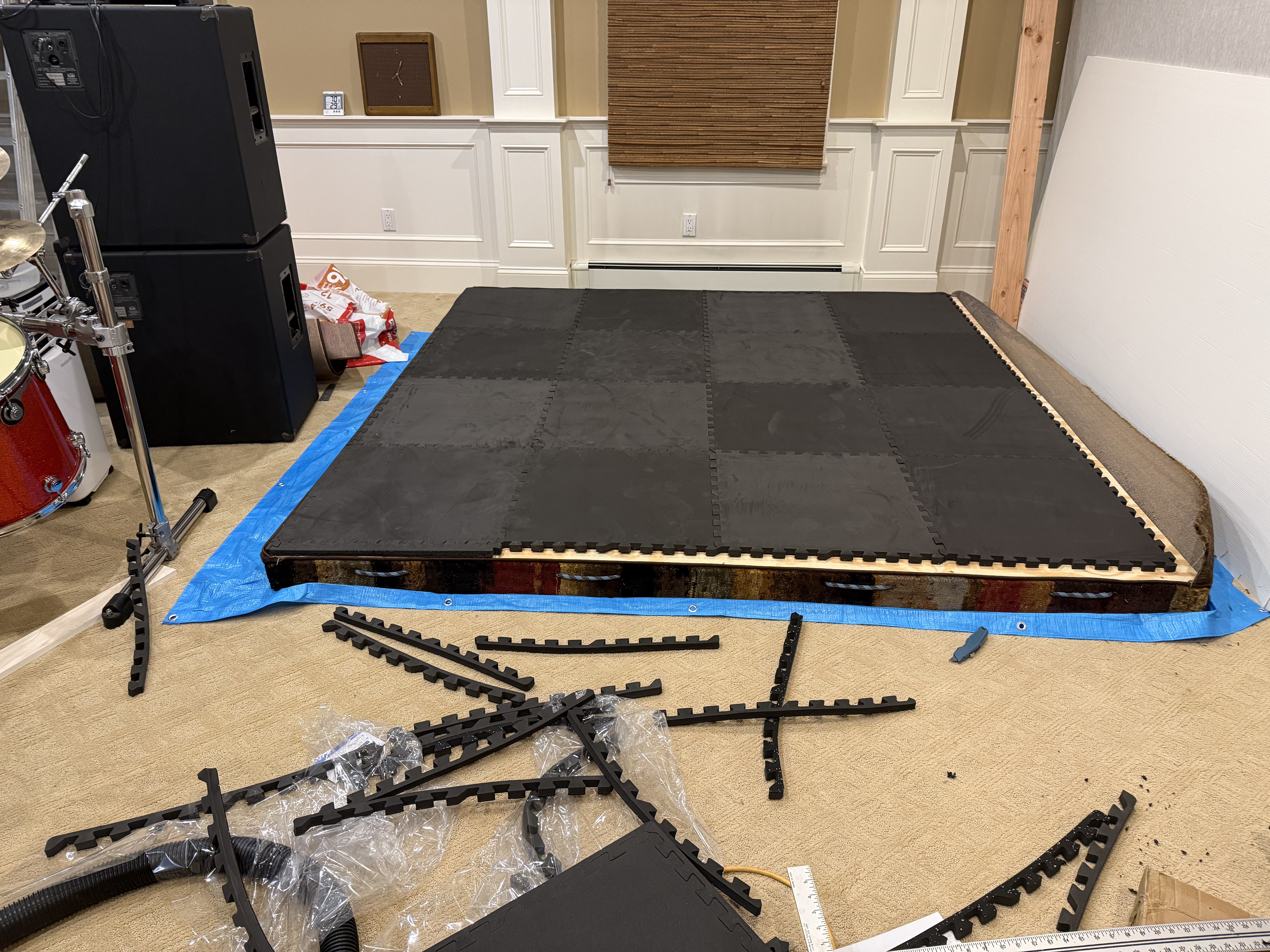

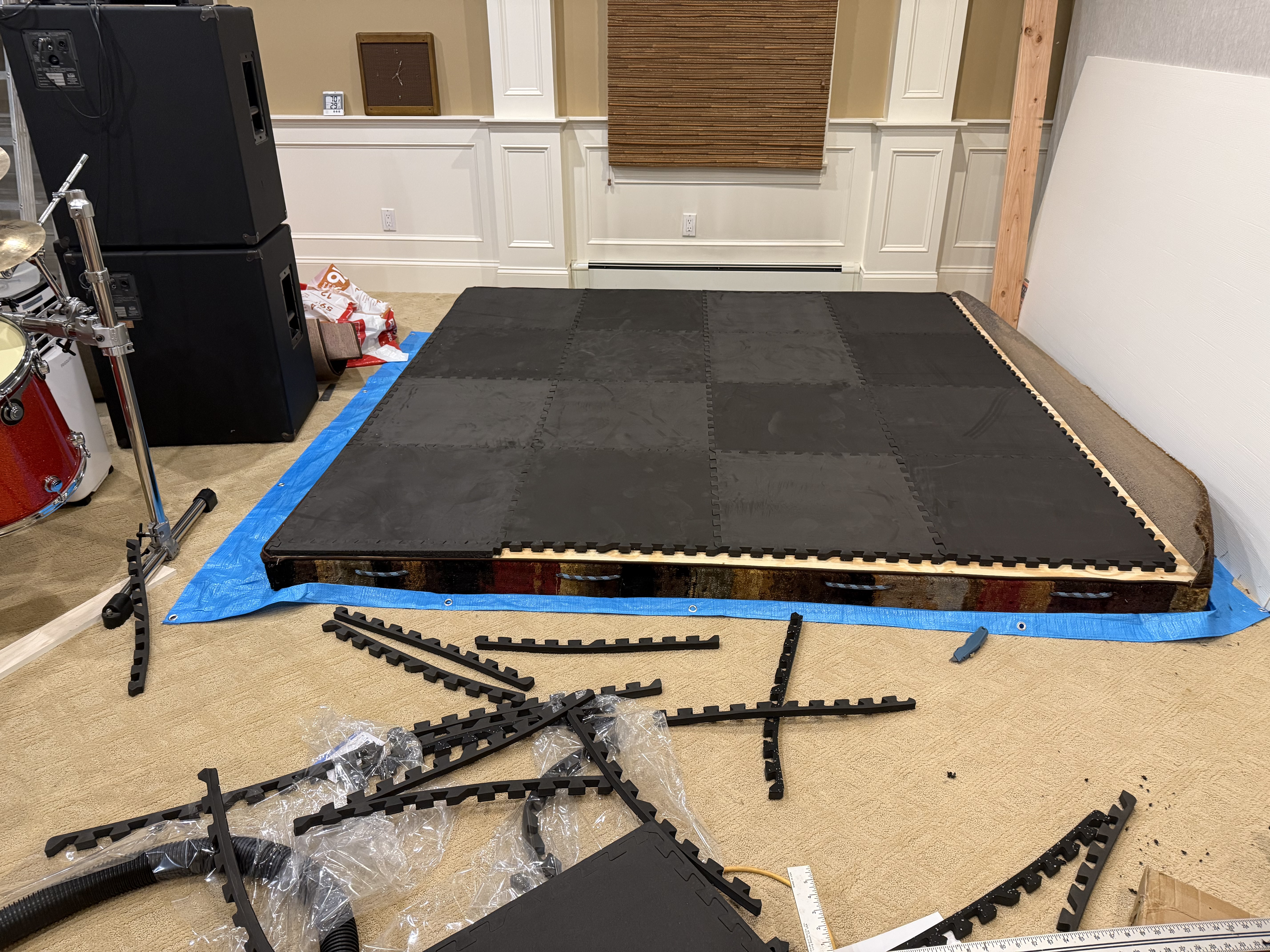

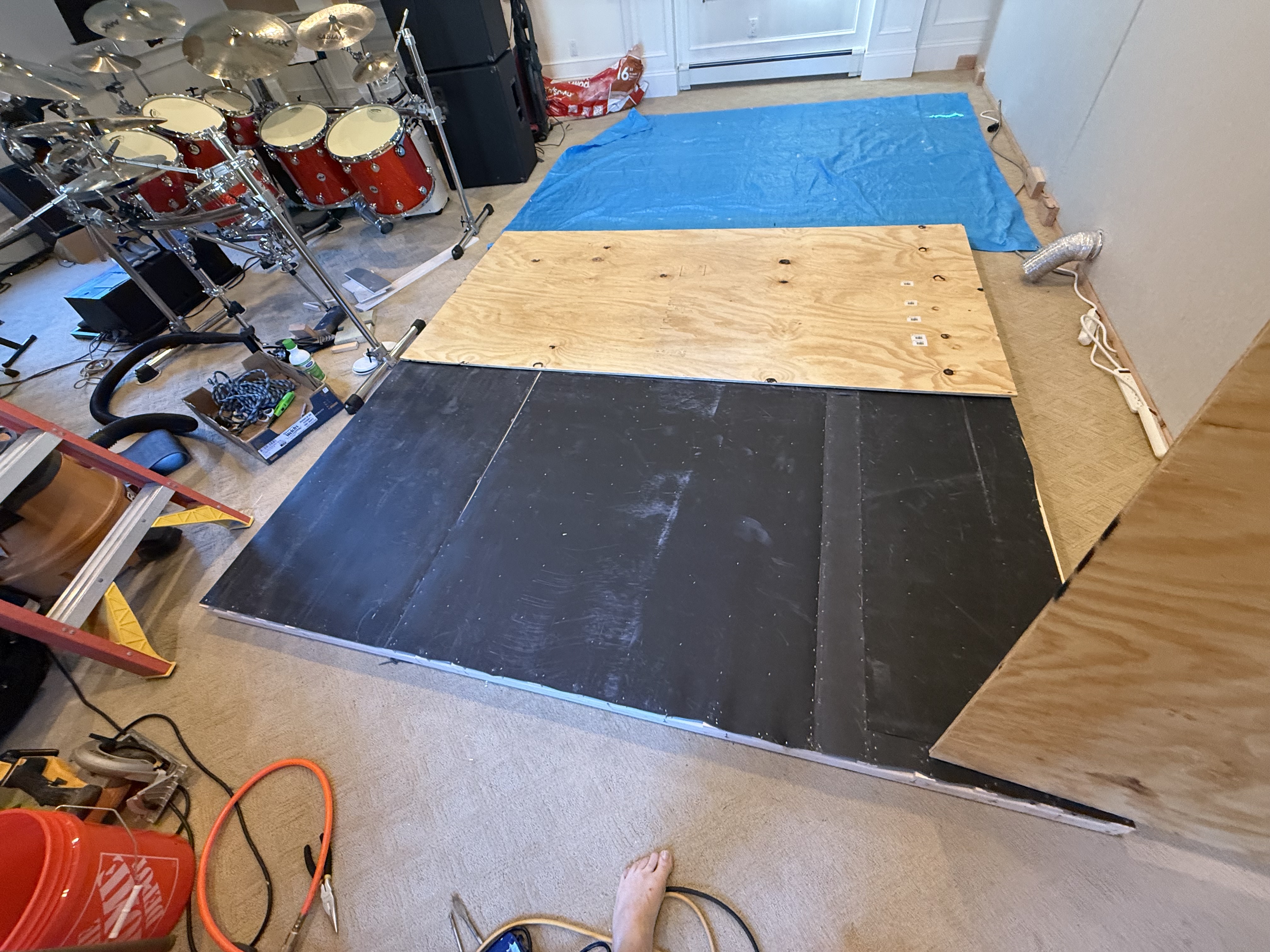

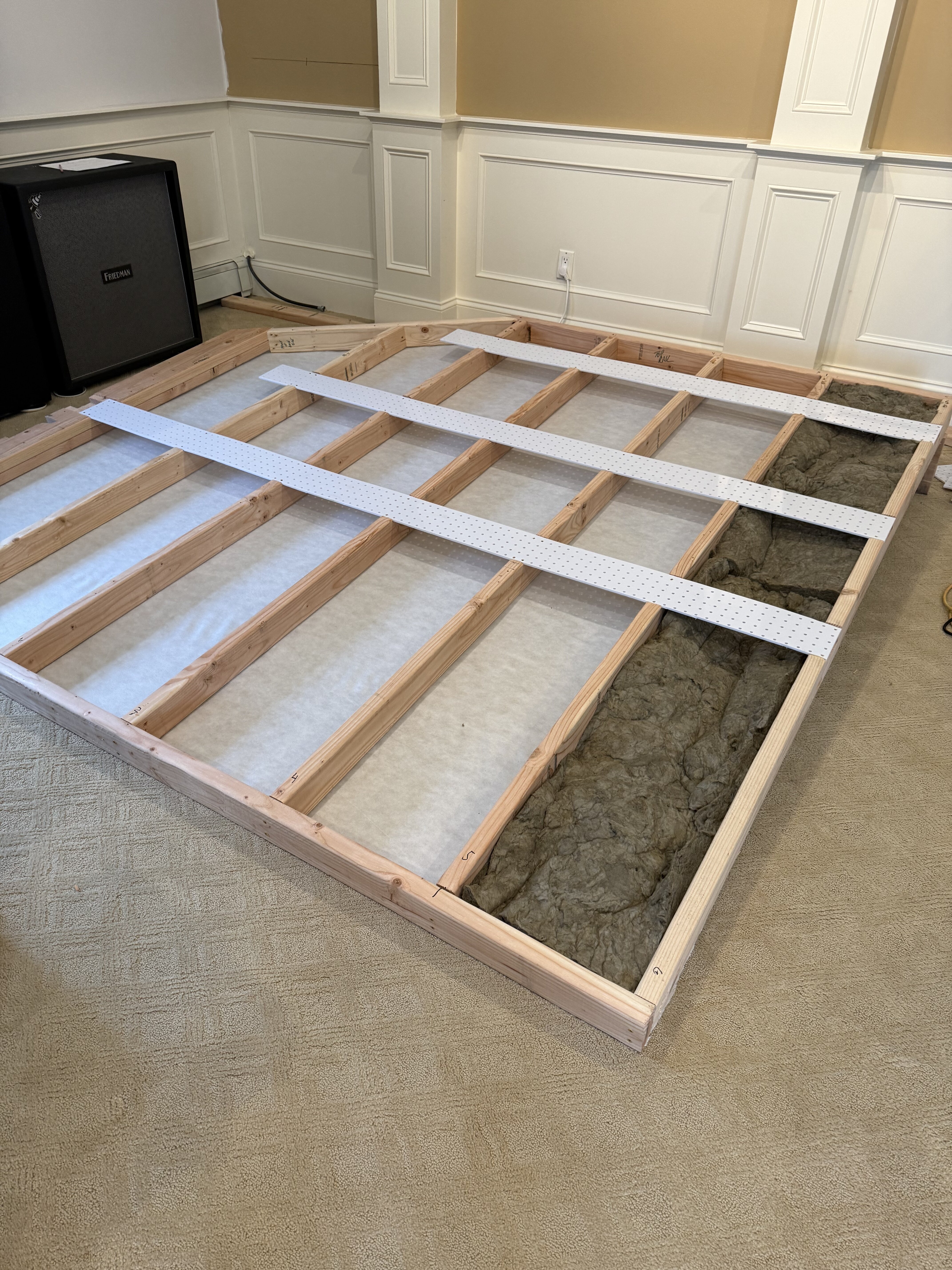

The bottom side half:

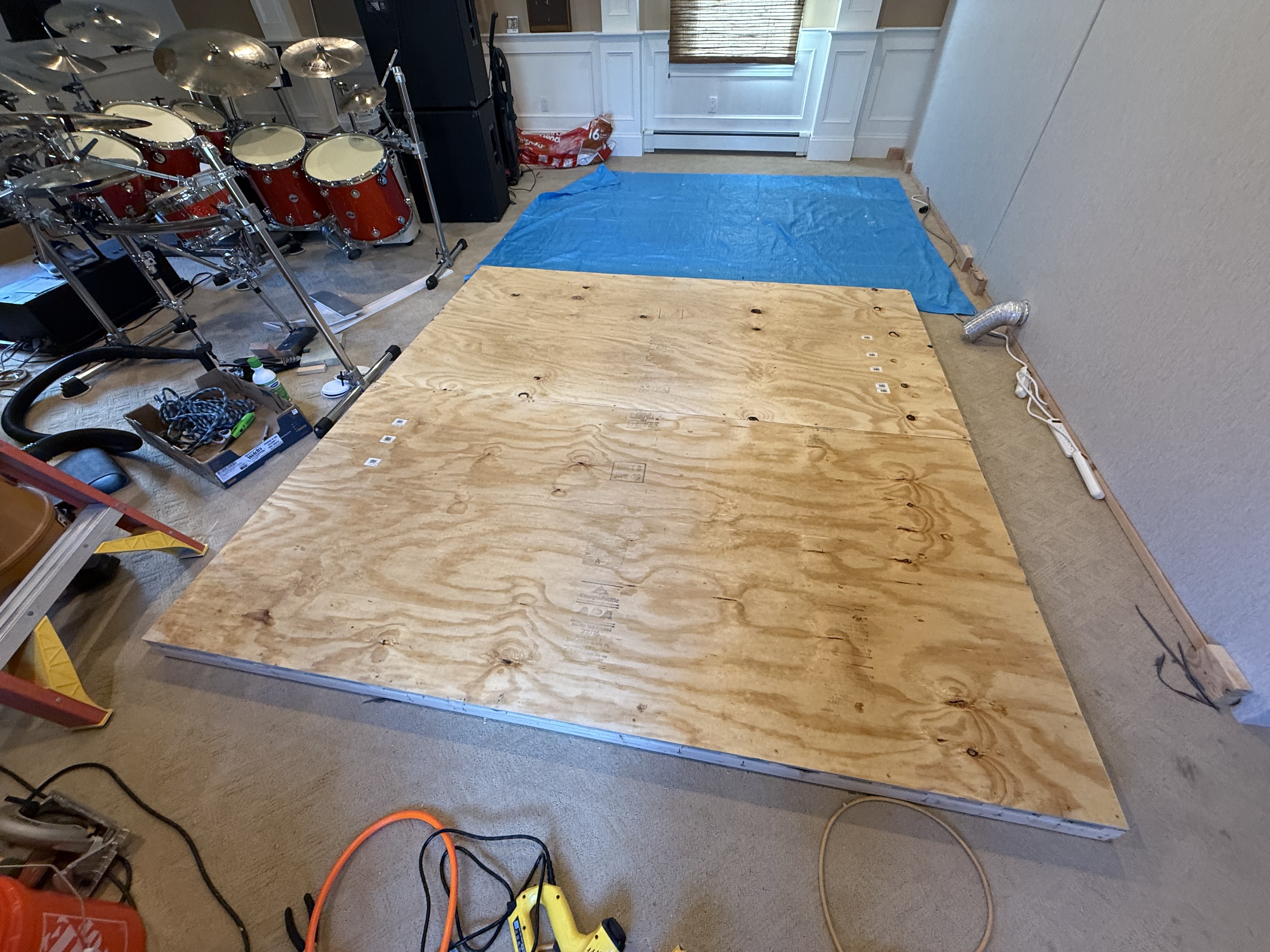

Filled in with Rockwool Safe and Sound batts to absorb sound. Then a layer of 1/2” plywood. Then a layer of .79” high density interlocking exercise mats to absorb more vibration from entering house structure below. Finally, bottom layer is a 1/4 PVC exterior siding, effectively turning the entire bottom into a “slider” so it can be moved if needed.

Also added four rope handles per side for moving around space is required when set up, the adjacent wall has bathroom plumbing in it, which I hope to never need access to, but now I can if necessary.



[njshred]

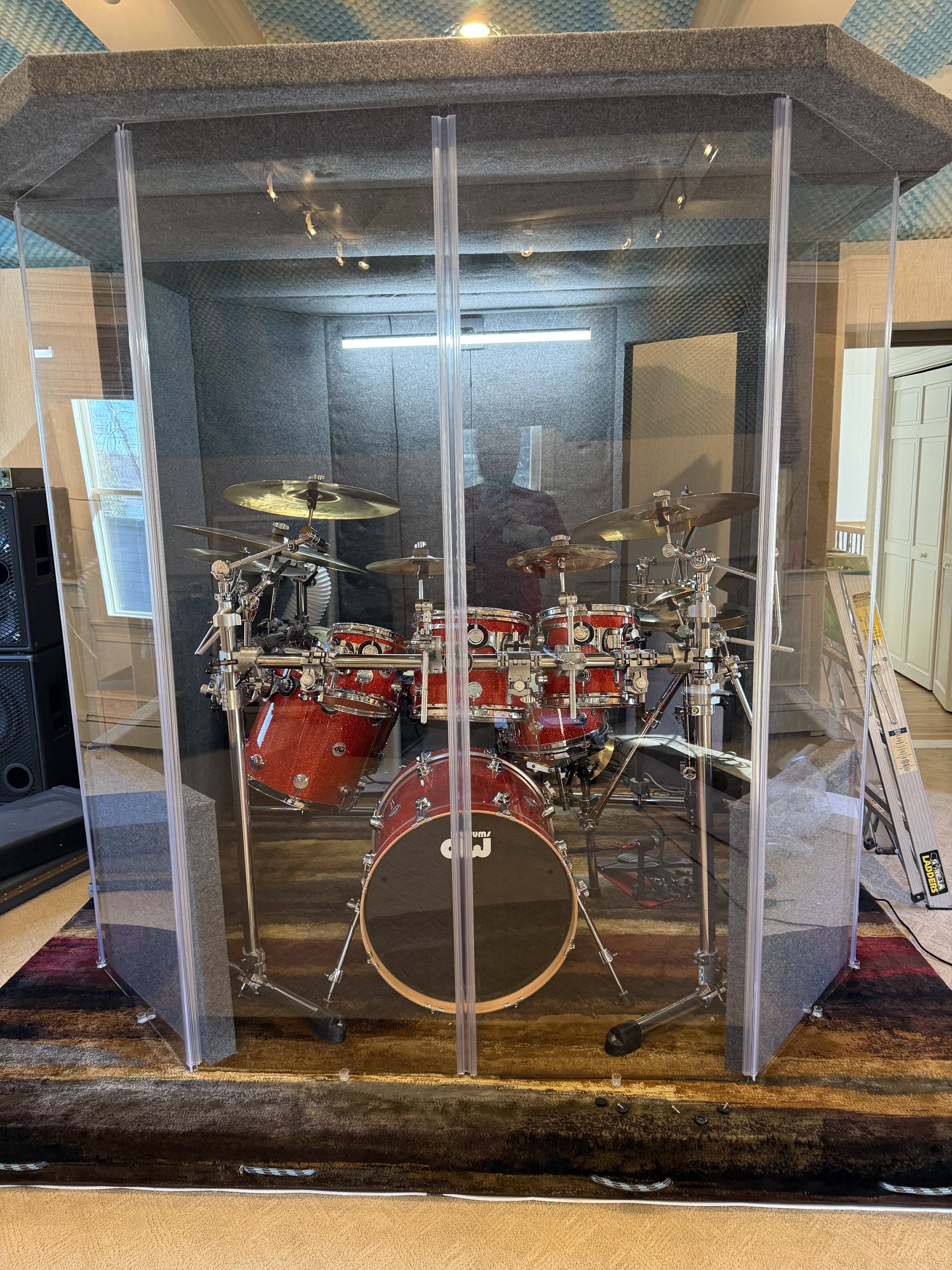

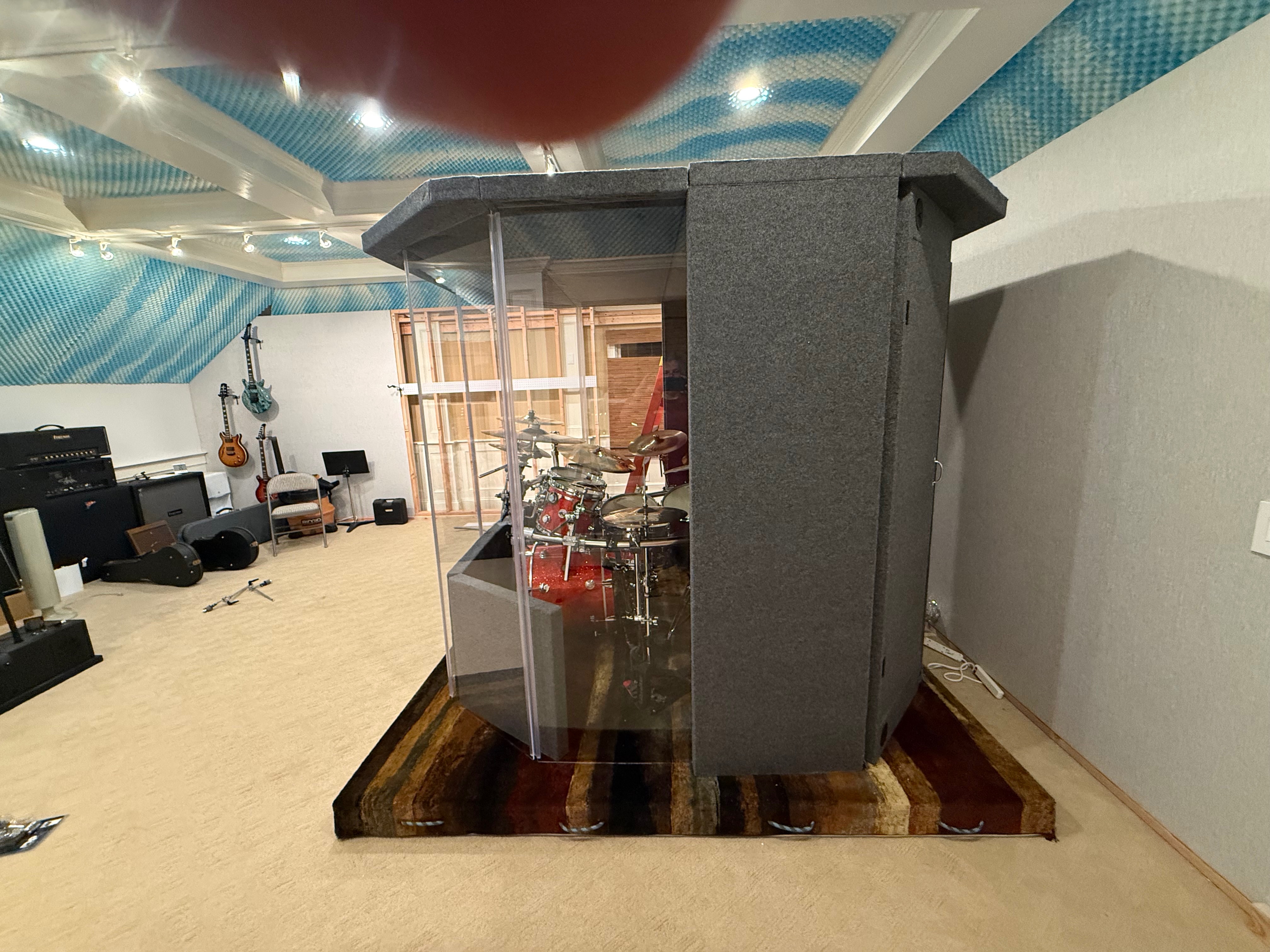

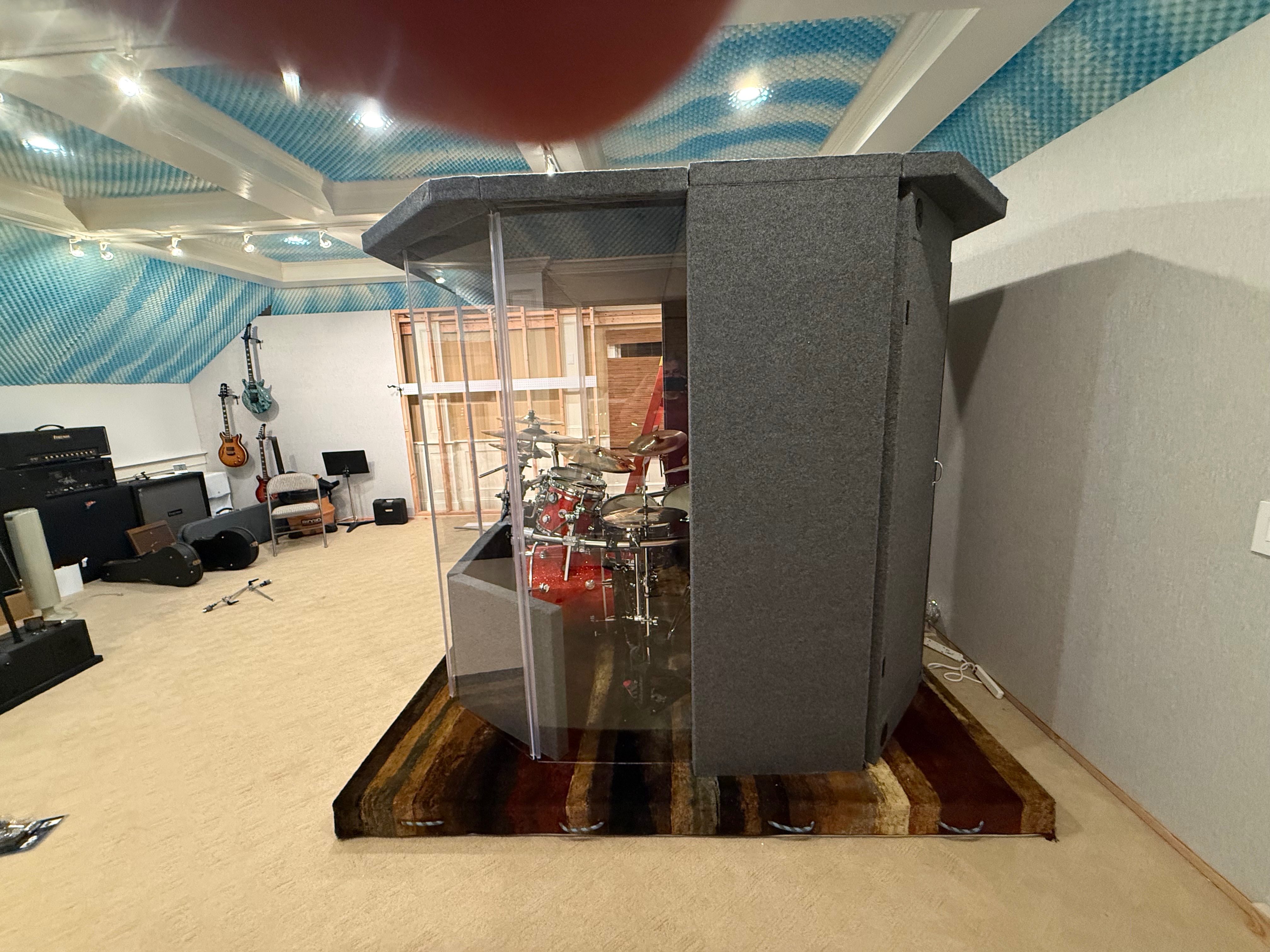

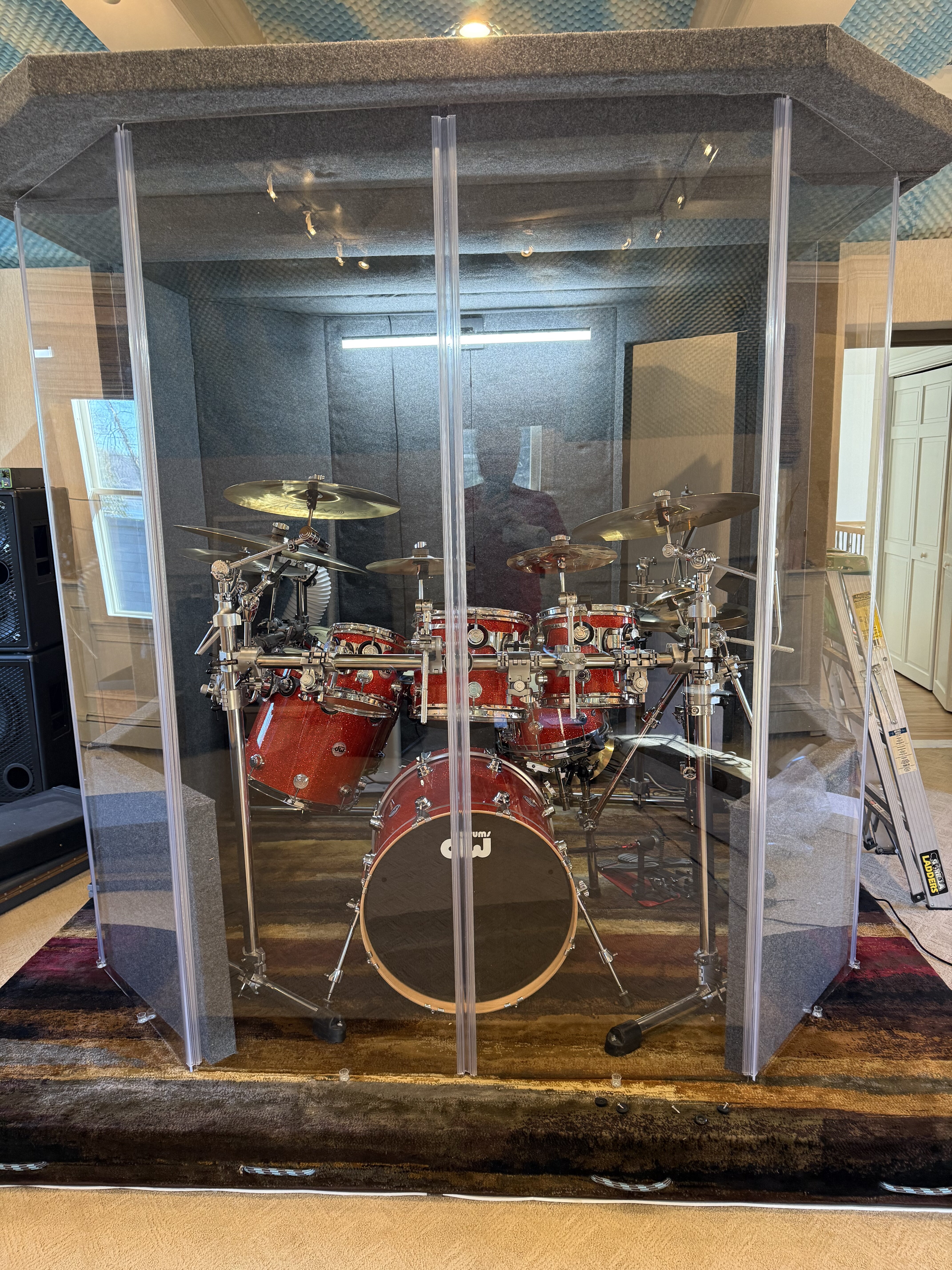

Who want to here all that clanking anyway?



[BeZo]

Who want to here all that clanking anyway?

No! That's terrible! One of my favorite things to do at rehearsal is fart right next to the drummer, since he can't walk away mid-song. Now you can't do that without being too obvious, because you would have to stick your ass in the drum enclosure.



[njshred]

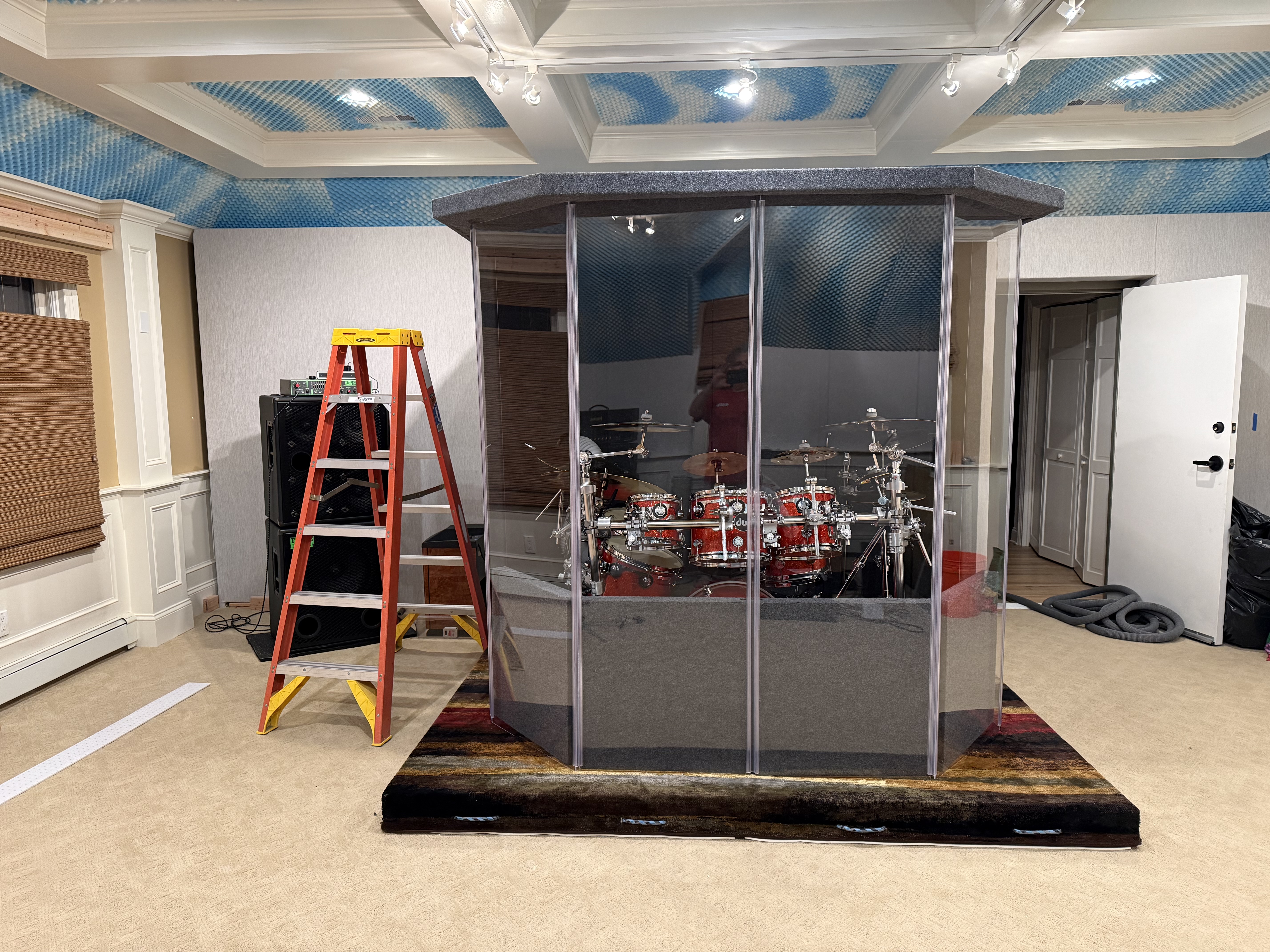

Let there be light!!!!



[PBGas]

Pretty darn amazing build! Nicely done!!!



[Rackman]

Fancy. I've always just put a bunch of music shit in a garage or a basement.



[njshred]

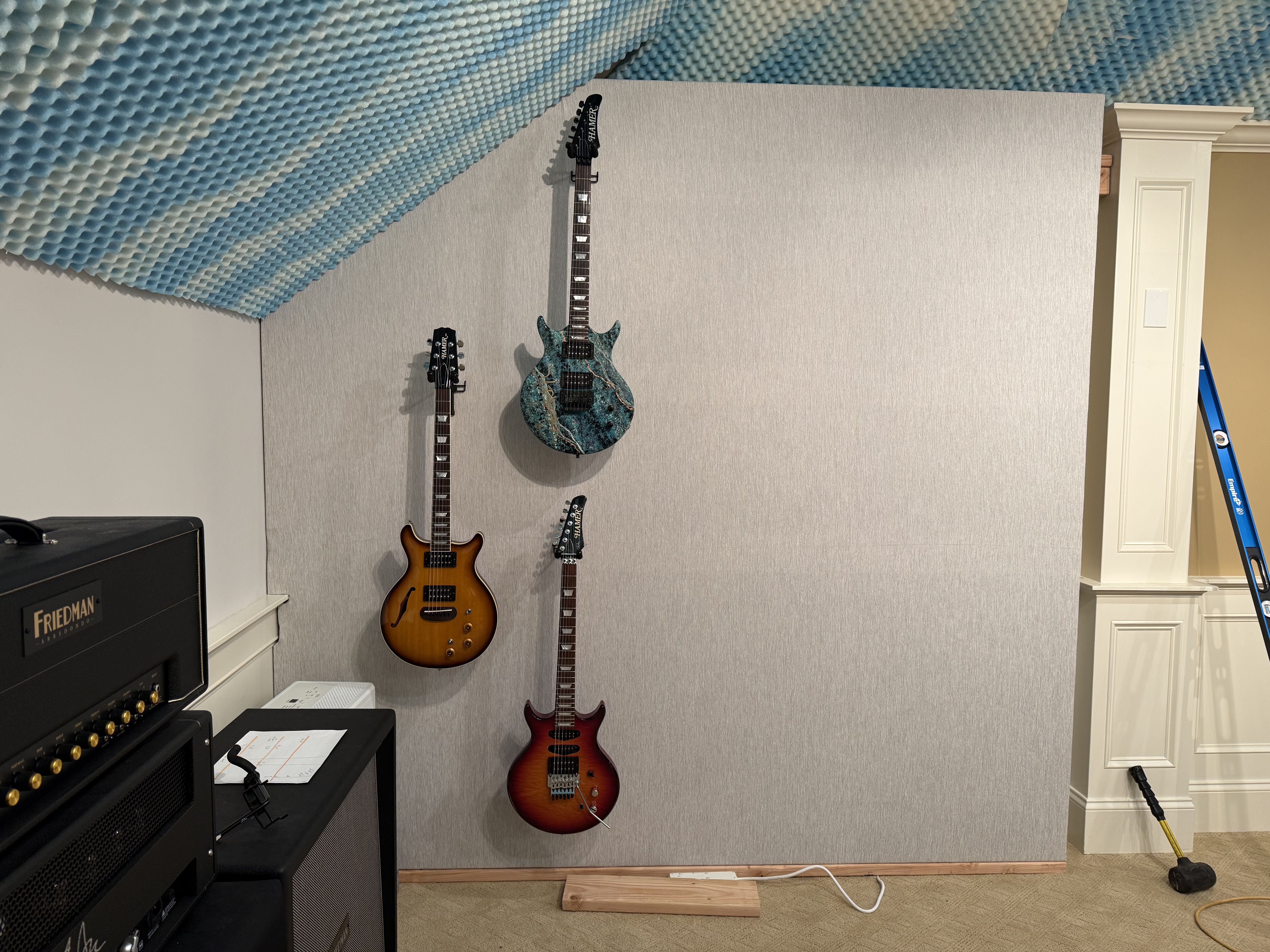

Next wall completed.



[Techdeth]

Nice !



[gybe!]

Next wall completed.

What is that bass on the upper left hand side?
