mentoneman
Well-known member
so once you get a working version, how long will it take you to actually assemble these bad boys?
A
Anonymous
Guest
I figure 20-30 hrs or so... the chassis and the turret board will be laser cut in bunches so that will save quite a bit of effort...mentoneman":2ez9or0l said:
Steve
B
bmf5150
Member
very cool.
jerrydyer
Active member
Bitchen !!
I love how you have the vactrols locked down there. I build two identicals and theyre not identicals.
I love how you have the vactrols locked down there. I build two identicals and theyre not identicals.
A
Anonymous
Guest
Ok, so here is this week's update... Cut, drilled, staked w/eyelets and populated/soldered the relay power board and also drilled the chassis to accept it (PITA - glad this will all be done in advance by laser on my next chassis!). That board has a 1A, 50V bridge rectifier and a 7806 voltage rectifier and I had to use 3/32" eyelets for those. That is 1000 uF electrolytic cap off the board. The red wire from the last relay DIN connects there and I need to run a wire to the XLR plug to power the foot switch relays as well. Black wire goes to ground. You can also see that I've drilled the chassis and installed a 6VAC PT - that'll connect to the relay power board and the on/off. Now all chassis drilling is DONE! I need to do the input jack wiring, wire in the board, put the EFX loop in and then I can build the foot switch and get rockin'.
Here are the lastest progress pic:
Steve
Here are the lastest progress pic:
Steve
duesentrieb
Well-known member
A
Anonymous
Guest

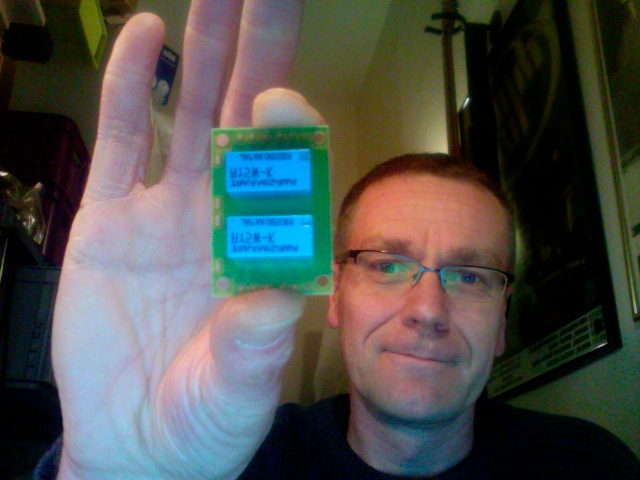

Awesome! Oh man - that would save a lot of effort!duesentrieb":18xrksy4 said:
Steve
A
Anonymous
Guest
Thanks man! Gettin' closer...psychodave":2z0fxwvv said:Looks great.
Steve
Vrad
Active member
NICE!!!
Solen Fast Caps I see... <twists_moustache>Very interesting</twists_moustache>
Solen Fast Caps I see... <twists_moustache>Very interesting</twists_moustache>
A
Anonymous
Guest
Yup! Also SOZO Vintage caps, Riken resistors and PRP resistors sprinkled throughout... for different reasons...Vrad":23q5ysnw said:
Steve
Vrad
Active member
sah5150":1pzjm2oz said:Yup! Also SOZO Vintage caps, Riken resistors and PRP resistors sprinkled throughout... for different reasons...Vrad":1pzjm2oz said:
Steve
I thought I was nuts, but I can hear the difference between different cap brands/materials. It's NOT subtle... LOL!
Haven't played around with different resistors yet.
Oh yeah... and that Sozo break-in period... it's no joke.
dstroud
Well-known member
Vrad":1b85iztz said:sah5150":1b85iztz said:Yup! Also SOZO Vintage caps, Riken resistors and PRP resistors sprinkled throughout... for different reasons...Vrad":1b85iztz said:
Steve
I thought I was nuts, but I can hear the difference between different cap brands/materials. It's NOT subtle... LOL!
Haven't played around with different resistors yet.
Oh yeah... and that Sozo break-in period... it's no joke.
yup, I experienced that Sozo break in period also - the more you play your amp just starts sounding better and better!
dstroud
Well-known member
looking great man, I'm seriously hoping to get a chance to hear this beast!
Vrad
Active member
Yup... furthering the break in process as we type...dstroud":31tdkove said:Vrad":31tdkove said:sah5150":31tdkove said:Yup! Also SOZO Vintage caps, Riken resistors and PRP resistors sprinkled throughout... for different reasons...Vrad":31tdkove said:
Steve
I thought I was nuts, but I can hear the difference between different cap brands/materials. It's NOT subtle... LOL!
Haven't played around with different resistors yet.
Oh yeah... and that Sozo break-in period... it's no joke.
yup, I experienced that Sozo break in period also - the more you play your amp just starts sounding better and better!
A
Anonymous
Guest
You will - getting close, hang in with me!dstroud":23r87msd said:looking great man, I'm seriously hoping to get a chance to hear this beast!
Steve
Geoff J
New member
You DA MAN, steve !!!
The most revolutionary Marshall Madness !
are there any posts you made here regarding the loop ? (if there is going to be one)
If so, I'll look for them, just curious
What do you think of the Larry Loop ?
The most revolutionary Marshall Madness !
are there any posts you made here regarding the loop ? (if there is going to be one)
If so, I'll look for them, just curious
What do you think of the Larry Loop ?
L
Lord Toneking
New member
Whoa! I just checked in...and I see light at the end of the tunnel Looks freakin' awesome!!
Can't wait to hear this sucker Steve!
Looks freakin' awesome!!Can't wait to hear this sucker Steve!
A
Anonymous
Guest
Thanks man! The loop is a series/parallel switchable one. Different than Larry's. I've heard Larry's is a great parallel loop.Geoff J":3o5mg1uu said:
Steve
A
Anonymous
Guest
Yeah man - it's taken forever, but finally getting close...Lord Toneking":jx4gg1s7 said:Whoa! I just checked in...and I see light at the end of the tunnel
Can't wait to hear this sucker Steve!
Steve
mentoneman
Well-known member
duesentrieb":3hzx45q6 said:
i just gotta say you are such a great, helpful guy. much respect man...great ear for tone too.
