Got these new pickups installed....volume pot isn't doing anything

[Shreddy Mercury]

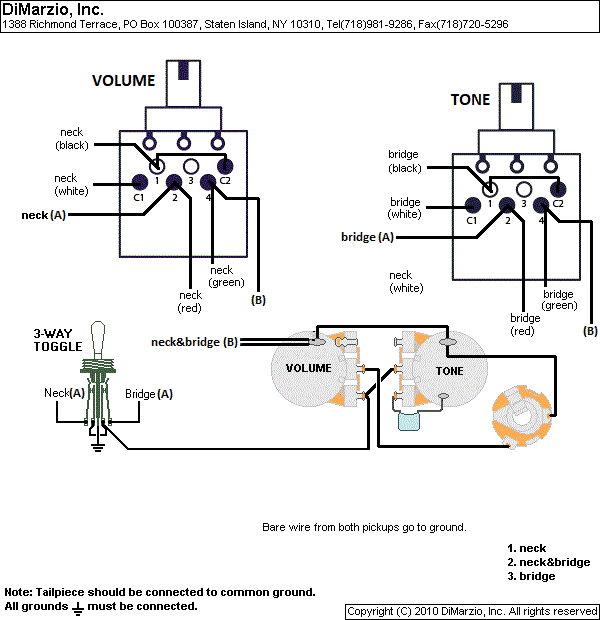

I got this complex push/pull series/parallel diagram from DiMarzio for a Fred/PAF Pro pickup set but they take days to answer, if they ever do.

I followed the wiring, checked off everything as I went, and I had the pickups and switch working plugging it into my amp and doing the tap test on the pole pieces and it worked. I put a string on to test for changes in sound and the push/pull pots definitely changed the sound some, as much as I could tell with this low e just barely tight enough to make some noise. The tone also seems to make a difference. The volume, however, doesn't do anything. It's just running full blast.

I double checked my work on the volume pot and I had forgotten to send the middle lug to the hot on the output jack, so I fixed that by installing a wire from the middle lug of the volume to the output jack and the volume still doesn't change, it's just full blast.



[thegame]

Found the problem = DiMarzio



[Shreddy Mercury]

Fixed it....the diagram shows a leg of the volume pot being grounded. It's very hard to tell unless you're really scouring the diagram. I grounded that leg and voila, the issue is fixed.



[SoooRad]

Even with the issue fixed, it’s not really fixed because it’s DiMarzio.



[Shreddy Mercury]

Even with the issue fixed, it’s not really fixed because it’s DiMarzio.

DiMarzios are far superior to anything else on the market. If I inherited a 100% original1963 Strat, I guarantee I could pull the original electronics and pop in some Choppers or Tone Zone Ss and immediately improve the sound.
