New pedalboard.

[Random Hero]

Literally loving the Musicom Lab EFX MkIII. Using it to control everything on my Einstein (channel, master, modes on ch1), plus these pedals, plus the MIDI on the Eventides.



[thenine]

signal chain?



[Random Hero]

signal chain?

It's been slightly re-wired since that picture. Notice the SCB isn't yet in a loop there.

Guitar -> Polytune -> In A on the Musicom -> SP Comp (Loop 1) -> Wampler Euphoria (Loop 2) -> MI Super Crunch Box (Loop 3) -> Out A -> Amp input on Interface -> Amp input.

Then... FX Send -> FX Send on interface -> In B -> Bright Onion buffer & EB Vol (Loop 5) -> Eventide Modfactor (Loop 6) -> Eventide Timefactor (Loop 7) -> TC Spark Mini (Loop 8) -> Out B -> FX Return on interface -> FX Return

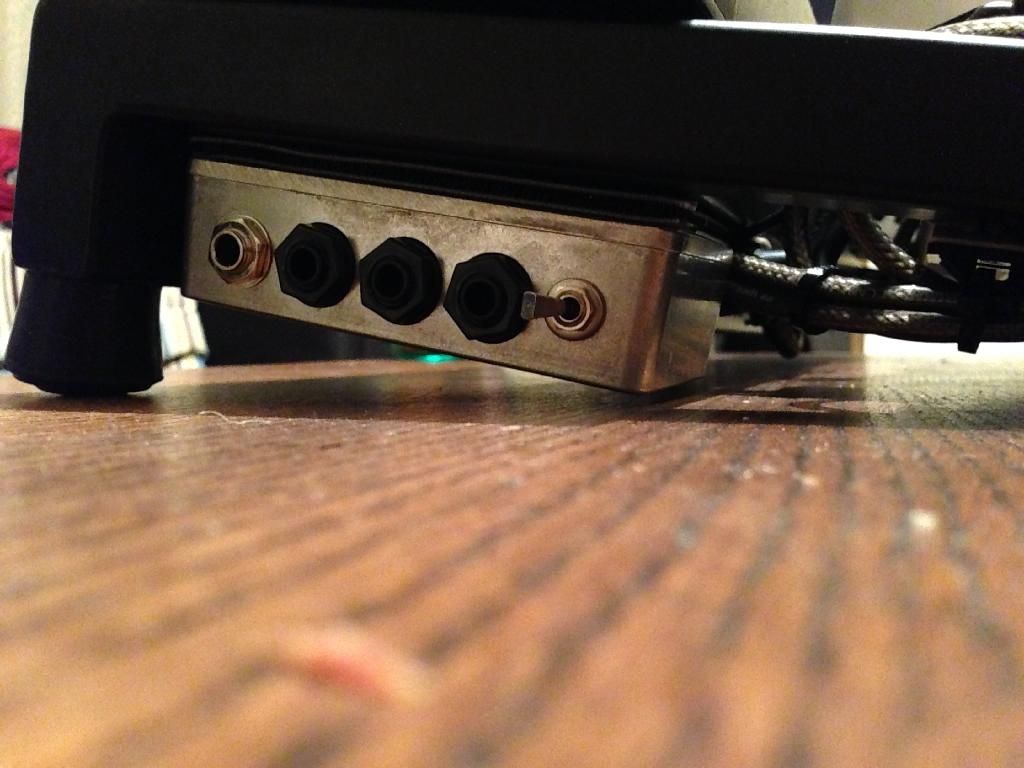

I have a new interface box too, that I haven't pictured yet (using the my older 4 way one on the pic). 5 jacks, Amp In, FX Send & Return and two footswitch jacks for my amp. Also has a switch that allows me to run it as above or basically from In A to Out B and straight into a backline amp, so everything is in line! Pretty versatile. Here's a pic of my old 4 way patchbox with the switch.



[Econ]

How easy is to program the Musicom?



[Random Hero]

How easy is to program the Musicom?

Very!



[bigangryguitar]

Looks swell



[Bronco]

How easy is to program the Musicom?

Very!

Absolutely...the Musicom is easily one of the best gear purchases I've ever made. Built like a tank, very powerful, easy to use, expandable, great buffer and sounds totally transparent.

Good grief that totally sounds like spam



[thenine]

looks great. I need to get one of those loop interfaces.



[Quiet Gentleman]

looks great. I need to get one of those loop interfaces.

+1 on the interface. That looks easier than drilling mine sized holes after pedal placement.



[Quiet Gentleman]

How easy is to program the Musicom?

Very!

Absolutely...the Musicom is easily one of the best gear purchases I've ever made. Built like a tank, very powerful, easy to use, expandable, great buffer and sounds totally transparent

Excuse me for asking but what settings would you use for the xpdl to hook up from an expression pedal to access a strymon pedal channel one.
I don't quite get the examples in the manual. I'm also unsure of where the IA page is to open XPDL Select Global or Preset.
And finally is there a sneaky way to use an external tap tempo button instead of an expression pedal to contact midi pedals through the EFX62M?

Any advice is welcome from any patient person
