What size are the Griffin pedal cases?

[Shreddy Mercury]

I've got a couple used ones on the way and curious what size they are (or if they use the same case as some other common pedals) so I can try and arrange them on a virtual pedalboard on Pedal Playground. That's a pretty cool site for building a pedalboard and seeing what kind of space you can work with.

Maybe I should get the Temple Audio Duo 34 or be a real man and get a Trio 43 and then have a pedalboard bigger than my rig lol



[MadAsAHatter]

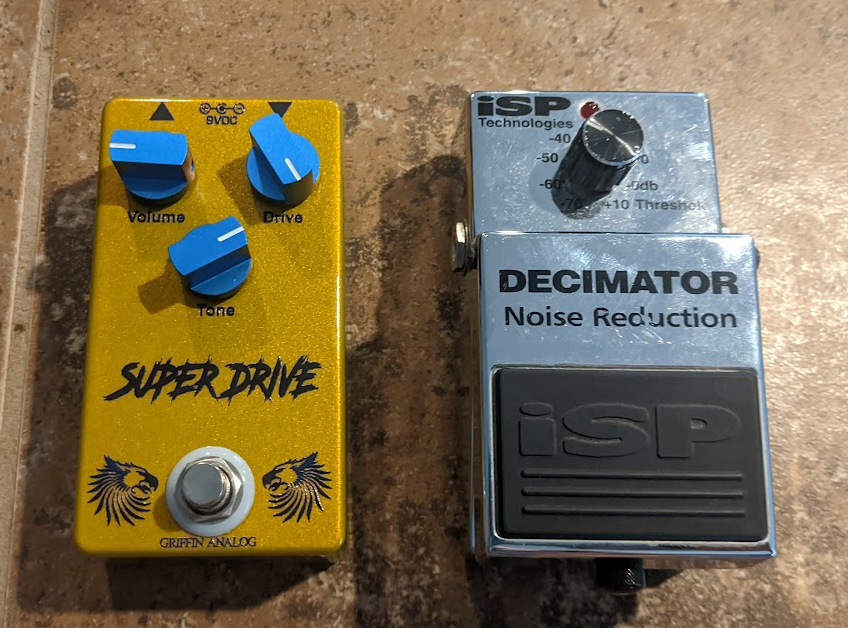

They're the size of a standard pedal with the jacks on top. Roughly 2.5" wide x 4.75" long. Here's my Griffin Superdrive next to an ISP decimator.
@griff10672 can probably tell you exactly which cases he uses.



[BeZo]

They come in all shapes and sizes.



[Shreddy Mercury]

Surely there are case size standards that are available in the aftermarket that boutique companies purchase?



[griff10672]

Surely there are case size standards that are available in the aftermarket that boutique companies purchase?

I use 1590XX's ..... 1590BB .... 1590BB2 .... and 125B 's

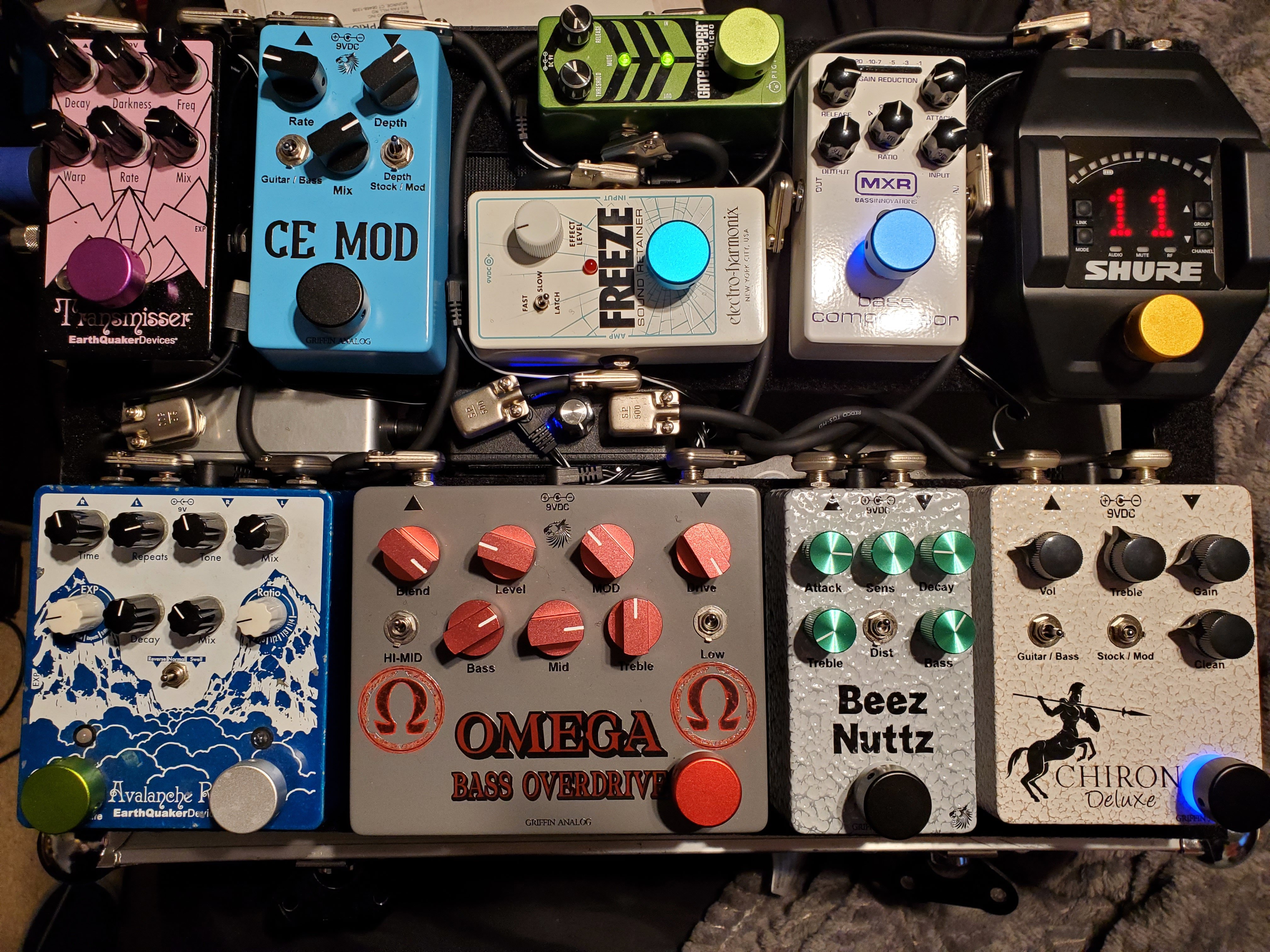

in Bezo's pic ..... the Beeznutz is a 125B .... the Chiron Deluxe is a 1590BB2 ..... the Omega is a 1590XX

only difference between a 1590BB and a 1590BB2 is the depth ... the BB2 are deeper ( or taller )



[Shreddy Mercury]

Thanks! That'll help me pick proper sized equivalents on this pedalboard designer.
