Built another hot rodded JCM800

[griff10672]

Put some time into learning the software I need to run my new Laser ....

I was able to cut the exact shapes I needed right out 3/4 Birch Plywood including perfect finger joints .... so I built my own headshell .

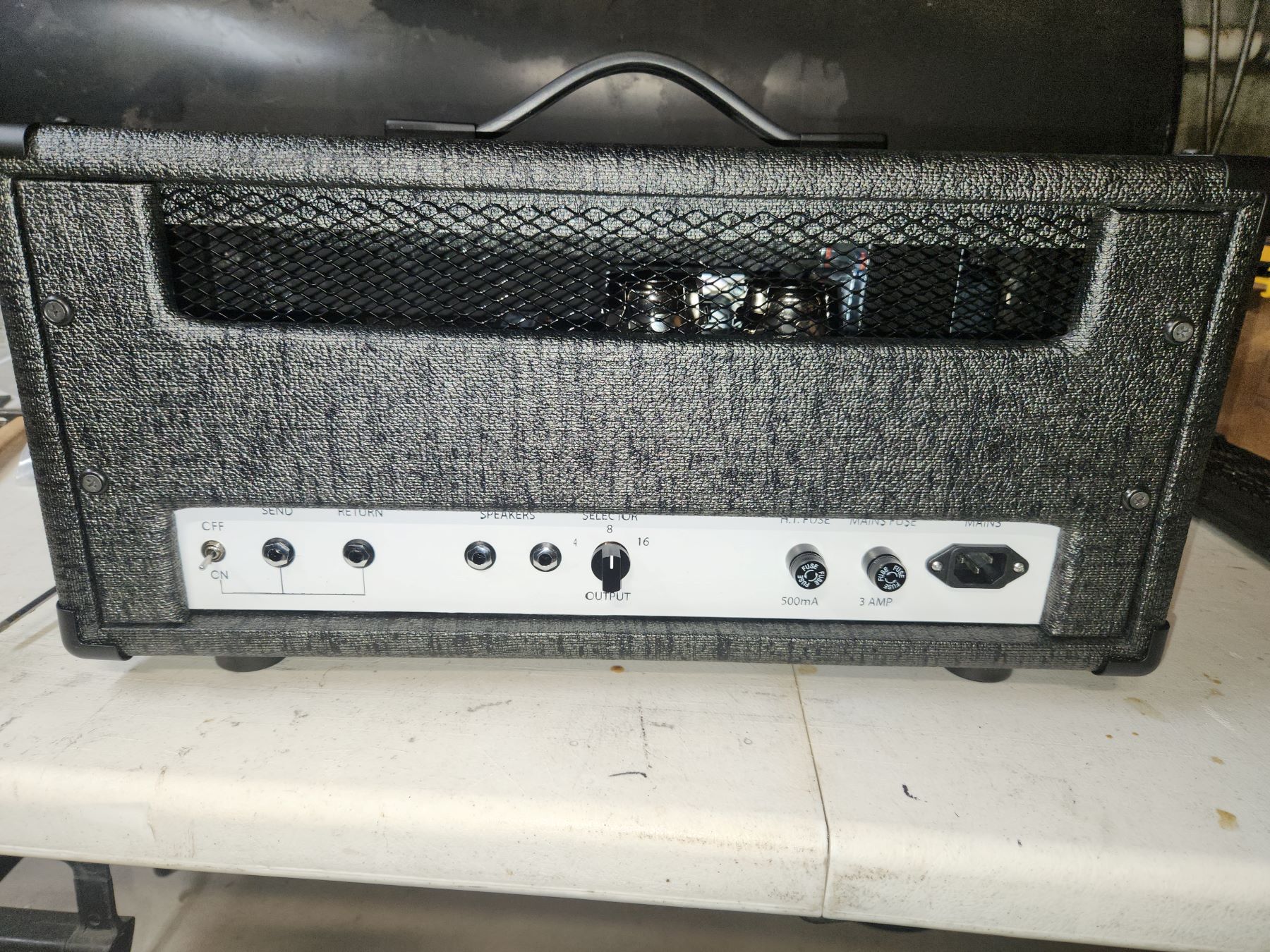

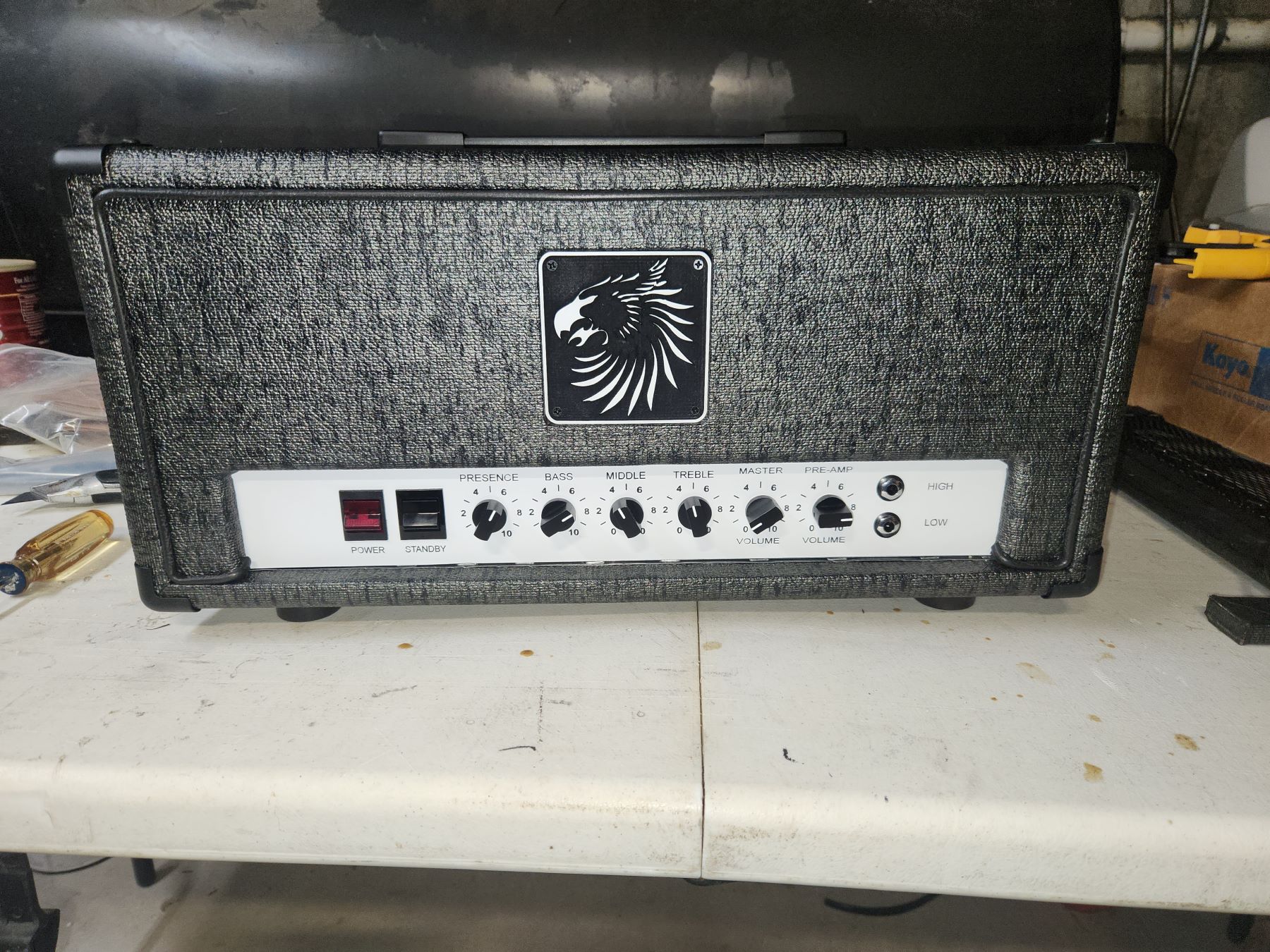

Was also able to do my Emblem .... inlaying into the front panel .... plus the control faceplates .... all with the Laser .

Covered it in my favorite " Blackened Tuna " tolex

The Circuit is basically a single channel 800/ JEL ( the hot rodded 800 channel of the JEL ) .... I did change it up a little from the last one ... but not much .

She's got DC Heaters on the V1 and V2 .... DC elevated on the rest ... all Vishay resistors ... Sozo Caps

running 6550's with Hammond trannies and choke



[angelspade]

Would love to hear clips...But in the interim I really dig the cosmetics...Simple...Black and Gray...Killer.



[klugster]

looks freaking sweet man, I'm sure it sounds great also!!



[311boogieman]

Looks sexy. Clips would be amazing.

It probably took less than 5 years to build too.



[S̷͖͑m̵͎͂á̵̺s̸͚̈́h̴̬̑]

Looks sexy. Clips would be amazing.

It probably took less than 5 years to build too.

I can't imagine who this is in reference to



[griff10672]

Would love to hear clips...But in the interim I really dig the cosmetics...Simple...Black and Gray...Killer.

Thanks !! Clips is my next hurdle to tackle ..... unfortunately my brain is looking at it as a whole new hobby ...... and man .... after the Laser Software ... I ain't got much room left in the old File Cabinet upstairs if you know what I'm saying ...

I should just do some simple phone in the room clips though ....



[LP Freak]

Very nice!



[Tone Monster]

Hell yeah. How different is this one from the one you built for me?



[griff10672]

Hell yeah. How different is this one from the one you built for me?

The Kali I built for you .... is basically a Jose .... this one is just a 800 but modded for more gain with out a additional tube gain stage .... with the front end tightened up and a fixed negative feedback .... your Kali is PCB .... and this one is turret board .... same Vishay and Sozo parts though

I Love my Kali !! These modded 800 circuits are a lot fun though .... fun putting all kinds of overdrives in front of them



[The~Kid]

Wow this looks amazing.


Good stuff *_*



[stratjacket]

Wow, that's really cool. I didn't know you ventured into amps. Congrats!!



[ners]

Yooo gonna need some clips brother



[The~Kid]

I love this..... Also it's Made in America/USA!!!!

I'm happy with my amps now but if I was considering another amp this would be high on my list for sure.


Good stuff OP *_*



[DanTravis62]

Killer wayne!



[BeZo]

Yeah, that looks sick.



[griff10672]

looks freaking sweet man, I'm sure it sounds great also!!

Very nice!

Wow, that's really cool. I didn't know you ventured into amps. Congrats!!

Wow this looks amazing.


Good stuff *_*

Killer wayne!

Yeah, that looks sick.

thanks guys !!



[CoreyW]

Looks great man!



[Mike Oxhuge]

Looks amazing hope to hear some clips!



[Wayniac3]

Awesome !



[griff10672]

Looks amazing hope to hear some clips!

Awesome !

muchas gracias
