Friedman BE100 With Line 6 HX Effects - Channel Switching?

[purpleplexi]

Wondering if anyone uses the Line 6 HX effects with the BE100 and if the HX effects can switch the channel and turn on the boost?



[RACKSYSTEMS]

Wondering if anyone uses the Line 6 HX effects with the BE100 and if the HX effects can switch the channel and turn on the boost?

it can do it..



[Cyan]

How? I’ve tried everything I can think of in HX effects. All I can get to switch is clean and be channel - no hbe boost. Does it require using both exp jacks on the HX effects plus maybe a splitter of some sort?

Thanks!



[BackCrack]

1. TRS cable
2. watch this (it works for the BE100)



[Cyan]

1. TRS cable
2. watch this (it works for the BE100)

Thank you!!! This worked perfectly! Life is good now.



[Kevcleat]

Can this be done using a Boss MS3, please?



[BackCrack]

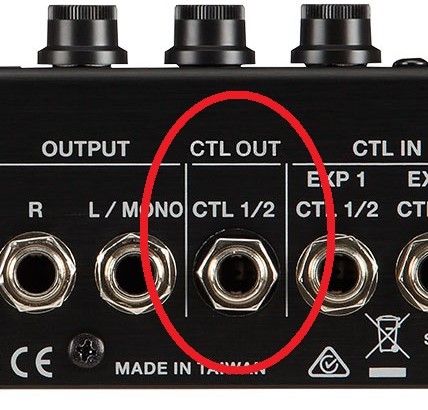

Sure. Should be in the manual. TRS cable plugged into the CTL 1,2 Out jack.



[Kevcleat]

Sure. Should be in the manual. TRS cable plugged into the CTL 1,2 Out jack.

Hi BackCrack. Its switching 3 channels I'm not sure of?
It switches 2 channels on my SLO 30 beautifully.



[BackCrack]

Pretty sure the CTL 1/2 jack is a stereo jack....

So yeah, it'll do it. TRS cable and read the manual on how to independently toggle CTL 1 & CTL 2.



[Kevcleat]

Thank you for your help
