Itching to mod my 50W Yeti

[BlueParfait]

I like how my amp sounds. it sounds pretty good
But I get restless when I don't personalize something in some way. I do it to almost all my guitars, so why not?

So the plan here is that I'm going to

• Swap the slope resistor from 47k to 33k
• Swap the NFB resistor from 39k to 47k
• Swap the cathode bypass caps from 1uF to 0.68uF
• Swap the coupling caps from 0.1uF to 0.022 uF
• Swap the grid resistors from 120k to 220k
• Swap the leftward bright caps from 2700pF to 4700pF

Aside from my attempted fix of my JVM410H, this is the first time I'll be directly interacting with the board. Hopefully this will work out well

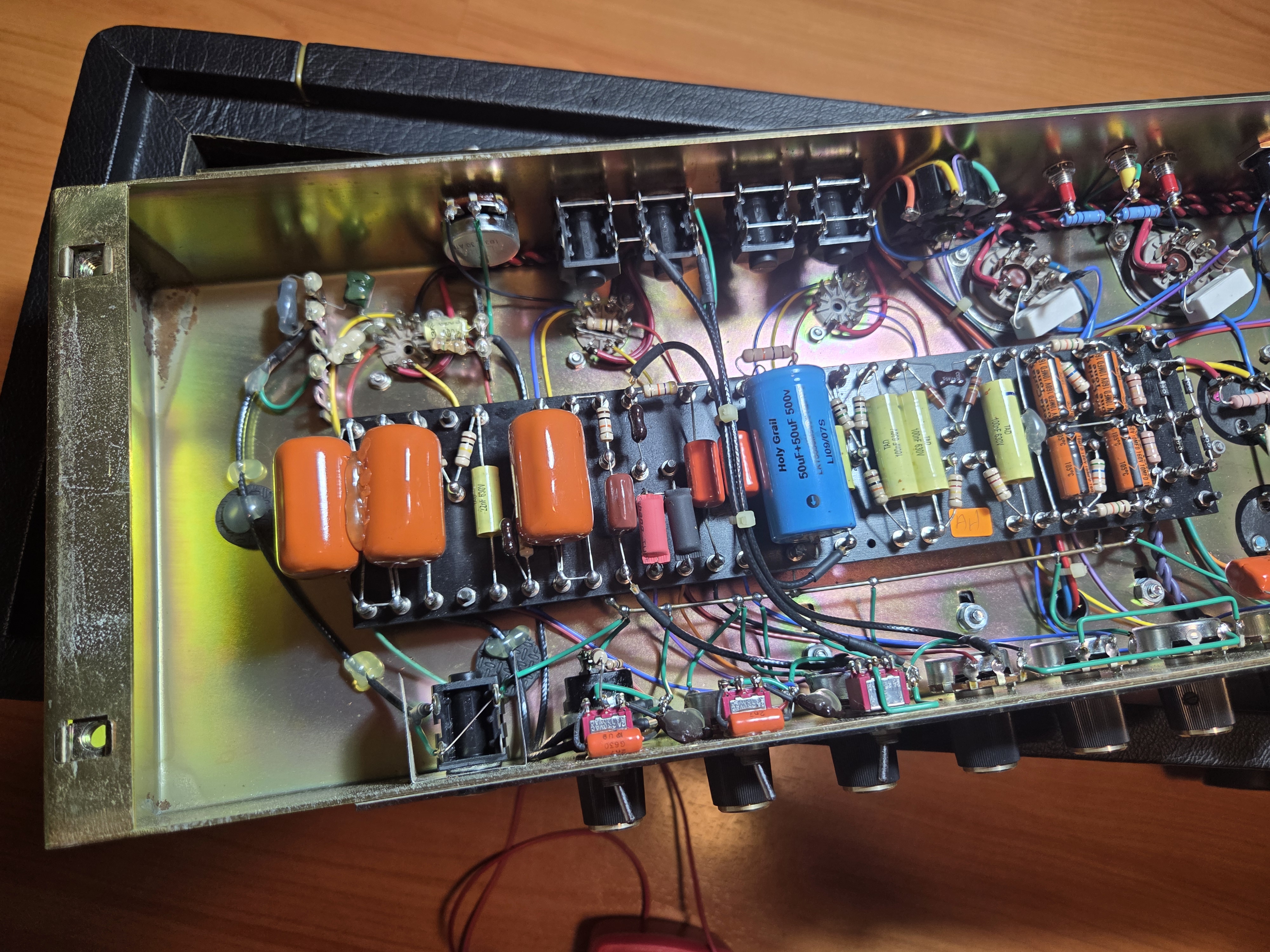

Pic: the amp before
After pics will be uploaded with updates



[tjnx]

you can make your own but weber has some tools that would make experimenting fun
https://www.tedweber.com/amptechtools/parts-substitution-boxes/

good luck!



[BlueParfait]

you can make your own but weber has some tools that would make experimenting fun
https://www.tedweber.com/amptechtools/parts-substitution-boxes/

good luck!

Thanks
Oh hey those are pretty cool
