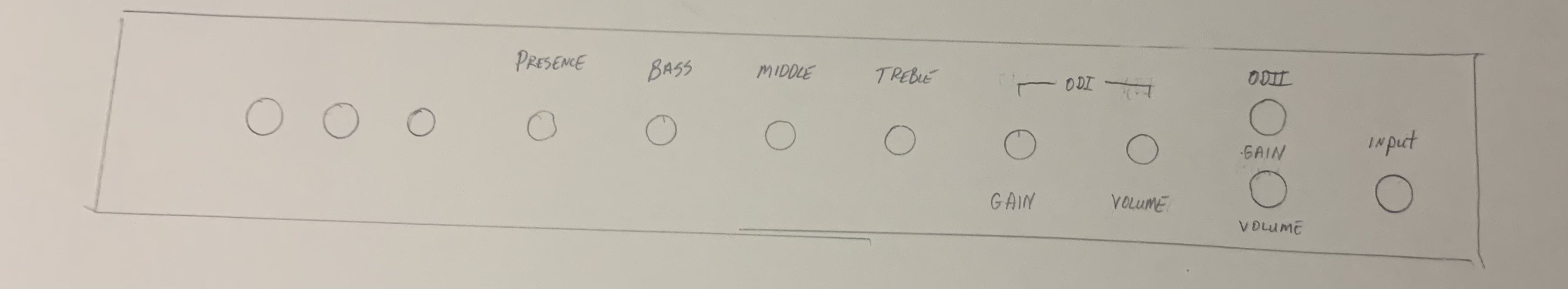

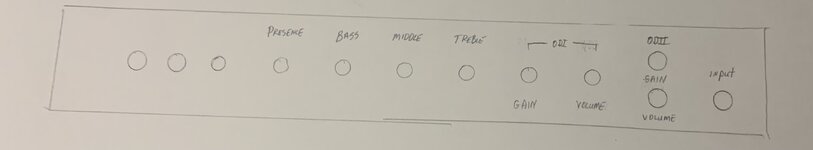

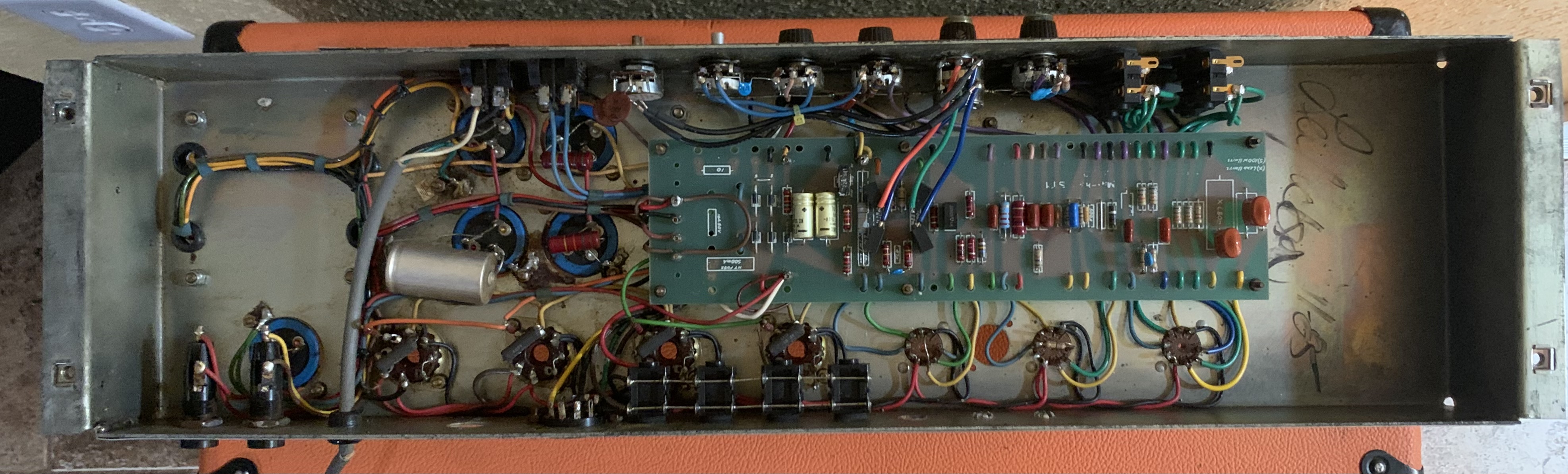

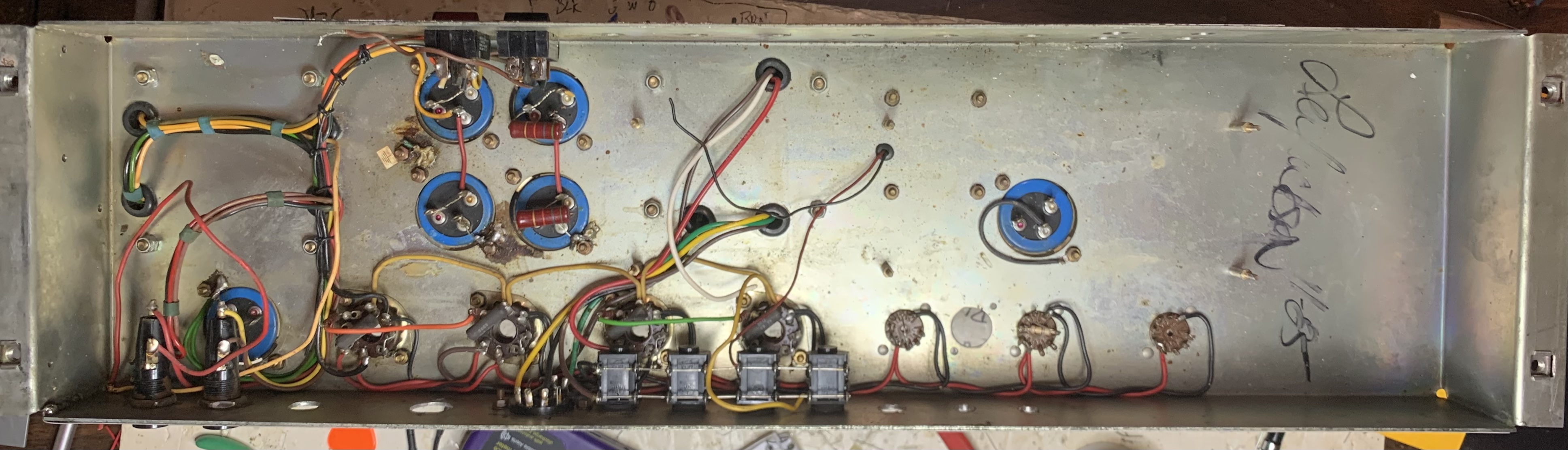

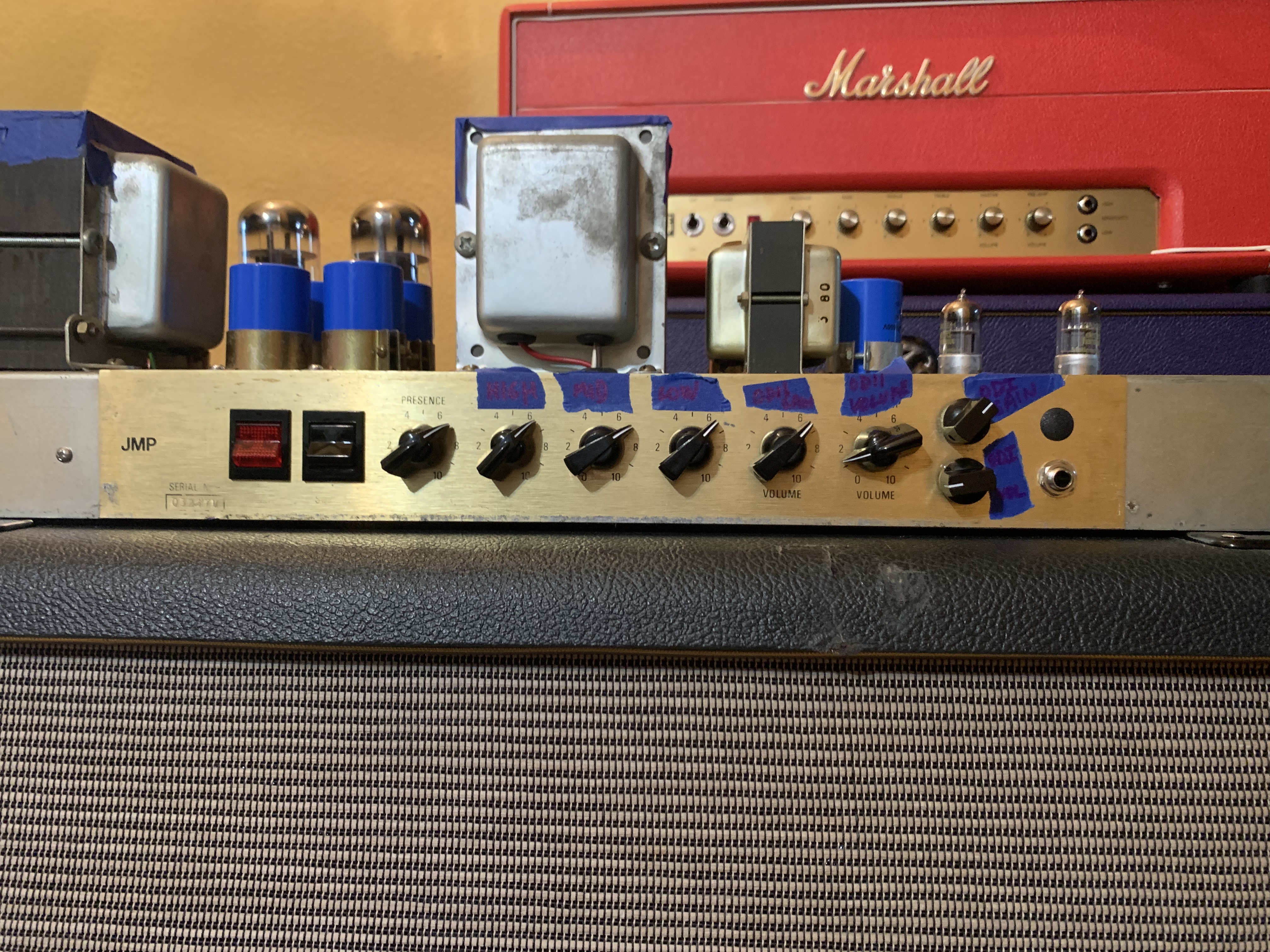

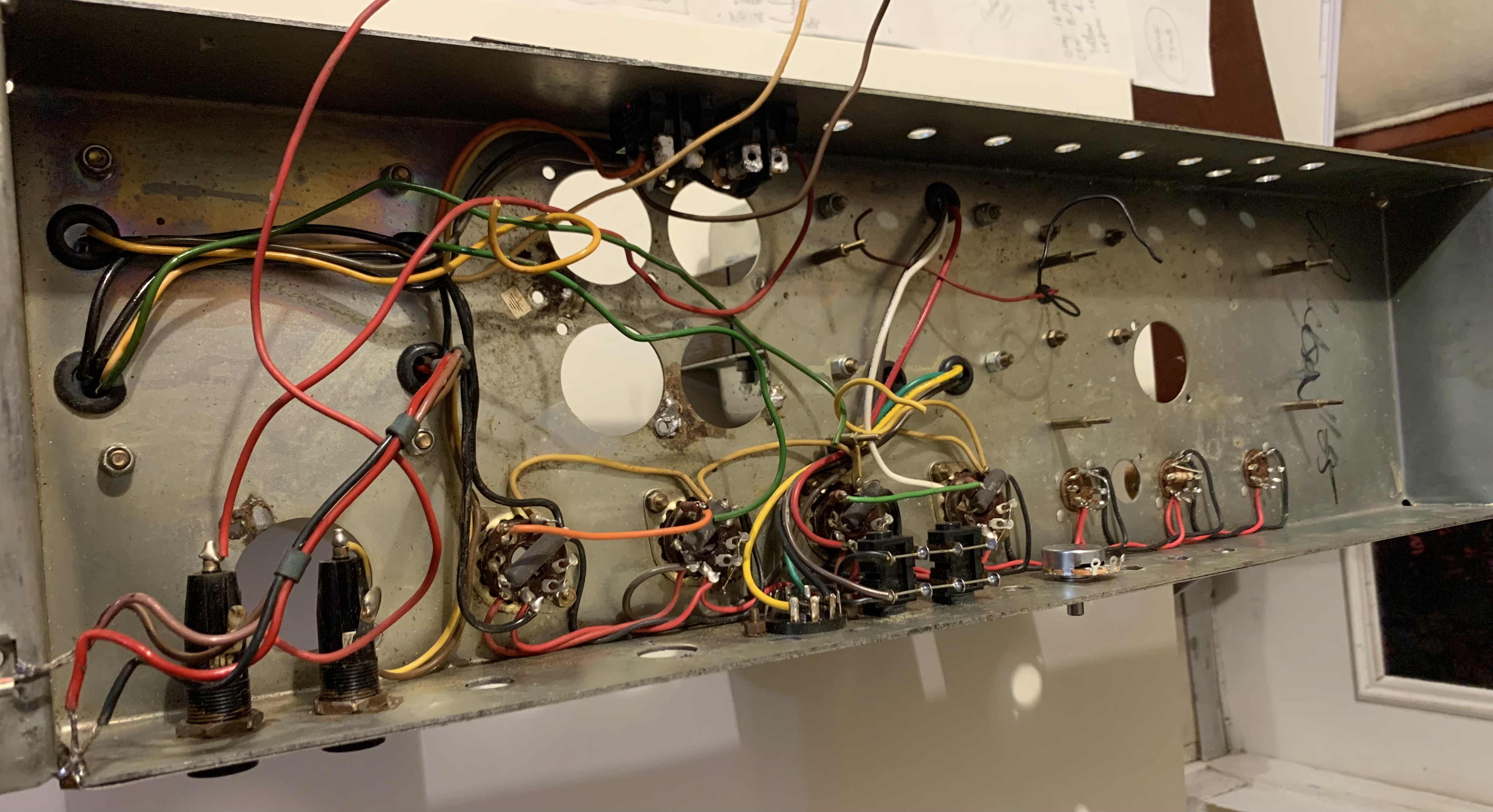

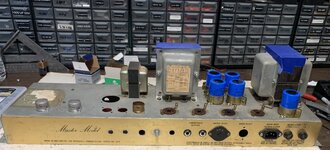

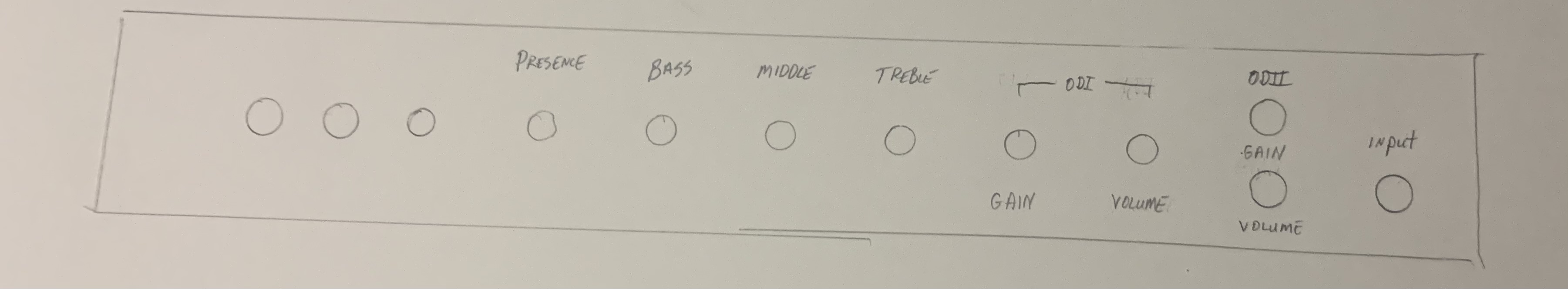

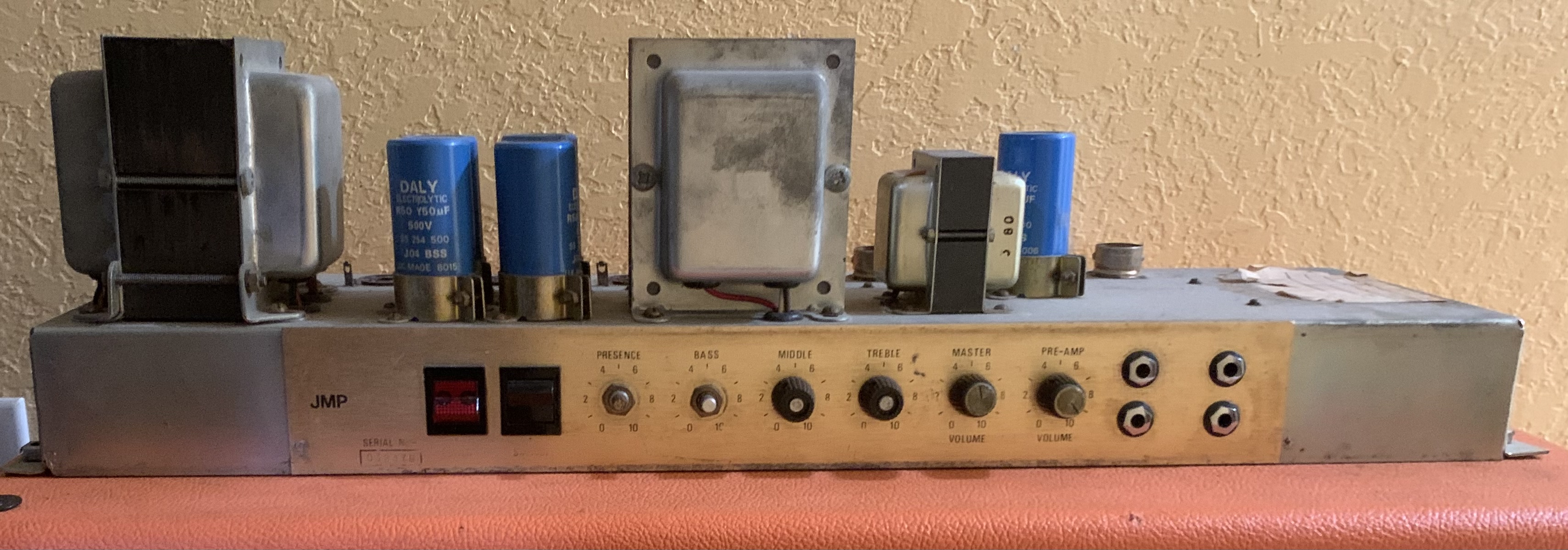

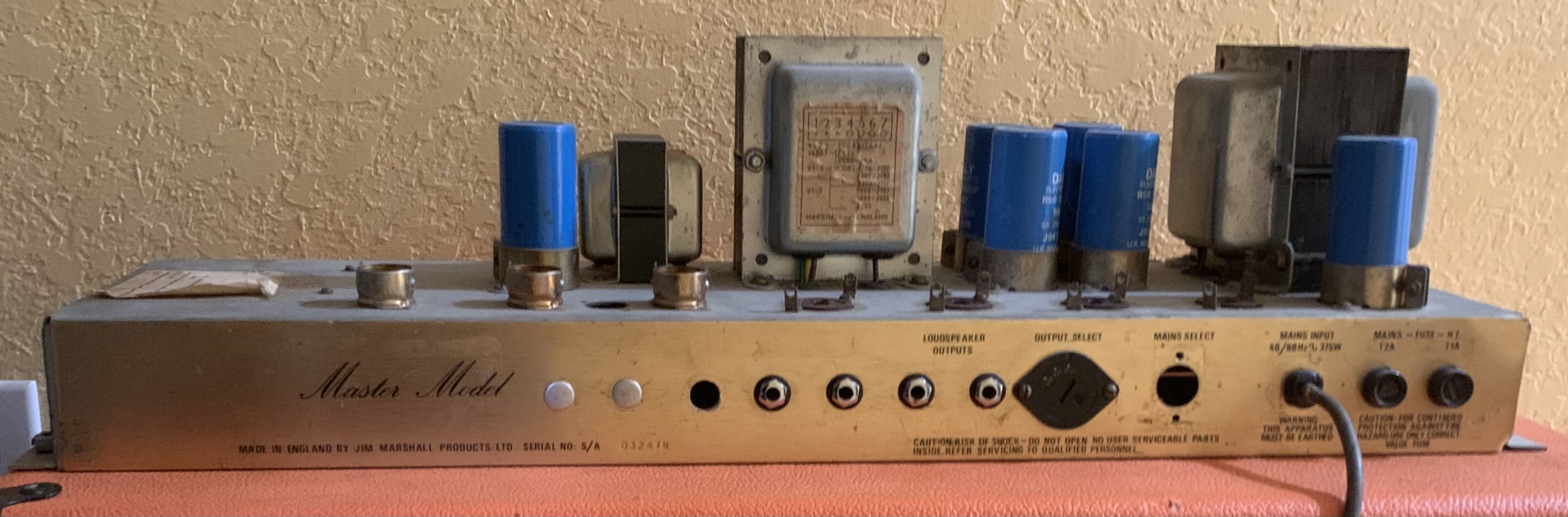

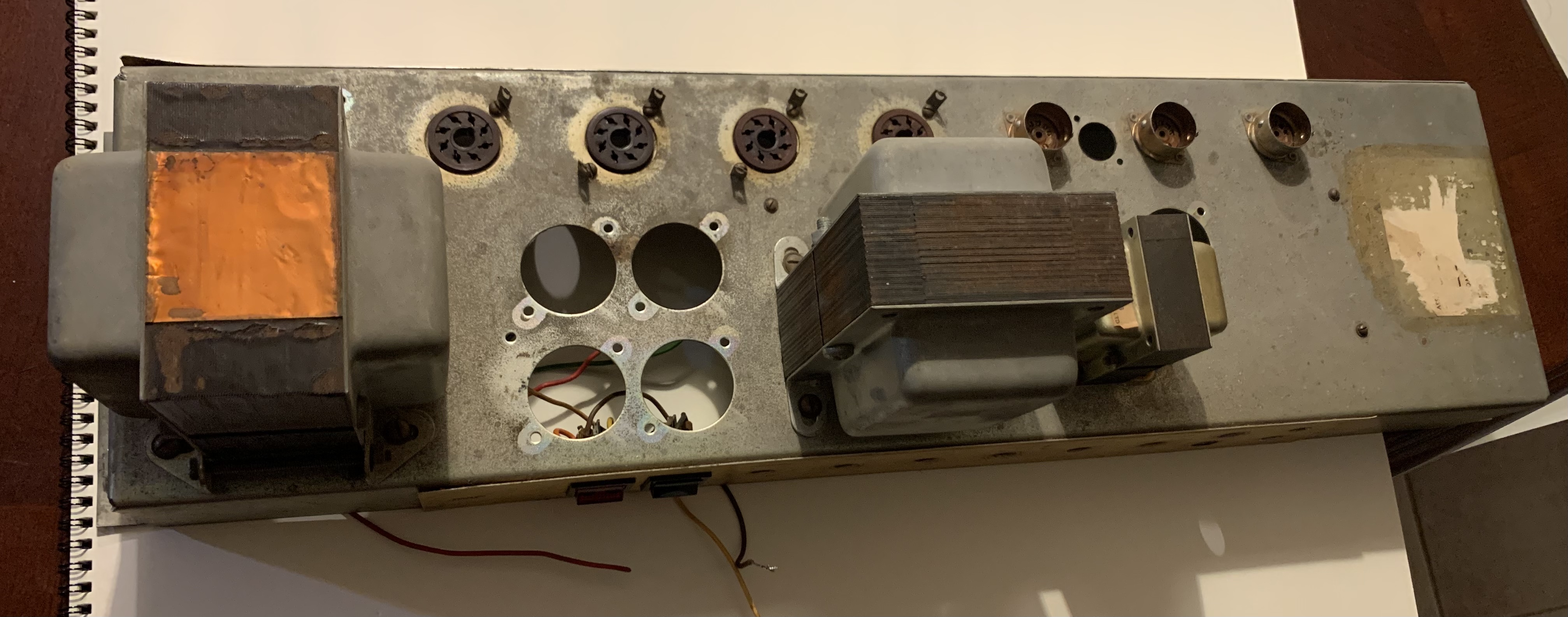

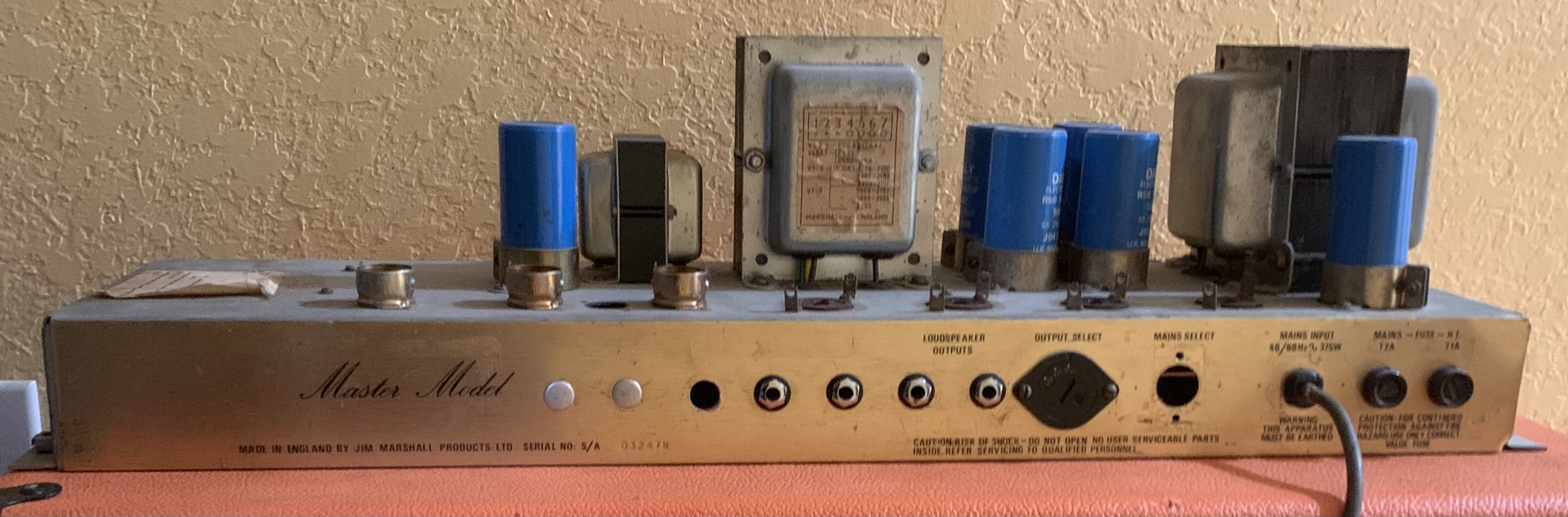

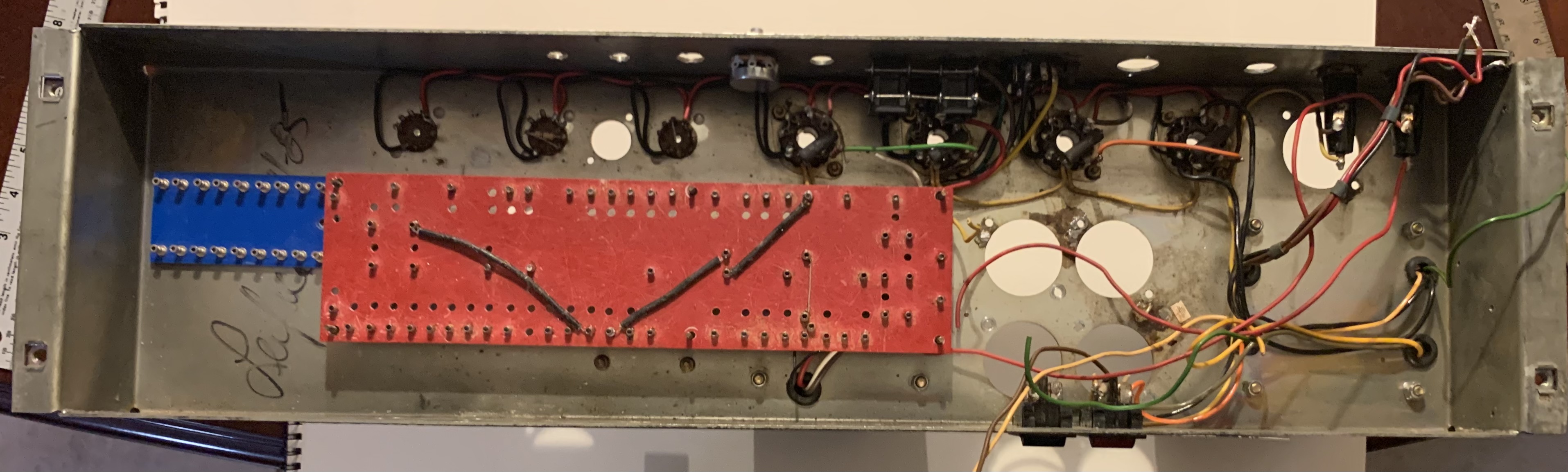

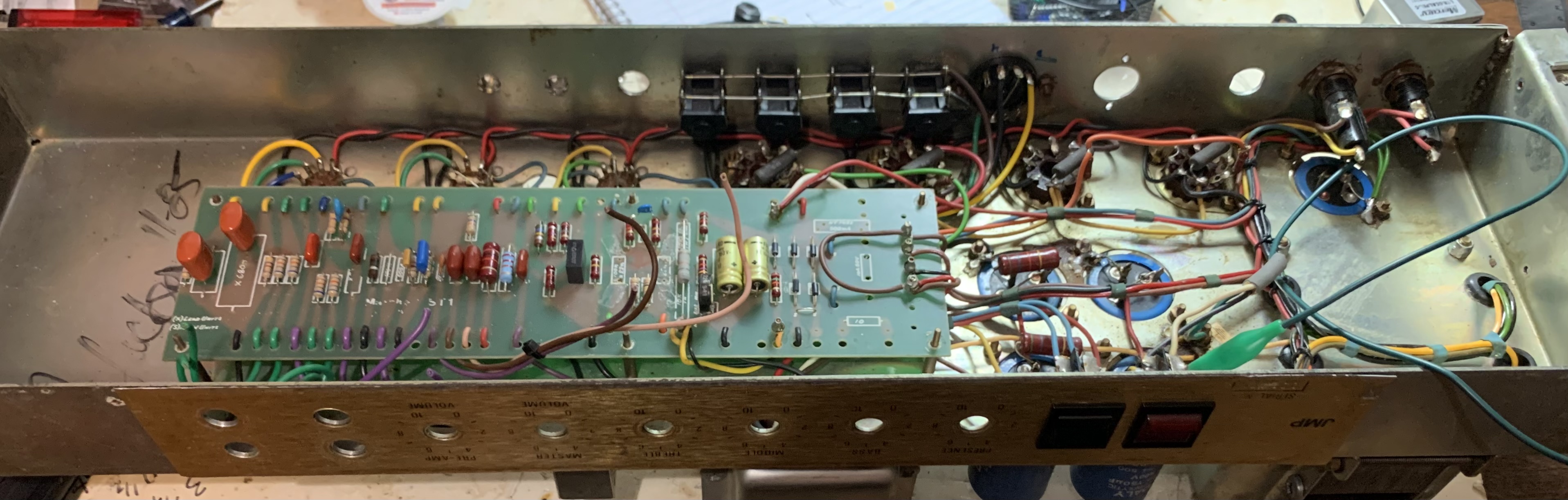

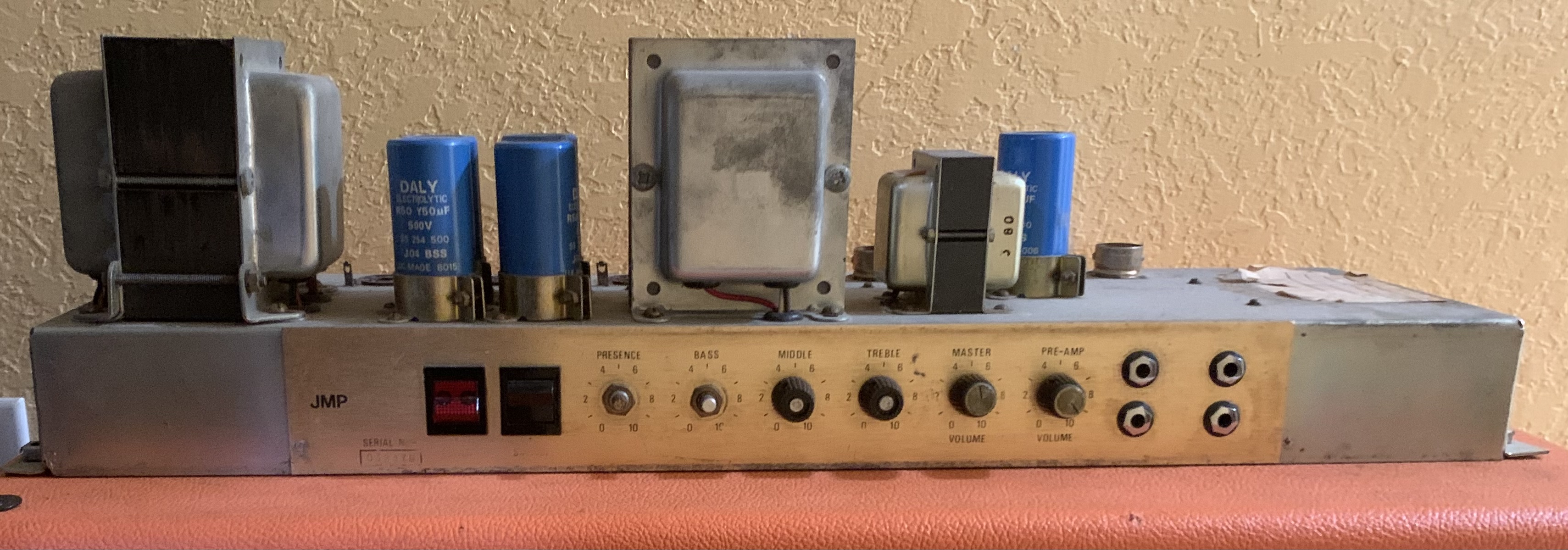

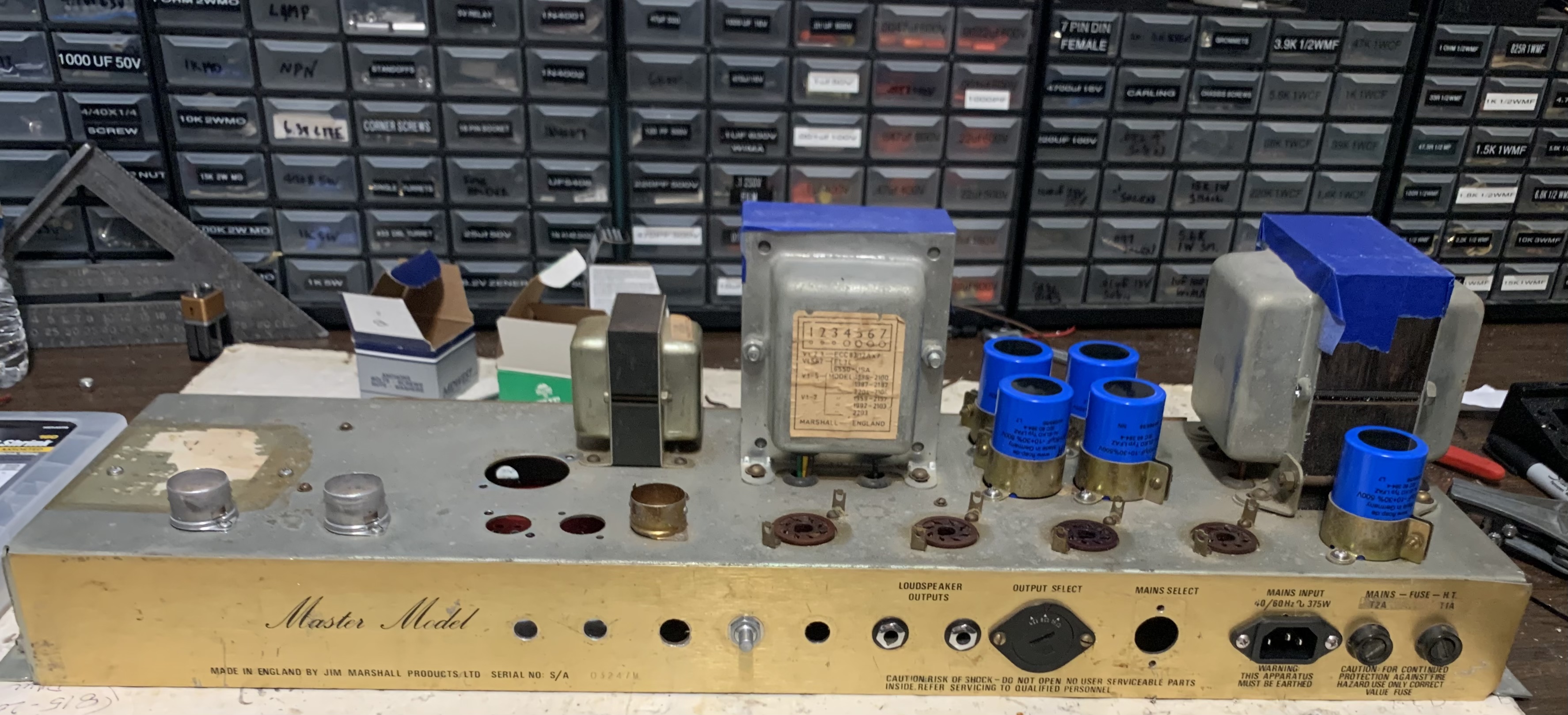

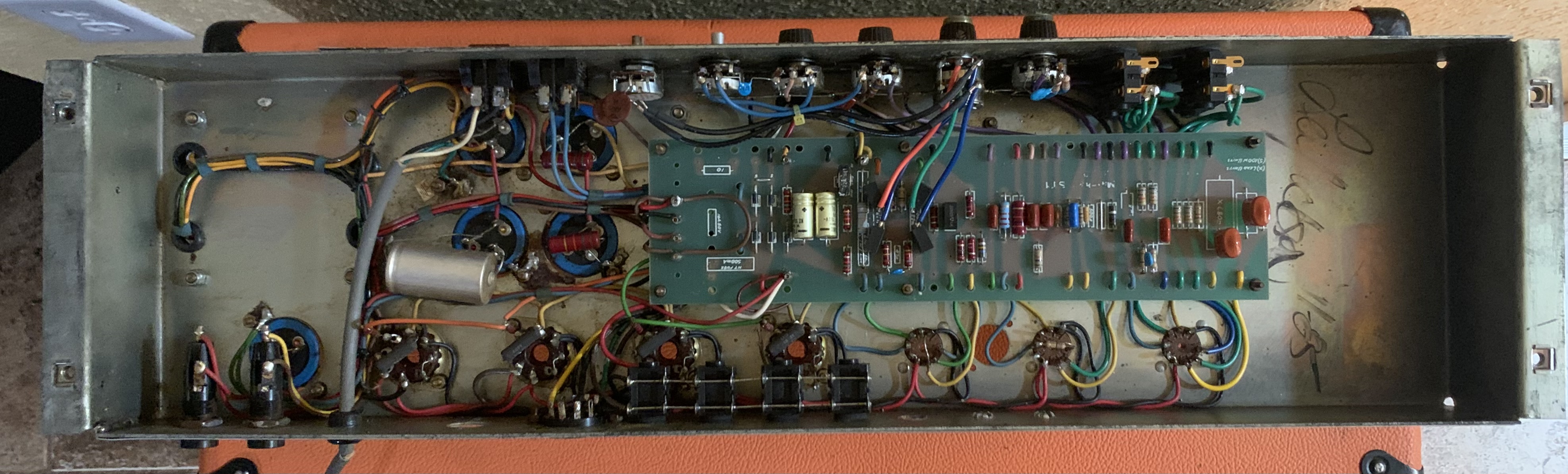

This will be a XD mod on a 1981 Marshall donor amp. It will have OD I gain and volume and OD II gain and volume as shown. The OD I mode is 3 stages and the OD II mode is 4 stages. It will have a zero loss loop and depth control on rear of amp. It will be powered by 4-6550’s.
Let the madness begin!!


Attachments

  • 59F3DCDC-F0D2-4503-8433-E93020E358F5.jpeg
    1.4 MB · Views: 41
  • E03AD9F1-9068-4BFD-A467-E42B0187A5DF.jpeg
    1.1 MB · Views: 32
  • FC5ACF95-A40F-4DE1-BE06-F78E40758882.jpeg
    976.2 KB · Views: 32
  • 5D12CA33-556C-4472-9BA7-D0B313D685BE.jpeg
    1 MB · Views: 39
  • 6C58E9F5-5913-4147-8935-1837C2B68DDC.jpeg
    264.9 KB · Views: 40

LickliterAmps

Active member

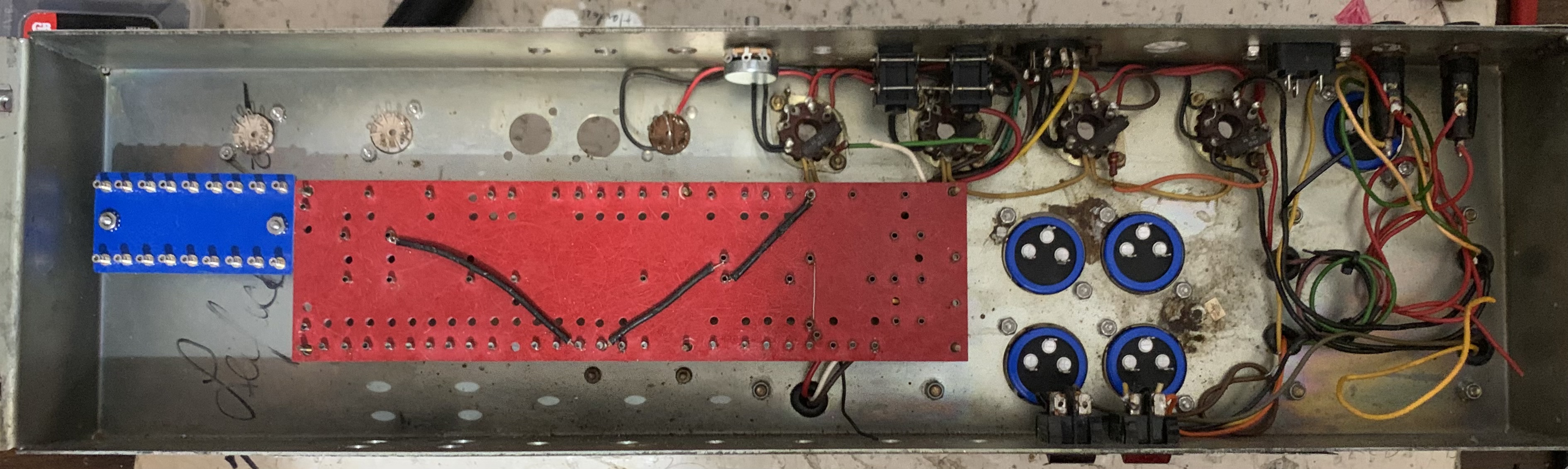

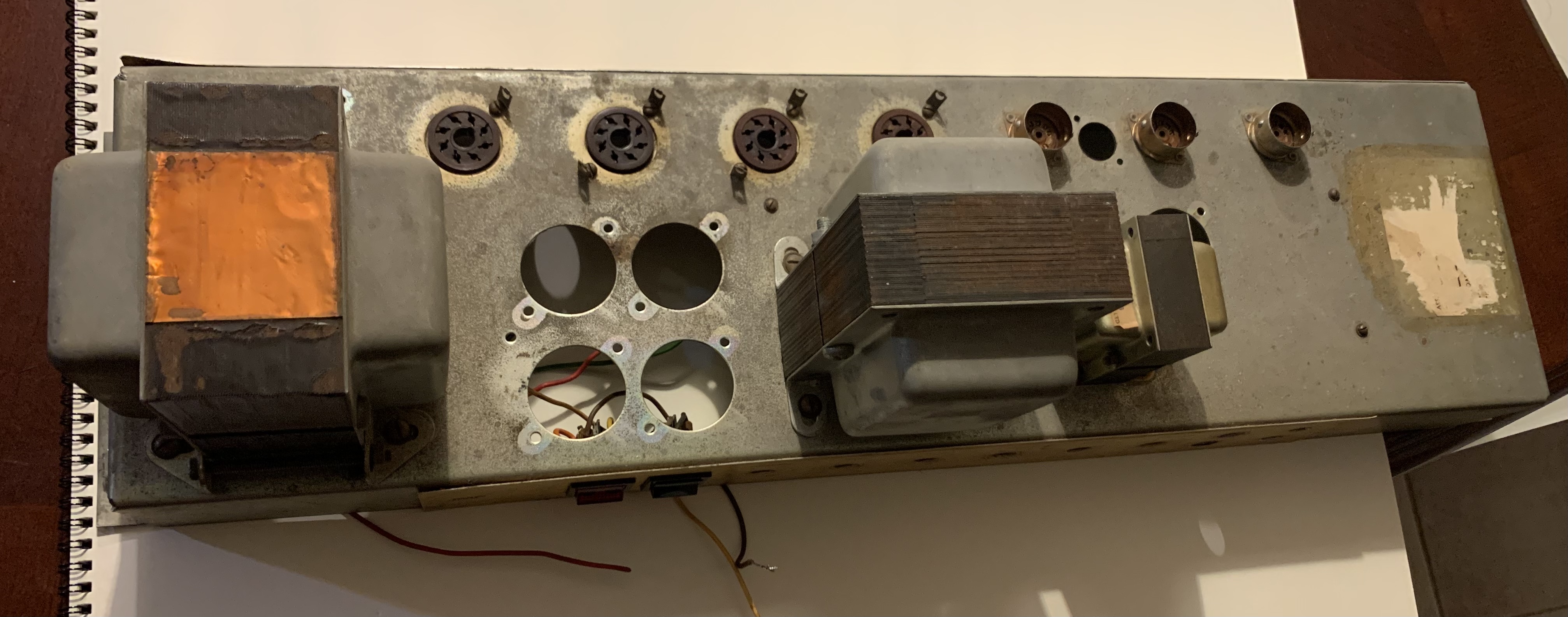

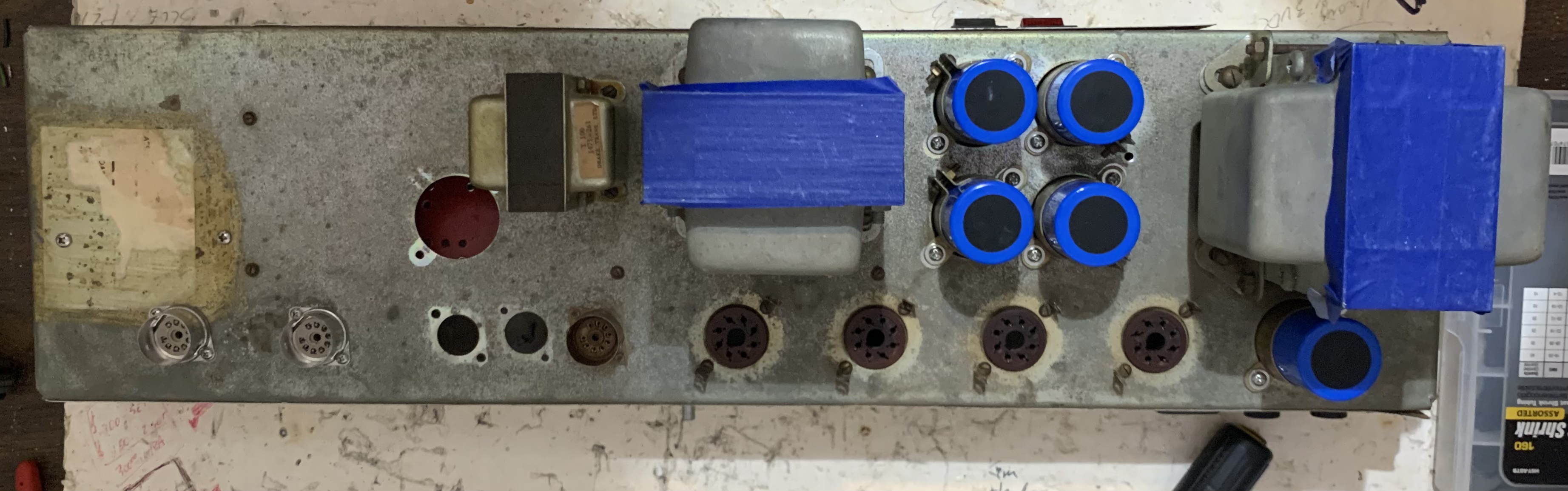

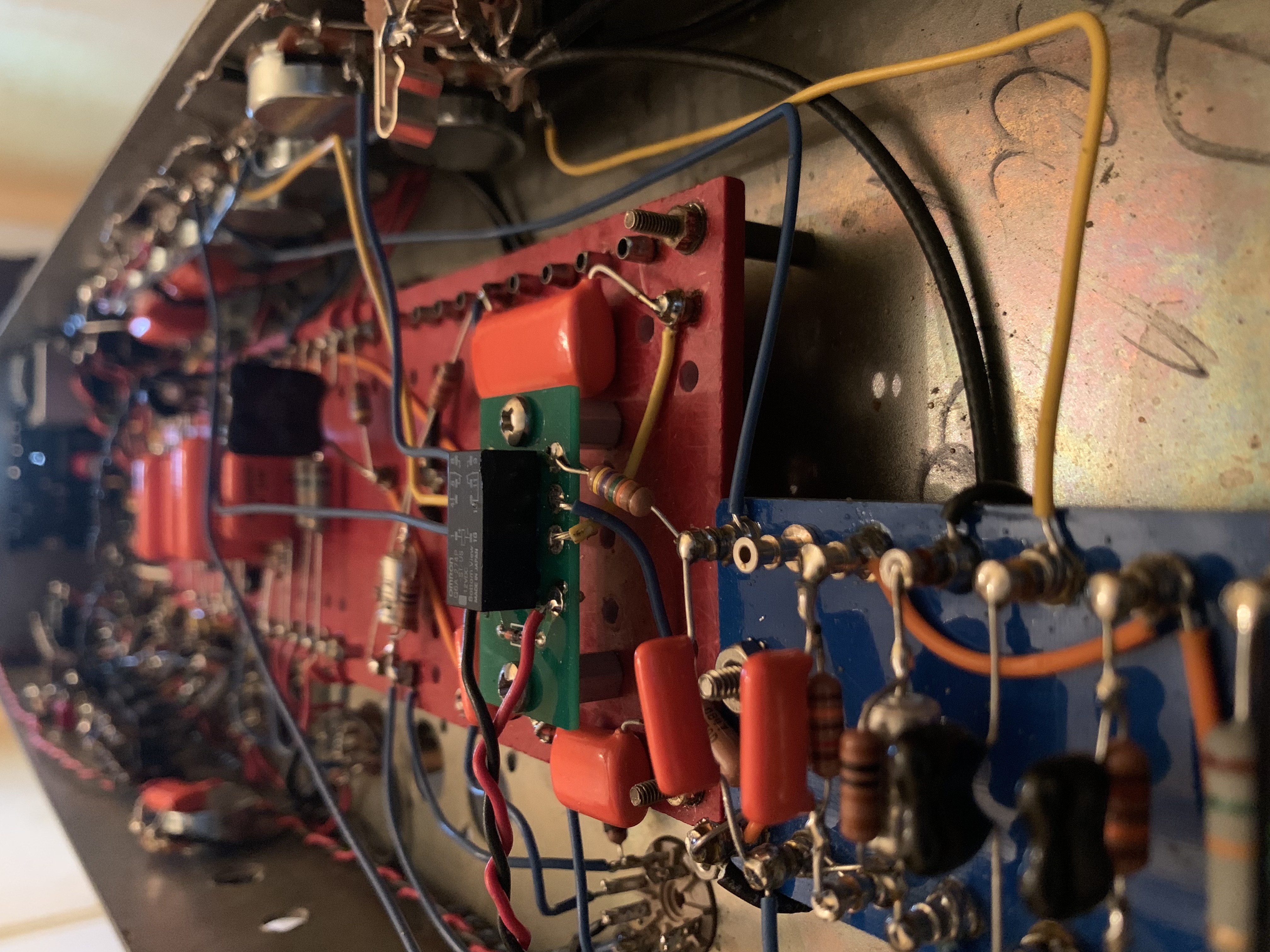

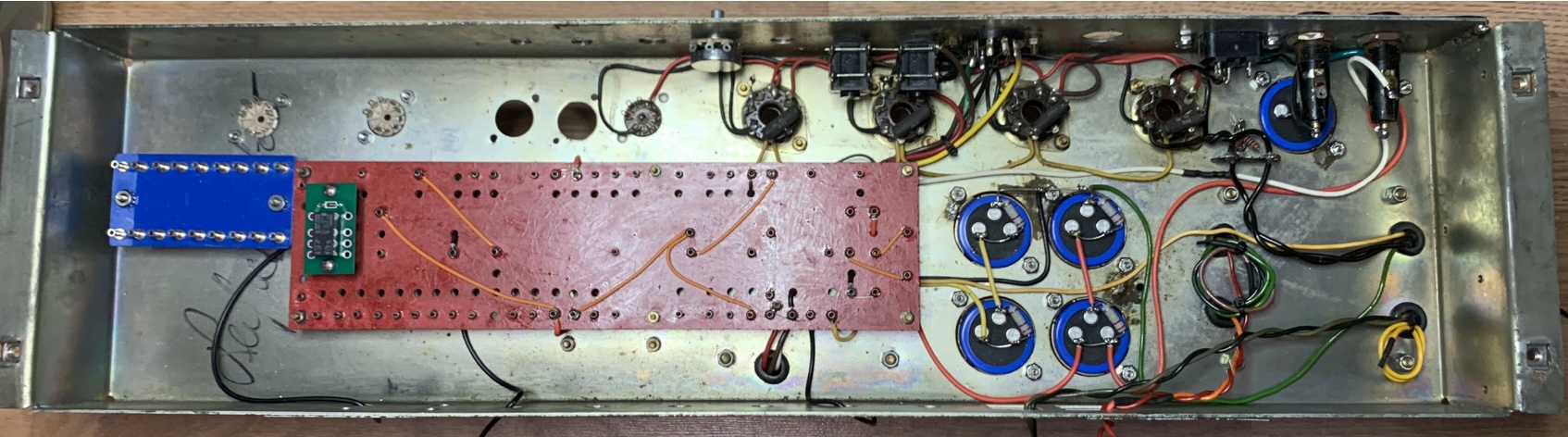

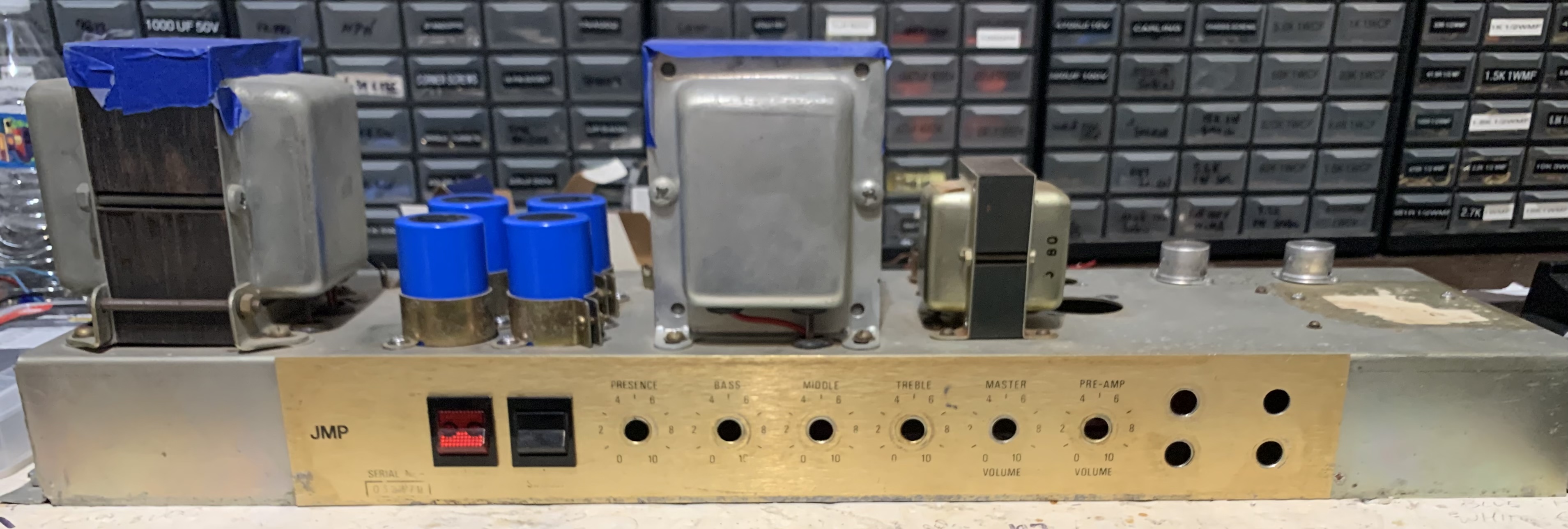

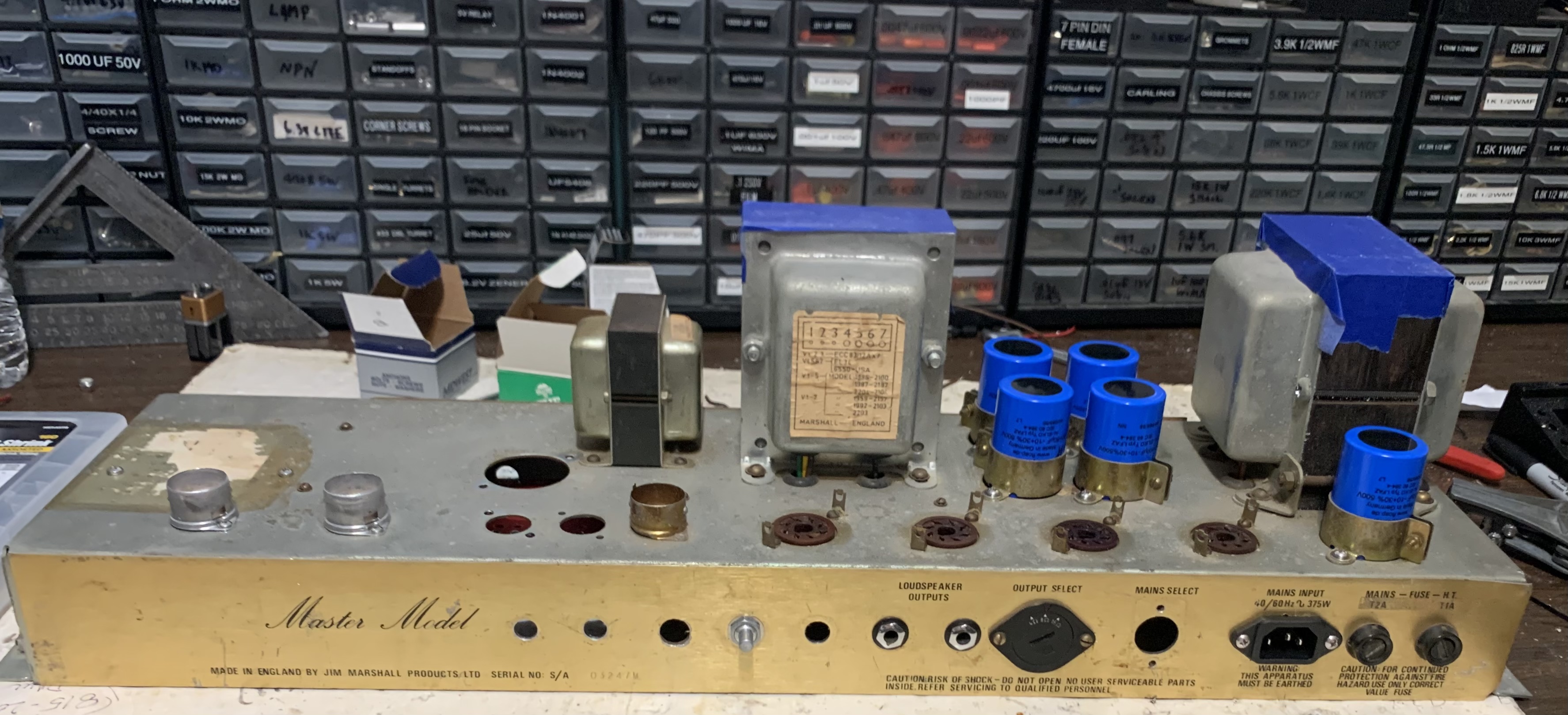

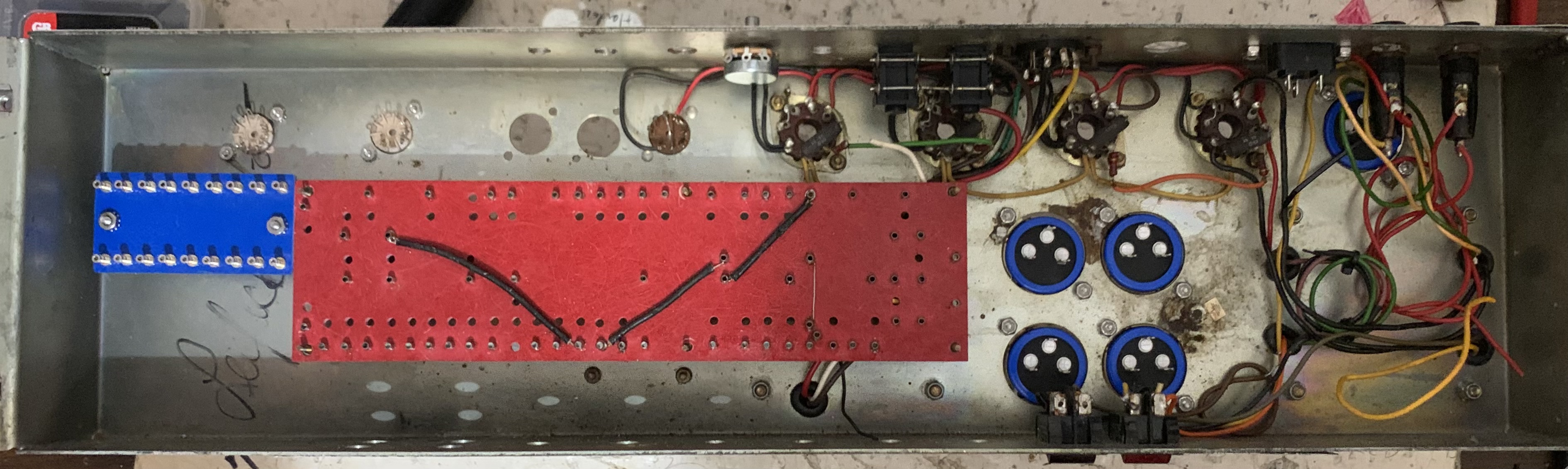

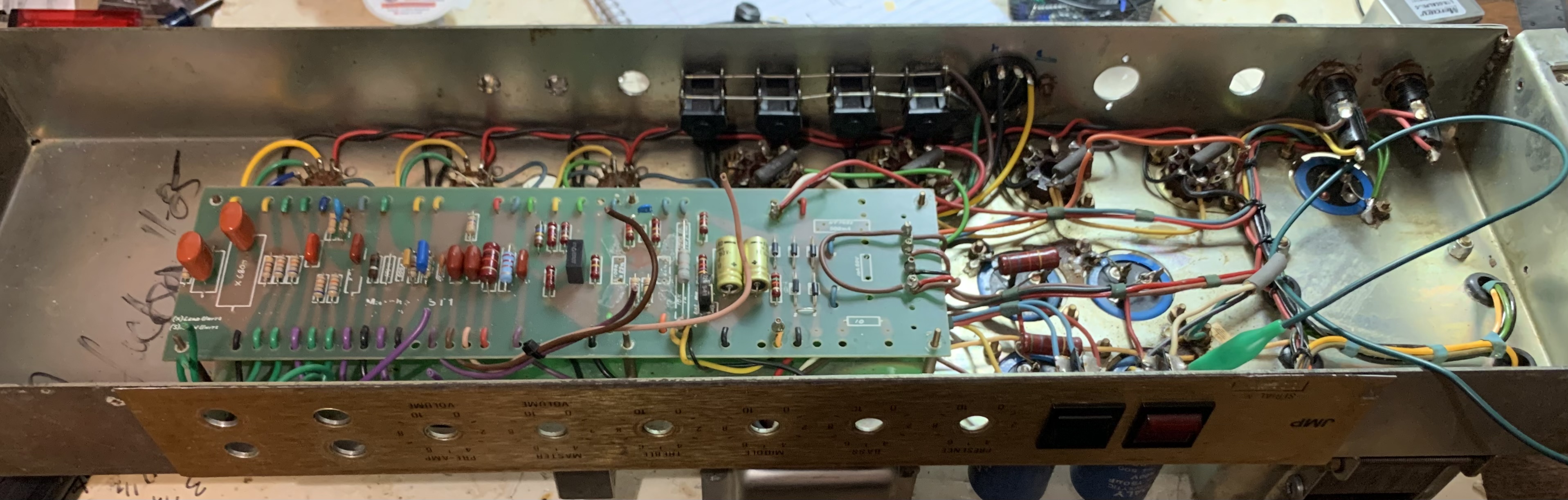

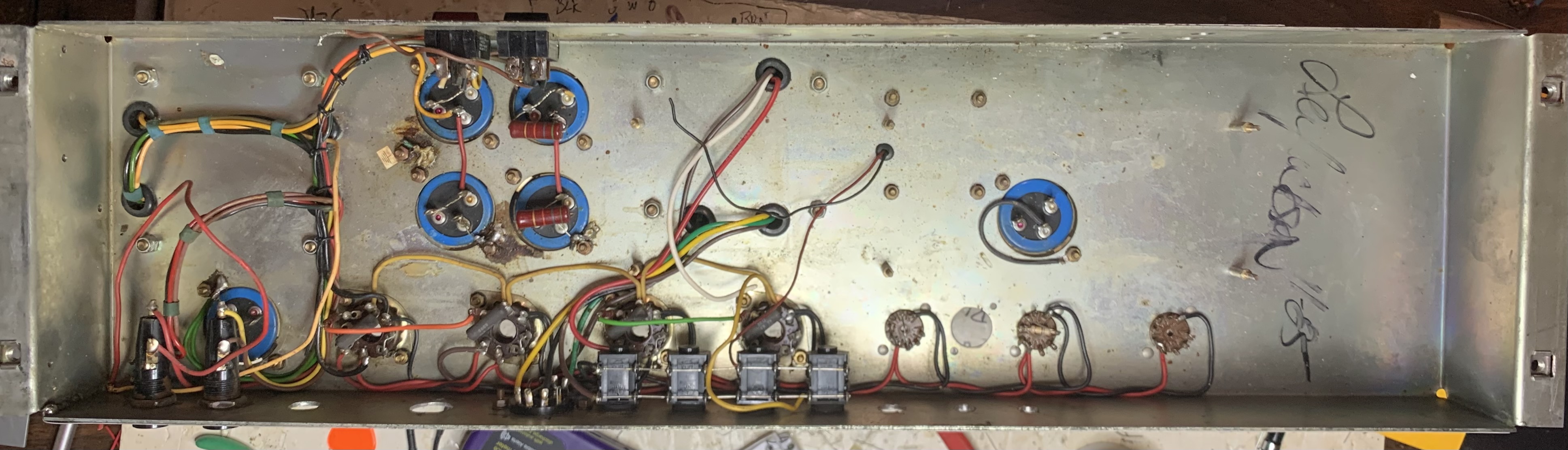

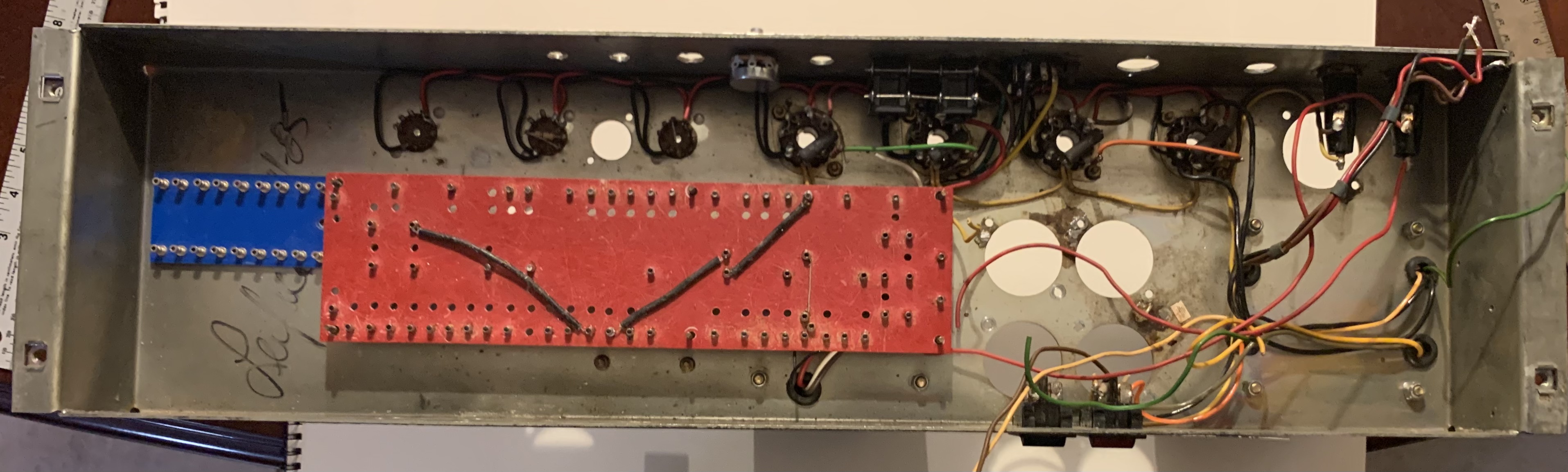

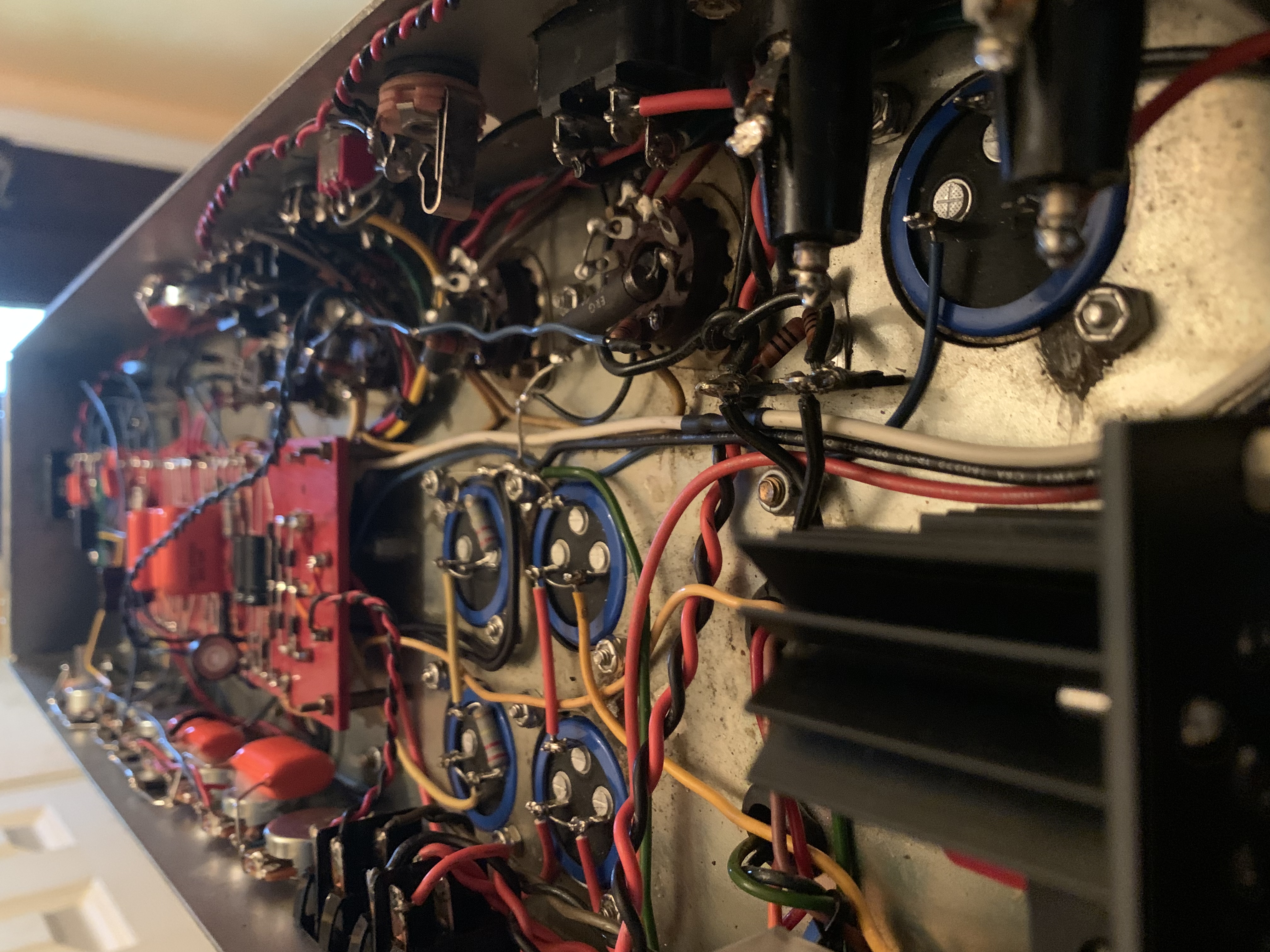

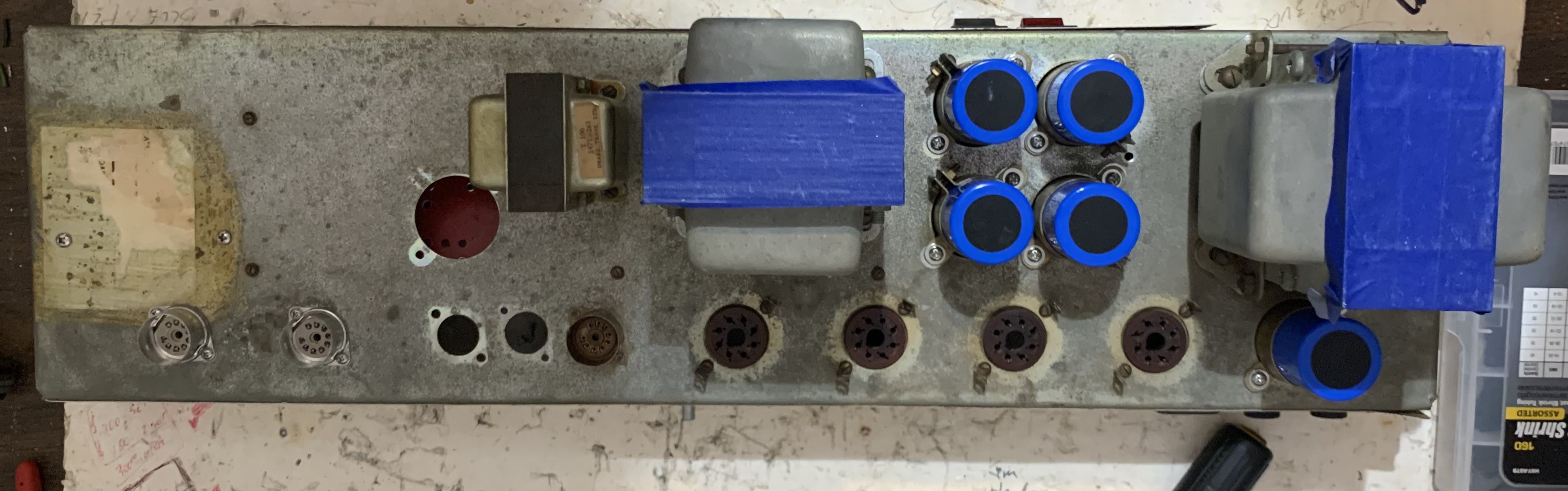

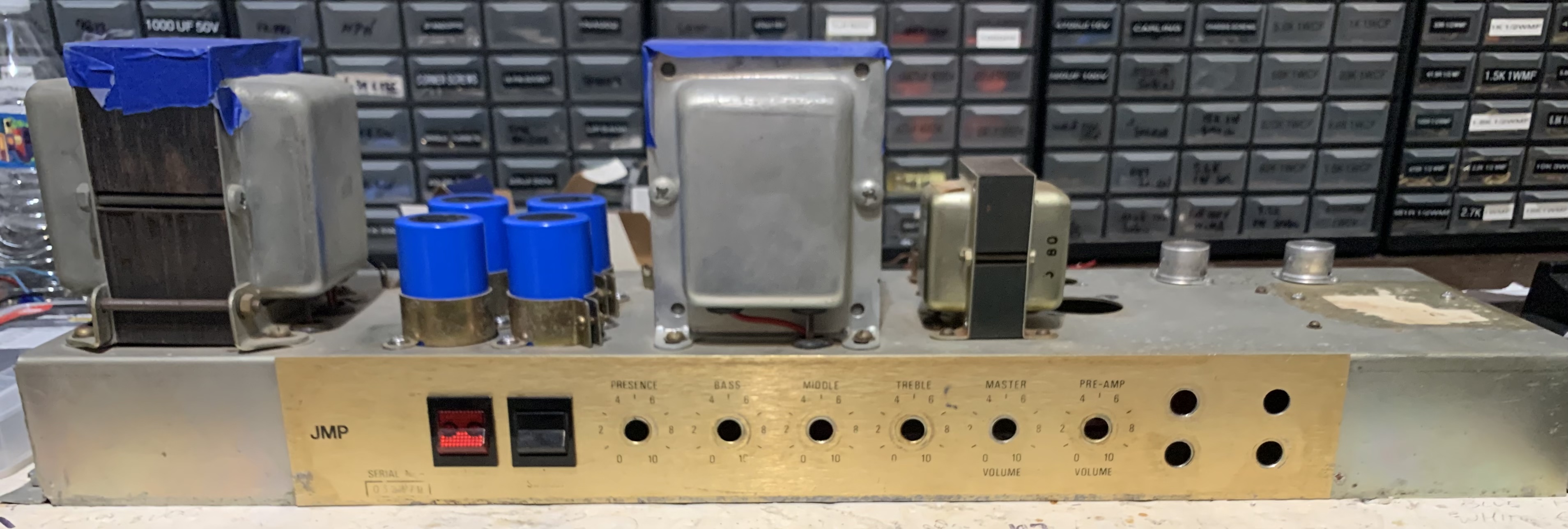

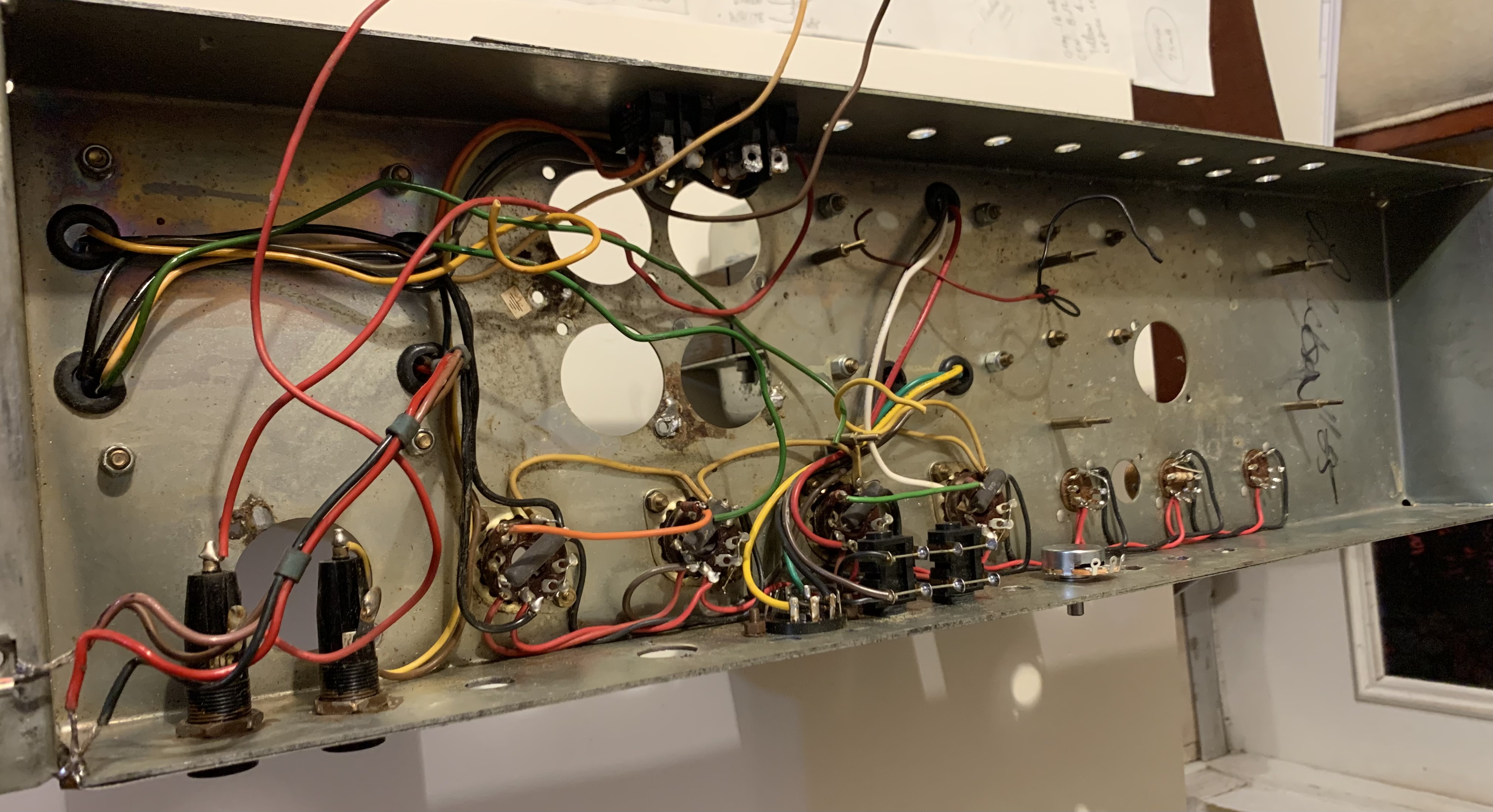

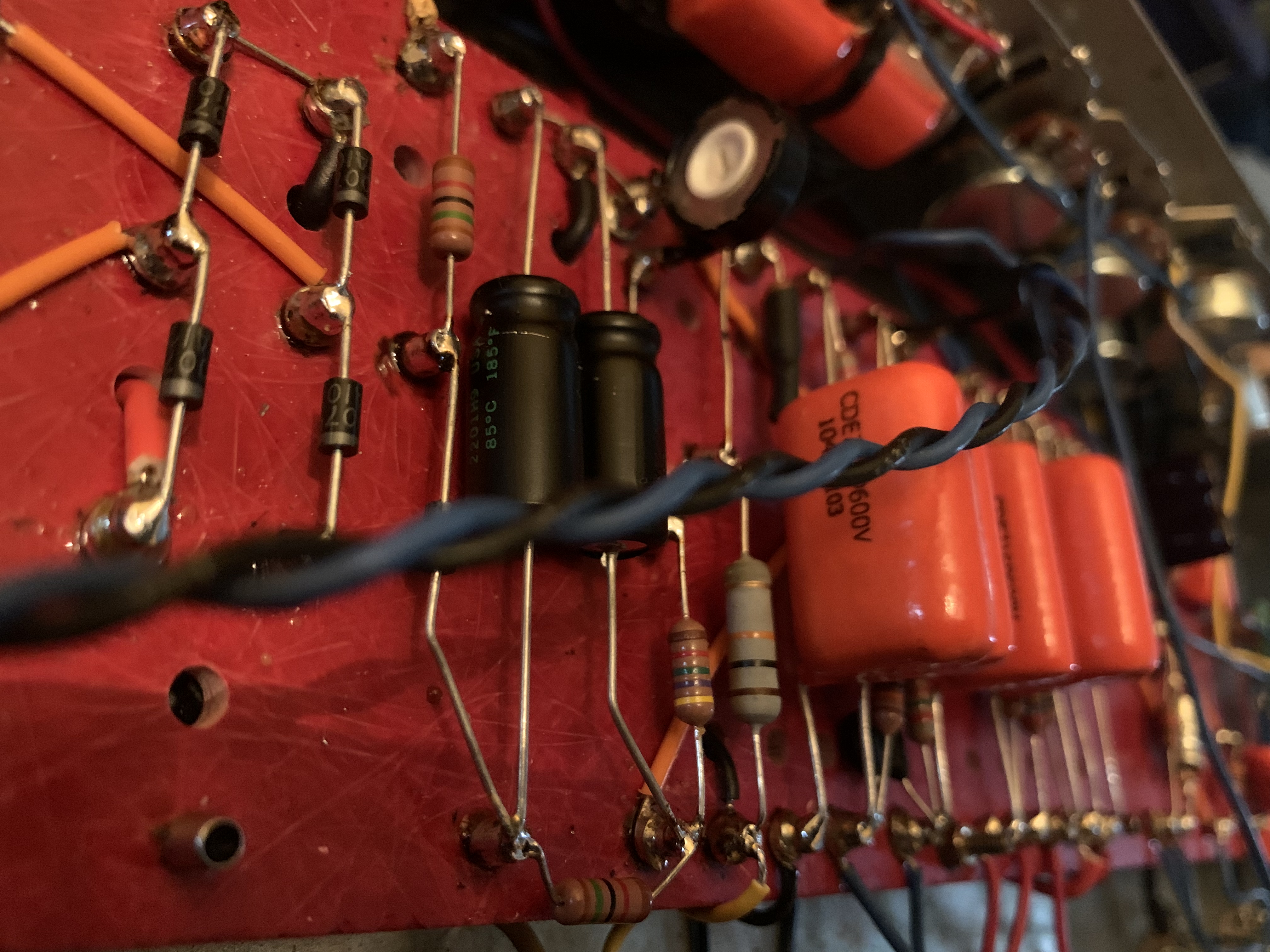

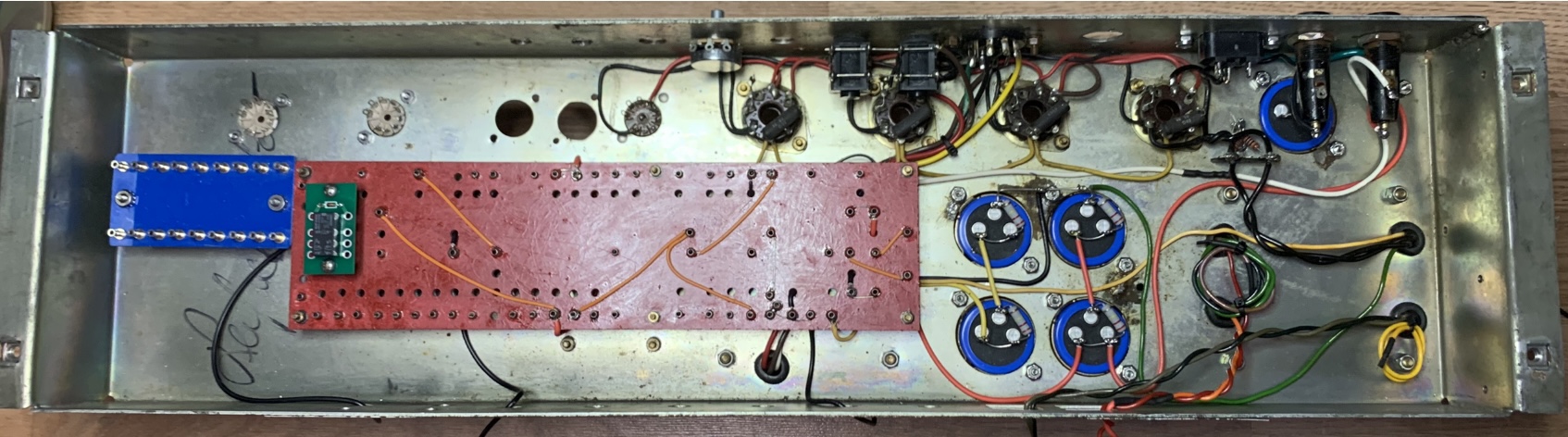

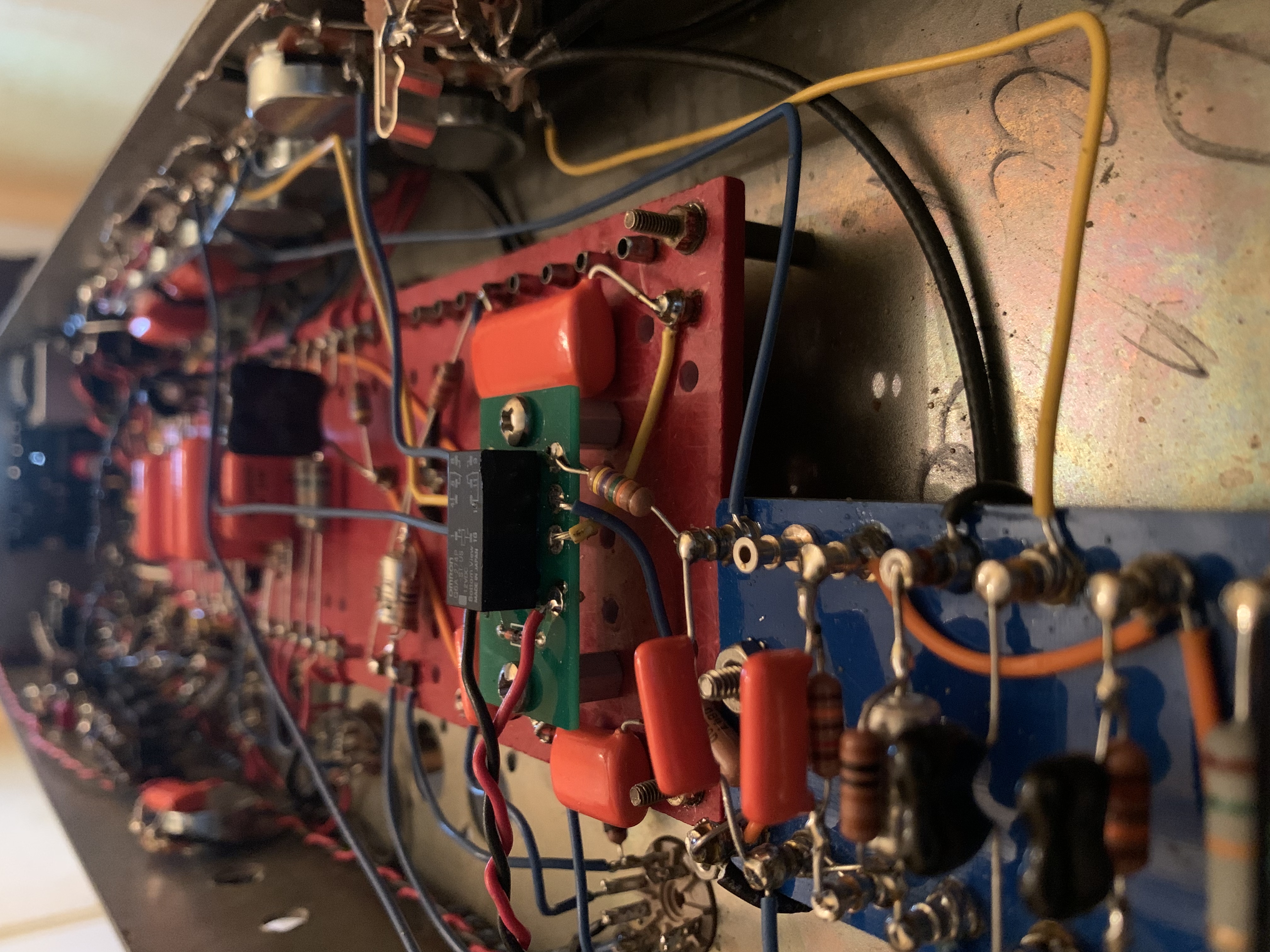

Progress! Getting closer to the final destination!


Attachments

  • BBDB5367-838E-4DE4-83F4-064957AC2FD5.jpeg
    1.2 MB · Views: 21
  • 98C4560E-8154-4C11-942C-191863A9F466.jpeg
    908.3 KB · Views: 17
  • D161D1E3-7E93-4C56-80D8-F2644011961D.jpeg
    874.9 KB · Views: 17
  • 40FFE3E2-C967-447E-9258-14CC5CE42F16.jpeg
    1.2 MB · Views: 18

LickliterAmps

Active member

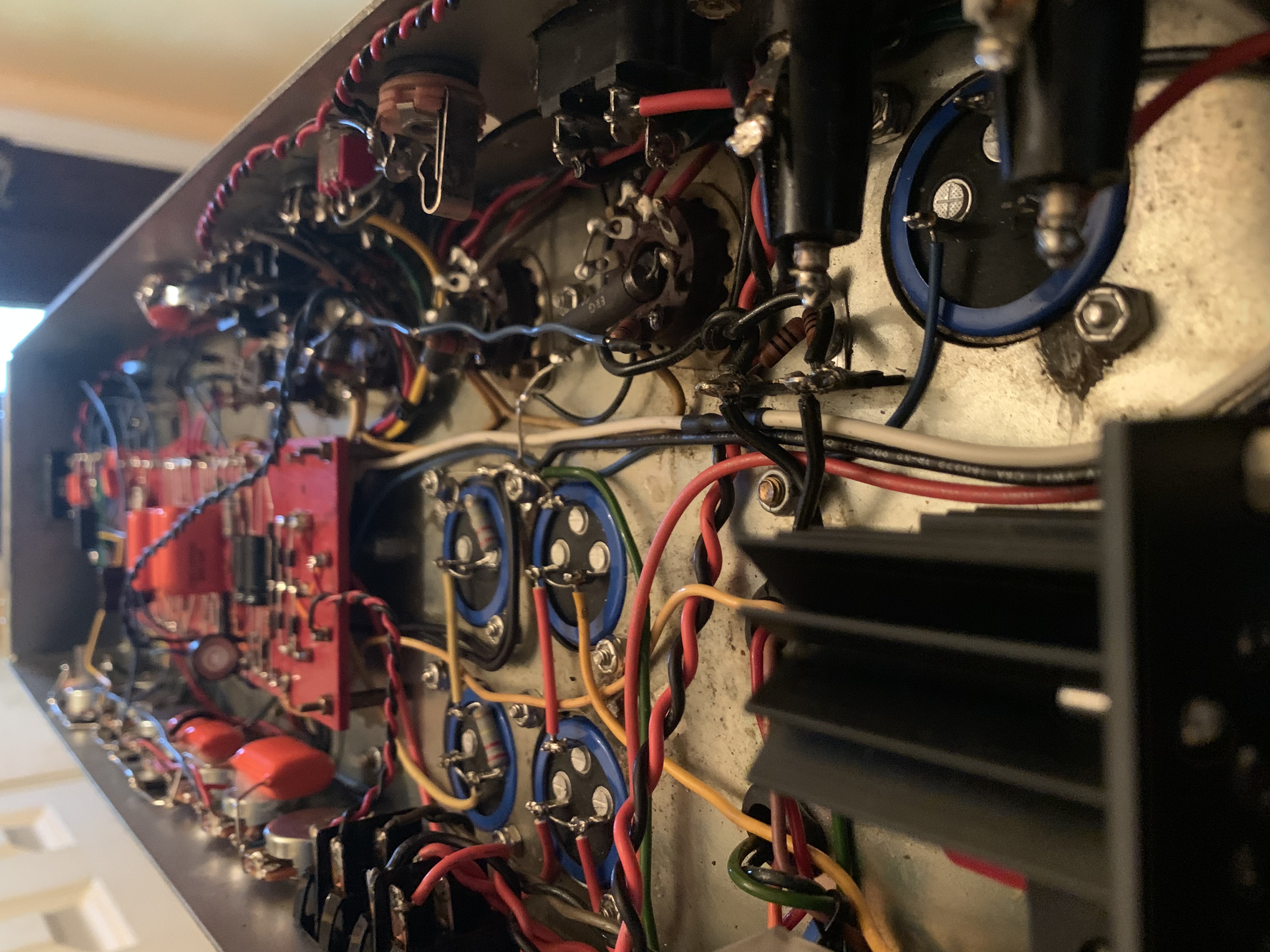

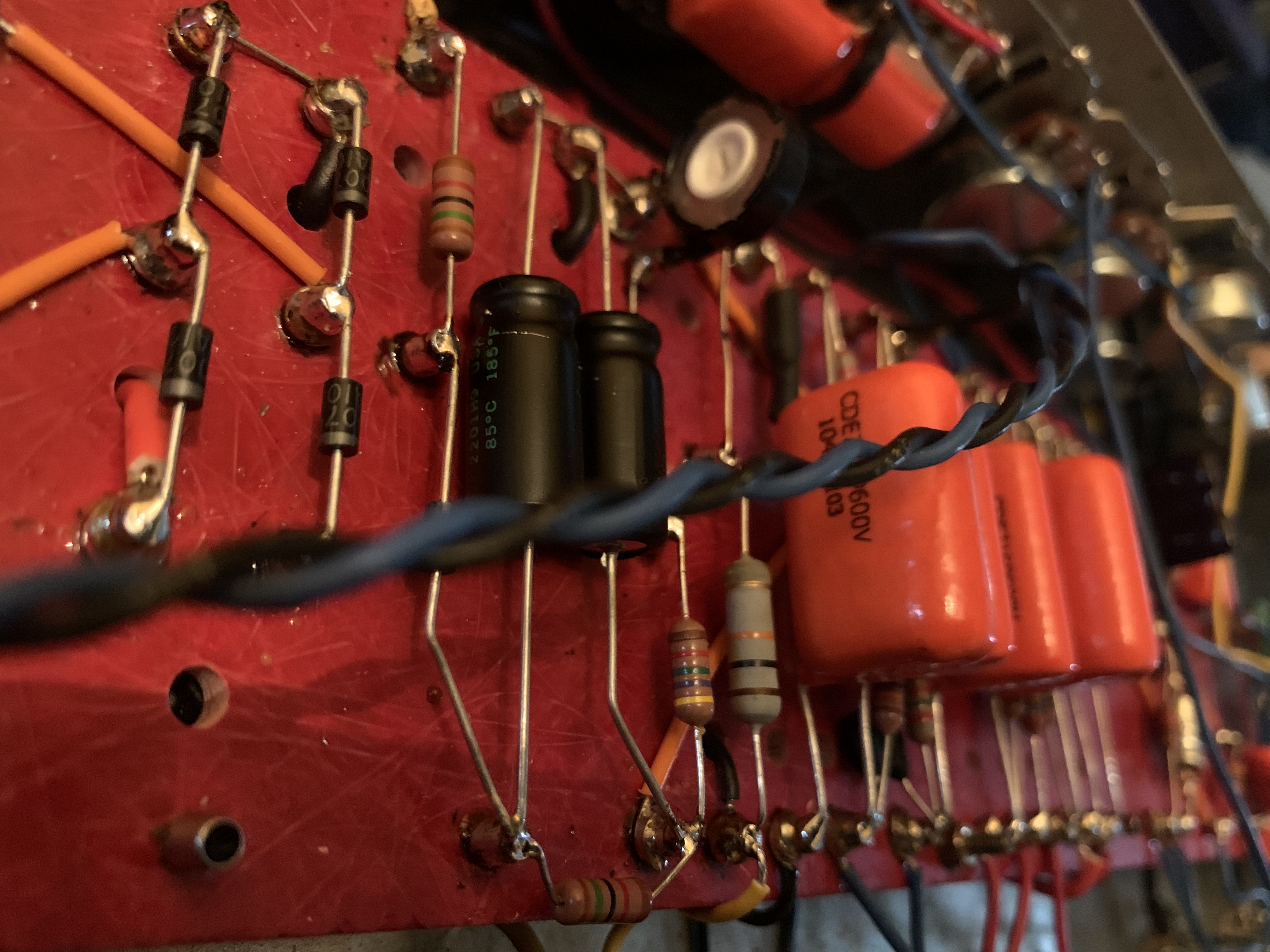

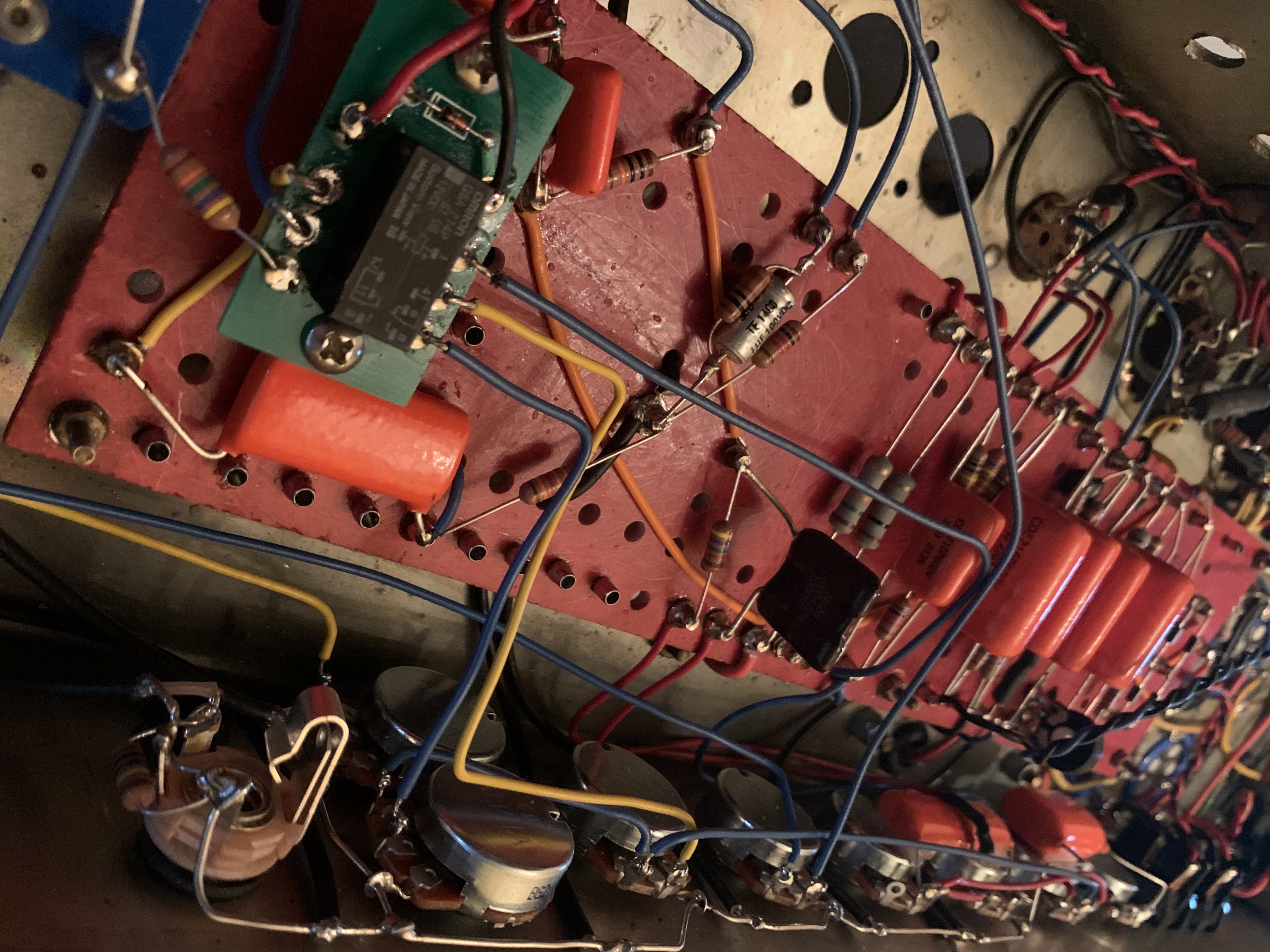

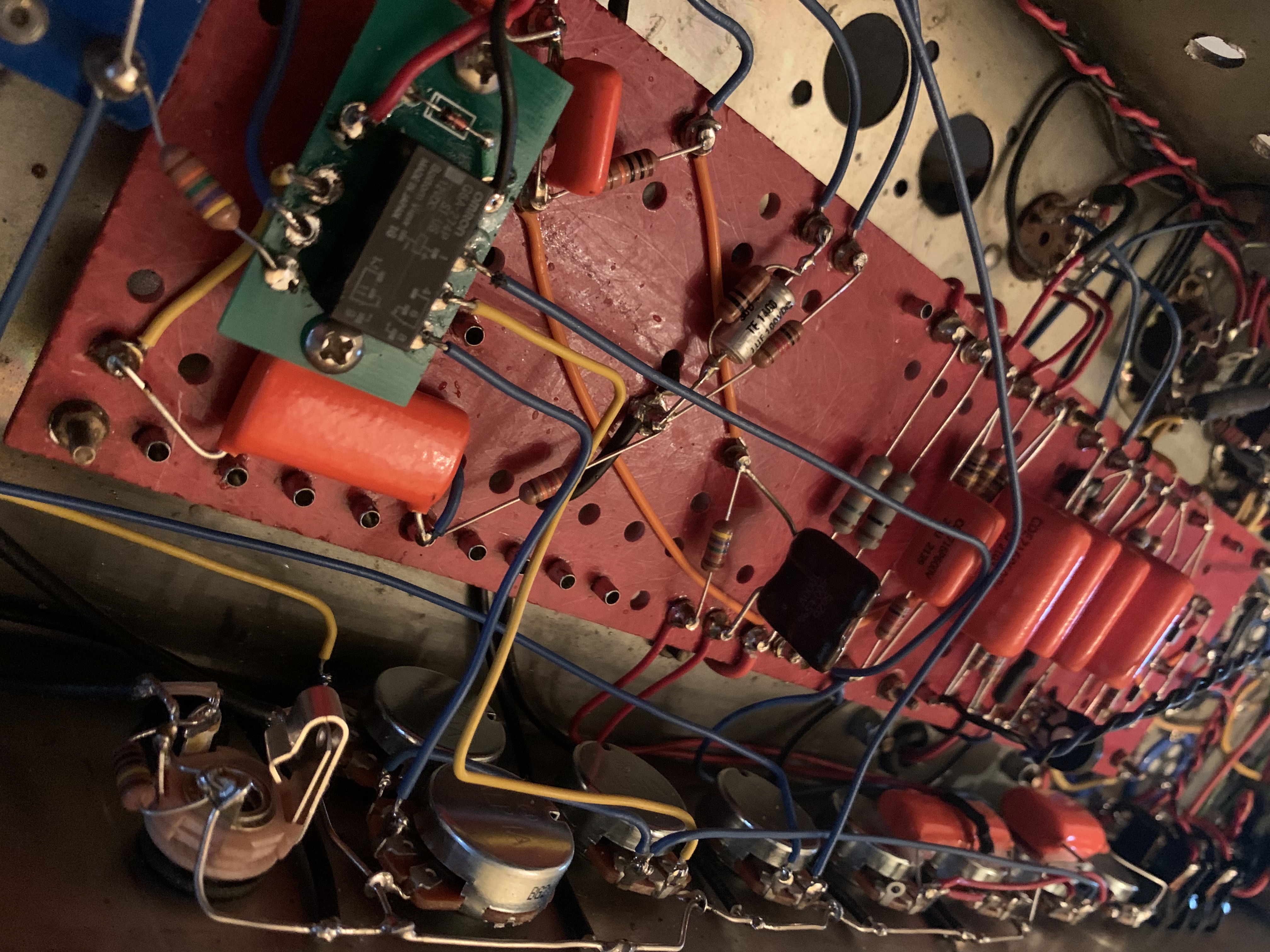

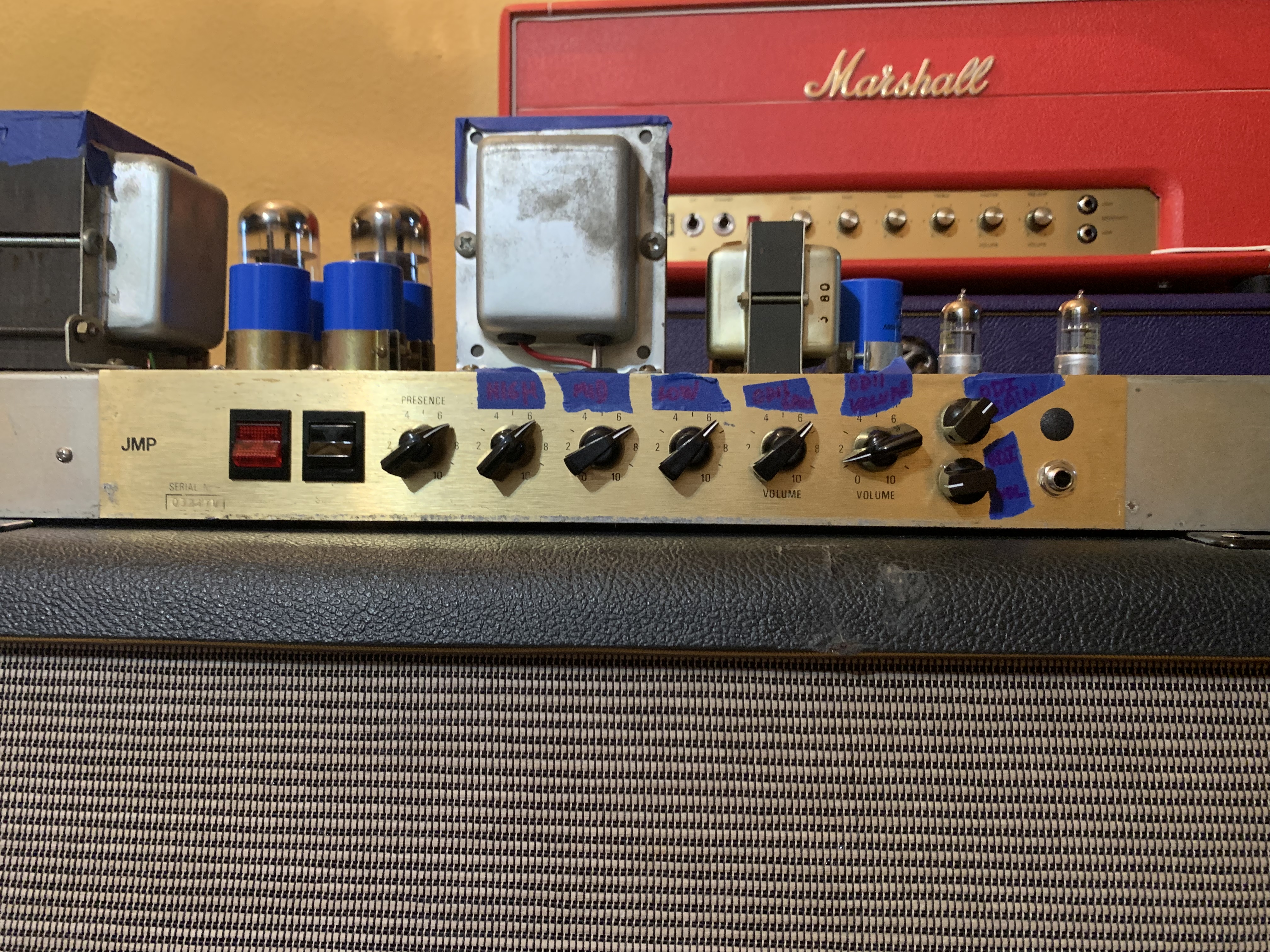

Just fired this monster up. Sounds incredible in OD I and OD II. I still have a few finishing touches to do before it’s complete and I will be doing a clip with both modes on the demo.


Attachments

  • BDEC0436-F0EB-4B0E-BC6D-6B349B603D57.jpeg
    3.5 MB · Views: 22
  • 48C109D1-0827-40EA-BEE2-928599C3FF88.jpeg
    3.7 MB · Views: 21
  • EF9A2881-F9D2-429B-967E-92A7D179807C.jpeg
    3.2 MB · Views: 29
  • FA552581-3750-404F-ADEF-467057A2E0FA.jpeg
    3.5 MB · Views: 23
  • 4731E852-940F-4422-A8F2-A490CEF12565.jpeg
    4.5 MB · Views: 24

LickliterAmps

Active member

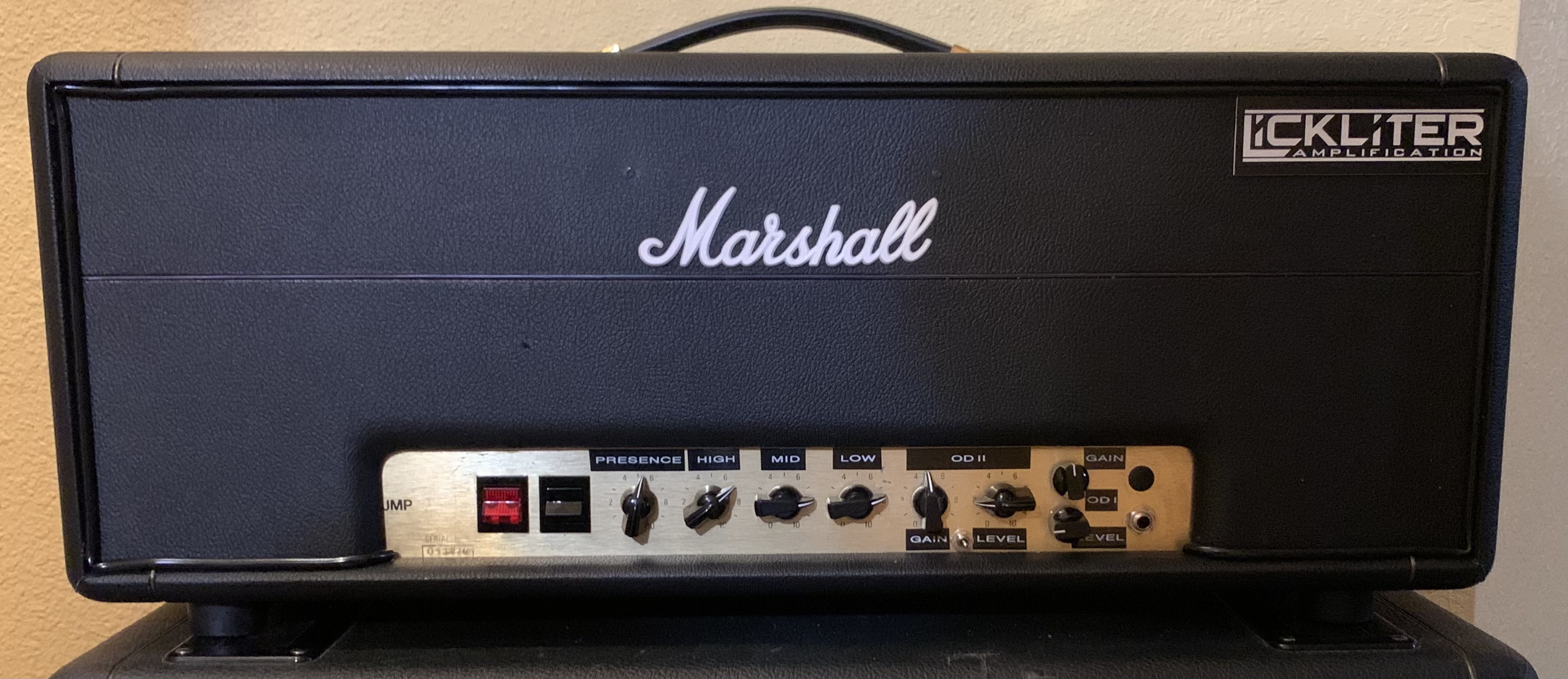

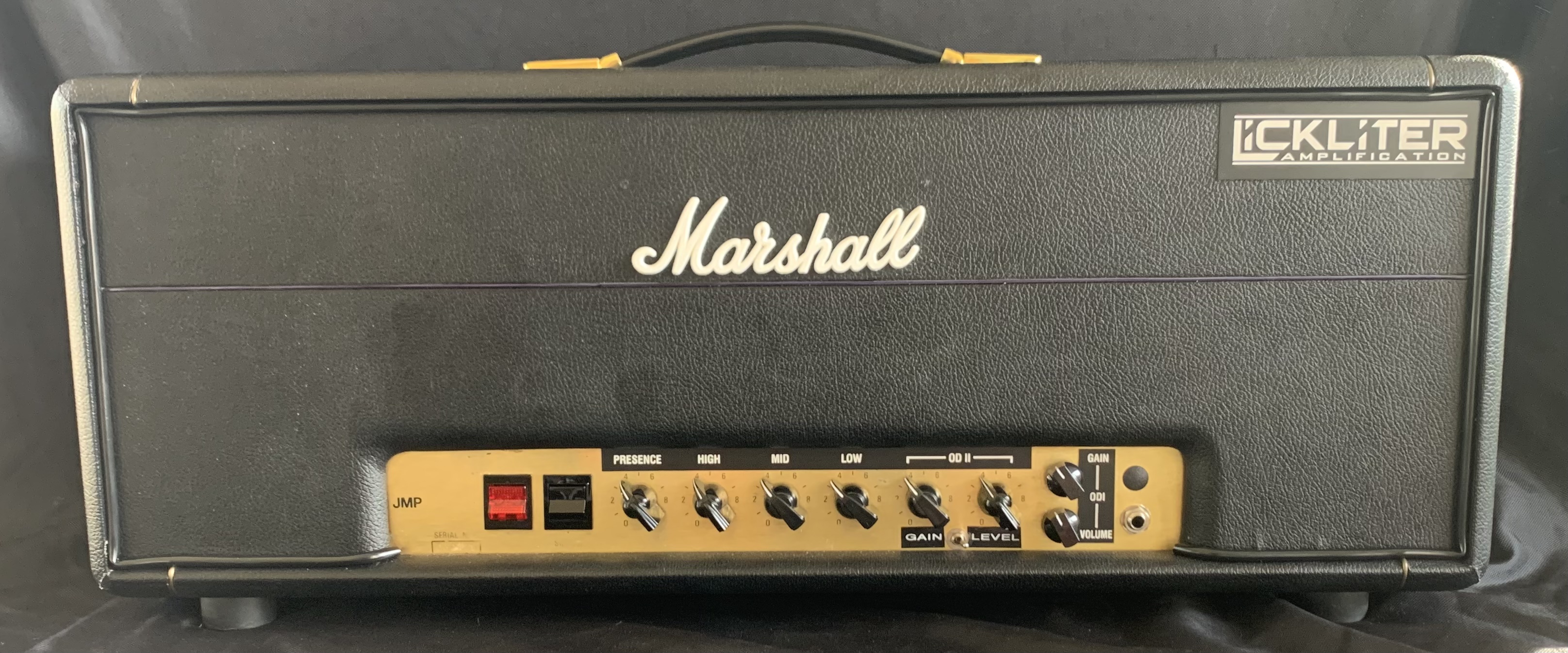

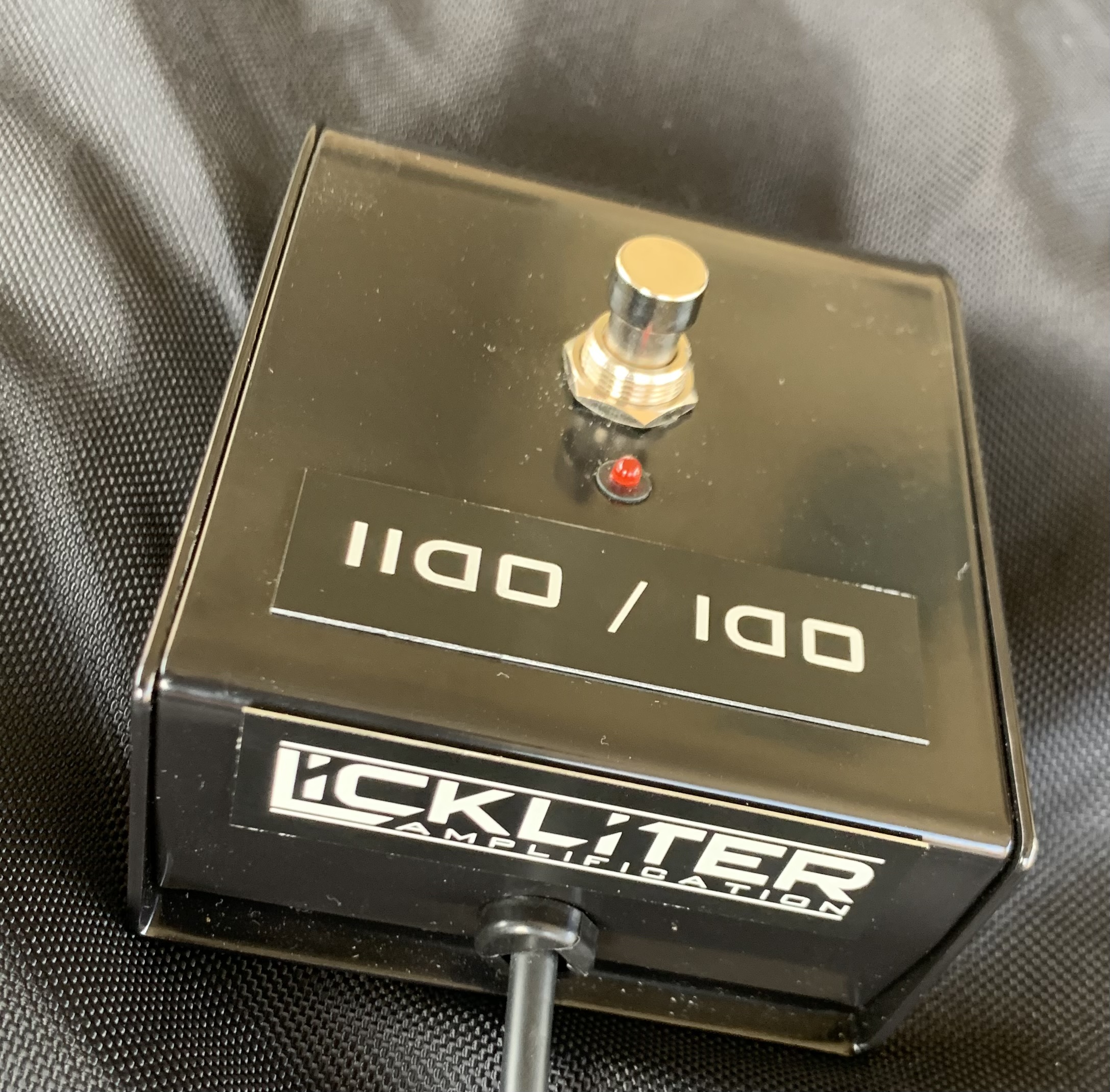

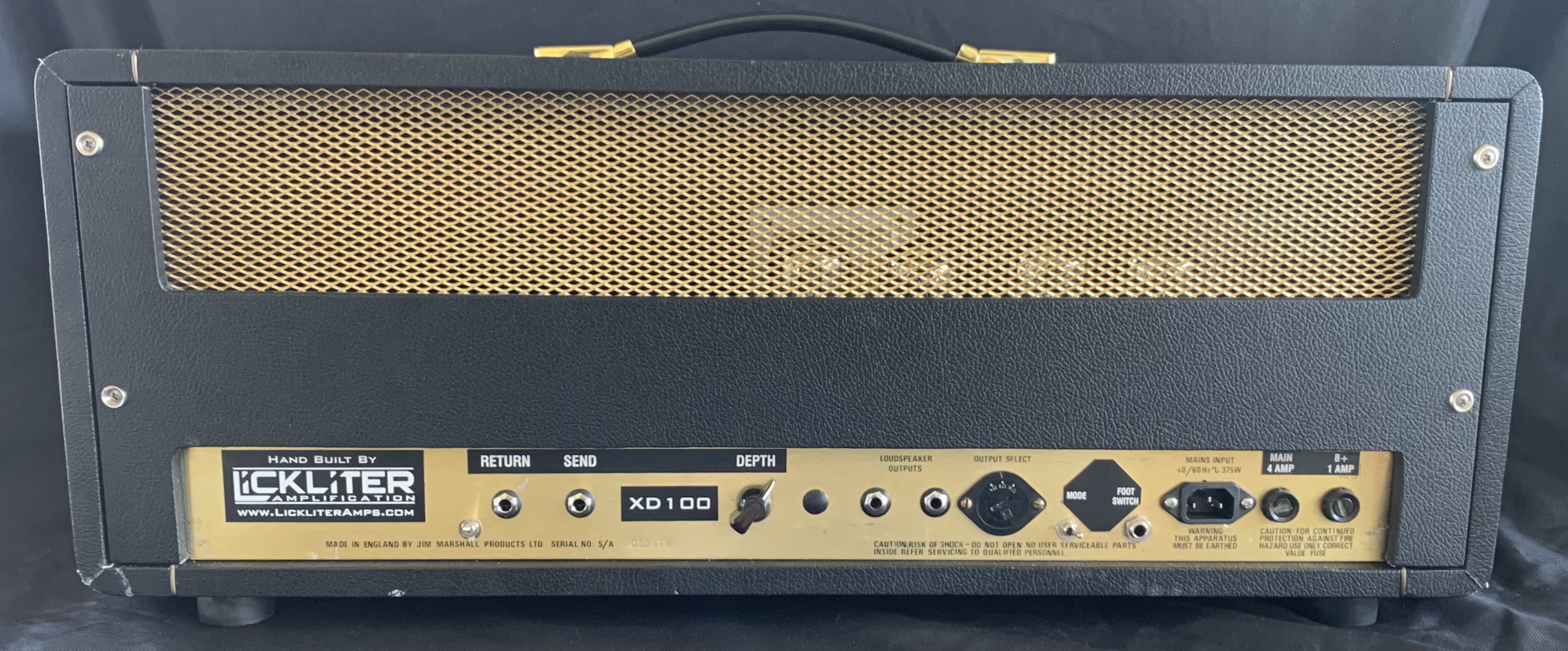

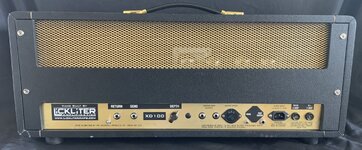

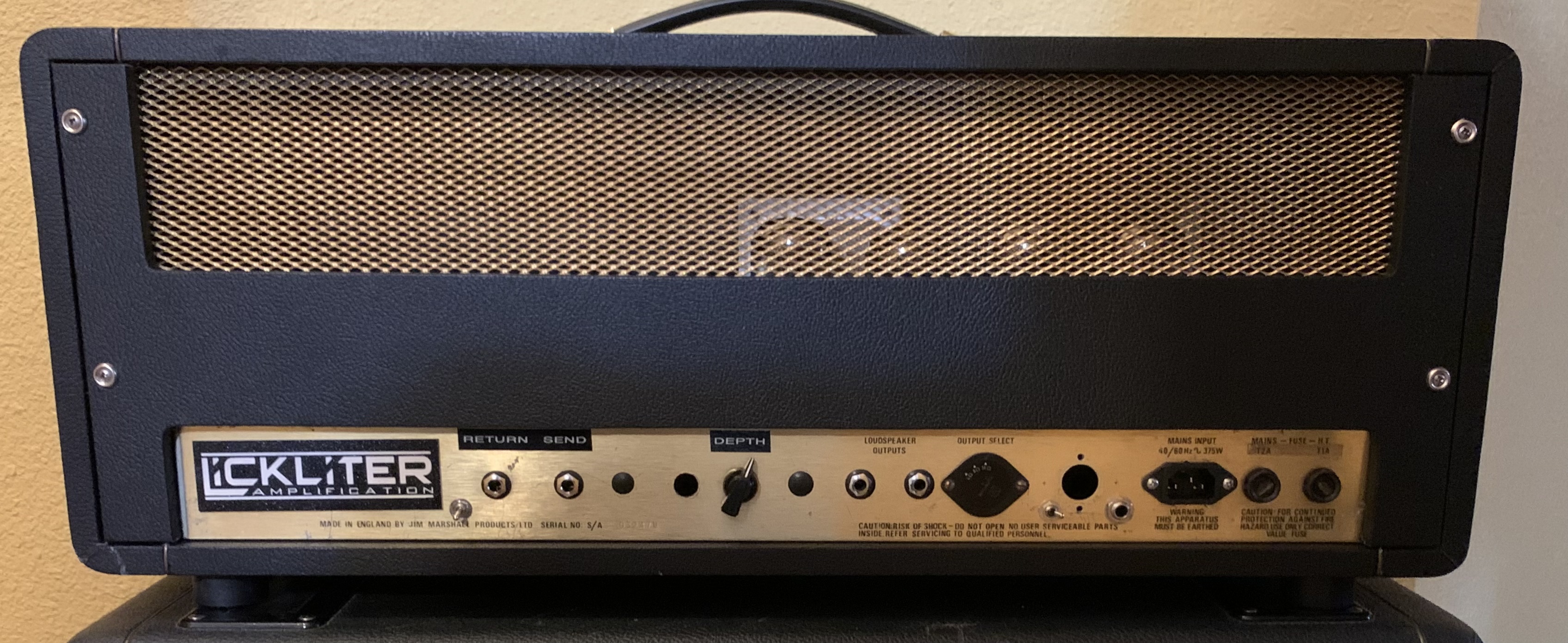

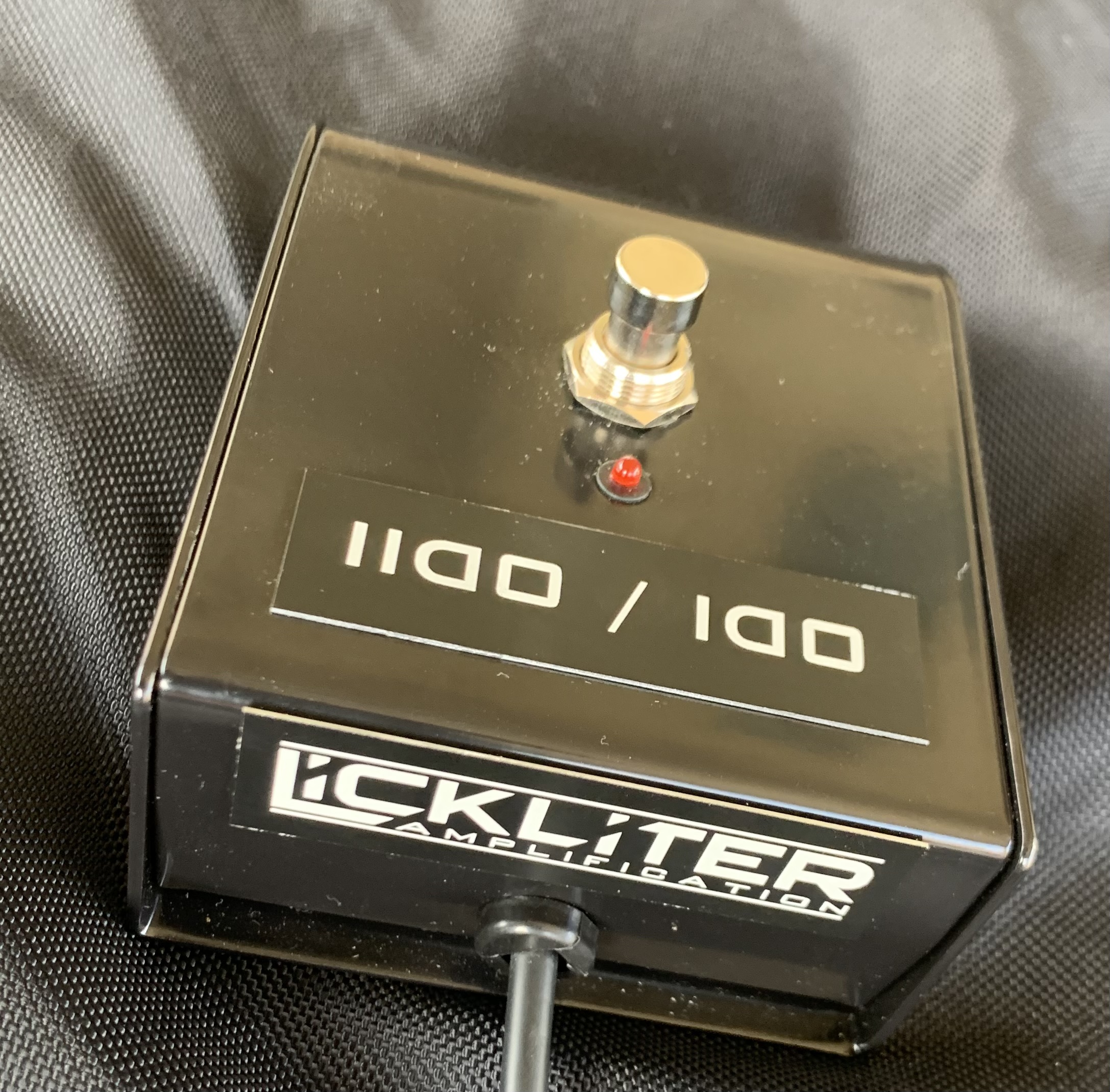

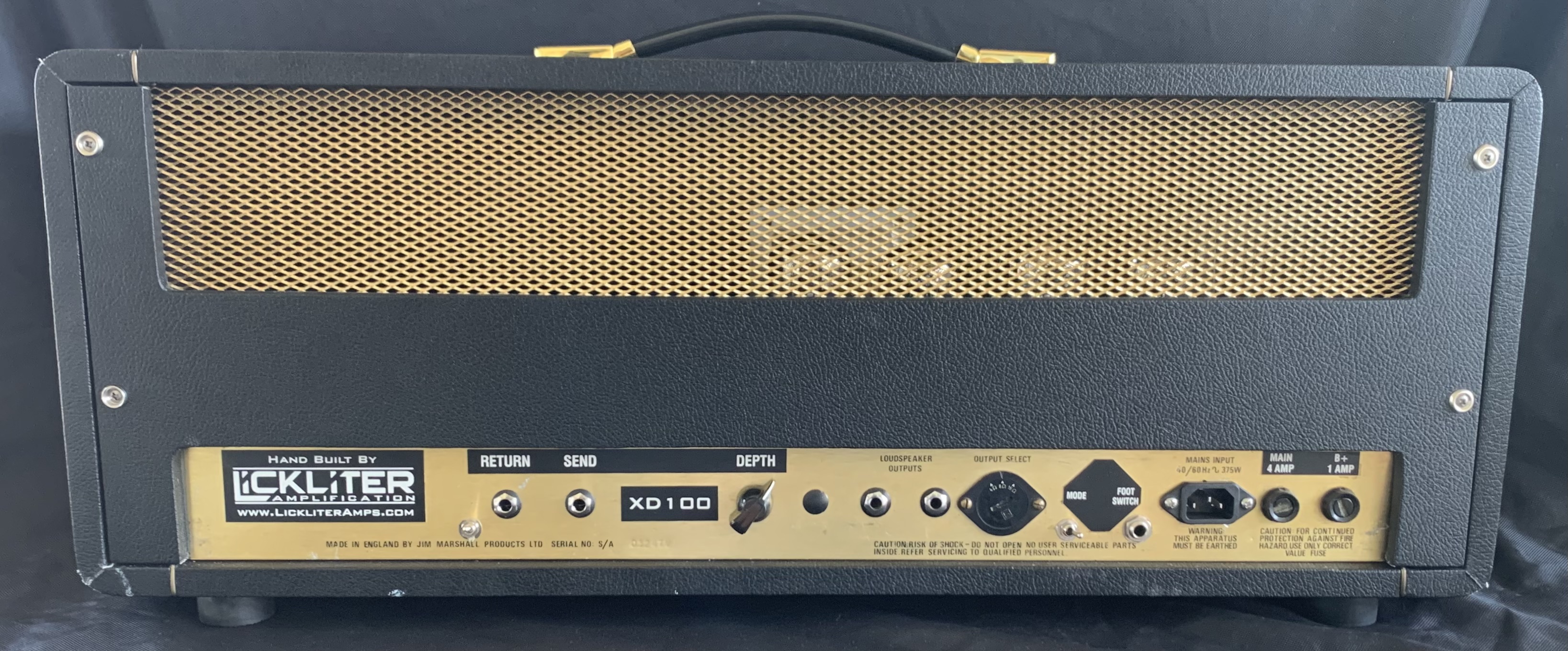

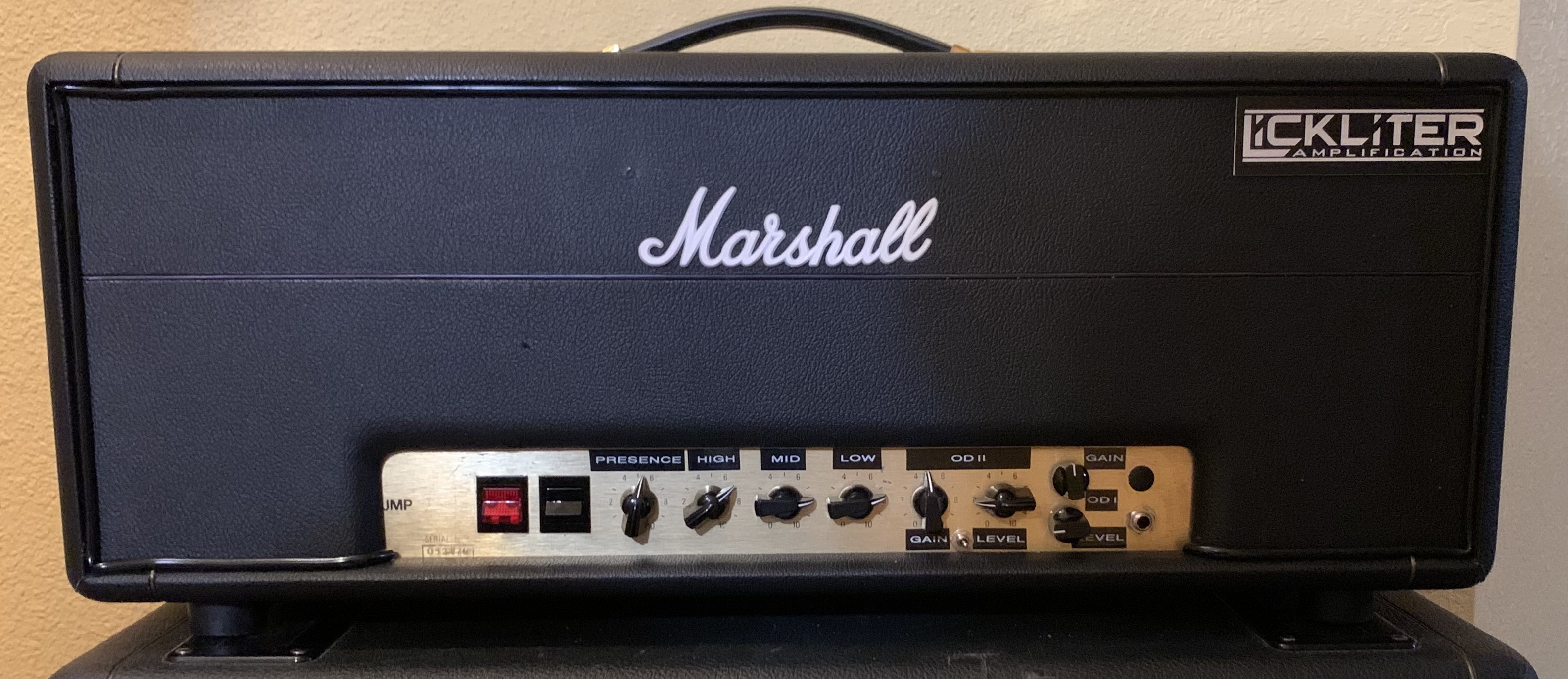

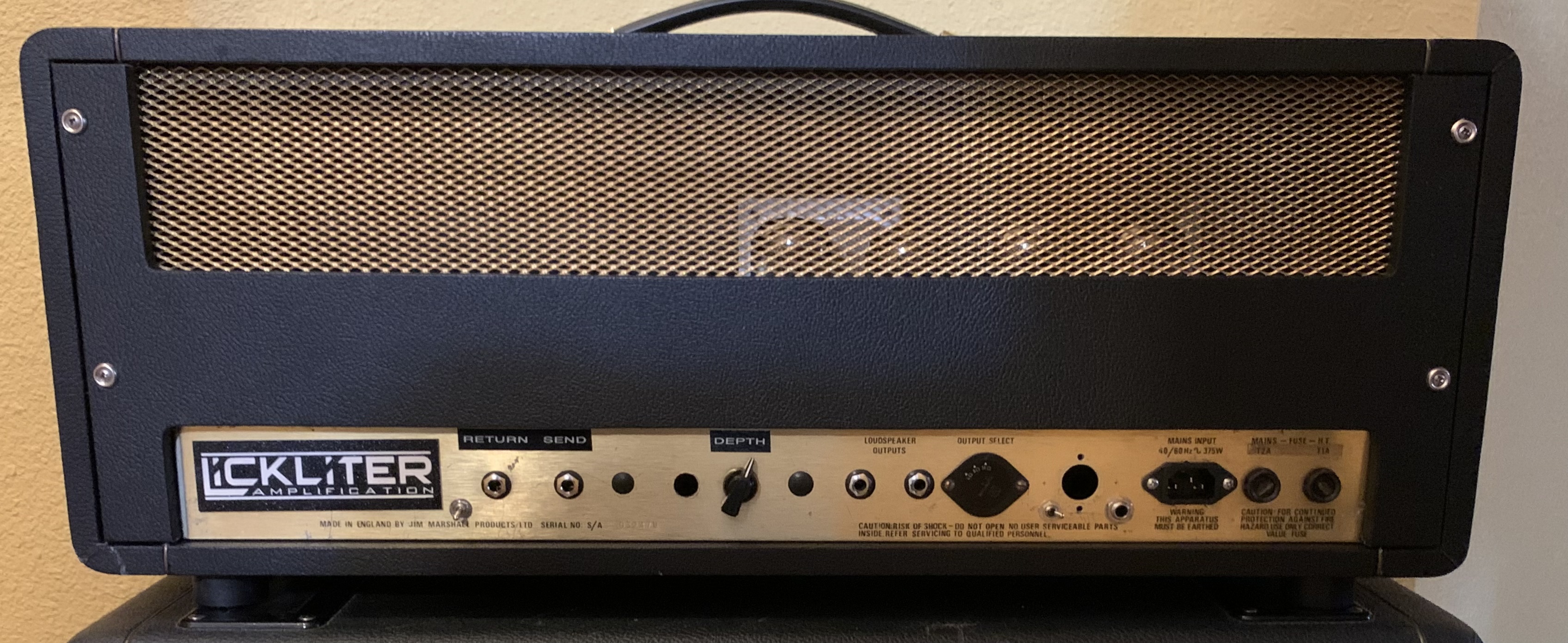

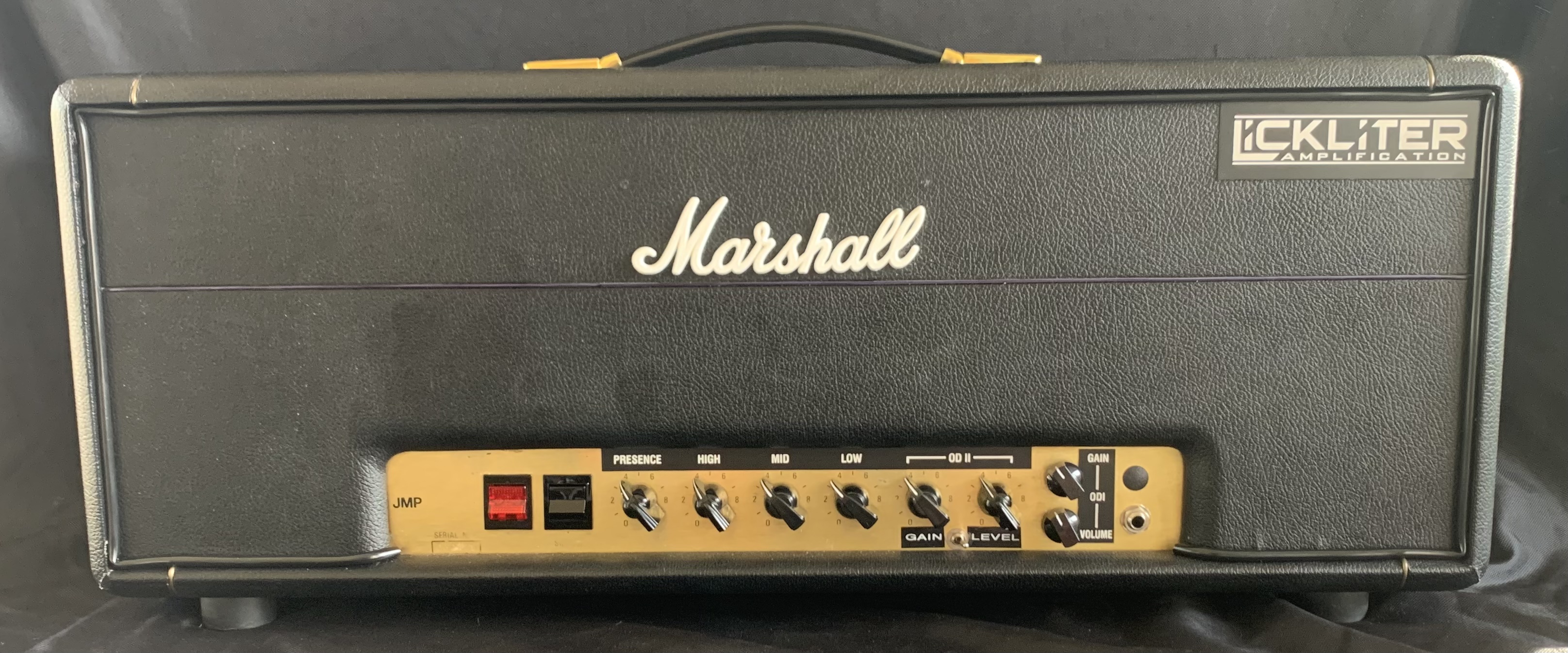

The XD100 mod is done. It is a 1981 4 input Marshall that had seen its better days. I gutted it out and built a custom circuit based on my XD100 design. I added a switchable gain stage to accommodate a OD I / OD II footswitch. There are many options for different tones with each having its own volume control. It has a dual bright switch added on OD II and of course, a Depth control on rear panel with an effects loop. It is powered by a quad of 6550a’s. Clips soon!
