V2a
Active member

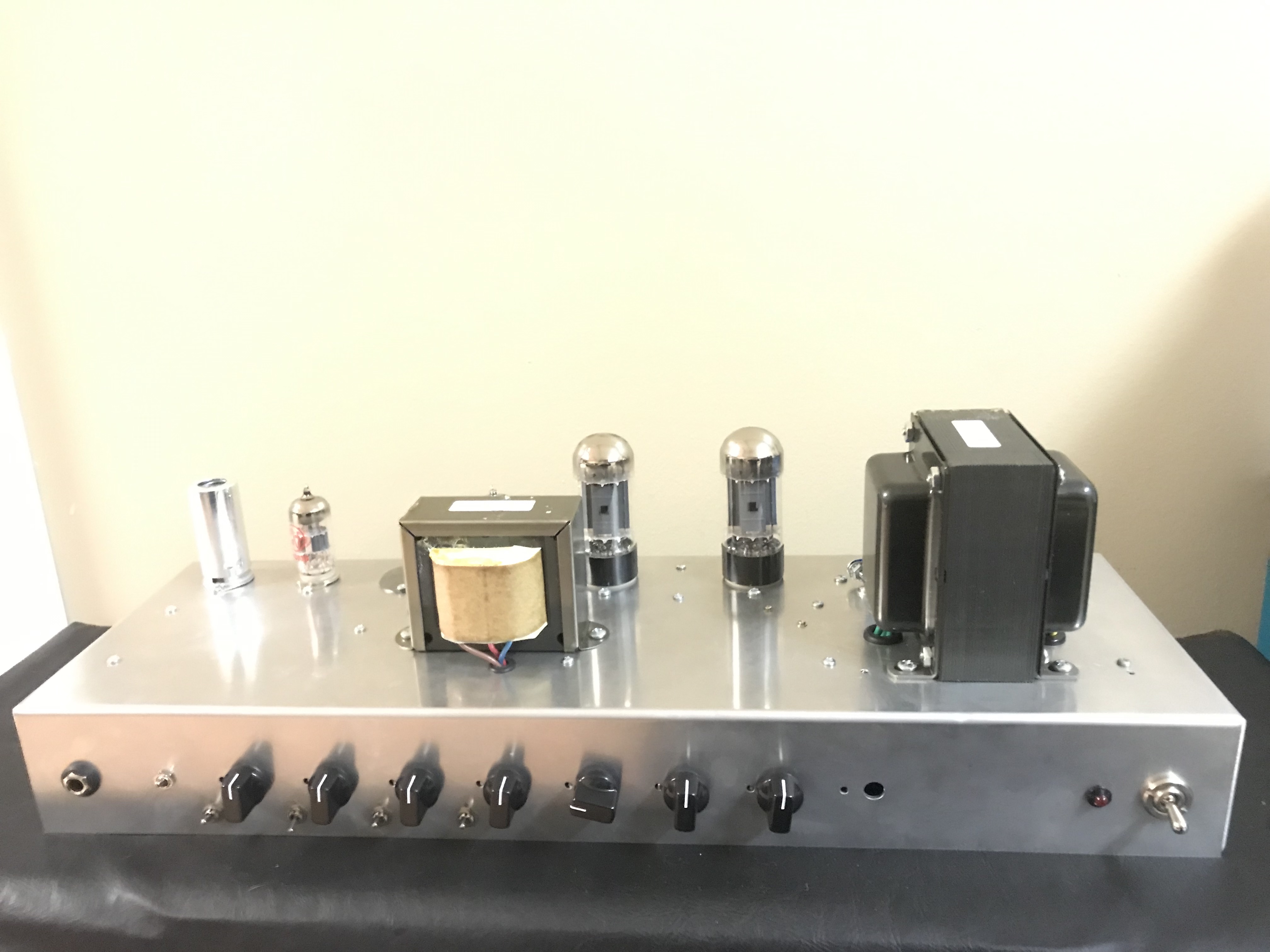

2x6V6S (JJ) at 425V into 6.6k OT for 20W.
modded-Marshall preamp. Single channel with vintage/modern switch.
modded-Marshall preamp. Single channel with vintage/modern switch.
-
🎸 Win a Two Notes ReLoad II! Every entrant also gets a free GENOME Intro+ license. Enter by November 20 · No purchase necessary.
J
jasonP
Well-known member
Very nice! Did you have the chassis built and boards done yourself, how did you go about doing this?
V2a
Active member

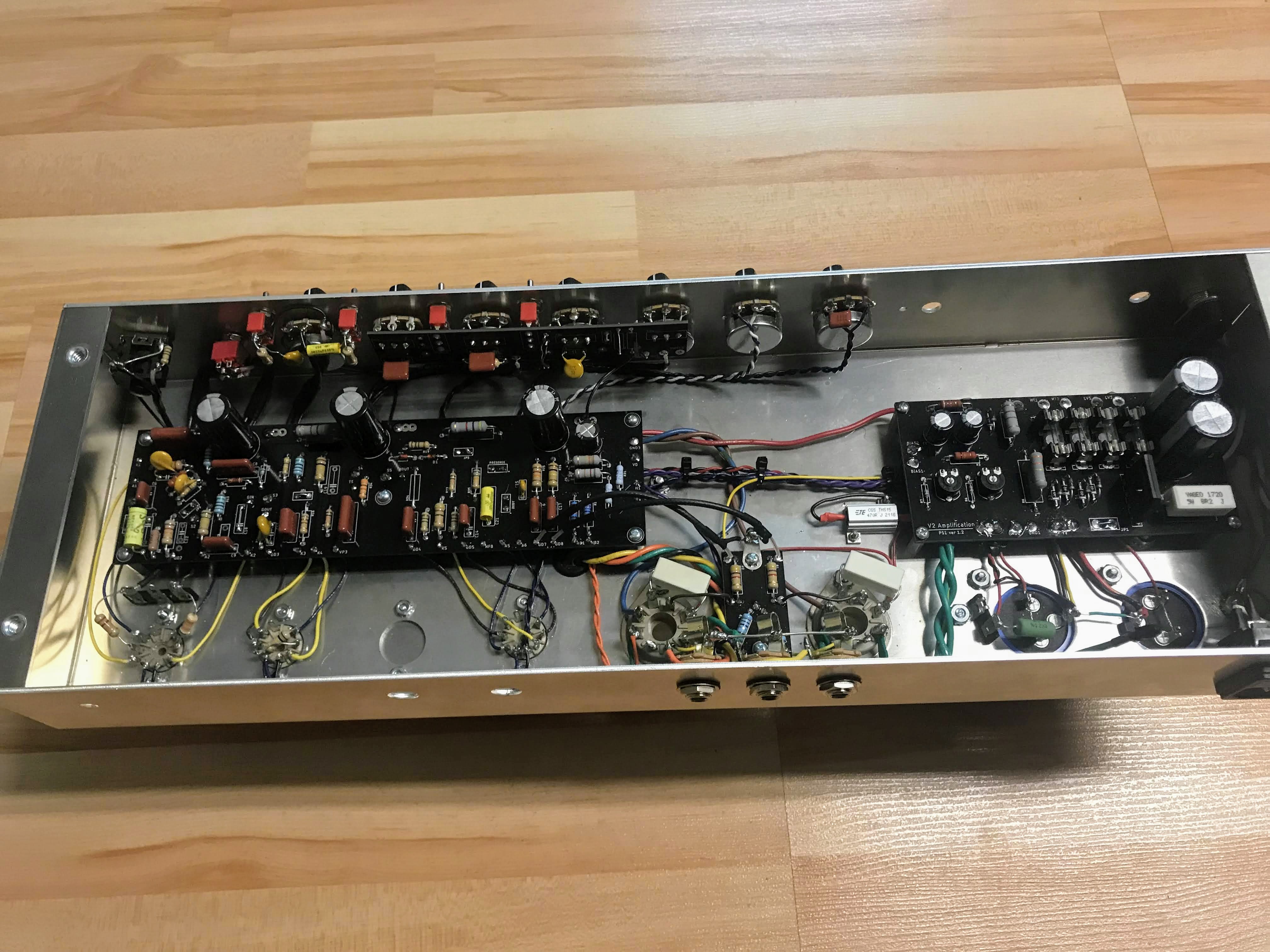

I designed the chassis and had a batch of them fabricated locally. And I designed the PCBs and had 'em made abroad.
C
ClintN667
Banned
Well-known member
these are killer amps. I ended up selling mine to fund a guitar and I regret it. That thing was everything I expected a Marshall to sound like (but they didnt). Nice to see you posting new work!
cardinal
Well-known member
Very nice looking work.
I've always been curious: what is the advantage to radial caps? Is it just saving space? I find them annoying to replace, not that they'd need it any decade soon.
I've always been curious: what is the advantage to radial caps? Is it just saving space? I find them annoying to replace, not that they'd need it any decade soon.
V2a
Active member
yeah, in fact I do offer these as kits (with instructions). I might have to get more chassis fabricated (but I do have one left).
V2a
Active member
axial caps and multi-section can caps are really a thing of the past that are used only for 'mojo' in a guitar amp. Well, they are easier to replace. These radial caps have 12000 hour life expectancy (longer, since they won't see the max working voltages).
V2a
Active member

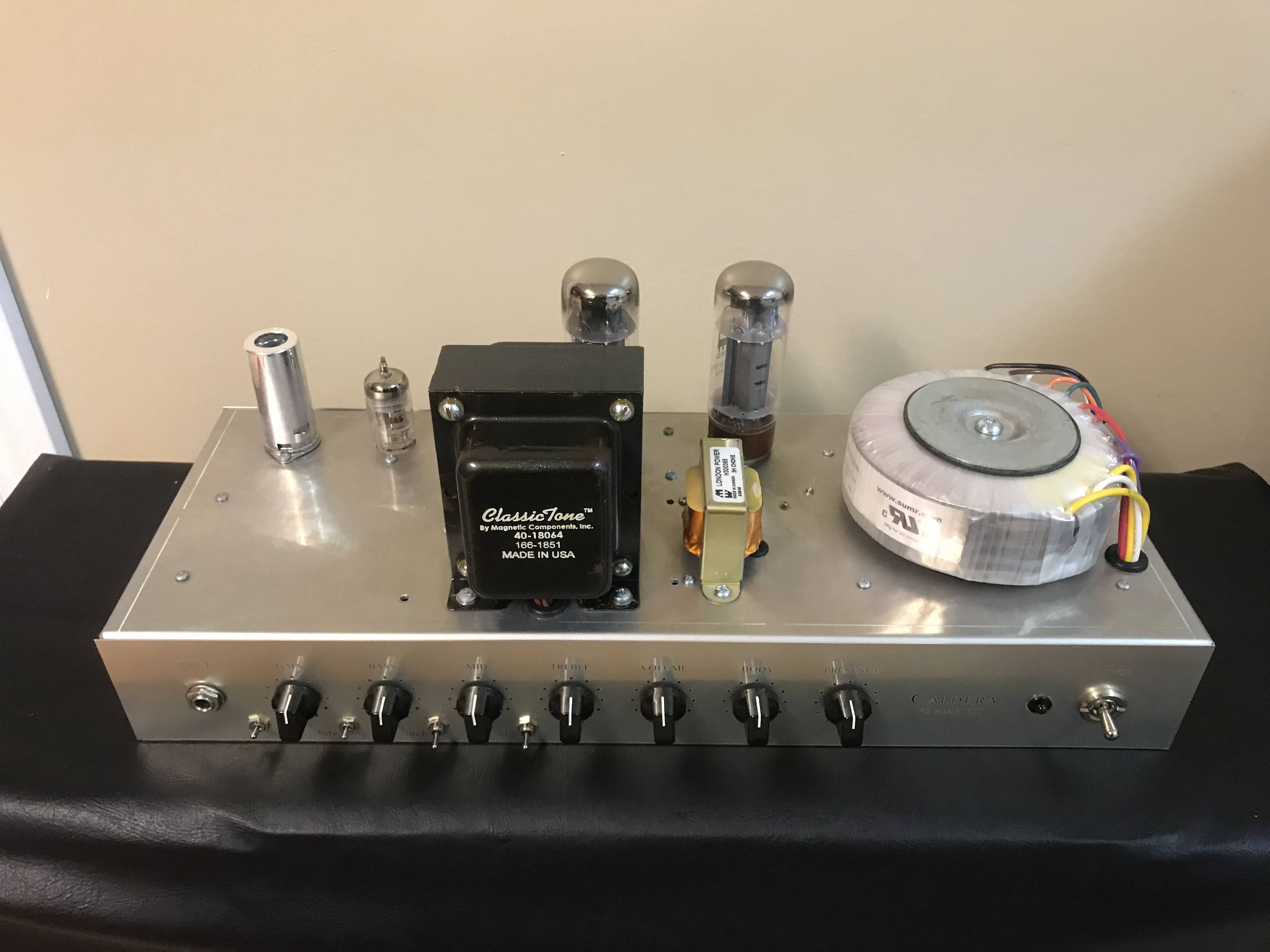

This bastard used a pair of EL34s (adjustable fixed bias) for 30 watts. Smaller chassis (17.5" wide, rather than 20"). Yes, the little choke is up for the task. Check out the hammond open-frame units.
V2a
Active member
Another 30W Caldera in the works.
LP Freak
Well-known member
Those look great ??
V2a
Active member

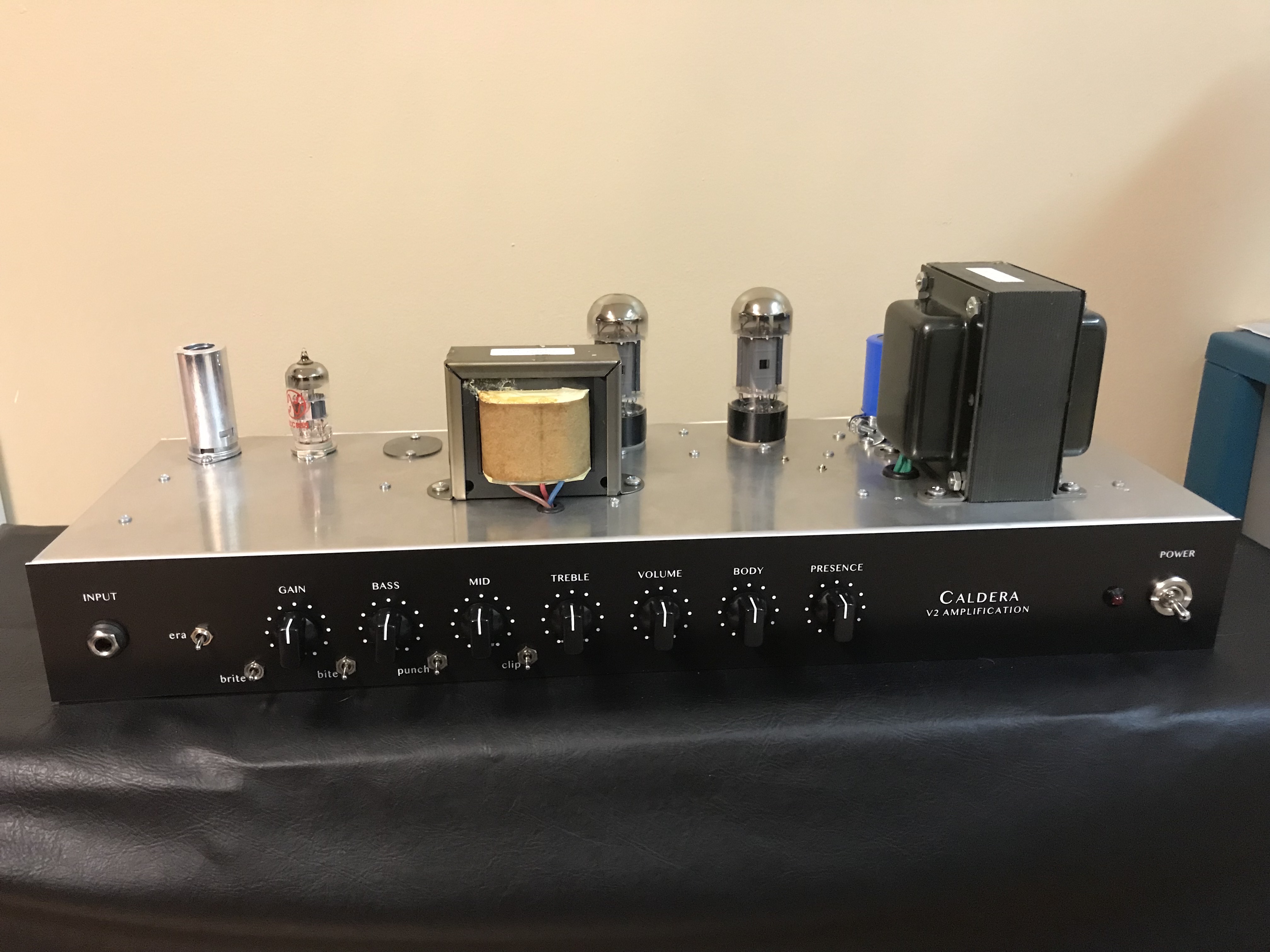

Faceplates added to the amp in the original post.
V2a
Active member
30W Calderas in small-form headshell and regular-form headshell with ventilated front panel.
H
Hrmlow4
Banned
Member
This amp is looking great as it is supposed to look. Such a very nice and creative design and build-up.
Y
YSM234
Banned
Member
I love the look of this amp, It exudes the feeling of a quality product
V2a
Active member
V2a
Active member
First batch of kit faceplates. Probably will just say 'V2 Amplification' in the future so that I can order just one 'batch'. Kit comes with full step-by-step instructions too.
Oh, that that's my new fav indicator light. Runs off the 120Vac at the switch. Not cheap, but worth it.
I
itsgoodnow
Well-known member
Looks rad. Do you do higher watt as well?
V2a
Active member
My stock chassis are good for up to 50W transformer sets.
V2a
Active member
100W just would need another chassis
