Mystery tube

  • Thread starter Thread starter marshall2020
  • Start date Start date
M

marshall2020

New member

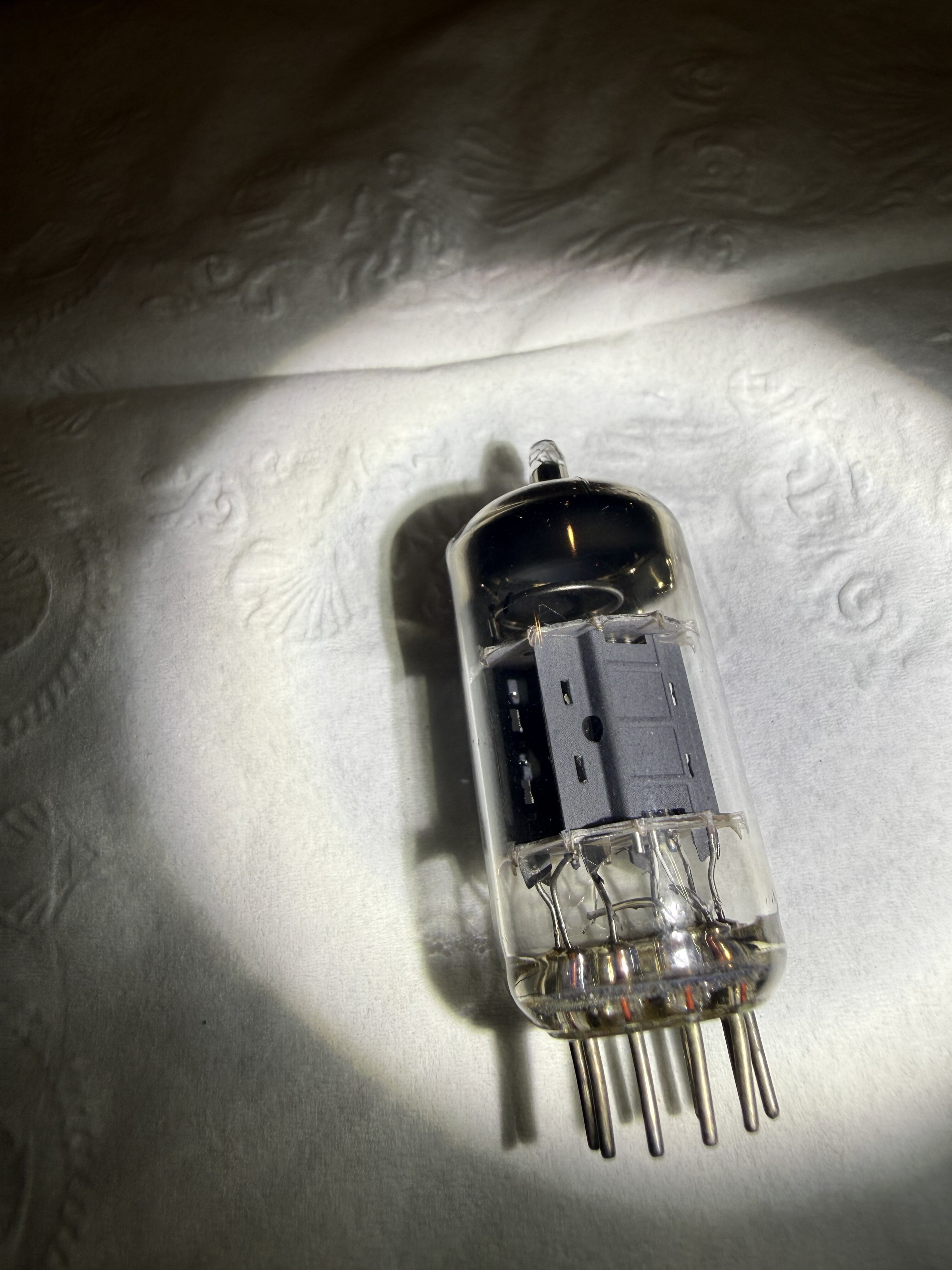

Mystery tube. I don’t remember anything about it.

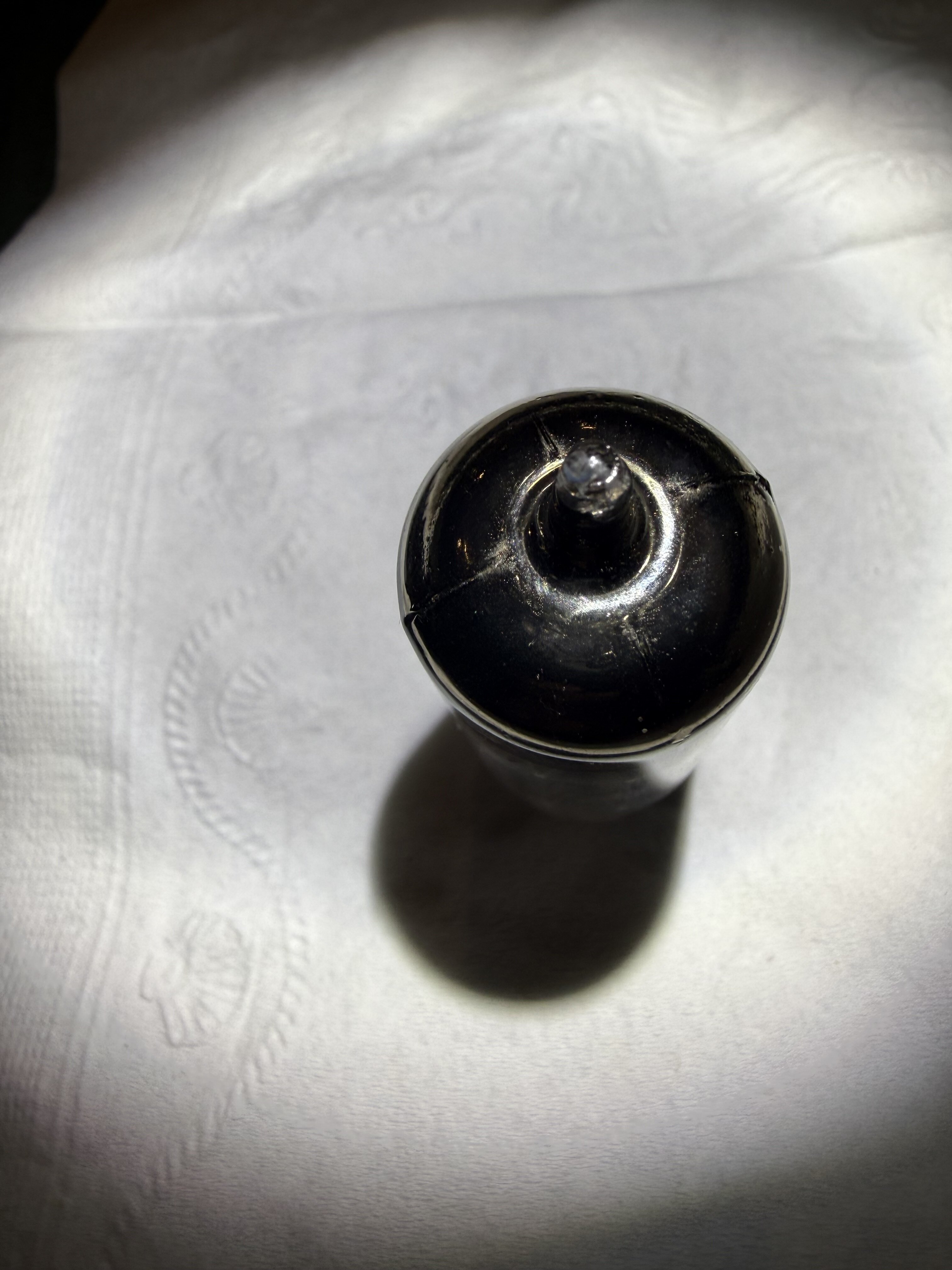

It has 4 seams on the top.

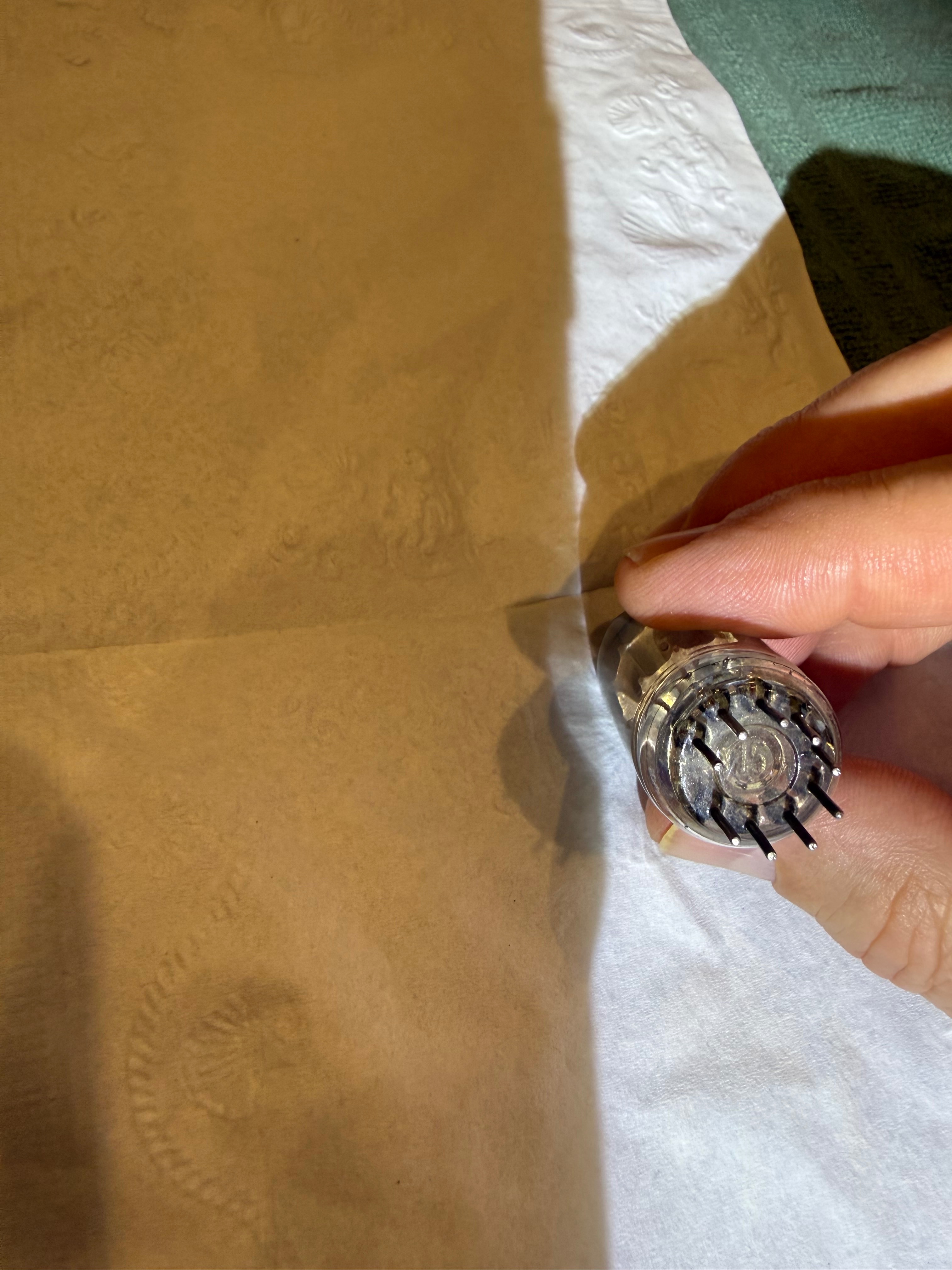

15 is engraved on the bottom.
14mm plates.
Round thick halo
All the paint is missing.
Thanks for your help!


Attachments

  • IMG_2274.jpeg
    1.1 MB · Views: 63
  • IMG_2275.jpeg
    841.6 KB · Views: 47
  • IMG_2276.jpeg
    2 MB · Views: 53
Matsushita or Siemens. Need more pics.

If it has two posts connecting the ring getter then Siemens. If it has one post for the ring getter Matsushita.

Most likely Siemens from what I can see.

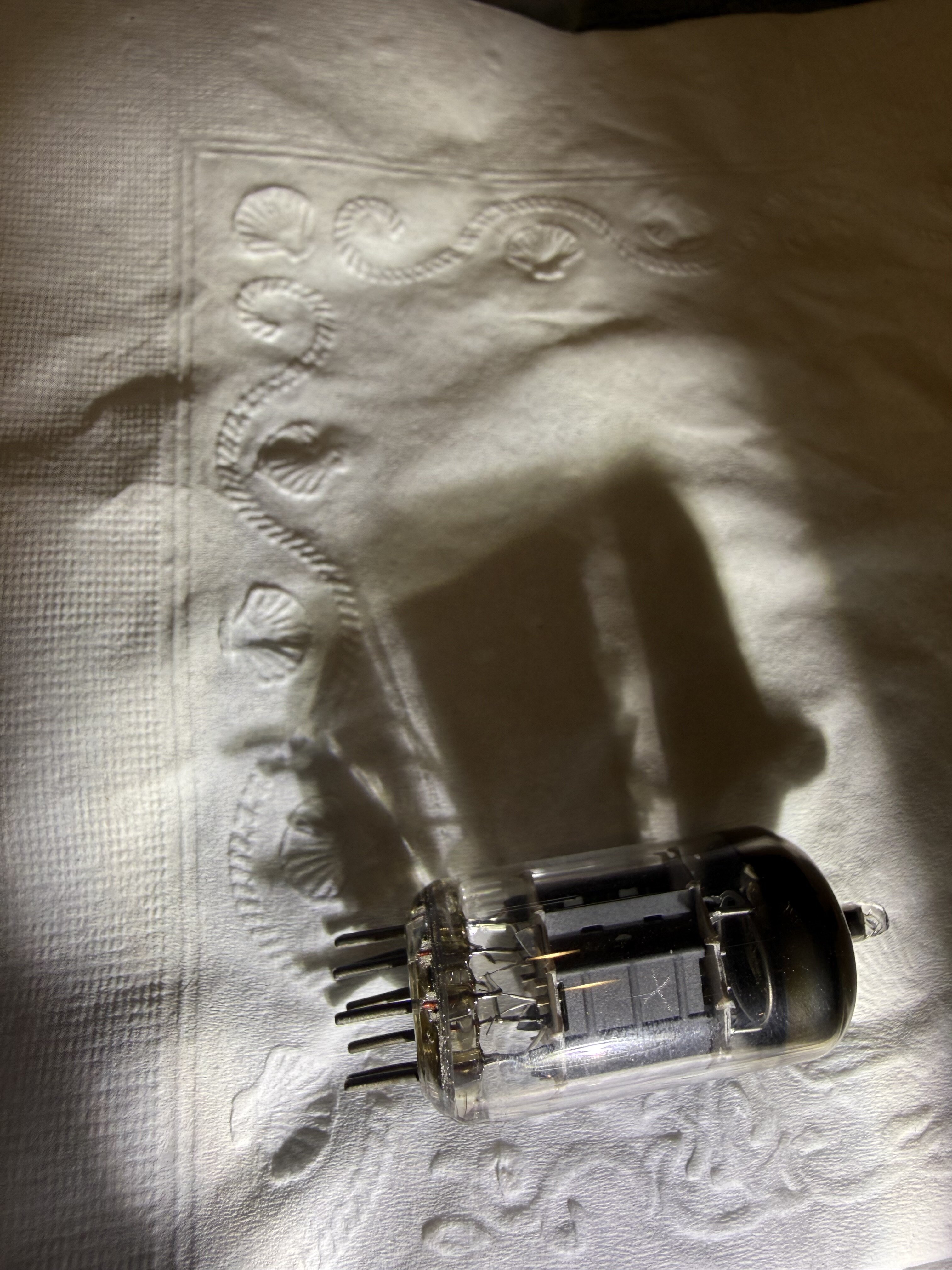

Mystery tube. I don’t remember anything about it.
It has 4 seams on the top.
15 is engraved on the bottom.
14mm plates.
Round thick halo
All the paint is missing.
Thanks for your help!


Attachments

  • IMG_2278.jpeg
    1.5 MB · Views: 30
What decade do you think?
That's a Siemens ECC83 from early to mid 60s.

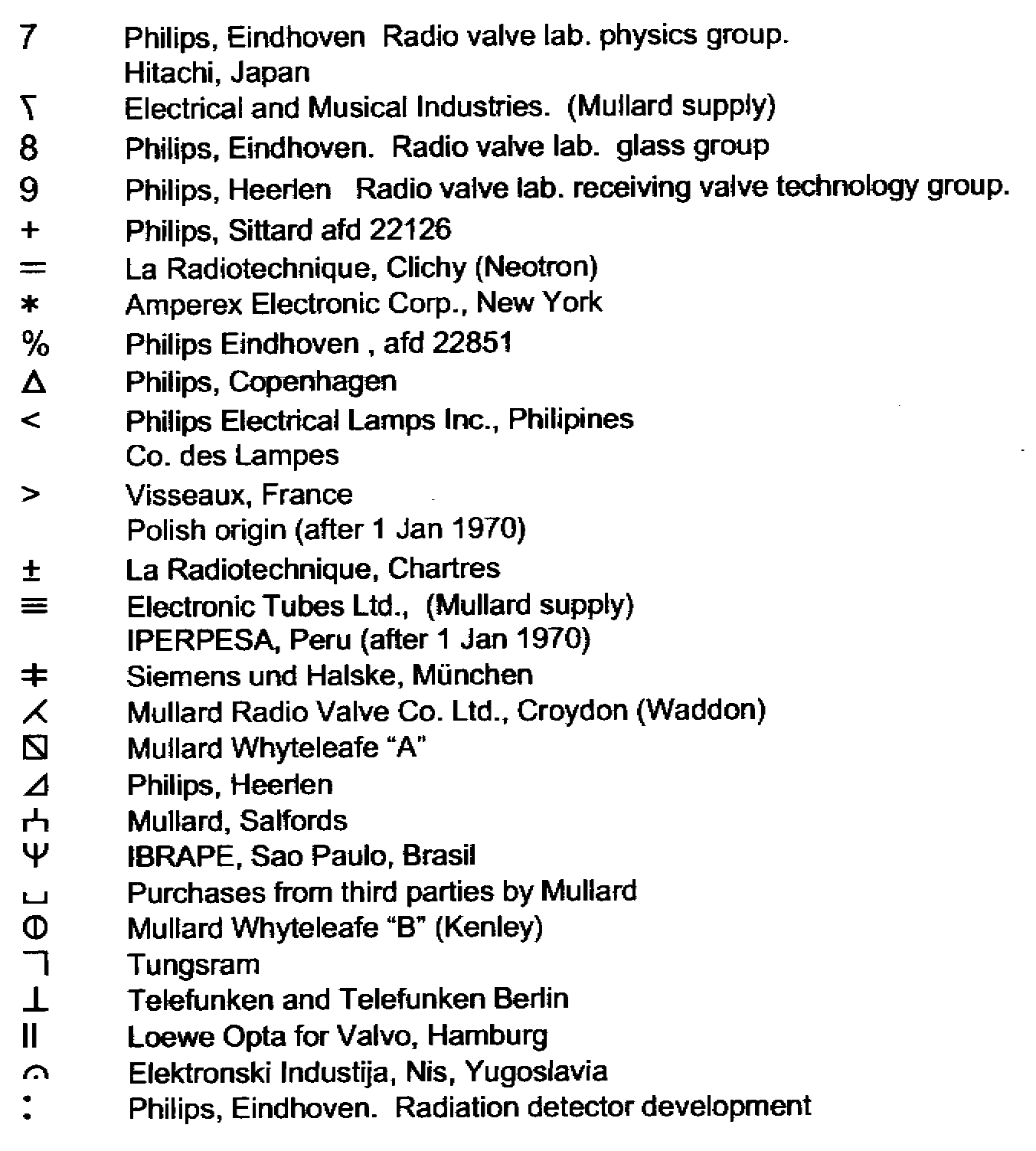

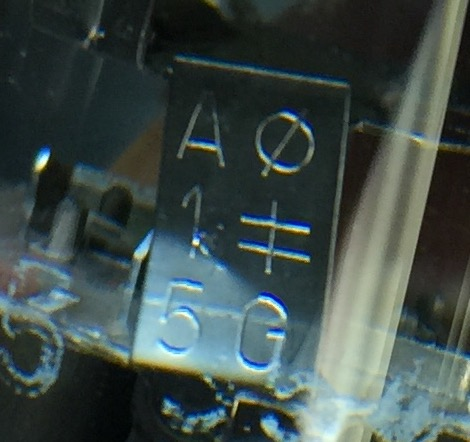

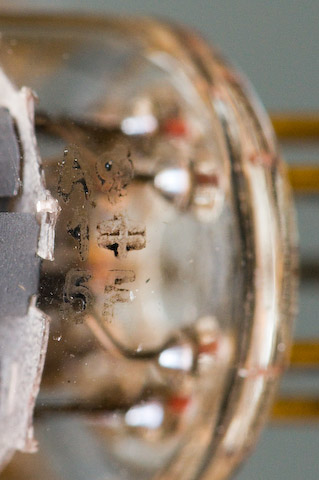

If you look on the bottom of the tube near the mica there might also be be 6 digits barely visible etched into the glass. 3 on a line. The second line will have an equal sign with a line through it.




Last edited:
