Nearly NAD 68 plexi

[Jdub]

Congrats! Looks like a great score!



[ErikT]

So sick dude!



[thegame]

Get that Langner circuit installed pronto!



[Exo-metal]

Just ordered more parts she needs. Wish I knew what those blue signal caps were?!!



[harddriver]

Just ordered more parts she needs. Wish I knew what those blue signal caps were?!!

I thought they were either some type of Mullard or Phillips cap so I did a search and it appears as though they are Mullard/Phillips brand caps.

The brand of a "68 Marshall Tropical Fish Capacitor" is
Mullard, and "Tropical Fish" is the nickname for the Mullard/Phillips C280 capacitors known for their striped casing. A "68" refers to the capacitance value of
0.68μF0.68 mu cap F
, commonly used in vintage amps like the Marshall Plexi.

• Brand: Mullard
• Capacitor Type: "Tropical Fish" is a nickname for the Mullard C280 series, which uses a metallised polyester film.
• Value: The "68" indicates a capacitance of
  .68μF0.68 mu cap F
  or
  680nF680 n cap F
• Application: These are often used as a vintage-correct replacement or upgrade for tone control and cathode bypass in amplifiers, particularly in vintage Marshall amps



[Greazygeo]

Just ordered more parts she needs. Wish I knew what those blue signal caps were?!!

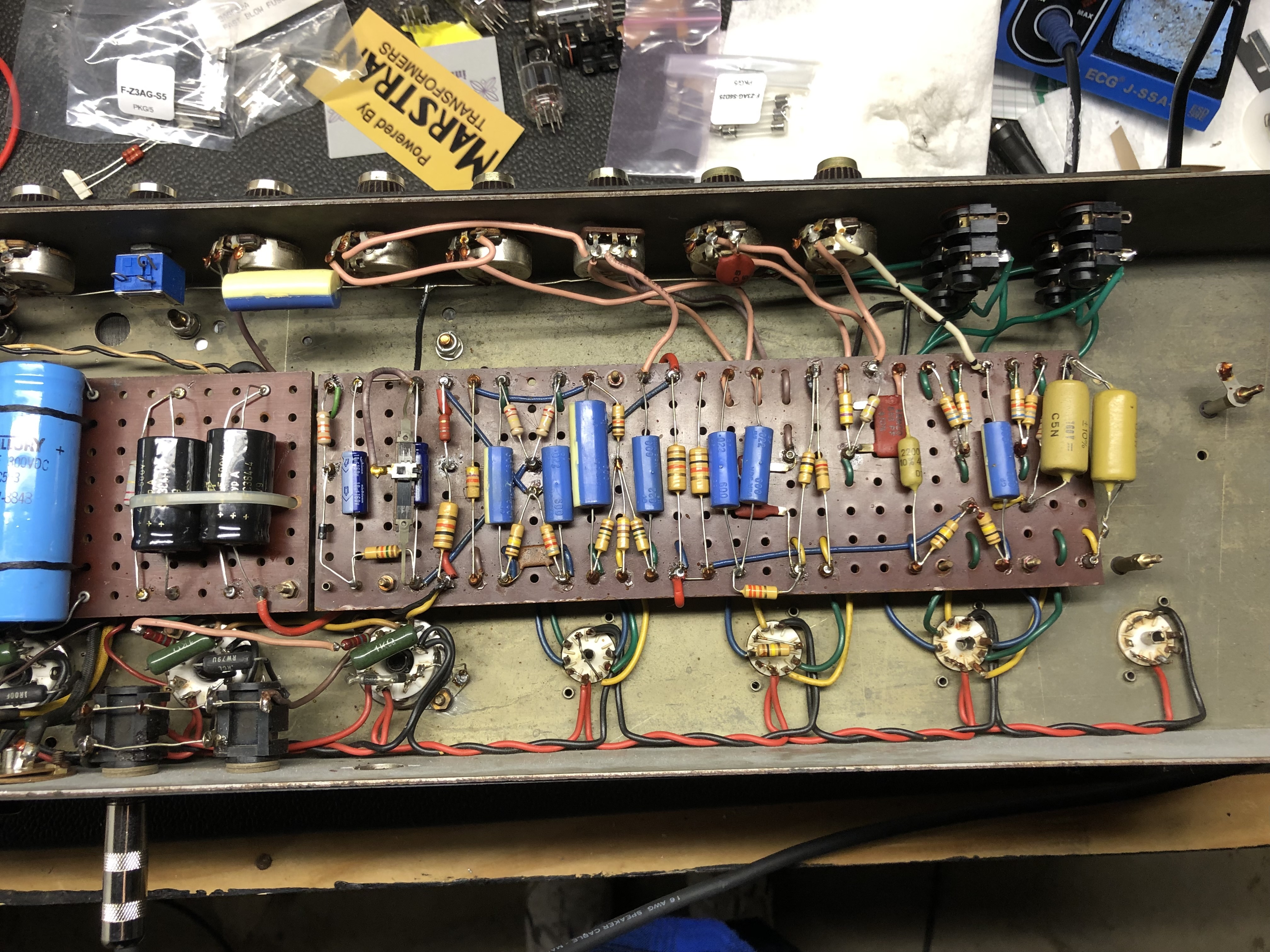

The blue/white caps are original. My 68 Super Trem looks exactly like that, preamp is all stock / original. I was told they are Cornell/ Dublier caps.



[Exo-metal]

The blue/white caps are original. My 68 Super Trem looks exactly like that, preamp is all stock / original. I was told they are Cornell/ Dublier caps.

I gotta see that, post some chassi pics!!



[Greazygeo]

I gotta see that, post some chassi pics!!



[Exo-metal]

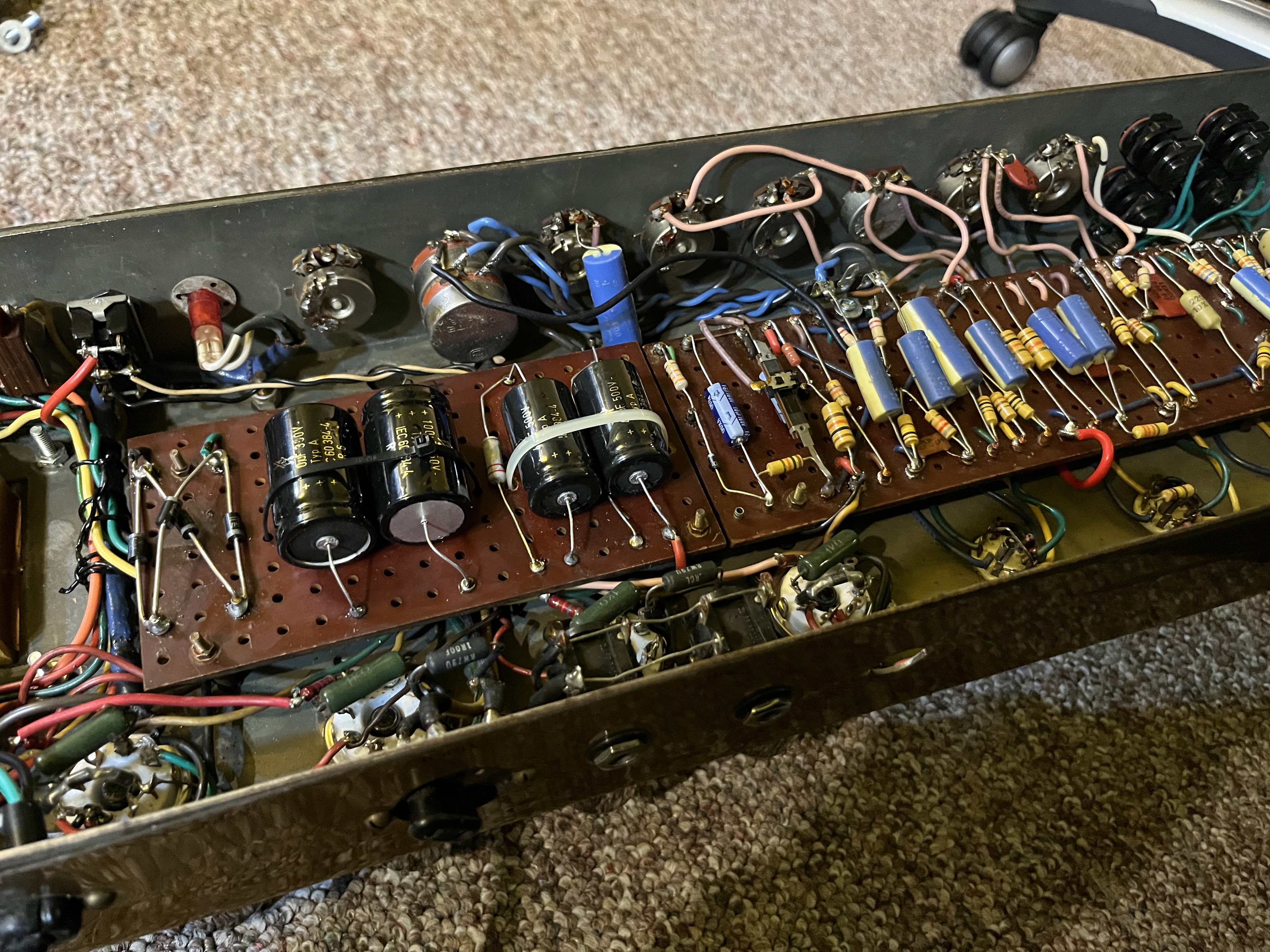

View attachment 425017

Can you show the pwr section to the left? What an amazing amp!!



[Greazygeo]

Can you show the pwr section to the left? What an amazing amp!!

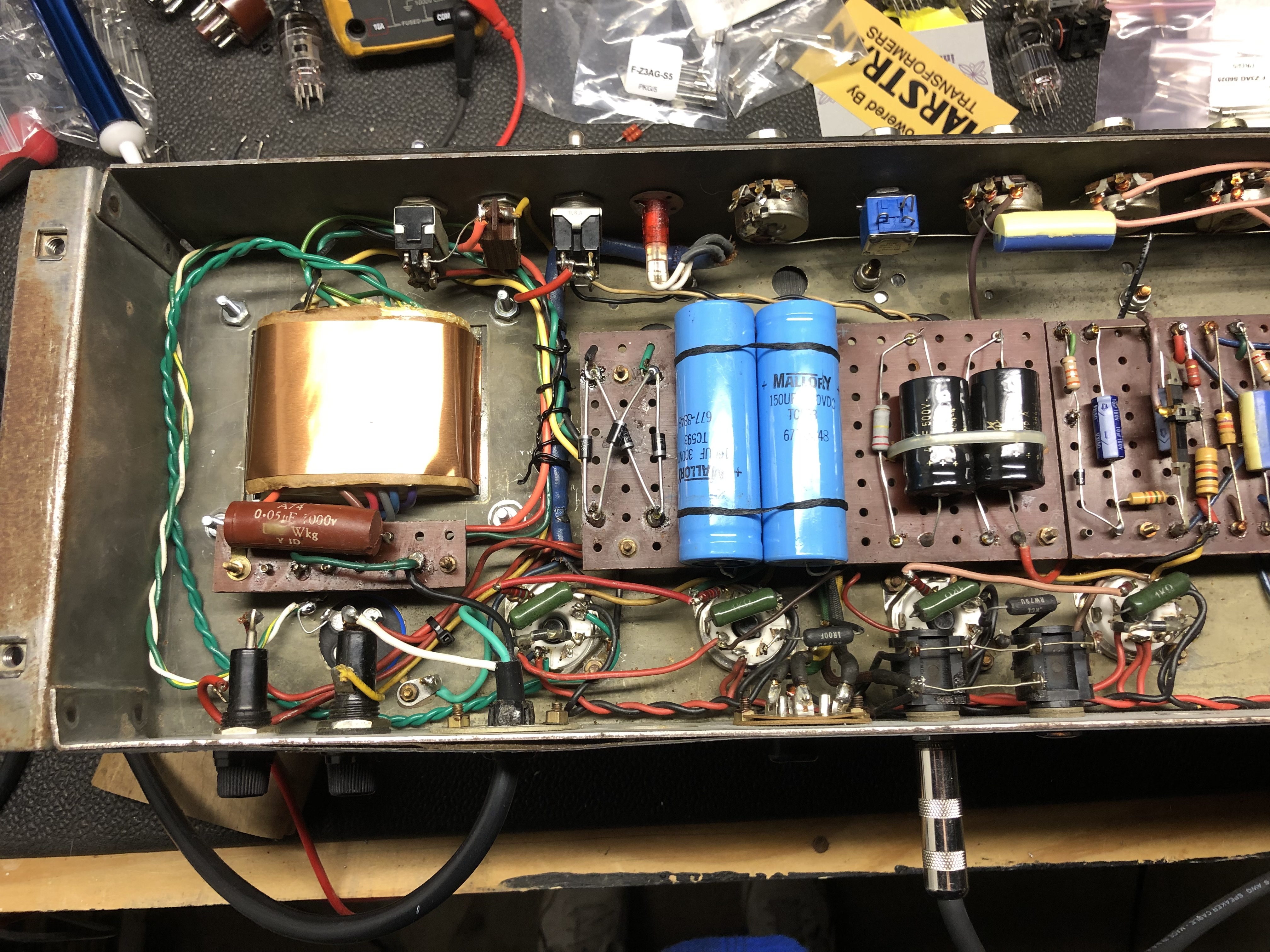

I thought I had a full picture somewhere, but this is what I have for now…used to have a one piece rectifier, but it failed so had to improvise. Replaced PT and changed grounding, rectifier and filter caps, MV etc. I can get a full picture at some point. It sounds pretty good.



[Anje]

Yes, I think the correct spelling for the brand of those blue/yellow caps is "Cornell Dubilier" (CDE); I've mainly seen them in '68 - '69 Marshall, I guess when they ran out of the classic Mustard. Good caps and don't make for less awesome sounding amps than the Mustards IMHO; my '69 Super Trem has some with a few Mustard mixed in.
Also seen some Wima (as used in the 60's Vox / Selmer for instance) from time to time during that period.



[Exo-metal]

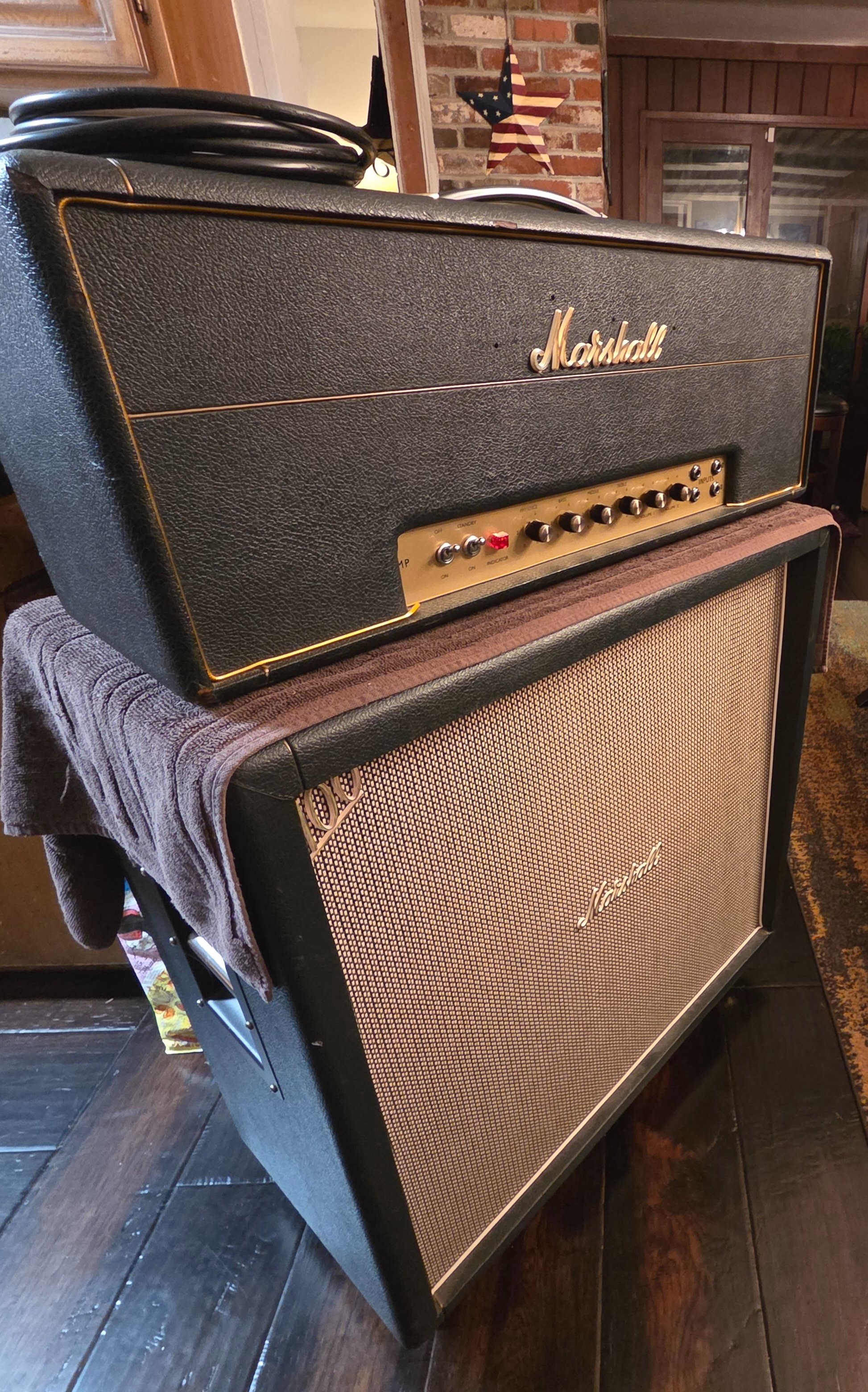

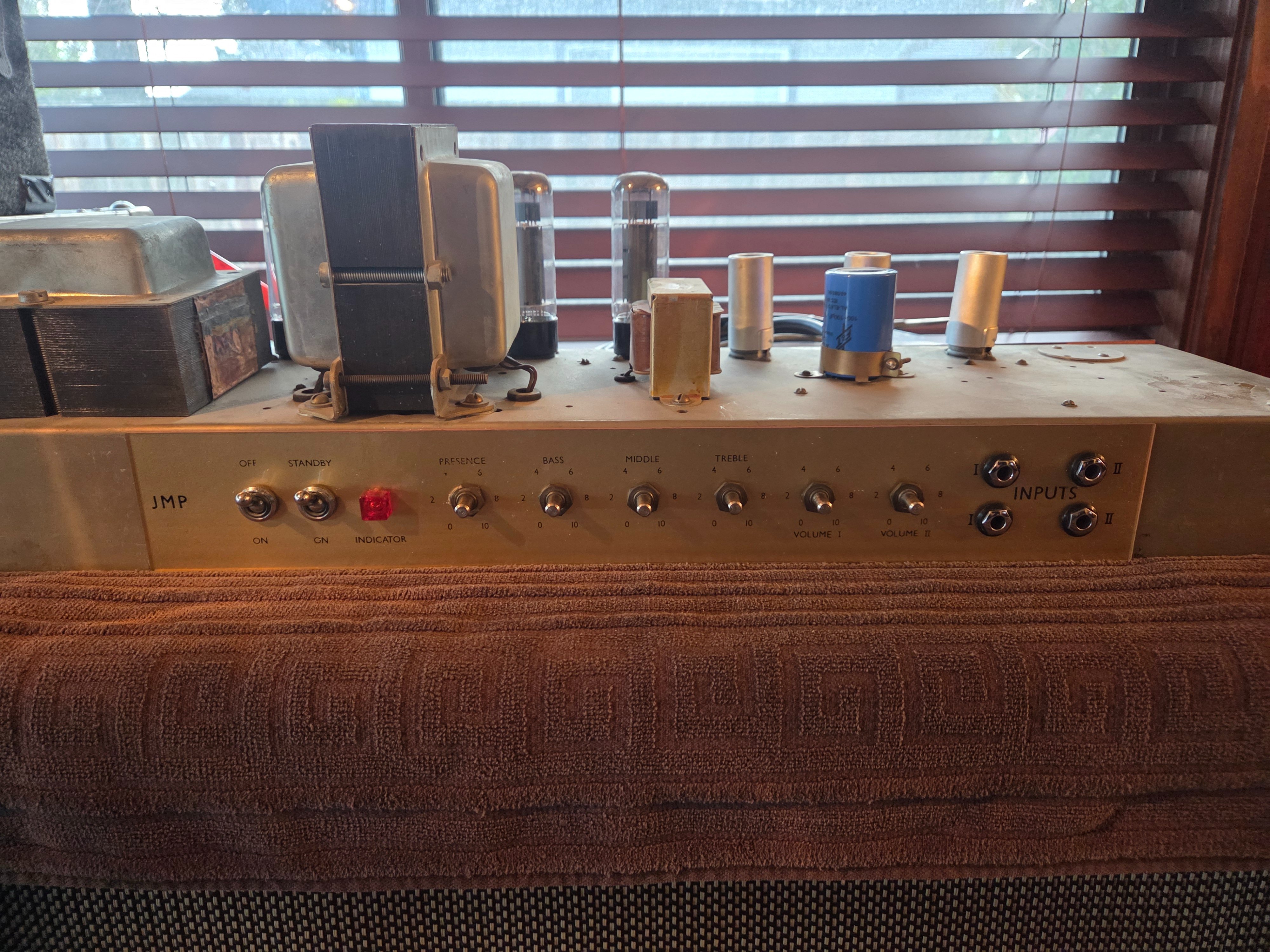

Some fit and finish, faceplate installed...
