Pedalboard Advice

[JJM]

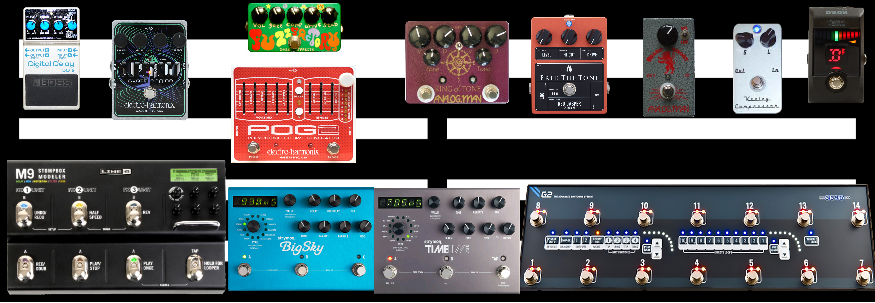

I’m planning out a pedalboard and I’m wondering if I’m cutting it to tight for space.



[guitarnerdswe]

Yep, too tight. Some of the buttons on adjacent pedals will be hard to push individually.



[JJM]

I was more thinking of quarter inch jacks getting in the way. All the pedals will be on at all times and switched using the G2 in the bottom right hand corner.



[JJM]

On second thoughts, you are right concerning the time line



[fusedbrain]

If you use all right angle plugs, you should be OK, but the tap tempo on the Timeline could be a problem. If you're not going to use midi to switch patches on the Strymon stuff, then both Strymon pedals will be tough to use in that config.



[SpiderWars]

Yep, too tight. Some of the buttons on adjacent pedals will be hard to push individually.

That's what I thought when I saw it. But there are always pointy-toed cowboy boots.



[flimz]

What if you turned the 2 strymon units clockwise 90 degrees?



[JJM]

Thanks all. I’m just gonna get a riser and pop some pedals on top and some underneath, for more room.
