Pickup. Which side is north/south?

  • Thread starter Thread starter rsm
  • Start date Start date
rsm

rsm

Well-known member
Normally it's easy to tell:



However, I have a set of DiMarzio D Activator-X, and both sides are rails, no indication which side is north or south.

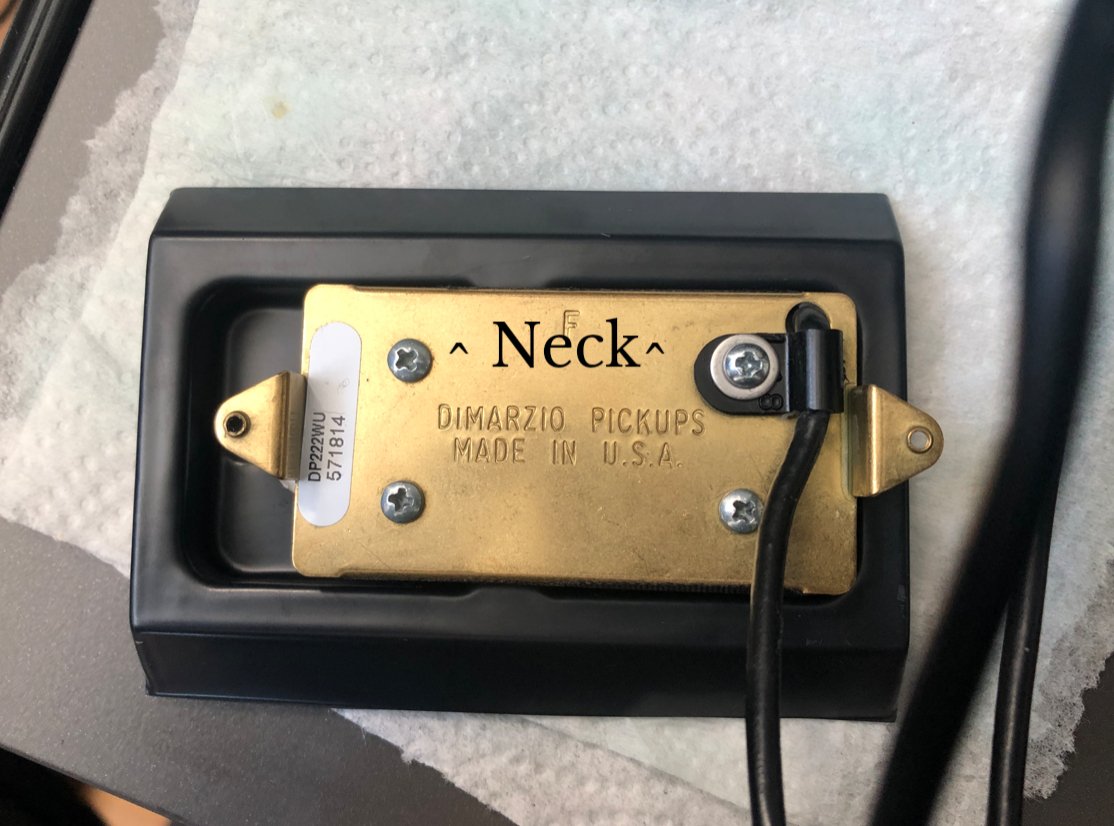

Any thoughts/ideas on a sure way to tell? My guess is that looking at the bottom of the pickup so the writing is upright, the top is north and bottom south. Could south be the side with the wire connection as shown in the diagram, if so it's at the top?

They could make it more obvious, by marking one side with N or S. IMO

If you have a compass on hand...
It honestly works ?‍♀️
Pretty sure y'all are on on the right path anyways with the text and install position of that wire guide clip thing.
