Speaker wiring

[Bluplirst]

Dumb question:

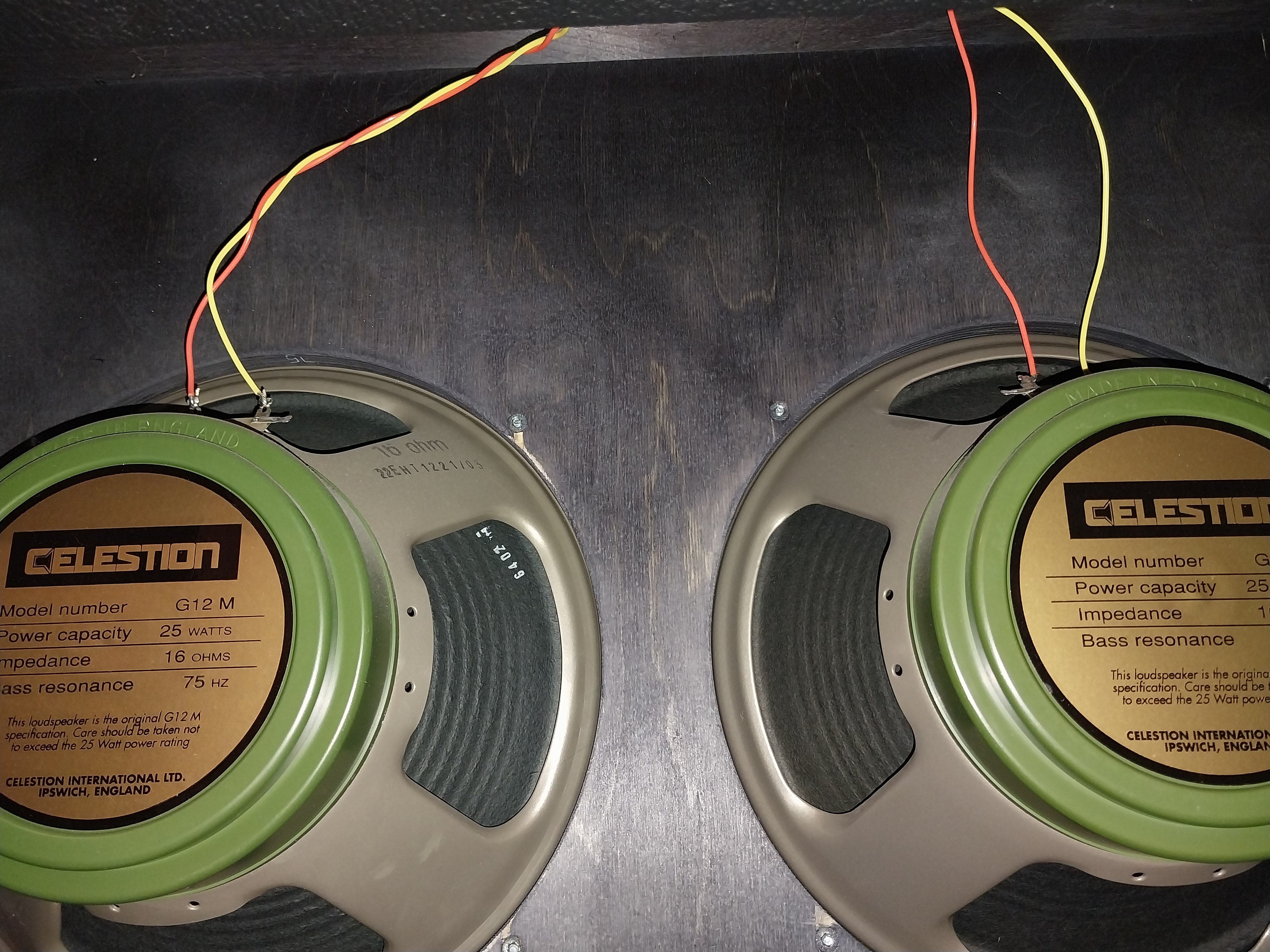

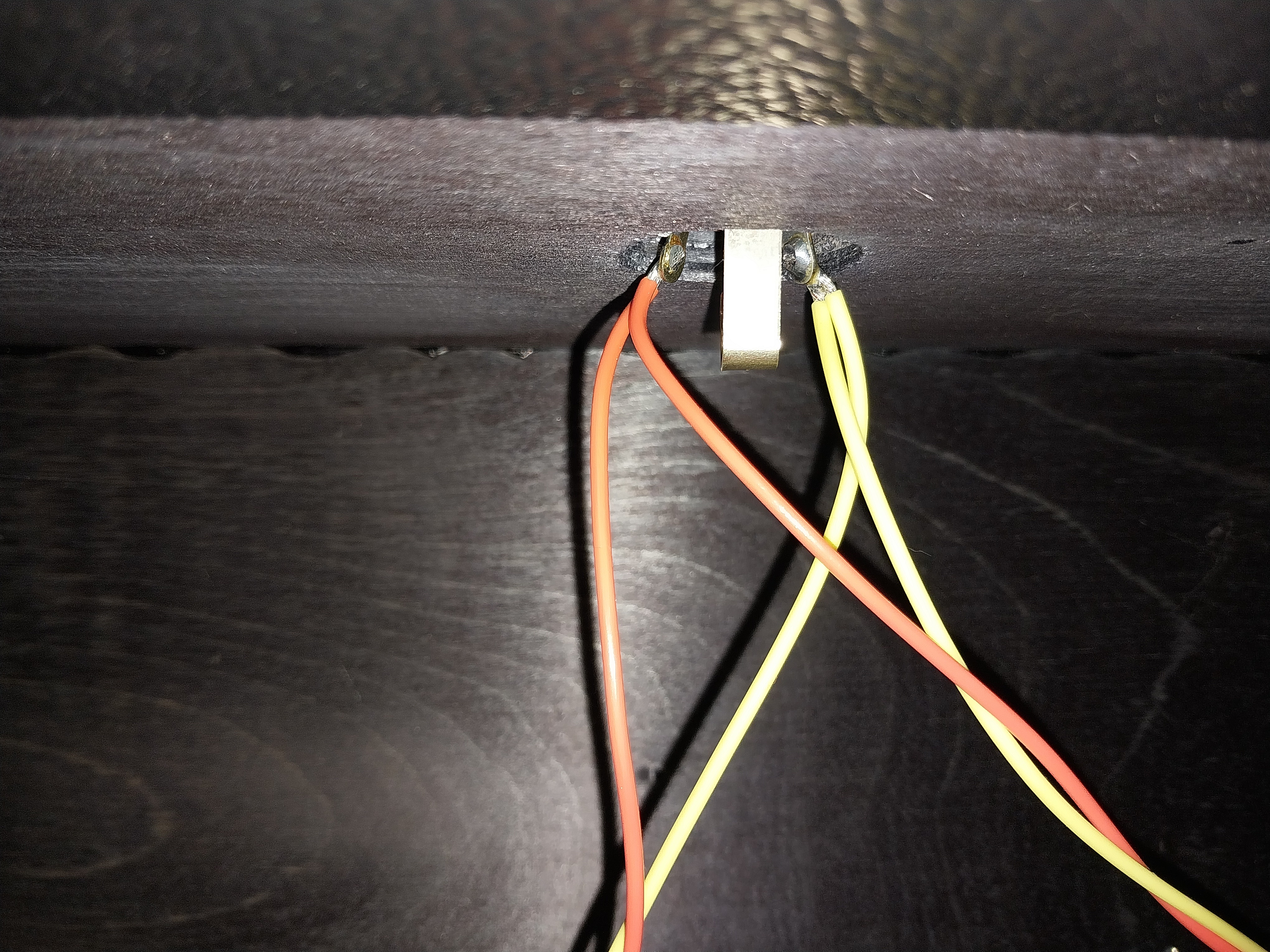

I just got this cab and have never had a 2x12 wired this way. What is it called and what is the ohms? The speakers are 16 ohm.



[Deleted member 94721]

Parallel

8 ohms



[Bluplirst]

Parallel

8 ohms

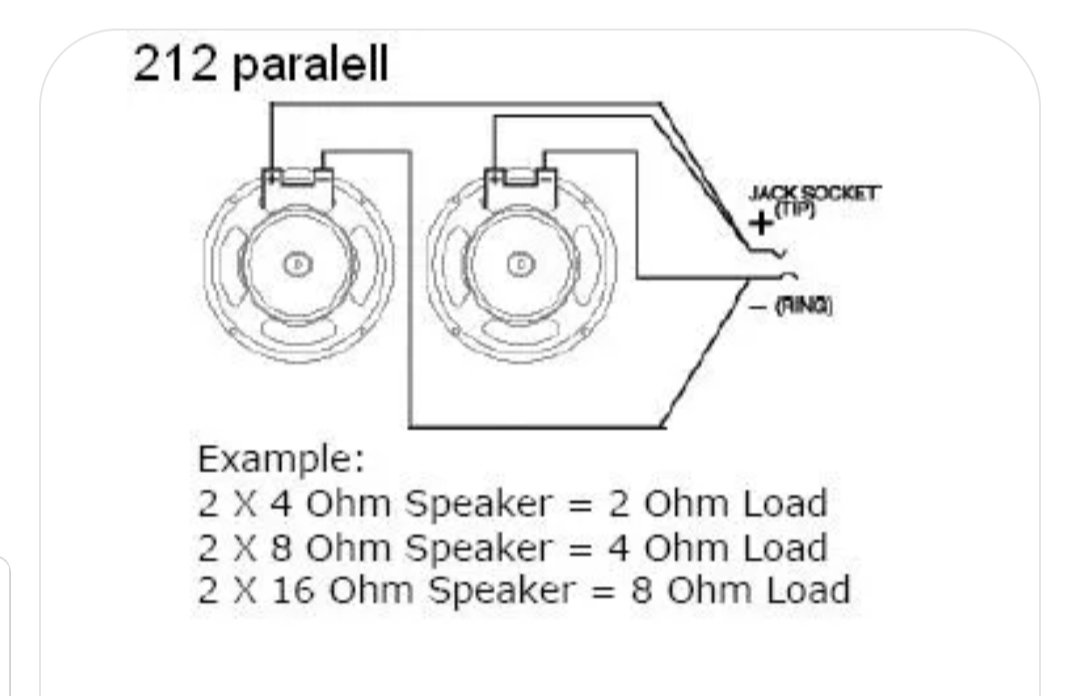

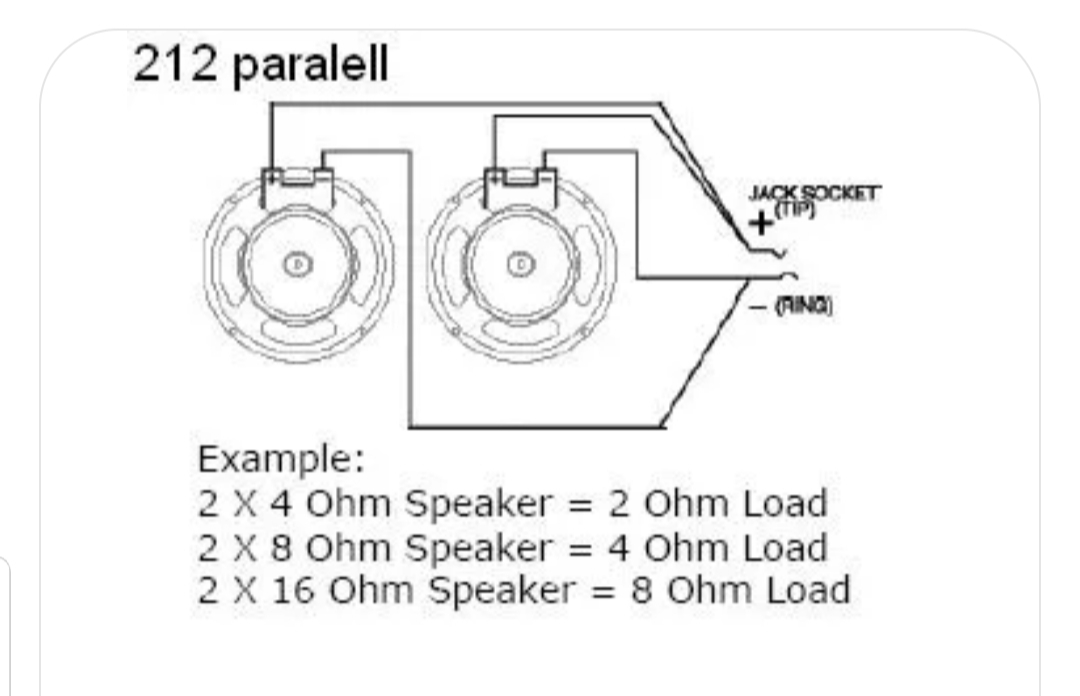

View attachment 394097

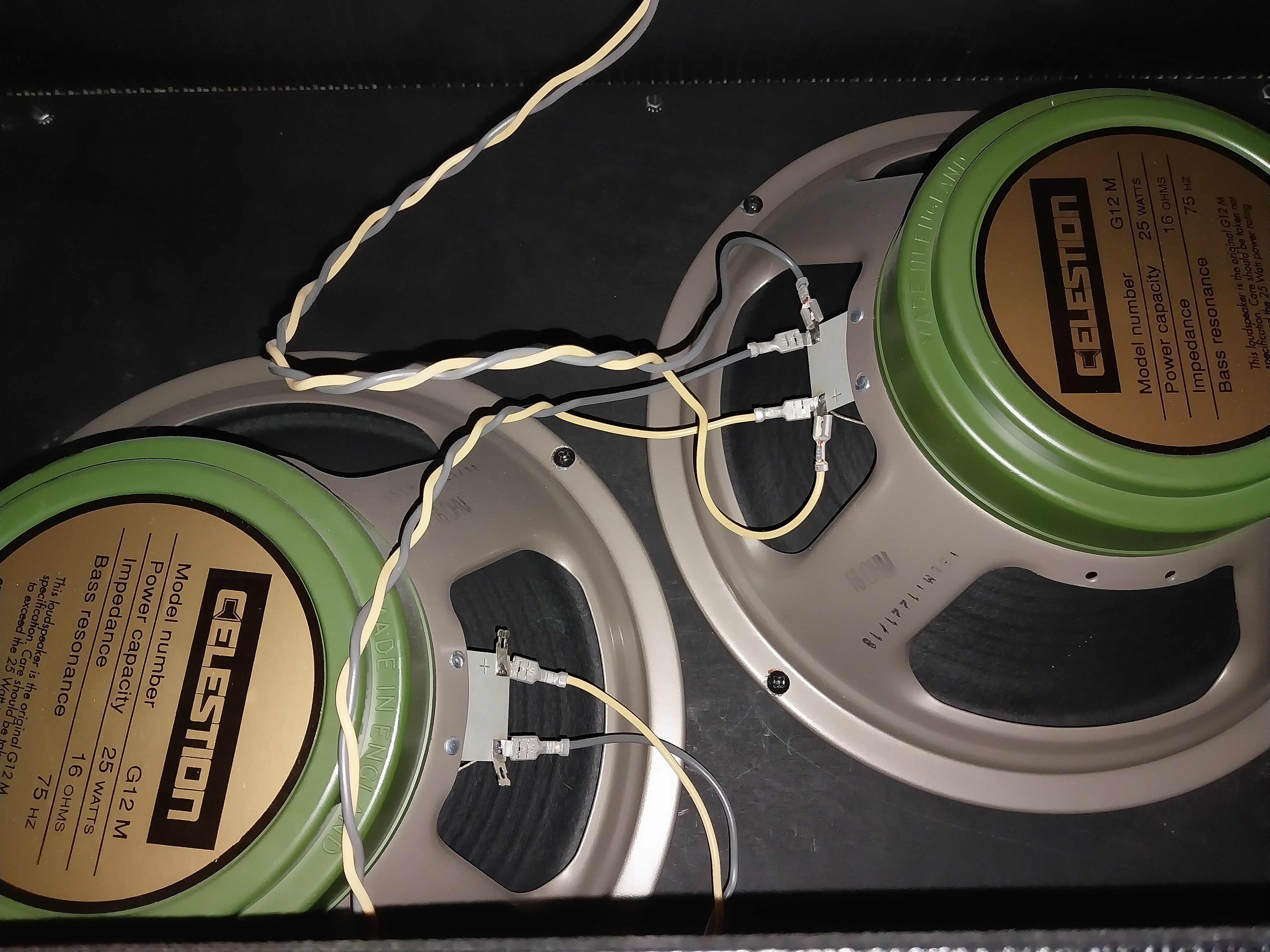

Thanks man! Here is another one….what is this called and what is the ohms? Both speakers 16 ohms.



[Deleted member 94721]

Same.

Parallel

8 ohms.



[Bluplirst]

Same.

Parallel

8 ohms.

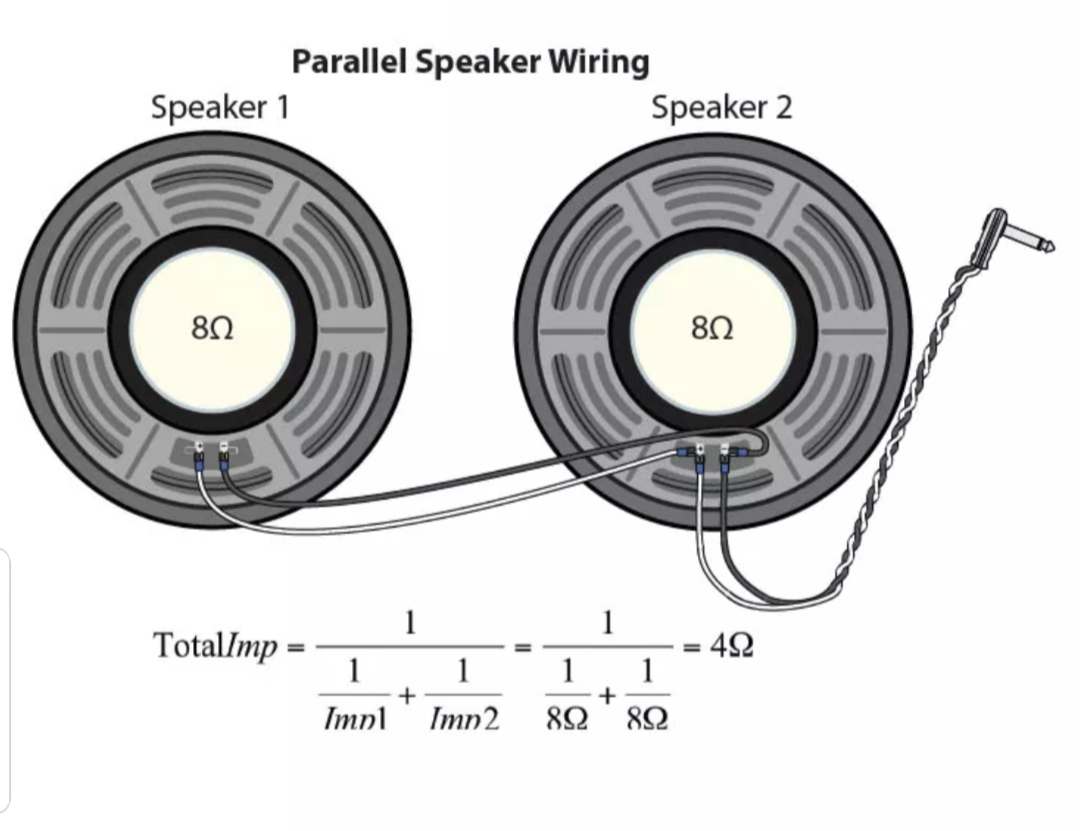

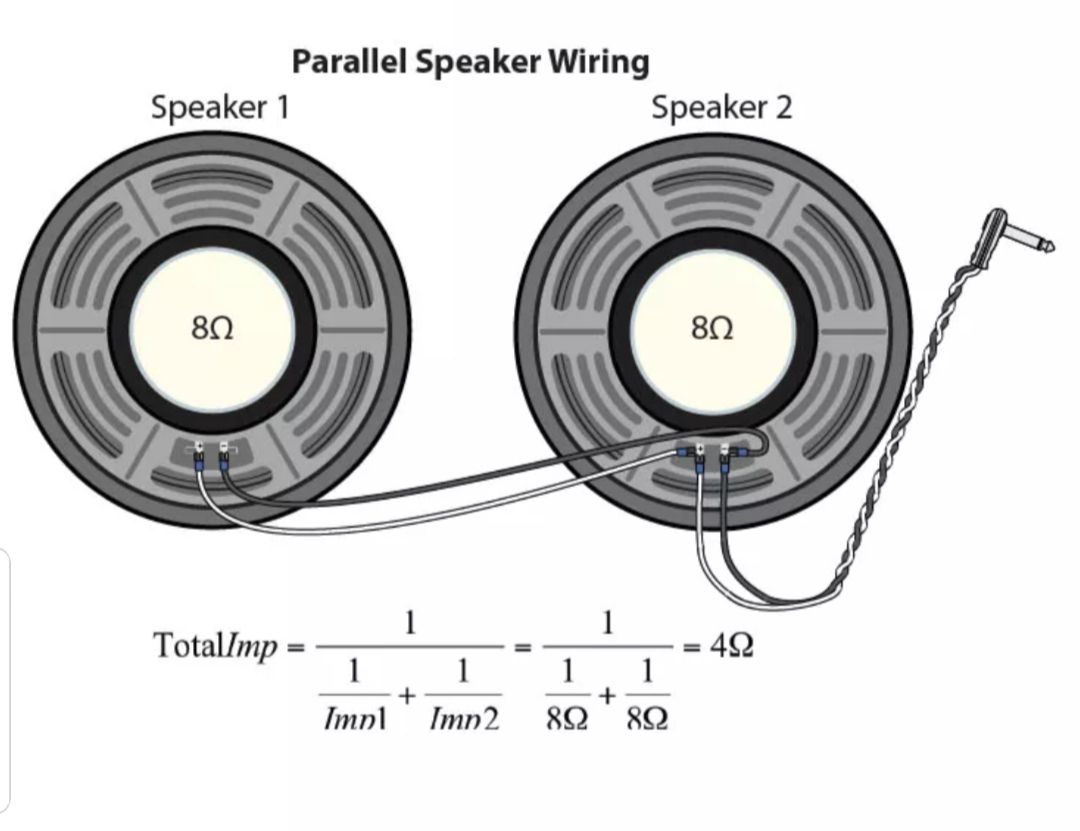

View attachment 394104

Very cool of you thanks. I thought that was it, ive always done it this way instead of the first.
