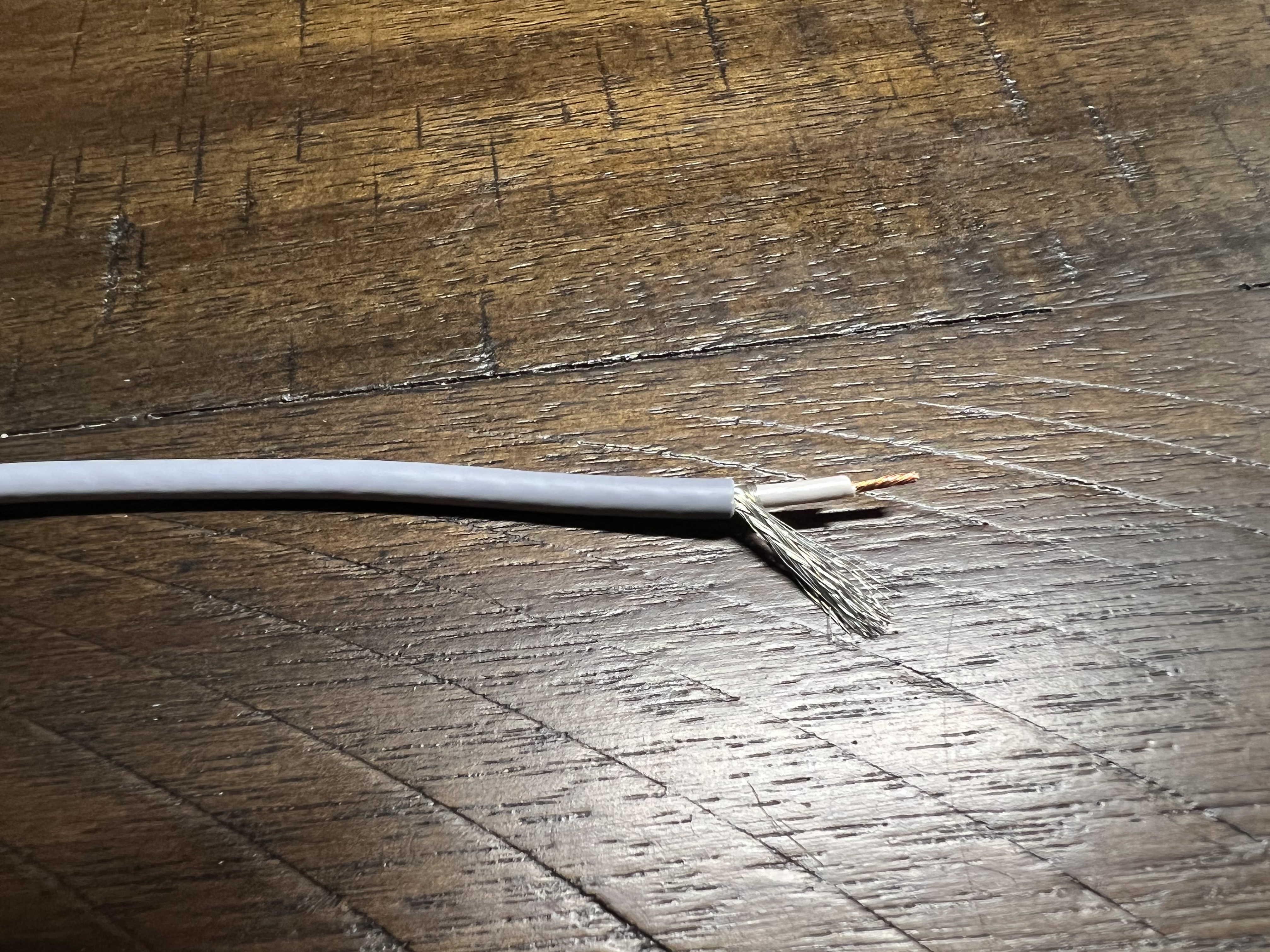

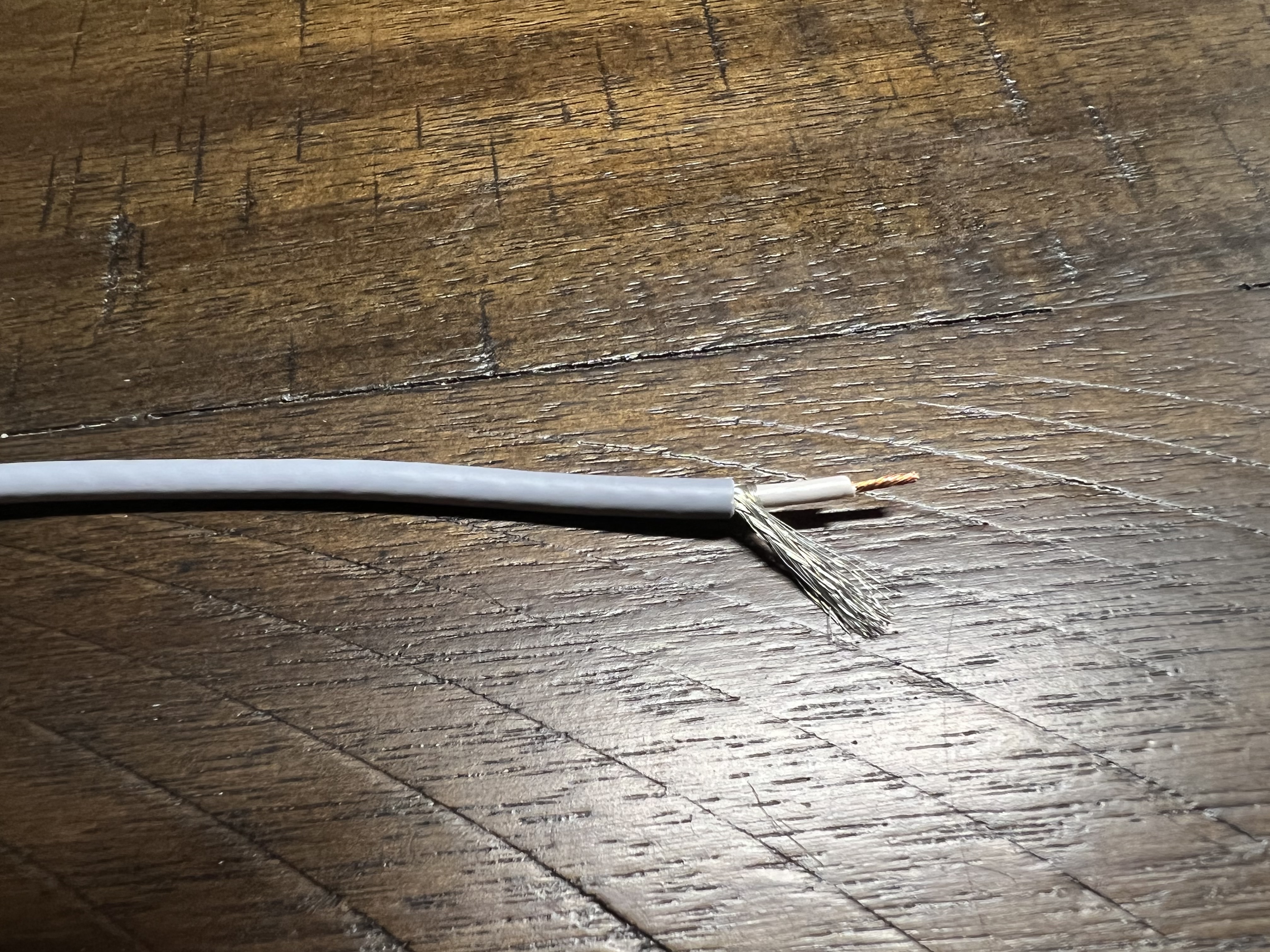

Anyone know who makes this shielded wire ?
- Thread starter screamindemon
- Start date
screamindemon
Well-known member
Could this be Belben 9396 ?
Is belben still being manufactured? Not finding it.
Is belben still being manufactured? Not finding it.
homespun
Well-known member
Try Belden. It should show up on google.
screamindemon
Well-known member
I found it a couple places but says no longer available Belden 9396 that is.
homespun
Well-known member
Aynirar27
Well-known member
Not identical brand, but I’ve ordered this for guitars and amps before and had good luck with it.
https://www.markertek.com/product/2...ctor-28-awg-unbalanced-mic-cable-black-per-ft
The 4 conductor stuff is good for master volume mods
https://www.markertek.com/product/2...ctor-28-awg-unbalanced-mic-cable-black-per-ft
The 4 conductor stuff is good for master volume mods
FourT6and2
Well-known member
Don't know. But what application do you want it for? We could suggest alternatives if you're open to it. Apex Jr. sells all sorts. And you can always order whatever you want from Mouser.
screamindemon
Well-known member
This looks interesting, but 28 awg is kind of small isn't it.
screamindemon
Well-known member
Using it for shieded runs in the Preamp of my High gain mods.
FourT6and2
Well-known member
Try RG-188 A/U and you'll probably want a Paladin coax stripper to make it easy. Apex Jr. sells it by the foot for 60 cents.
PTFE so it won't melt and short. Silver conductor.
Last edited:
screamindemon
Well-known member
How flexible is it ? Is it real stiff ? The gray stuff I was using was nice and flexible.
FourT6and2
Well-known member
It's not as flexible as PVC. But I use it in all my builds with great results. So does Soldano, Fortin, and a bunch of others. You can get other options from Mouser and Apex Jr. though, if you want non-Teflon.
screamindemon
Well-known member
Looks like really solid stuff !
screamindemon
Well-known member
What size AWG are you using ? thanks
FourT6and2
Well-known member
I'm not sure what gauge RG188's conductor is. It's pretty thin compared to normal hookup wire. But it gets the job done. You can always go with a different coax code if you want a thicker conductor. There's probably a chart somewhere
Bardagh
Well-known member
If you only need a little bit of RG188 you can get some off eBay for pretty cheap. It has gone up
a bit since last time I bought it (I think I paid $11 for 10’ last year at some point) but I have purchased from this dude before with no problem:
https://www.ebay.com/itm/3859324645...vLQMpofShm&var=&widget_ver=artemis&media=COPY
a bit since last time I bought it (I think I paid $11 for 10’ last year at some point) but I have purchased from this dude before with no problem:
https://www.ebay.com/itm/3859324645...vLQMpofShm&var=&widget_ver=artemis&media=COPY
FourT6and2
Well-known member
Apex Jr. sells it for $0.60/foot.
Bardagh
Well-known member
Damn, I thought the website was a blast from the past but that dude even has a prodigy email account.
FourT6and2
Well-known member
Sure, but they have a lot of great stuff. Apex Jr. is the online parts store for Apex in LA. If you ever get a chance to go there, I would. They literally have everything. Super rare NOS parts, modern stuff, chassis, tubes, wire, etc. But they don't put a lot of that stuff online. Other than Mouser for modern parts, Apex is the best place to get components.
screamindemon
Well-known member
https://www.ebay.com/itm/223630280226
I ended up ordering some of this. So cheap I ordered 20 and 22 AWG just to what I like more. I haven’t used it yet but I looks really nice.
I ended up ordering some of this. So cheap I ordered 20 and 22 AWG just to what I like more. I haven’t used it yet but I looks really nice.
