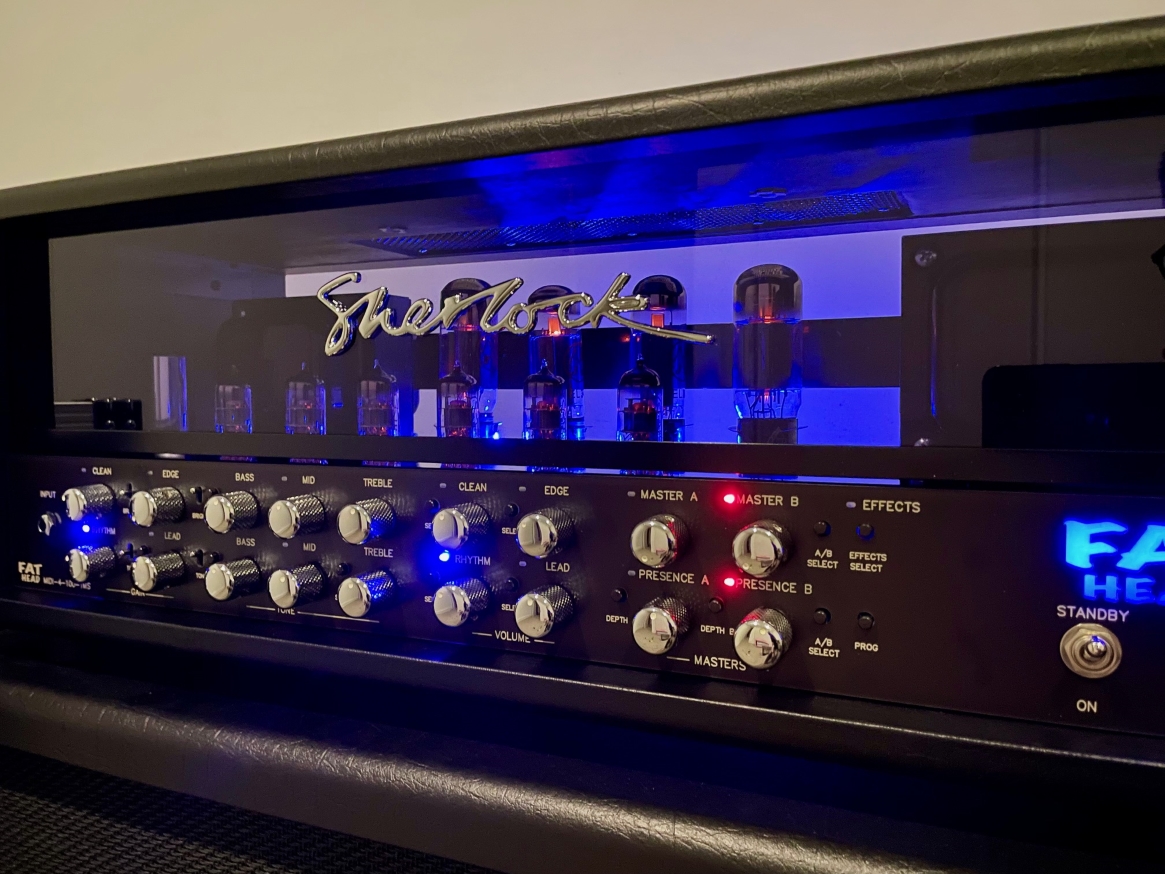

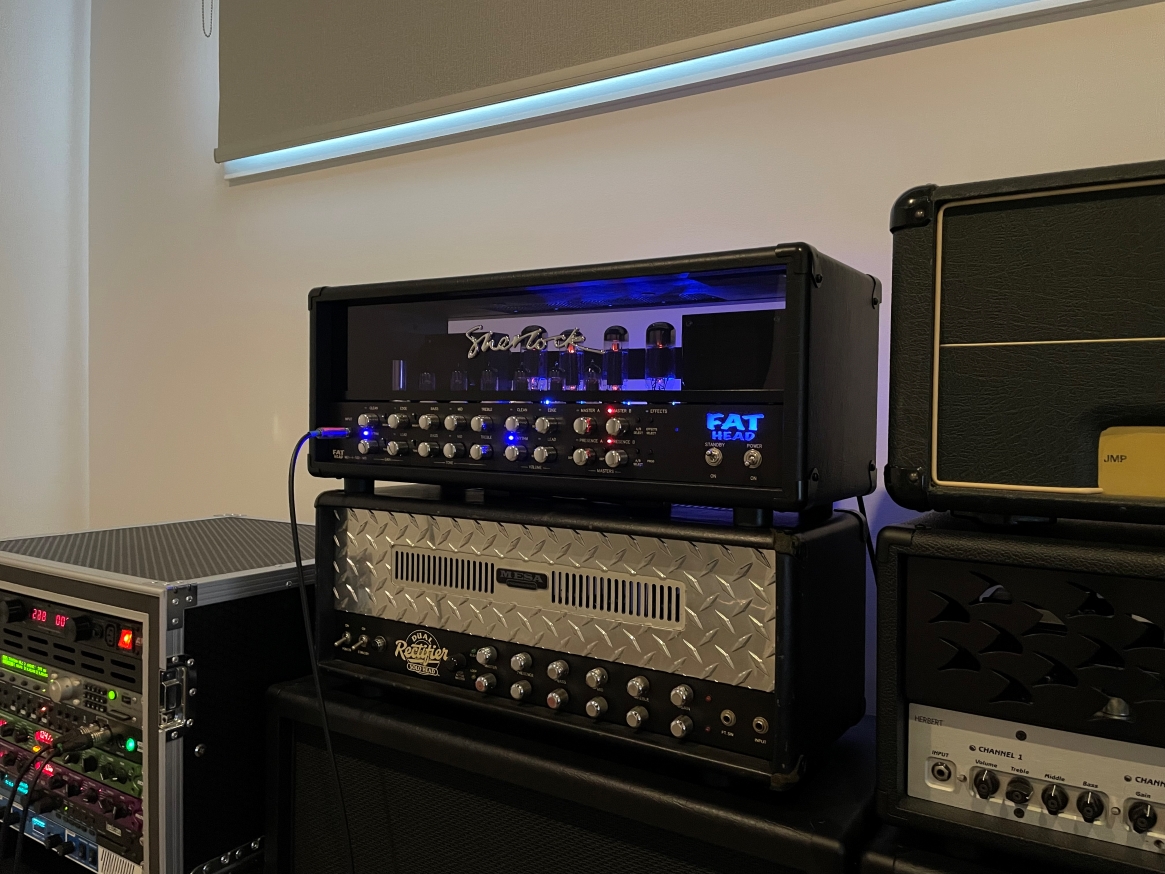

Not a very well known amp, even here in Australia.
Despite being around since the late 90s.
Sherlock definitely plays in the Diezel, Mesa Recto territories in terms of high gain. Tweaking to his taste.
Apparently ch2 gets more into Marshall but I need to test that.
Cleans are stellar too.

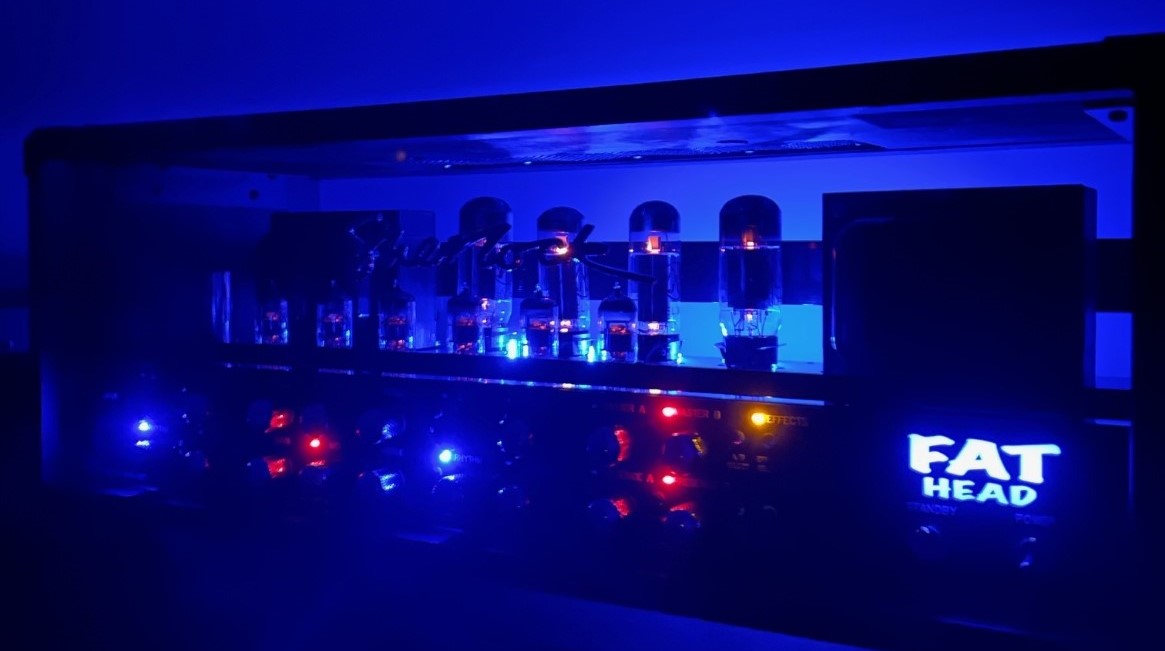

This one is fitted with 2 EL34s and 2 6L6s
Clips to come!
SPECS:
All tube technology, no solid state components in signal path.

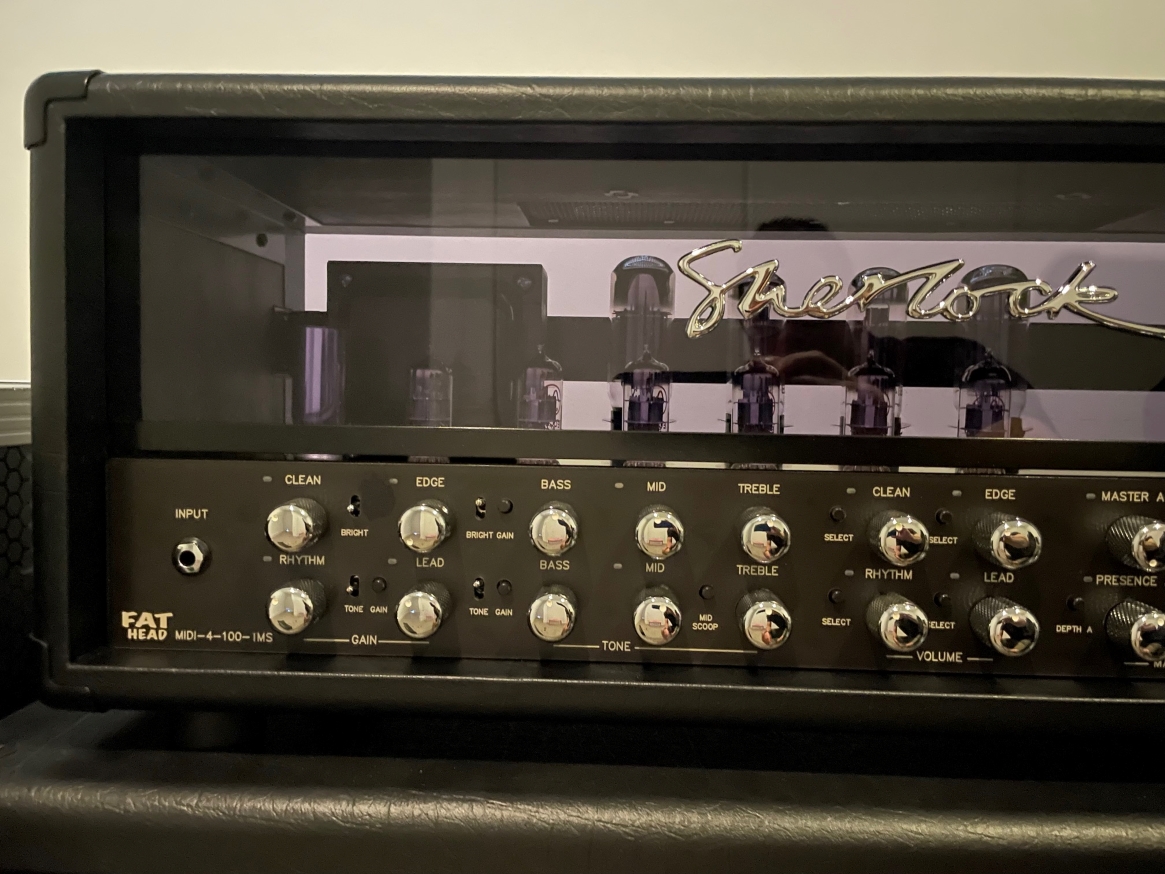

4 channels, Clean, Edge, Rhythm, and Lead (midi switchable).
Gain & Volume for all 4 channels.
6 tubes stages for the HI-Gain channels, 4 stages for the Edge, 3 stages for Clean channel.

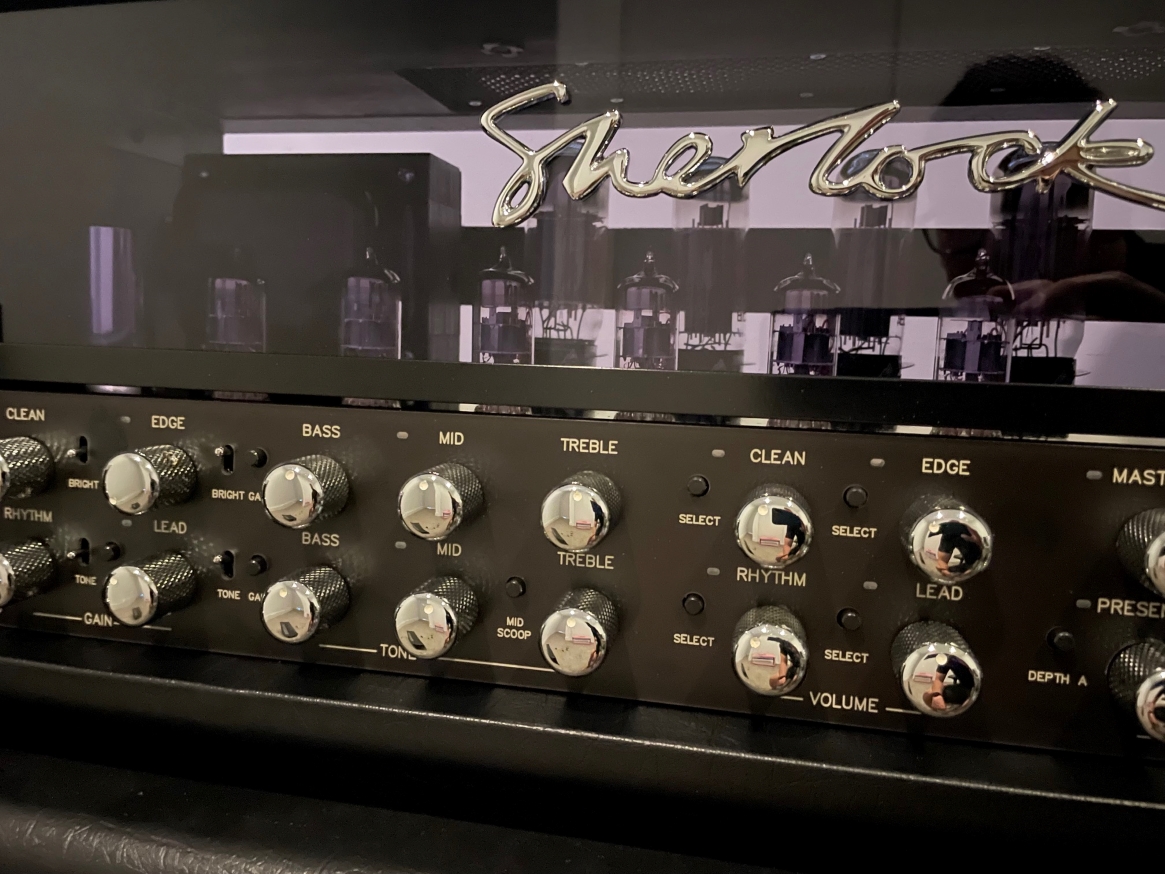

Separate EQ control, Bass, Mid & Treble for Clean/Edge channel, and for Rhythm/Lead channel.
Mid scoop for all 4 channels. (midi switchable)
3 position bright switch for the Clean channel.
3 position voicing switch for each of the 3 Dirty channels.
Gain boost button for each of the 3 dirty channels

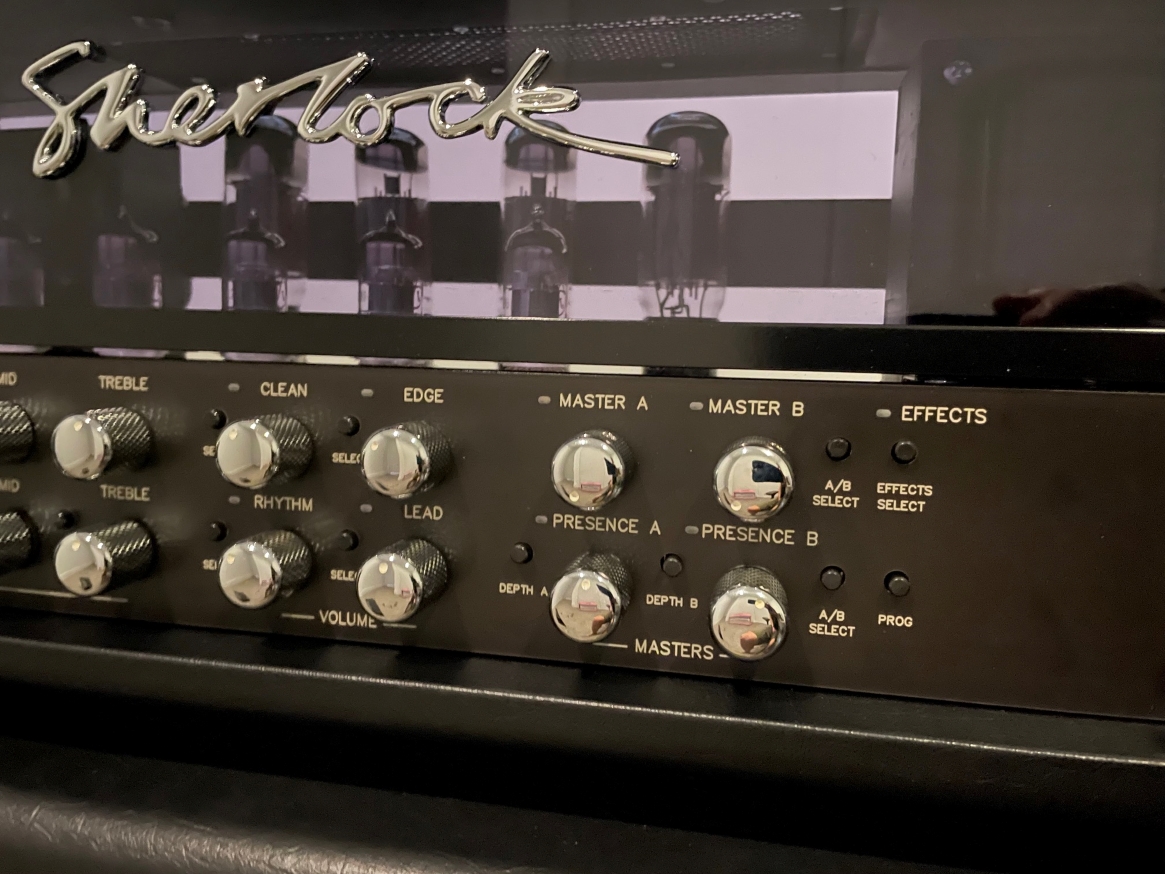

Dual Master Volumes (A or B) for volume boosting. (midi switchable)
Dual Presence, (A or B) (midi switchable), uniquely voiced with dual Depth buttons.
Effects loop bypass control (midi switchable)
Series/Parallel effects loop, with send and return level controls.
2 power modes, 100w / 50w, using 2 or 4 power tubes (part of TMS).
Choice of power tubes fitted, 6L6 or EL34 tubes or a paired combination.

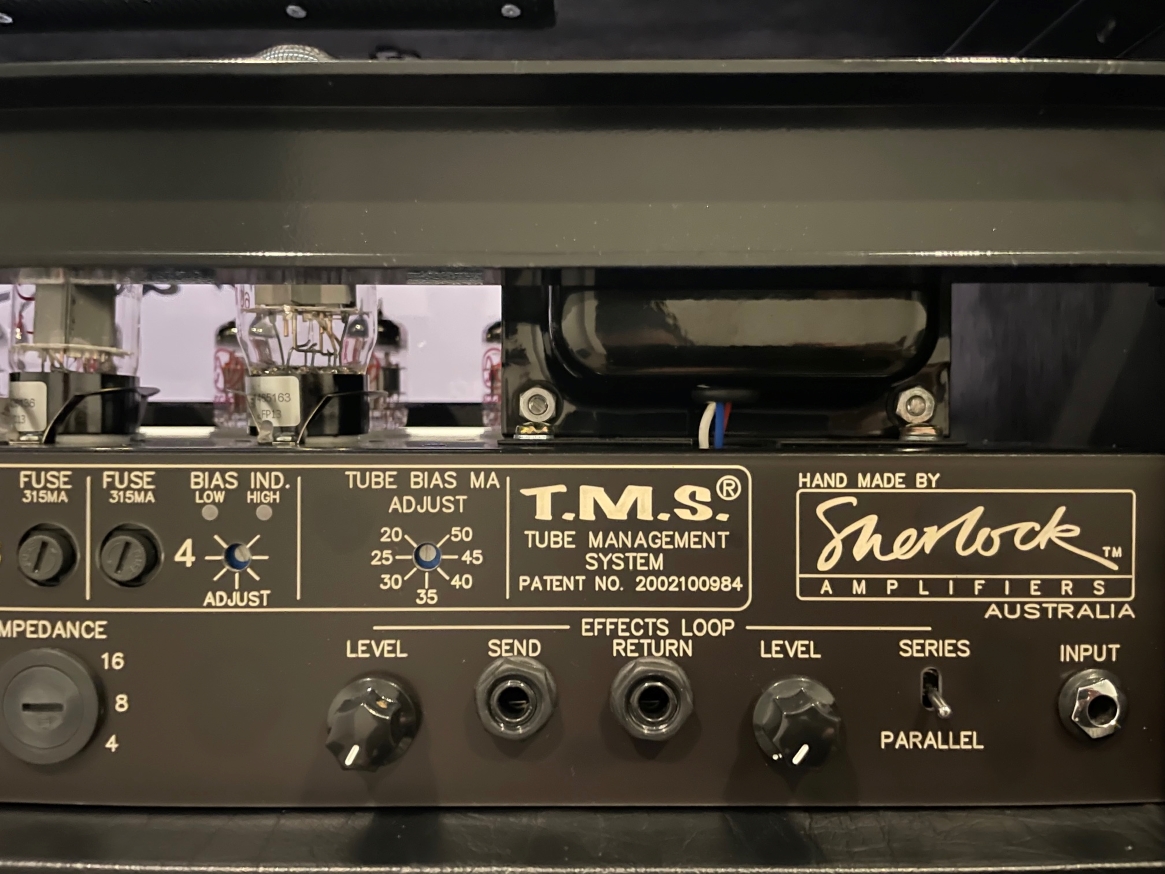

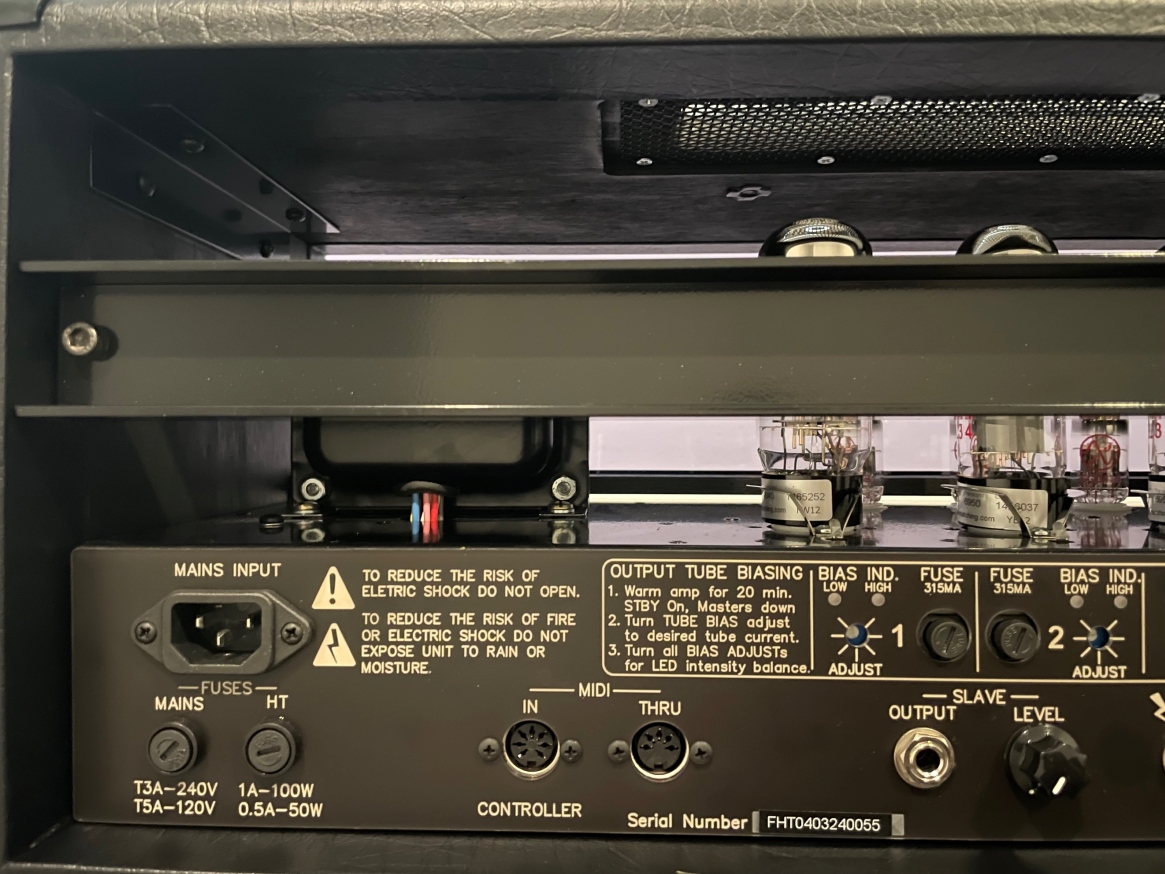

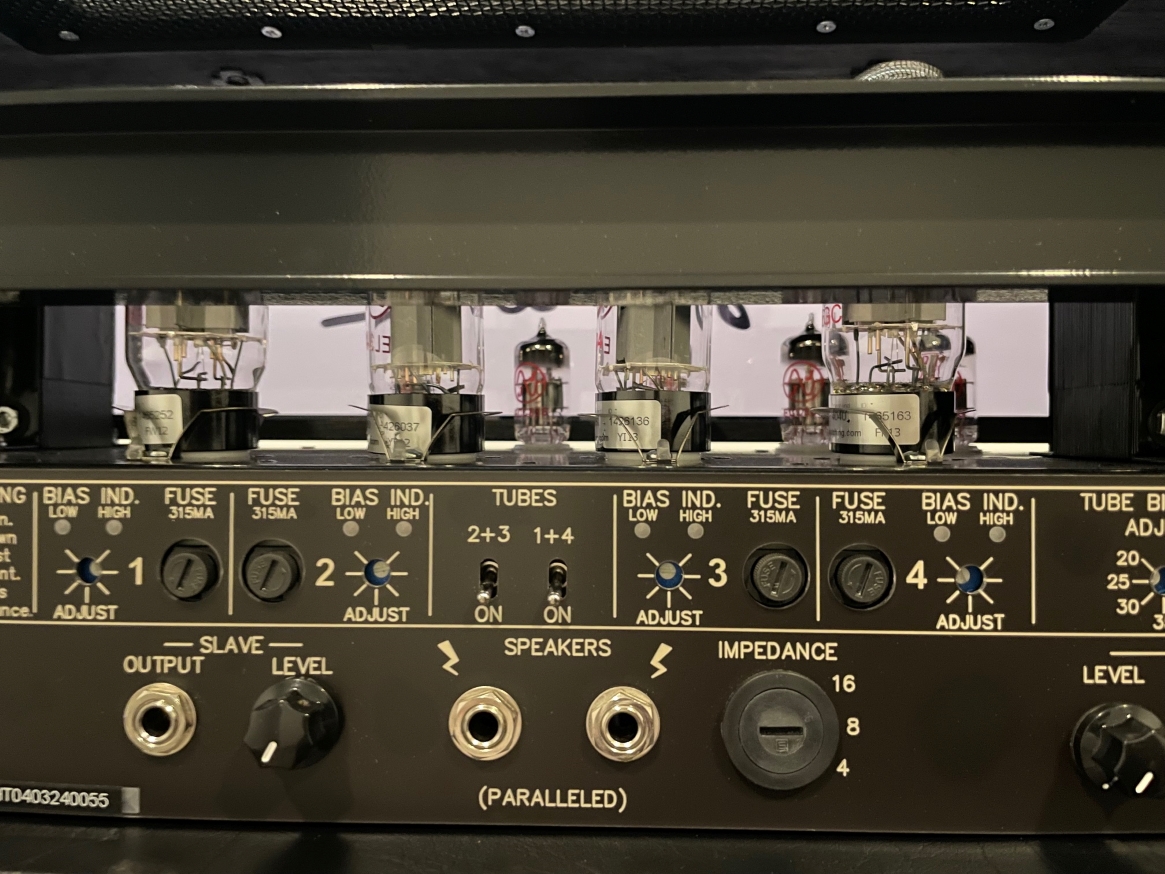

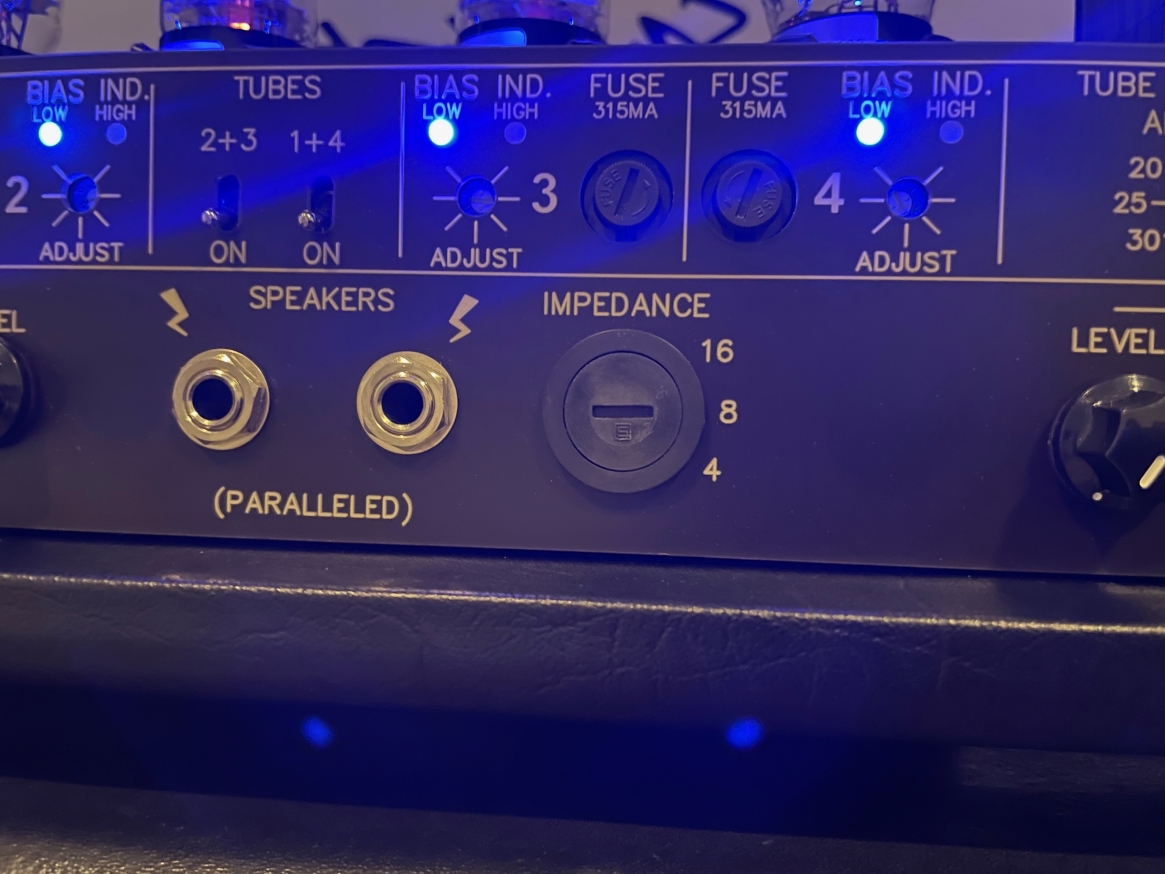

Tube Management System (TMS) Power tube Bias status indicator LED's, Bias adjustment Controls and cathode fuse for each power tube. Power tube set switches, i.e. tubes 1 & 4 on (50watt), or 2 & 3 on (50 watts), or all 4 tubes on (100watts), or all 4 off for pre-amp use only.
Despite being around since the late 90s.
Sherlock definitely plays in the Diezel, Mesa Recto territories in terms of high gain. Tweaking to his taste.
Apparently ch2 gets more into Marshall but I need to test that.
Cleans are stellar too.
This one is fitted with 2 EL34s and 2 6L6s
Clips to come!
SPECS:
All tube technology, no solid state components in signal path.
4 channels, Clean, Edge, Rhythm, and Lead (midi switchable).
Gain & Volume for all 4 channels.
6 tubes stages for the HI-Gain channels, 4 stages for the Edge, 3 stages for Clean channel.
Separate EQ control, Bass, Mid & Treble for Clean/Edge channel, and for Rhythm/Lead channel.
Mid scoop for all 4 channels. (midi switchable)
3 position bright switch for the Clean channel.
3 position voicing switch for each of the 3 Dirty channels.
Gain boost button for each of the 3 dirty channels
Dual Master Volumes (A or B) for volume boosting. (midi switchable)
Dual Presence, (A or B) (midi switchable), uniquely voiced with dual Depth buttons.
Effects loop bypass control (midi switchable)
Series/Parallel effects loop, with send and return level controls.
2 power modes, 100w / 50w, using 2 or 4 power tubes (part of TMS).
Choice of power tubes fitted, 6L6 or EL34 tubes or a paired combination.
Tube Management System (TMS) Power tube Bias status indicator LED's, Bias adjustment Controls and cathode fuse for each power tube. Power tube set switches, i.e. tubes 1 & 4 on (50watt), or 2 & 3 on (50 watts), or all 4 tubes on (100watts), or all 4 off for pre-amp use only.
