How did you wire that to switch between parallel 8 ohm mono, and stereo series 16 ohm/side operation without a switch or 3rd jack?
It uses a shorting jack, like this one.

https://www.stewmac.com/electronics...BnkfoYfof1qn8lelRXpTTcR-jL4e1rDhoCxmwQAvD_BwE

Basically, you wire each speaker to a jack, and then jump the positive from the regular jack to the shorting lead on the shorting jack, and connect the negative leads on the speakers together. When the regular jack is used alone, you run both speakers in parallel. When you just use the shorting jack, it splits them and you get one speaker in mono. Using both give you each speaker in stereo, since using the shorting jack breaks the connection and separates the circuits.

I don't trust this arrangement, but I did consider it in my home 4x12 for testing stereo circuits.


Here Is my Voodoo 2x12 with Celestial vintage 30s. (along with my Rig Talk plank cranker from back in the day). I have my Bob Savage CD somewhere on the piano.

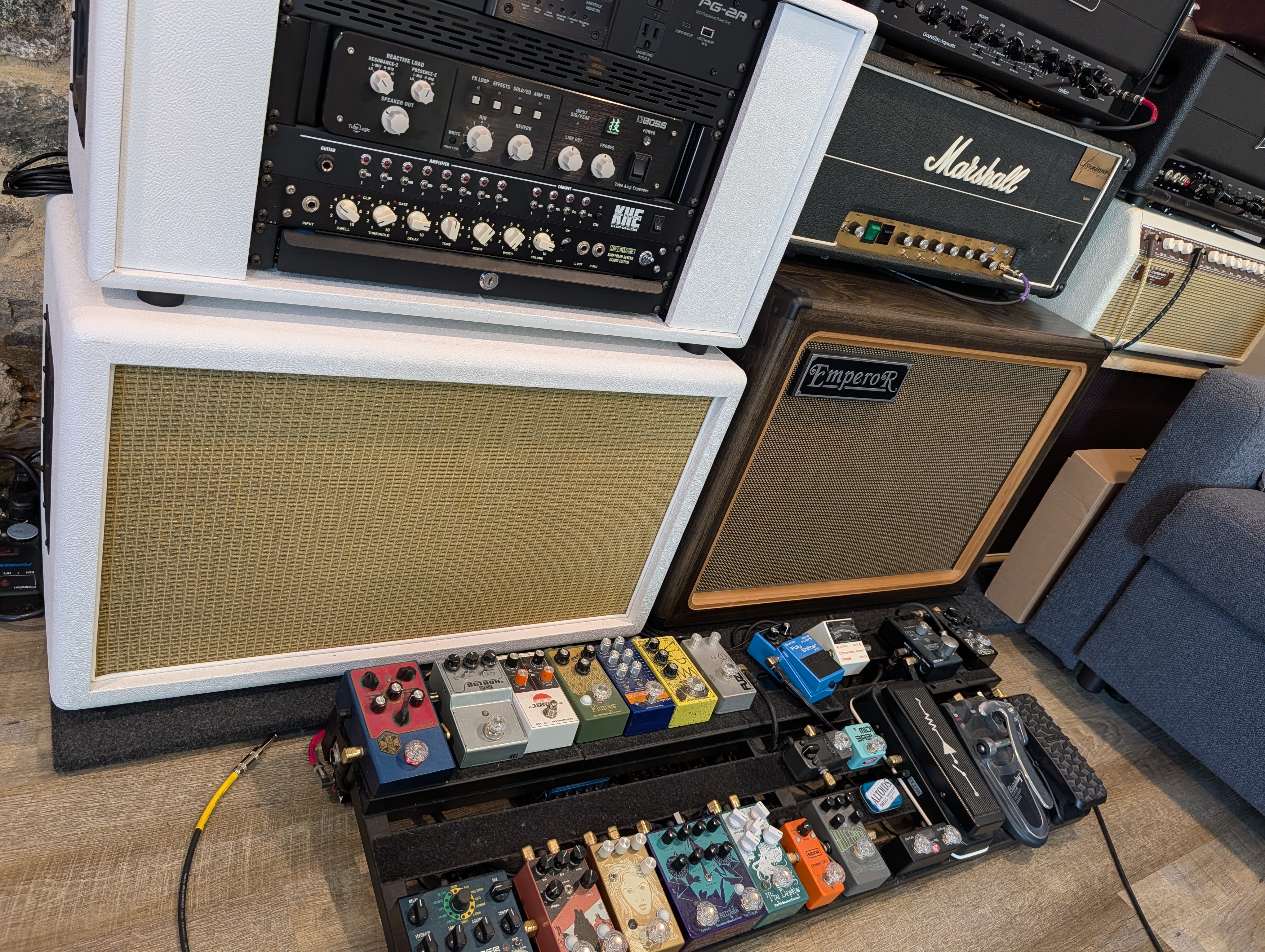

I've got 3 all wired in stereo from a KHE switcher, so it lets me mix and match speakers across cabs. All the speakers are 16ohm.


  • Sourmash custom cab to Mesa Trad 212 specs
    • Scumback M75
    • Celestion Alnico Cream
  • Emperor custom 212RS
    • Mesa V30
    • Eminence Karnivore
  • Old Jenkins custom cab (hidden behind a couch)
    • Weber Ceramic Cali 12 (Aluminum)
    • Empty - Currently looking for a 16 ohm EVM 12L

I mainly do 412 or larger, but do have a couple 212's

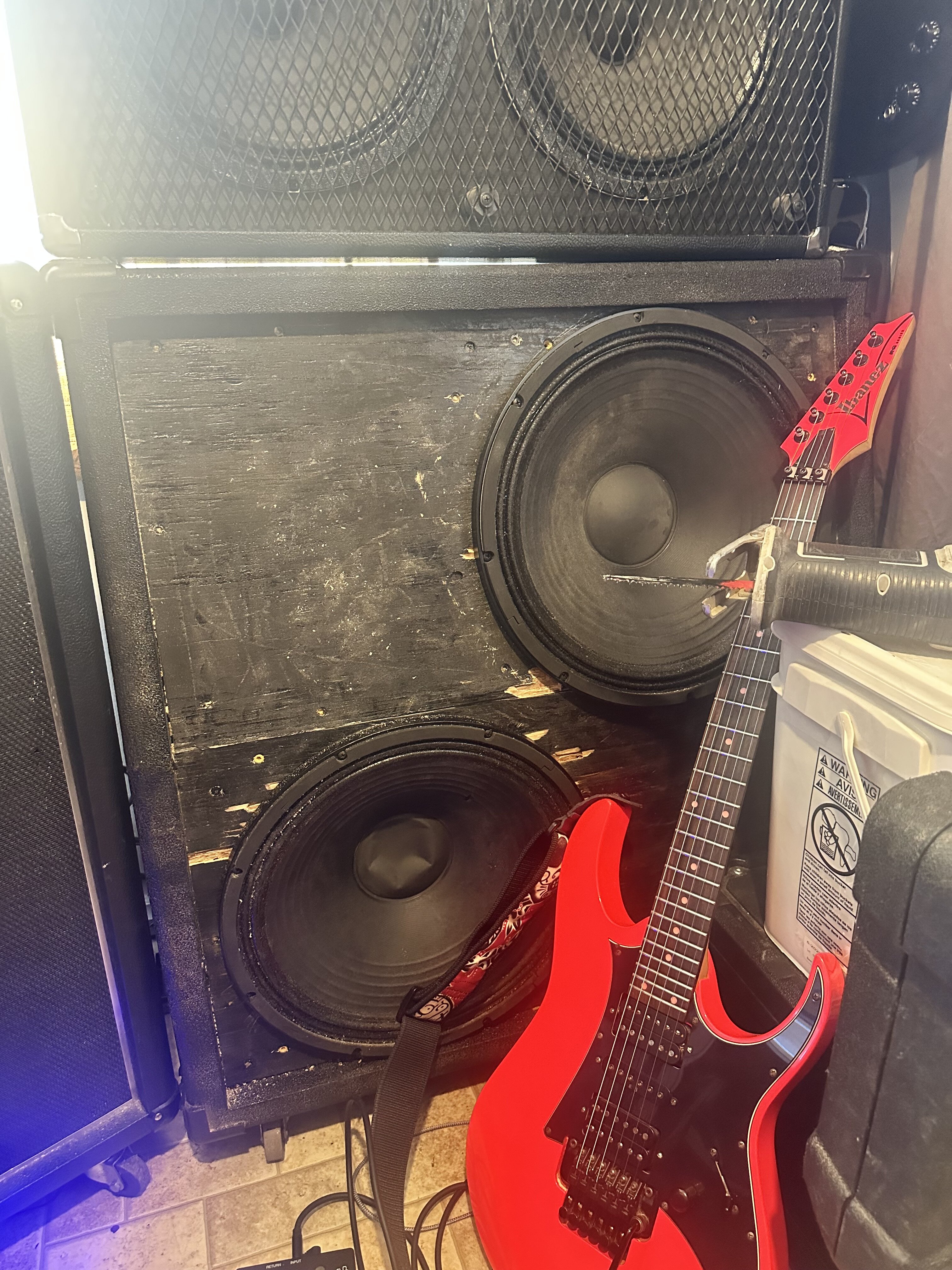

Pair of Eminence 212's and one that I build myself.
I may make a new baffle for the one I built to turn it into a 112/115, but I'm not sure

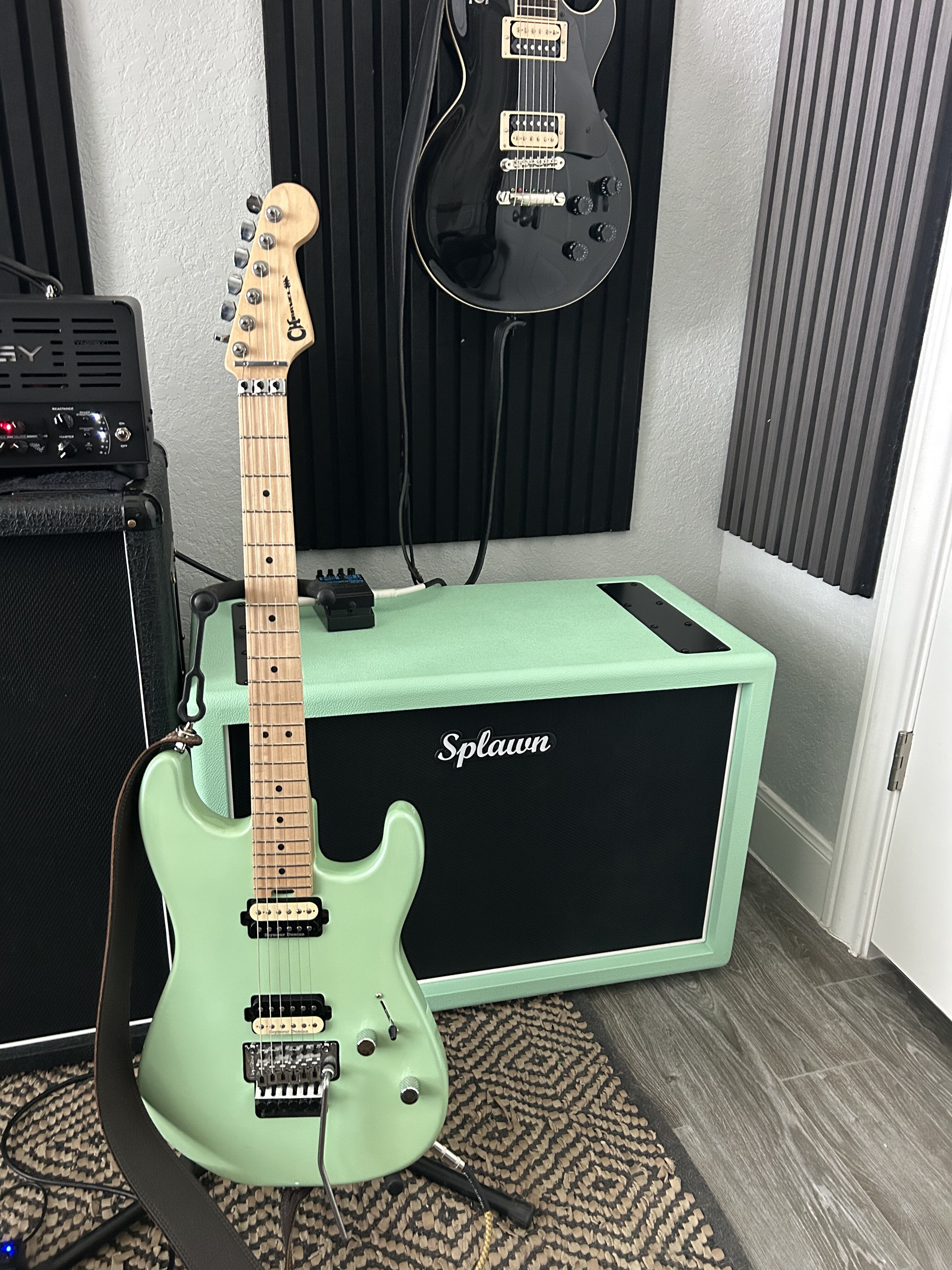

I’ve owned a bunch of 2x12’s..:Splawn, avatar, VHT, Bogner C. What’s crazy is I prefer the thinner wood ones.

If I was to go this route again, I’d def try a slanted vertical cab. Never tried one, but I saw a guy playing where I work with a slanted mesa 2x12 and a Soldano Astro20. Sounded really good.

My Panama 2x12 with a convertible back. It also has a fitted front cover.

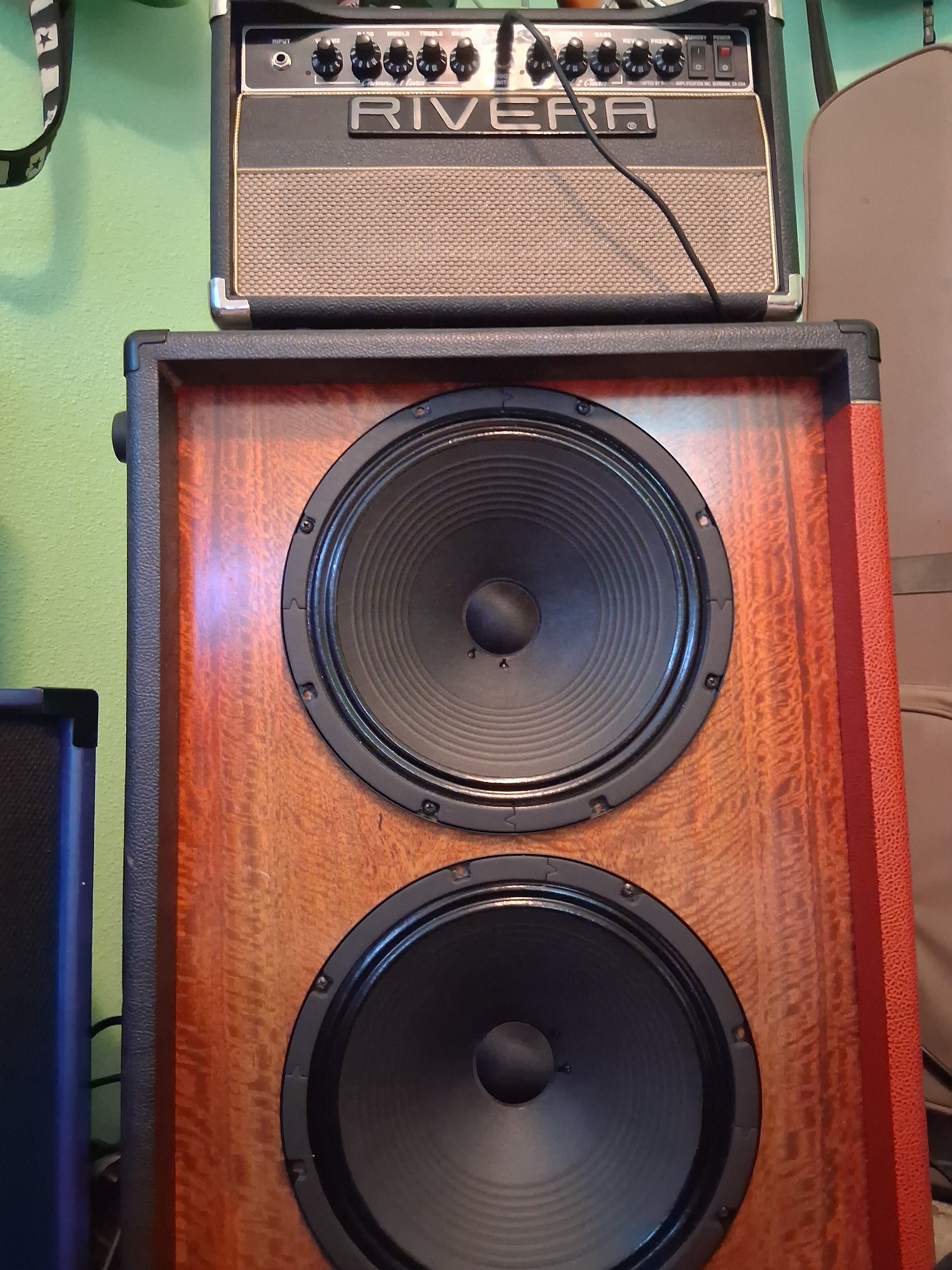

Mike originally made these tall open-back 2x12's to go with the Lucky13 heads, but they're awesome with SLOs if you're indoors...



My other 2x12 is a conversion that I did on a Dirty Shirley 1x12....

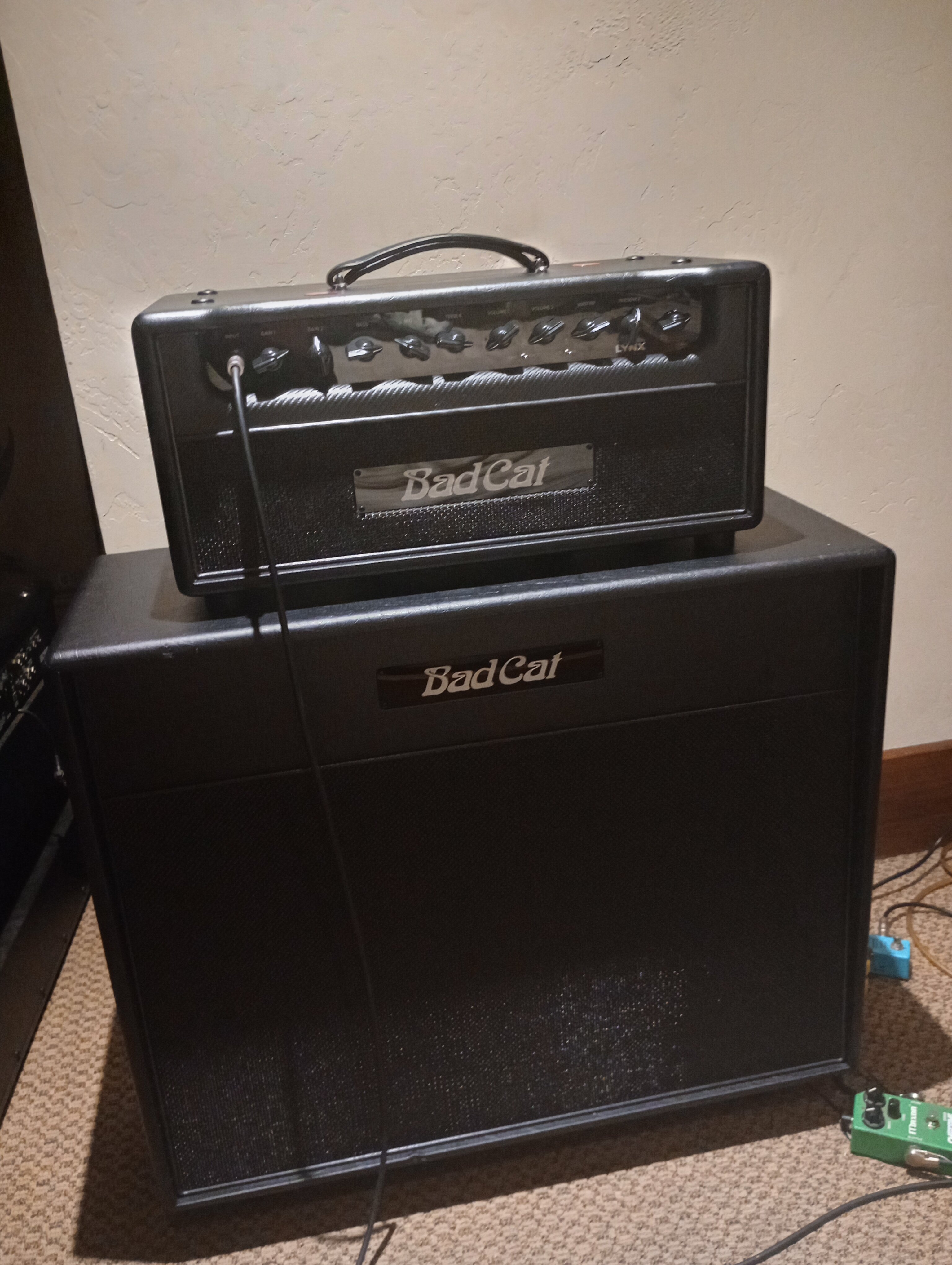

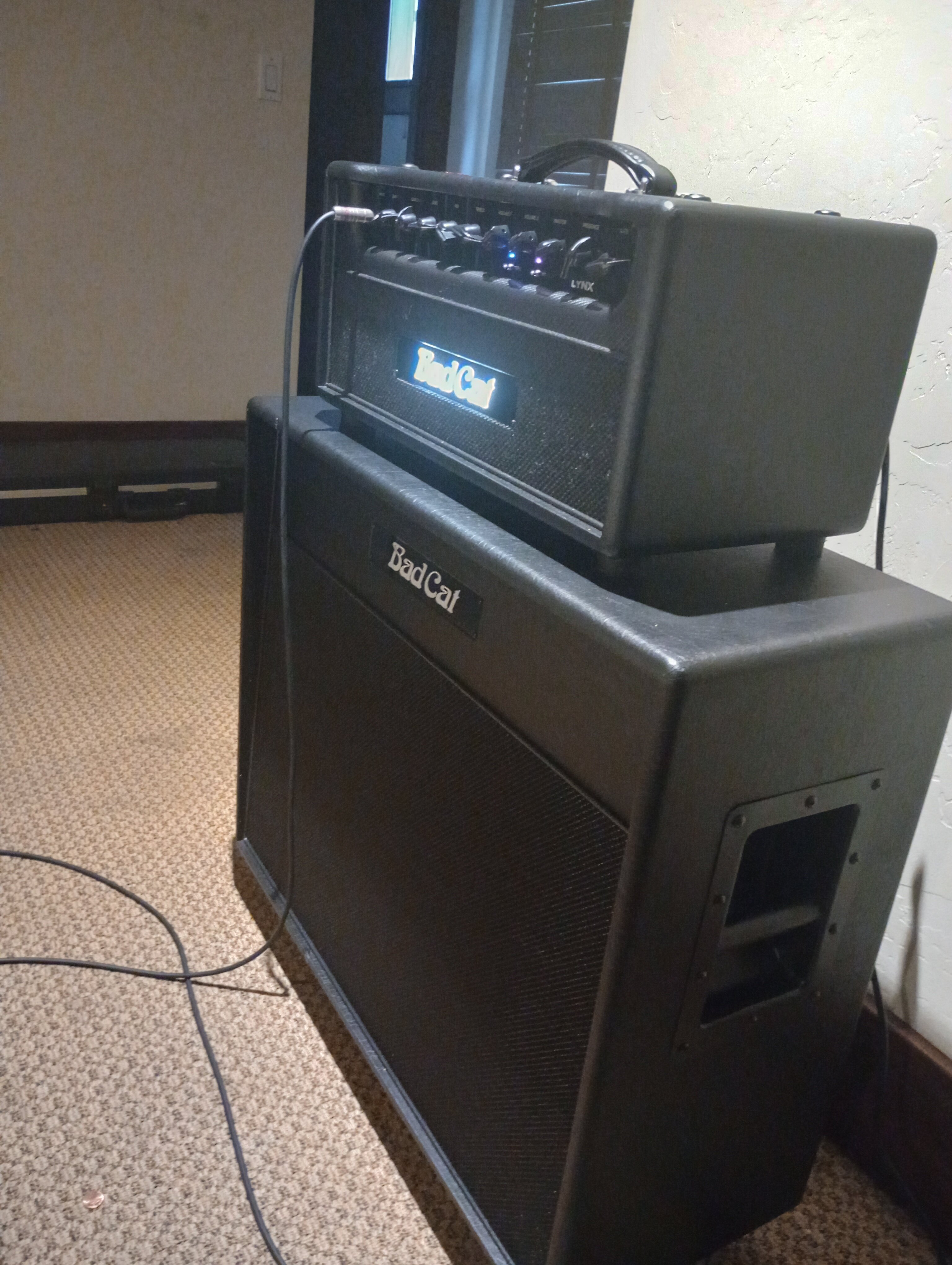

Really digging these UK V30s and so glad they come in the Bad Cat cabs.


Thing sounds great as well and friggin amazing I have to say. The oversized cab really does push air and hold it's low end nice and tight like a peach/apple bottom *_*

Also compared to my Chinese Greenback in my AC15 relaxed highs, warmer/darker, handles lows better and massive bottom end and there is an upper mid range thing but tighter and not as mid rangey as the Greenbacks but the lower upper mids are more scooped so it evens out well.


Overall they are fucking great, very supple and smooth attack in the low end and very humble highs and well behaved mid range. Want to say not less boxy but less woody than the Greenback, more quiet because there is more headroom even though the the V30 has a higher sensitivity the higher headroom gives more flexibility and room to breath. I want to say the Greenback, 112 in this case, kind of had more perceived gain/volume since it's lower wattage and gets pushed earlier to breakup but the headroom is where difference mainly lies and when using more gain the V30s are the clear winner. For lower mid gain and clean tones I want to say it's even and the Greenback kind of gets an edge there but the V30 is a good all rounder here and excels in higher gain and higher volumes in general.....


The Greenback has more bounce to it, the V30 was dryer relative to one another but overall both very supple and lively. So the Greenback will cover up more flaws with a more pronounced mid range in playing while the V30 may be a bit more unforgiving with a warmer yet defined overall texture.


In either case the UK V30 is more "boutique" sounding for lack of a better term or how do I say..... Requires finesse too but overall has the goods and the goods it delivers especially in higher gain.


But the mids here on the UK V30 is where it's at, they aren't so bloaty or full range like on the Greenback and more scooped by comparison, there is also a resonance and bell like tone to them that pairs nicely with the accentuated lo end and relaxed highs.

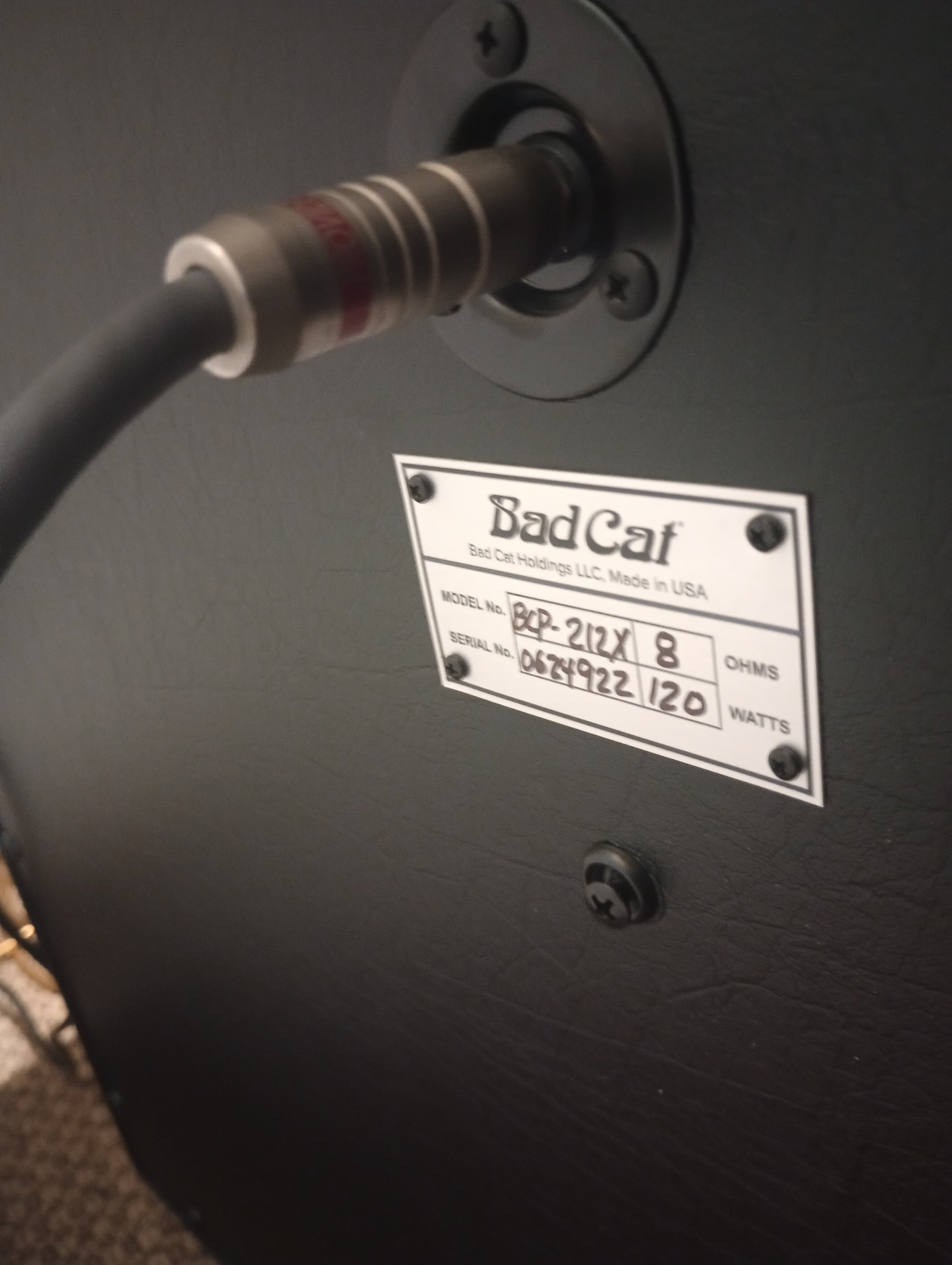

Compared the AC15C1 stock Chinese Greenback to the Bad Cat UK V30s as I could run the AC15C1 off its own speaker or use an extension such as the 212 Bad Cat Lynx which I did in this case.
