Techdeth
RESIDENT ROCK PROFESSOR
Looks amazing man !
blackba
Well-known member
You got the graphics down. That is what I struggle with the most when building pedals.
PBGas
Well-known member
Nicely done! Those look great!
japetus
Well-known member

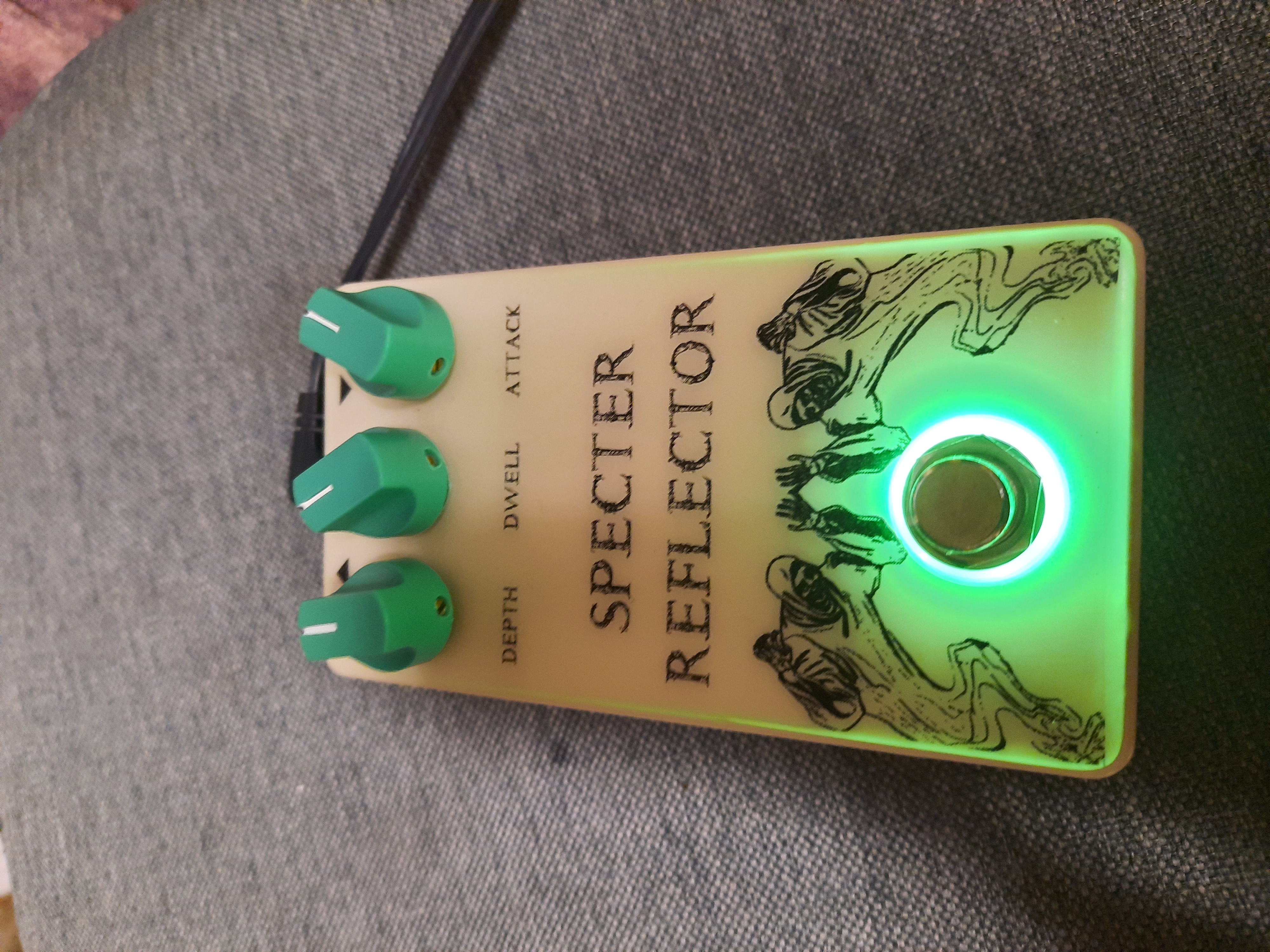

You have some very cool designs. I really love the look of that Specter Reflector pedal.
mooncobra
Well-known member
So are these your own designs? I know nothing about building even the simplest of pedals. Wish I did. I would especially love to build a killer amp.
JackBootedThug
MURDERATOR

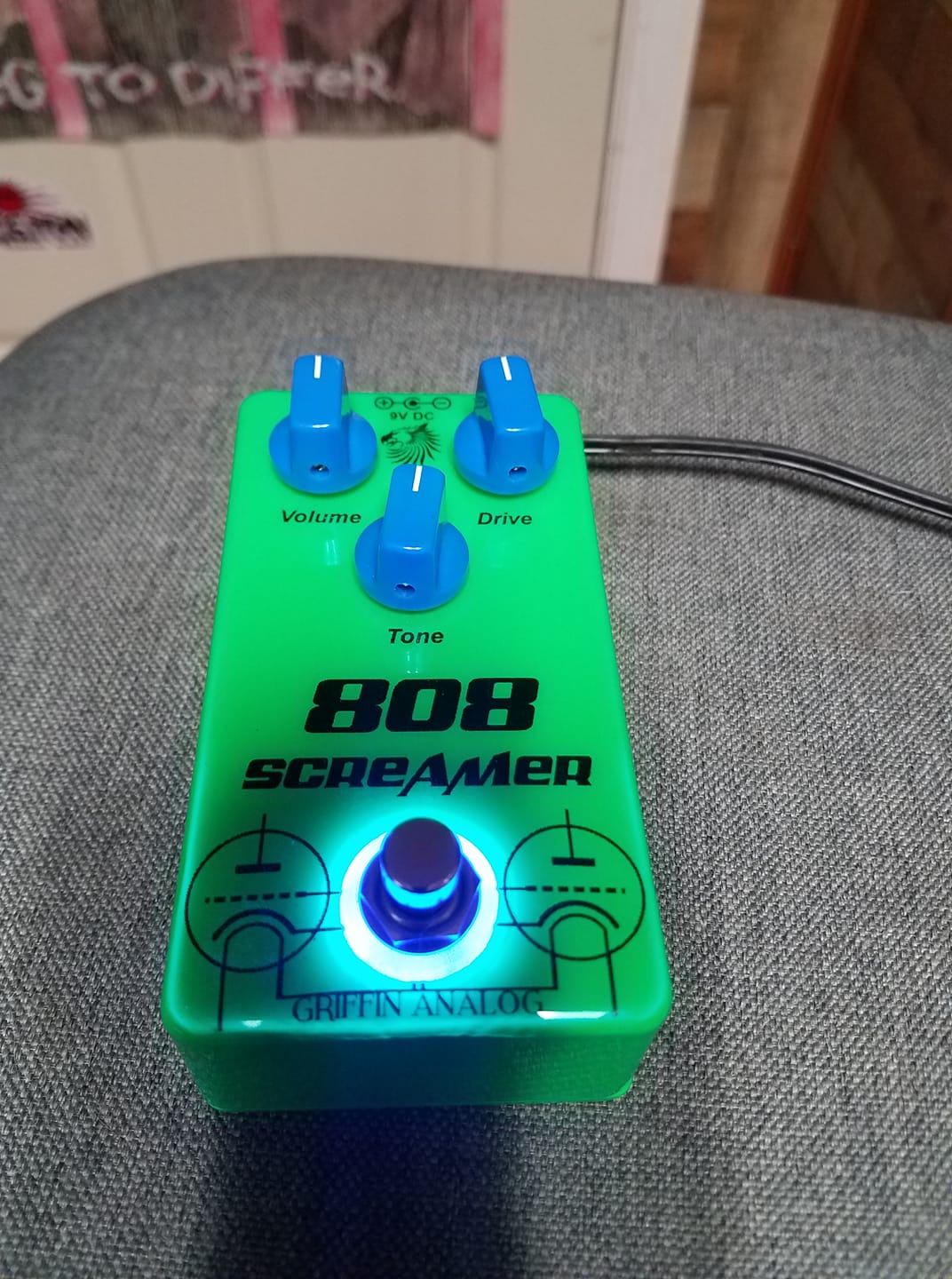

can't wait to get that screamer.
griff10672
Well-known member
took me a lot of trial and error and practice .......
griff10672
Well-known member
that is actually a EQD Ghost Echo clone ......
griff10672
Well-known member
circuit wise ..... some of them are tweaked clones of pedals I thought were cool .... and some of them are straight up clones ...
graphics wise ..... it's all me .... and the names that's me too .
bubbastain
Well-known member

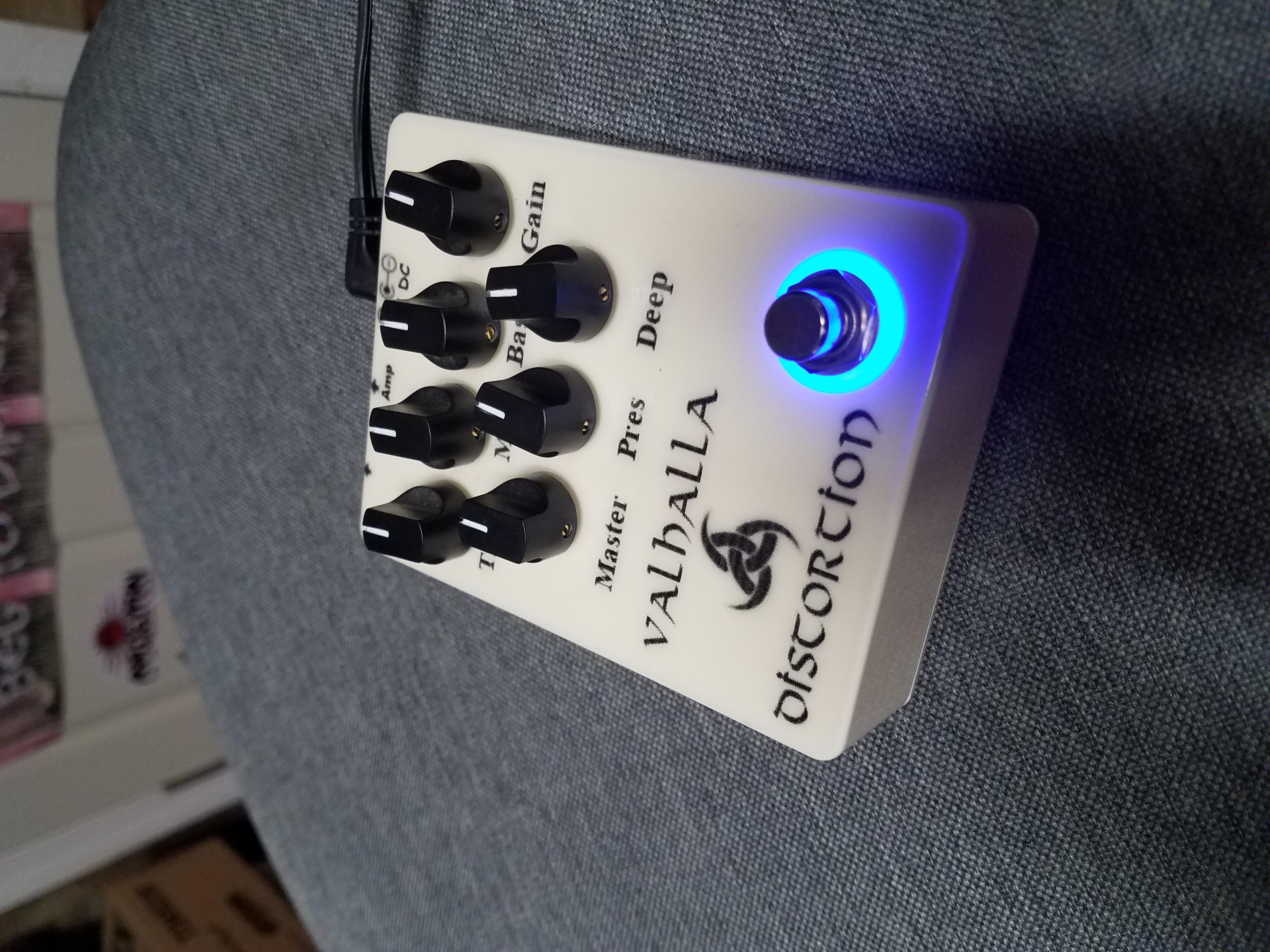

Info on the Valhalla Distortion? Seems to have all the proper controls.
griff10672
Well-known member
it is a Diezel VH4 clone .....
JackBootedThug
MURDERATOR
WHAT?
griff10672
Well-known member
lol ..... yup .... Diezel VH4 clone .... even has a preamp out jack as well as a standard just like the original .... plug that sucker right into your effects loop return ....
JackBootedThug
MURDERATOR
well sumbitch. how does that sound? clone channel 3?
romanianreaper
Well-known member
That Specter Reflector is badass looking! Looks awesome with the light!
griff10672
Well-known member
supposedly ..... it's got so much gain it hard to harness .... it's not the greatest clone ... it's a Pedal PCB board ... and it can squeal on you if you have the gain to hot ..
griff10672
Well-known member
Thanks !
F
Flexibleguy67
Banned
Member
Looks good, well done
