griff10672
Well-known member
That's not a skid mark. ... its a rug burn ....oh gawd, that is disturbing. I can almost smell the skidmark on his forehead.
JackBootedThug
MURDERATOR
Starting with the volume pot and my meter on 2k resistance I’m getting a reading of 1.33 on one lug and 1.36 on the other lug. Ground on center lug and twist the knob each time each lug is tested. On the tone pot I’m getting no reading on either lug. So is my tone pot dead
?
?
griff10672
Well-known member
put a cable into your guitar ..... at the end of theother end of the cable touch your MM Black to the sleeve of the plug .... and touch the red to the tip ....Starting with the volume pot and my meter on 2k resistance I’m getting a reading of 1.33 on one lug and 1.36 on the other lug. Ground on center lug and twist the knob each time each lug is tested. On the tone pot I’m getting no reading on either lug. So is my tone pot dead
do this with your humbucker selected
why would you have your meter on 2K ??? what are your pots ?? 250K or 500K ??
2K is well under what ever you should be reading ........
anyway ... set your MM higher ..... and then take the reading I explained ...
JackBootedThug
MURDERATOR
500…. Gotcha… sorry I’m a rookie….let me touch thy garments-fucker….
griff10672
Well-known member

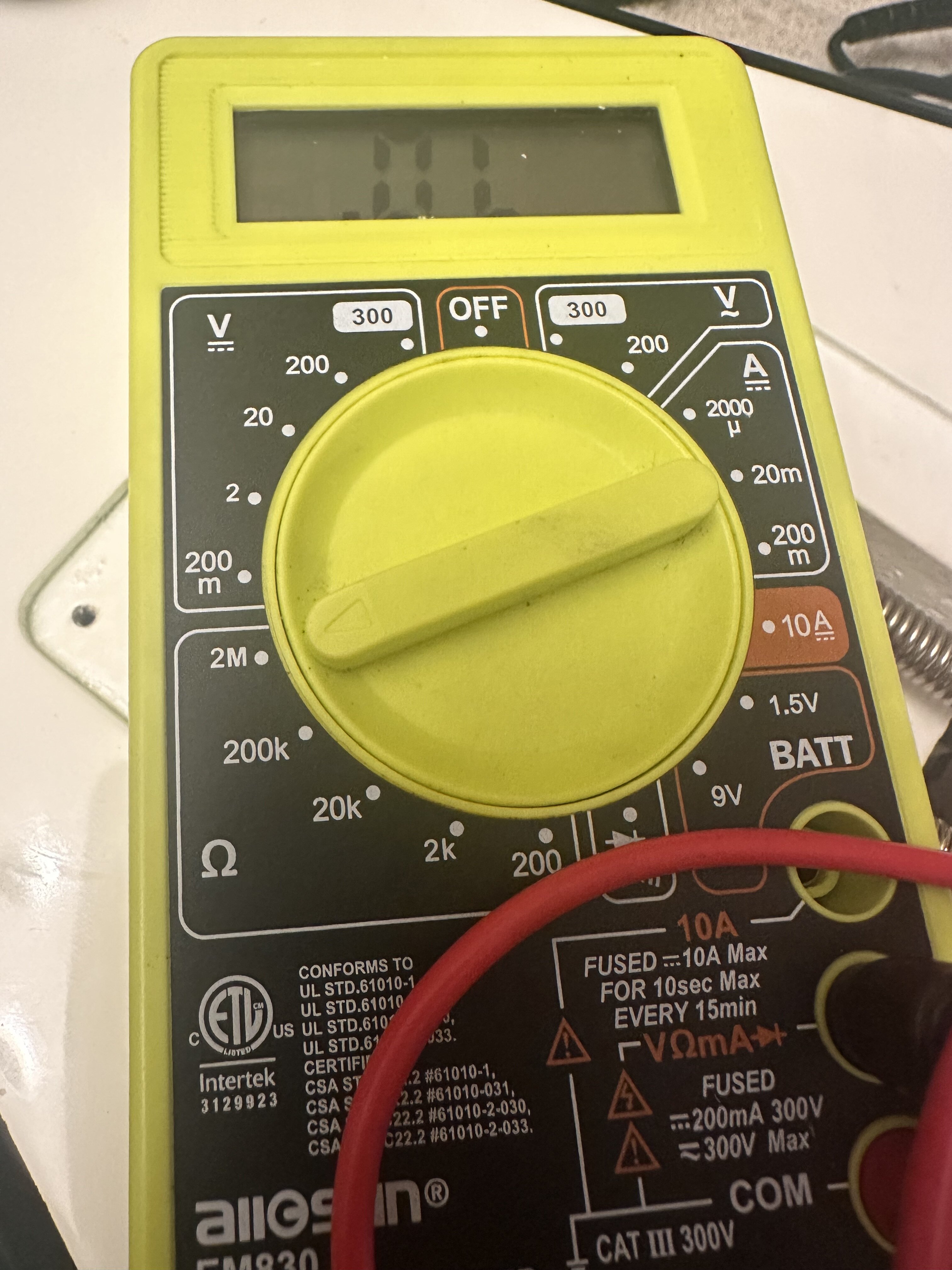

post a pic of where you have your meter set500…. Gotcha… sorry I’m a rookie….let me touch thy garments-fucker….
JackBootedThug
MURDERATOR
So I readjusted my meter. Now the tone pot is reading perfect but the volume is not giving me a reading…hilarious…
JackBootedThug
MURDERATOR
JackBootedThug
MURDERATOR
Volume knob is toast.
griff10672
Well-known member
turn the volume and tone all the way up ..... plug in like I told you .....select the humbucker .... take the reading at the end of the cable
griff10672
Well-known member
or it's grounded out ........ check each lug for continuity to ground ... before giving up on the pot
JackBootedThug
MURDERATOR
VICTORY
…. Got the replacement pot in this morning and after much cursing and acting like a child it lives. Kept getting a horrible ground until I switched the output jack wires. I had them backwards thinking that was my issue a few days ago and forgot to swap them back again. Now I have to order new back plates because they got lost thanks to Mrs thug…..but like I said…it lives….
…. Got the replacement pot in this morning and after much cursing and acting like a child it lives. Kept getting a horrible ground until I switched the output jack wires. I had them backwards thinking that was my issue a few days ago and forgot to swap them back again. Now I have to order new back plates because they got lost thanks to Mrs thug…..but like I said…it lives….
JackBootedThug
MURDERATOR
I would like to thank master bezo for helping this padawan learn the ways of pups…. And also Dan Travis for being my spiritual advisor through this trying time… and always…my boo… the one and only-japetus….
JackBootedThug
MURDERATOR
And Wayne for not laughing with me but for laughing at me….
