JackBootedThug
MURDERATOR
Moderator
hotter than fuck….
JackBootedThug
MURDERATOR
Moderator
I couldn’t find that anywhere. It kept giving me the option with the fucking push/pulls….
griff10672
Well-known member

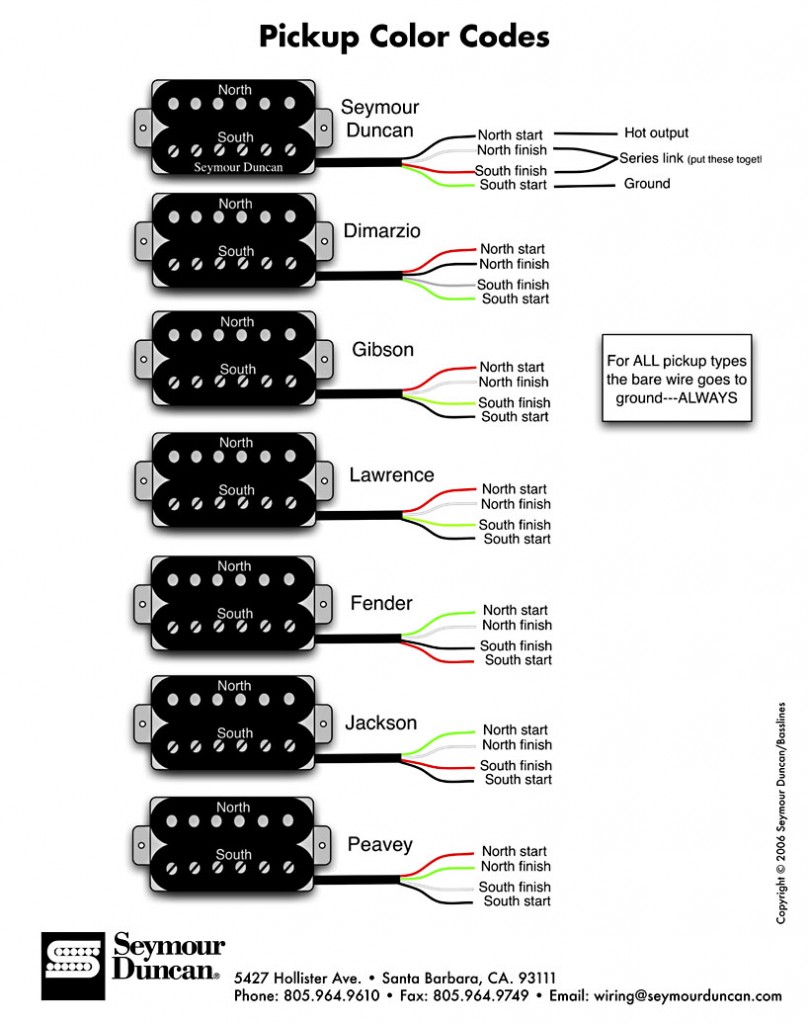

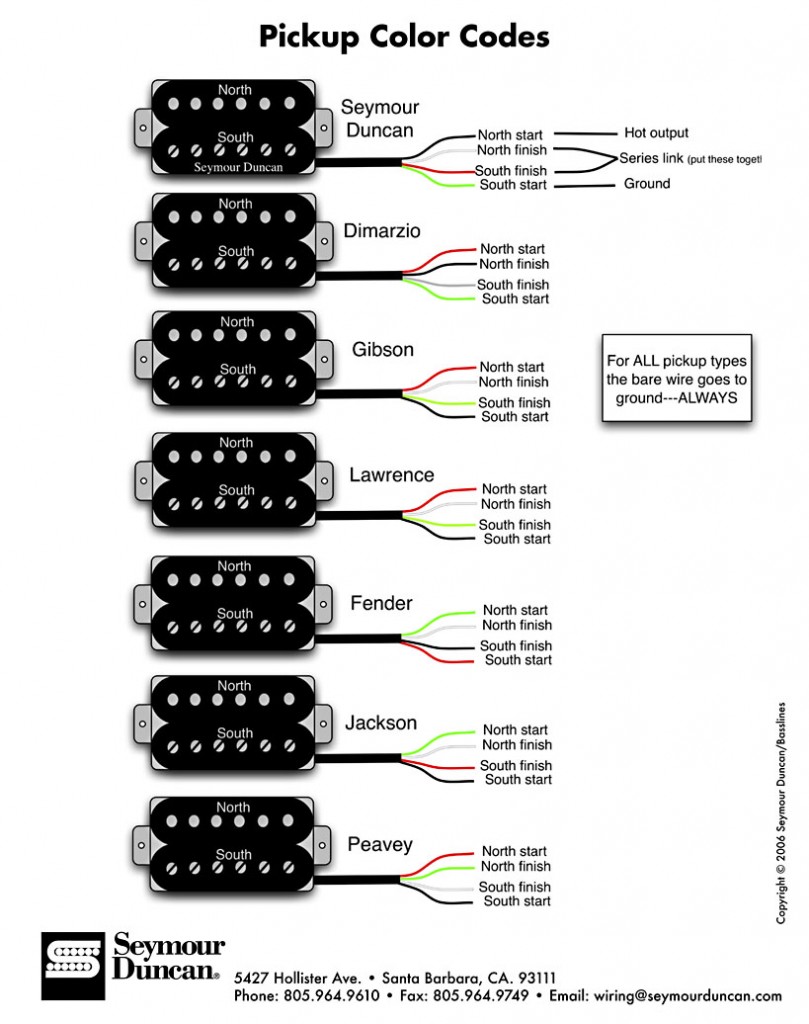

that diagram you posted is that of one of the pickups ??? If so ...
where the hell did you solder the red and green wires to ..... if you're not using a push pull pot ???
where the hell did you solder the red and green wires to ..... if you're not using a push pull pot ???
JackBootedThug
MURDERATOR
Moderator

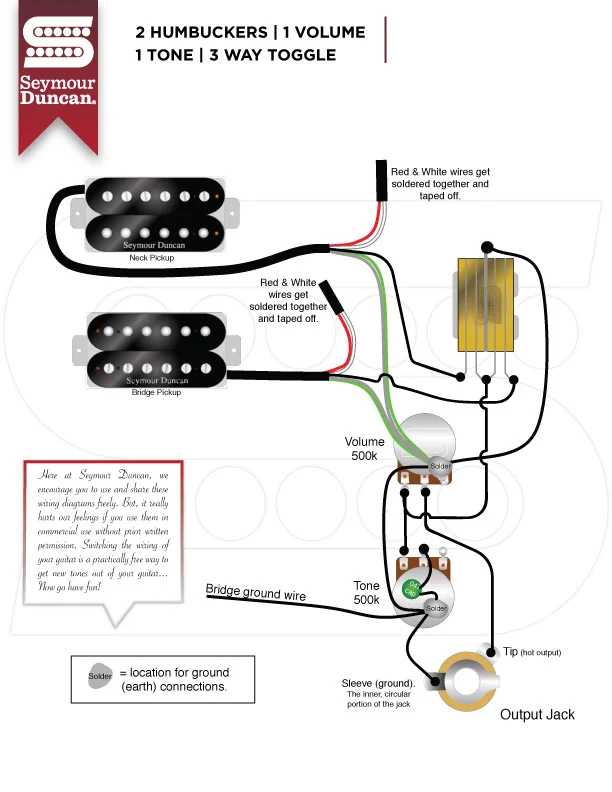

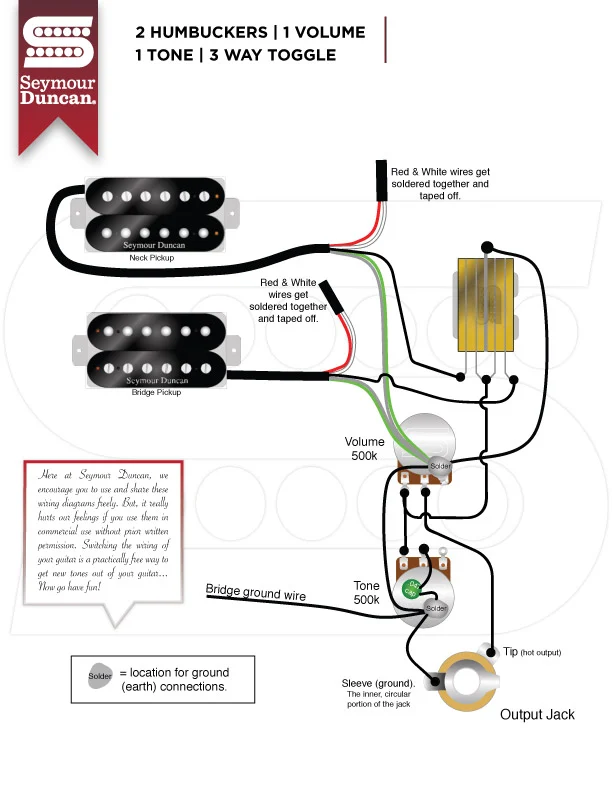

Red and white I soldered together and taped off. Green and bare soldered together to the back of the volume. Black to toggle. How does this look?
JackBootedThug
MURDERATOR
Moderator
Mother fucker looked dipped…I’m rolling with dubs for volume and tone….or better yet-WITNESS ME!!! ALL SHINY AND CHROME…
Alpha Stryke
Well-known member
Black is hot. should go to wiper of volume pot.
I always use a practice amp & a jumper wire to touch terminals until i get sound when having problems wiring.
griff10672
Well-known member
you said they were two different brand pickups ..... do you have diagram for the other pickup that isn't a Seymour duncan ?
or is that the one with the braided shield and only a hot wire ?
JackBootedThug
MURDERATOR
Moderator
JackBootedThug
MURDERATOR
Moderator
Why was I yelling?
JackBootedThug
MURDERATOR
Moderator
And no output.
V
VonBonfire
Well-known member
Make sure your ground is good.
The first go round is always a sumgun. Keep trying Steve. Once you get it down I'll send you my ES and you can rewire that for me!
Alpha Stryke
Well-known member

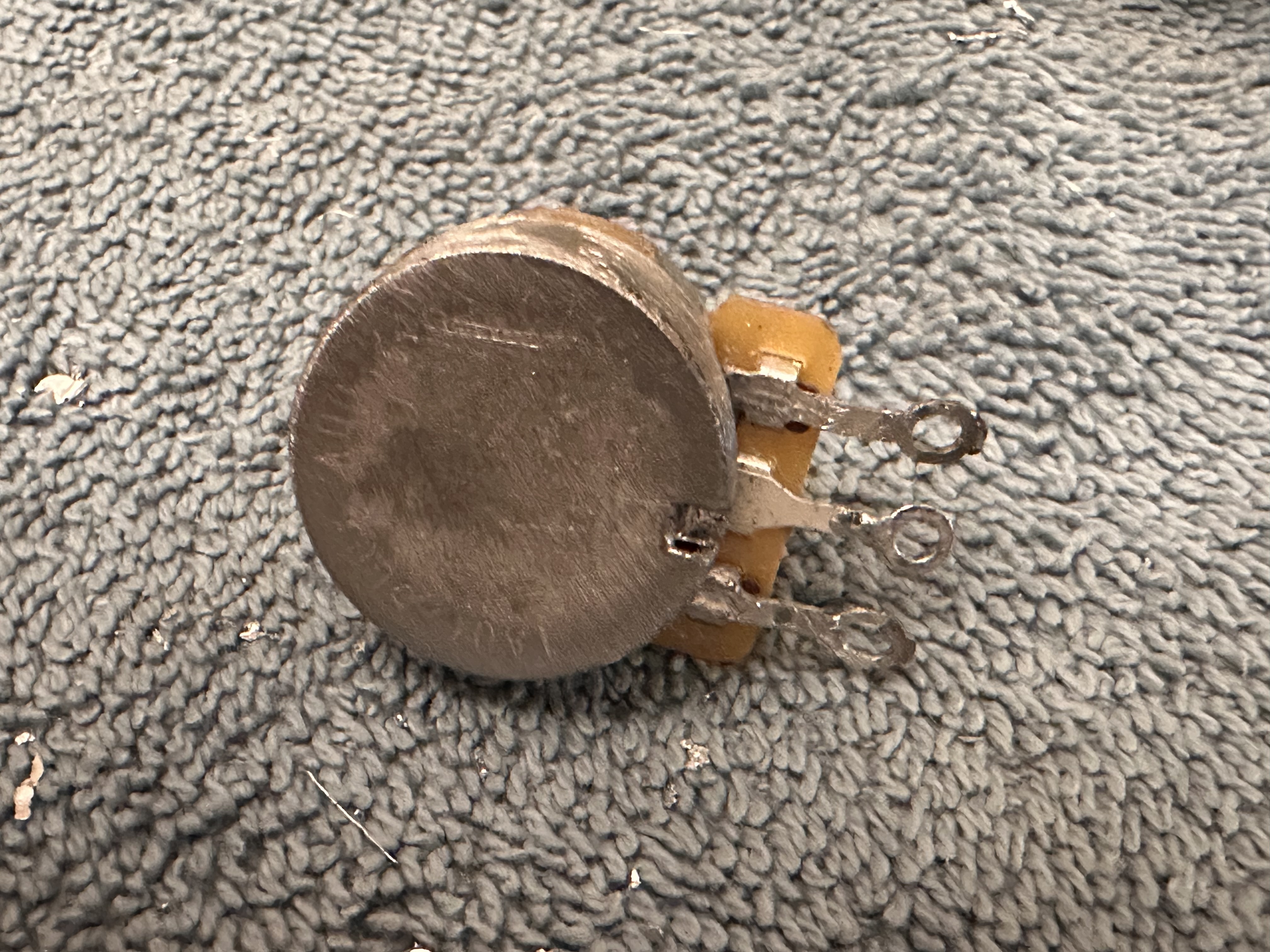

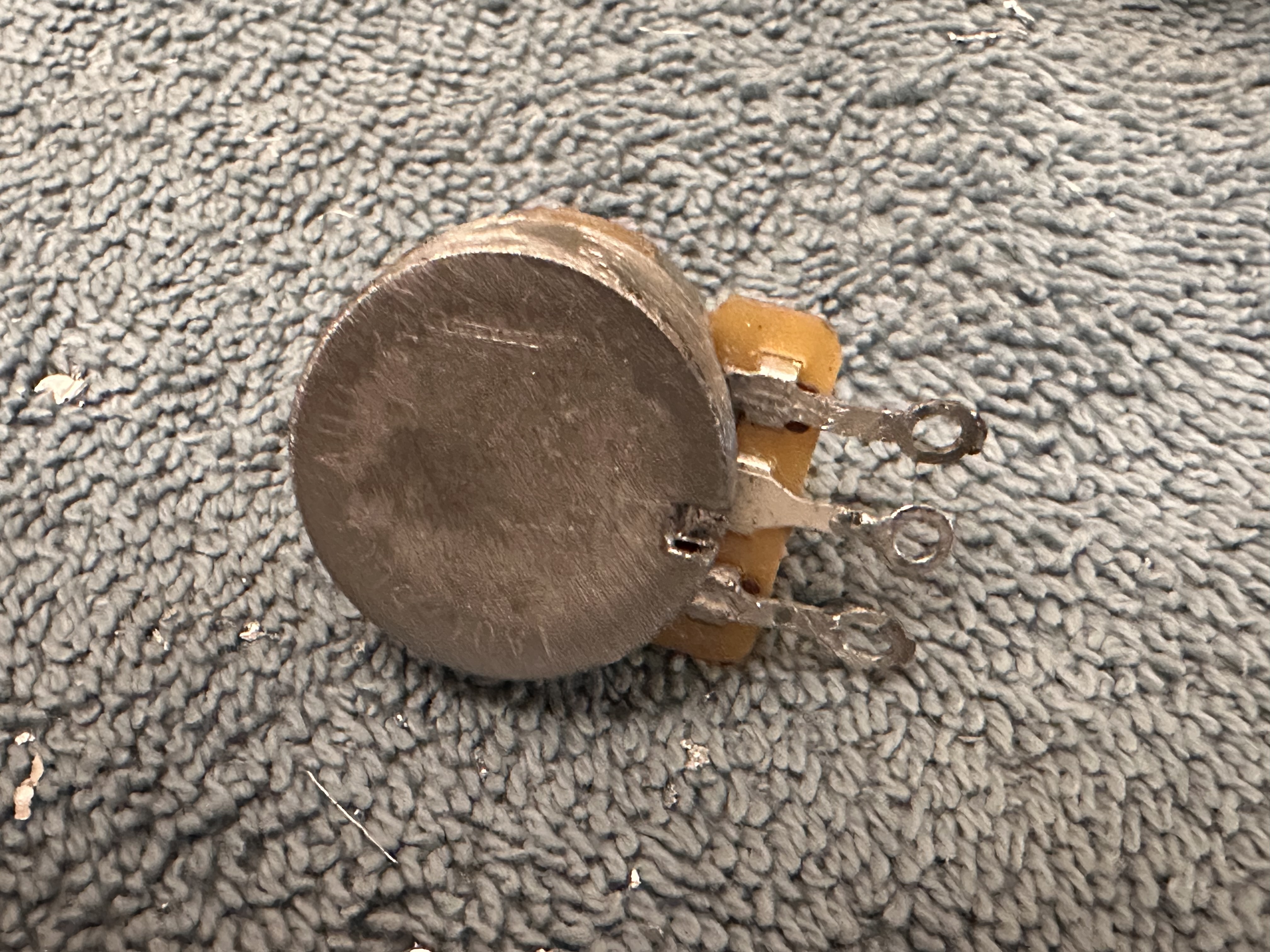

If you overheat a pot you can fry the wiper ive done it.
If the pot has "deoxit" or similar inside and you heat it that can fry it too.
If the pot has "deoxit" or similar inside and you heat it that can fry it too.
JackBootedThug
MURDERATOR
Moderator
Pot is working. Continuity is good on everything. I found the Roxy wasn’t reading and fixed that. Check it out tomorrow.
BeZo
Well-known member

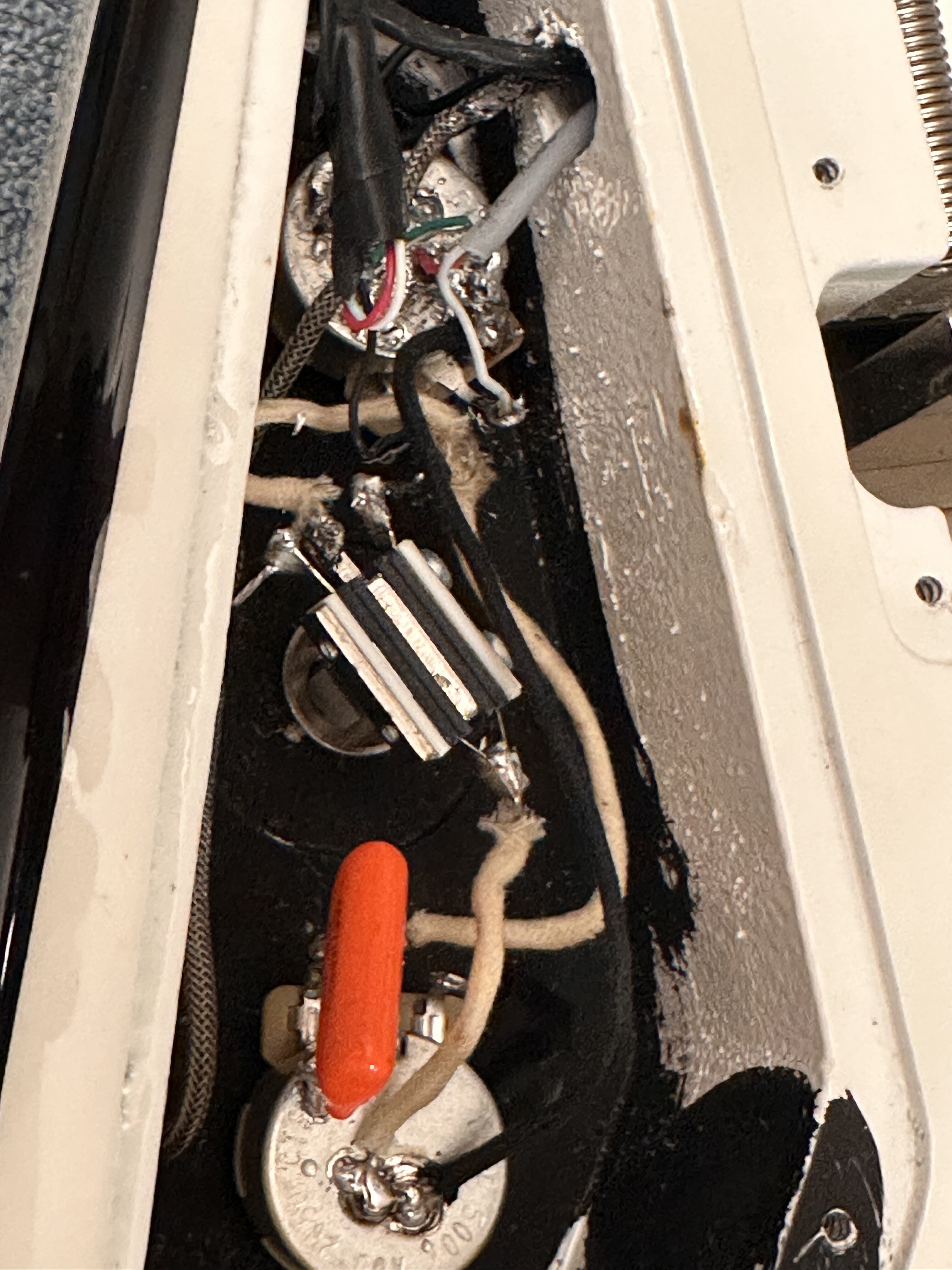

I literally just fixed this on a Les Paul. Someone put a Bill Lawrence in the bridge and a DiMarzio in the neck with a drop in LP wiring harness and messed it up. It ended up in my lap. The exact same problem.
The two tabs that come together are the output. The solid base in the middle is the ground.
The hot from the switch is going to ground on the tone pot. The ground from the switch is going to your volume pot. You have the switch backwards. This one is easy. The LP I just did had no slack, and I had to put a jumper on the grounds to reverse the switch,and I had to do it in that little round hole.
The two tabs that come together are the output. The solid base in the middle is the ground.
BeZo
Well-known member

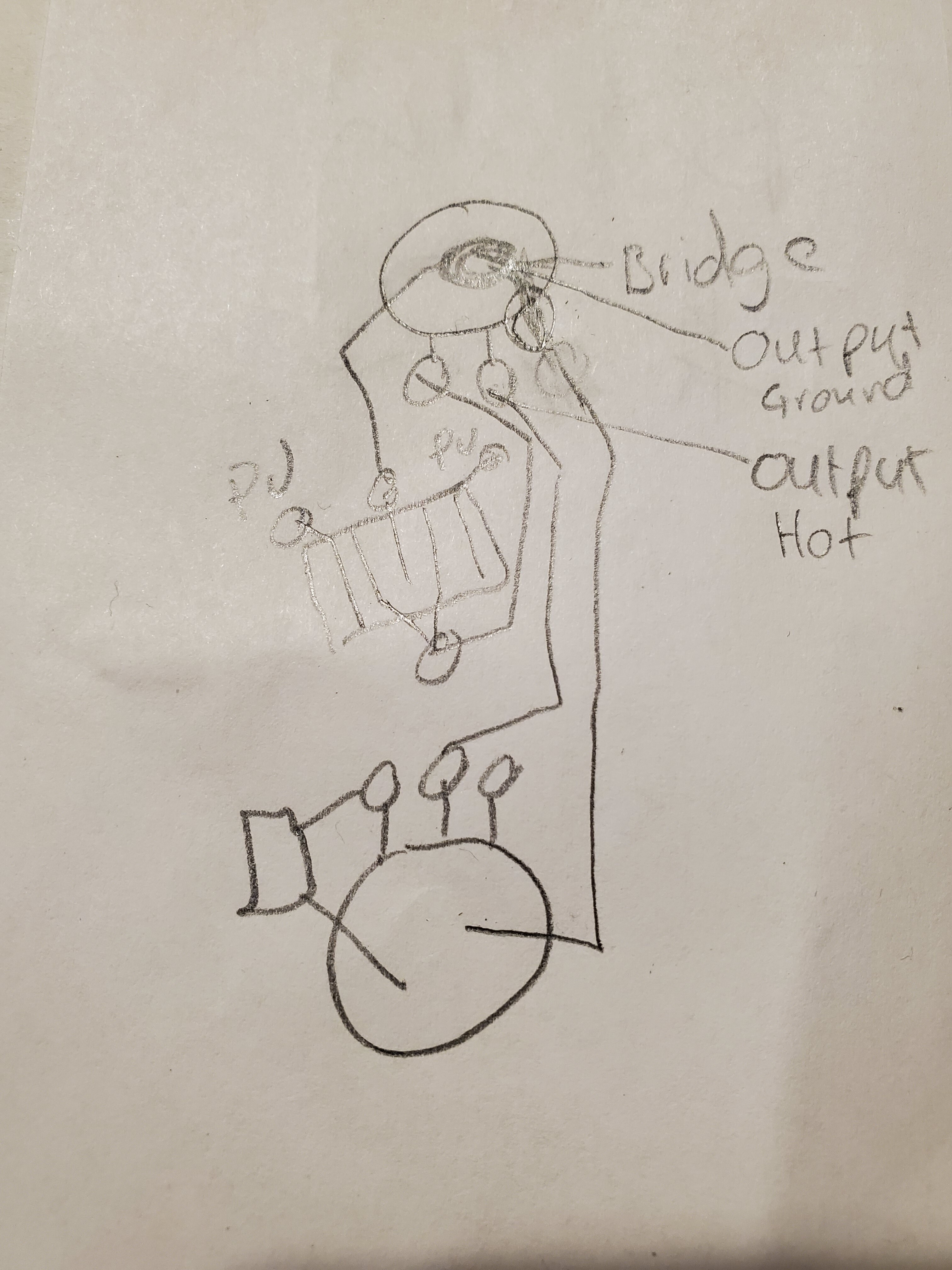

Here is what it should be. I drew it out.
JackBootedThug
MURDERATOR
Moderator
Thanks bezo! You the man!!! If I understand correctly I will switch them tomorrow….
BeZo
Well-known member
I see where the mistake was made with that switch. It's not your fault. You followed the diagram properly, and it should have worked. That switch is just goofy. Normally the switch has a hot side with the tabs in a "W" shape, and a ground on the other side. That switch has the ground in between the inputs for the leads, and the outputs come together isolated on the other side. I only figured it out by looking at the switch itself in the photo, basically locating where the tabs come out to figure out what is what. It's really the switch's fault.
JackBootedThug
MURDERATOR
Moderator
You were correct dude! That was the problem!
JackBootedThug
MURDERATOR
Moderator
Good output but I have a ground issue now.
BeZo
Well-known member
Glad you got it running.
It's just weird that when you posted it I was in the middle of fixing the exact same issue. On that LP though, it's a regular switch with all the hots on one side, and they just put the grounds to the hot and the hot to the ground. I'm not proud of the jumper wire that I put in there, but it matched the wiring harness and solved the problem. It's just poorly soldered together given the conditions. But really what are the odds that we were both dealing with the same problem at the same time? Wild.
